Peugeot 2008 — Trunk Bag Hook

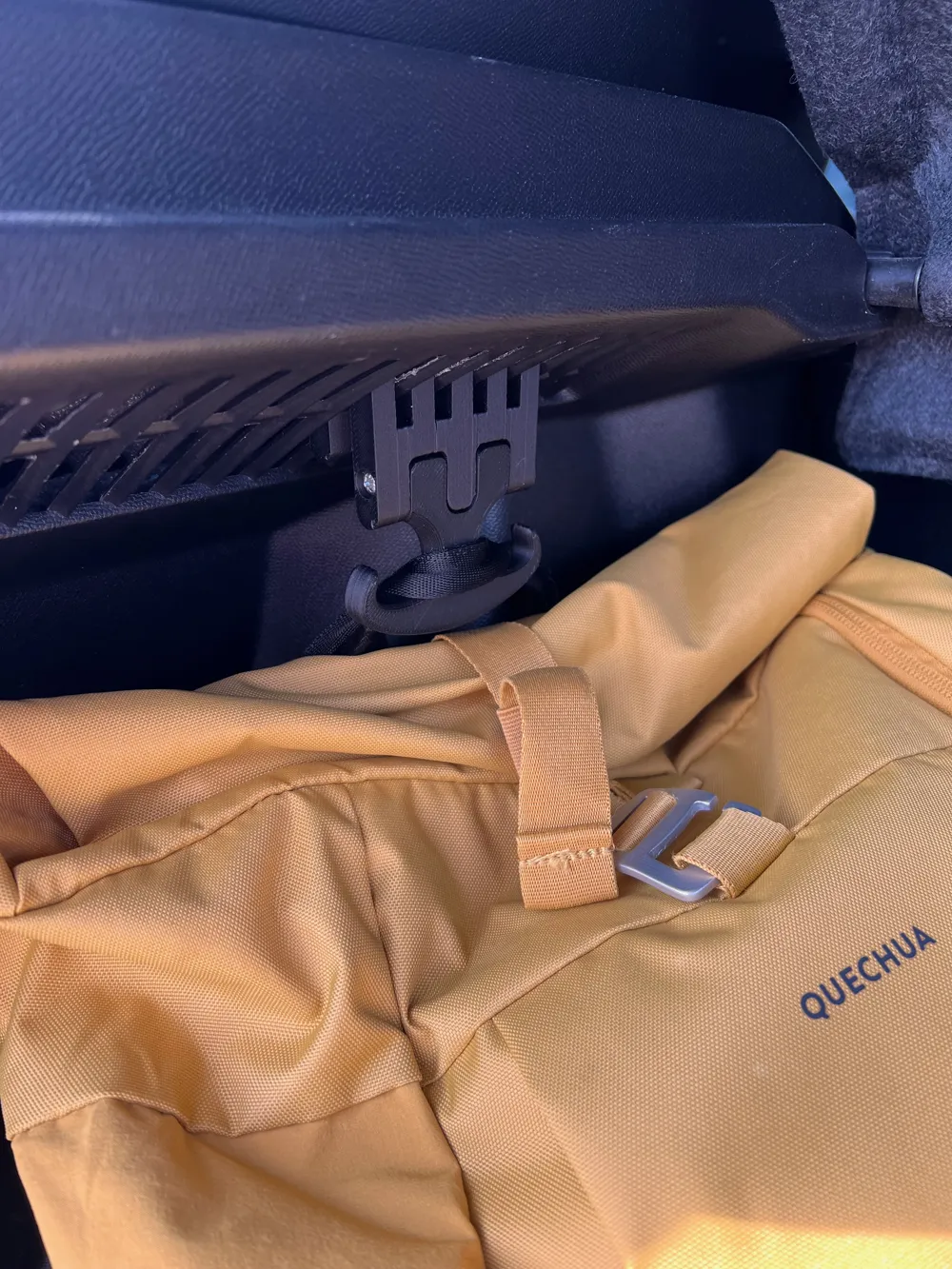

This is a custom-designed hook for Peugeot 2008 trunks, made to securely hold shopping bags and prevent them from tipping over during transport.
The hook is especially useful for vehicles that do not have built-in mounting points or screw holes in the trunk area.

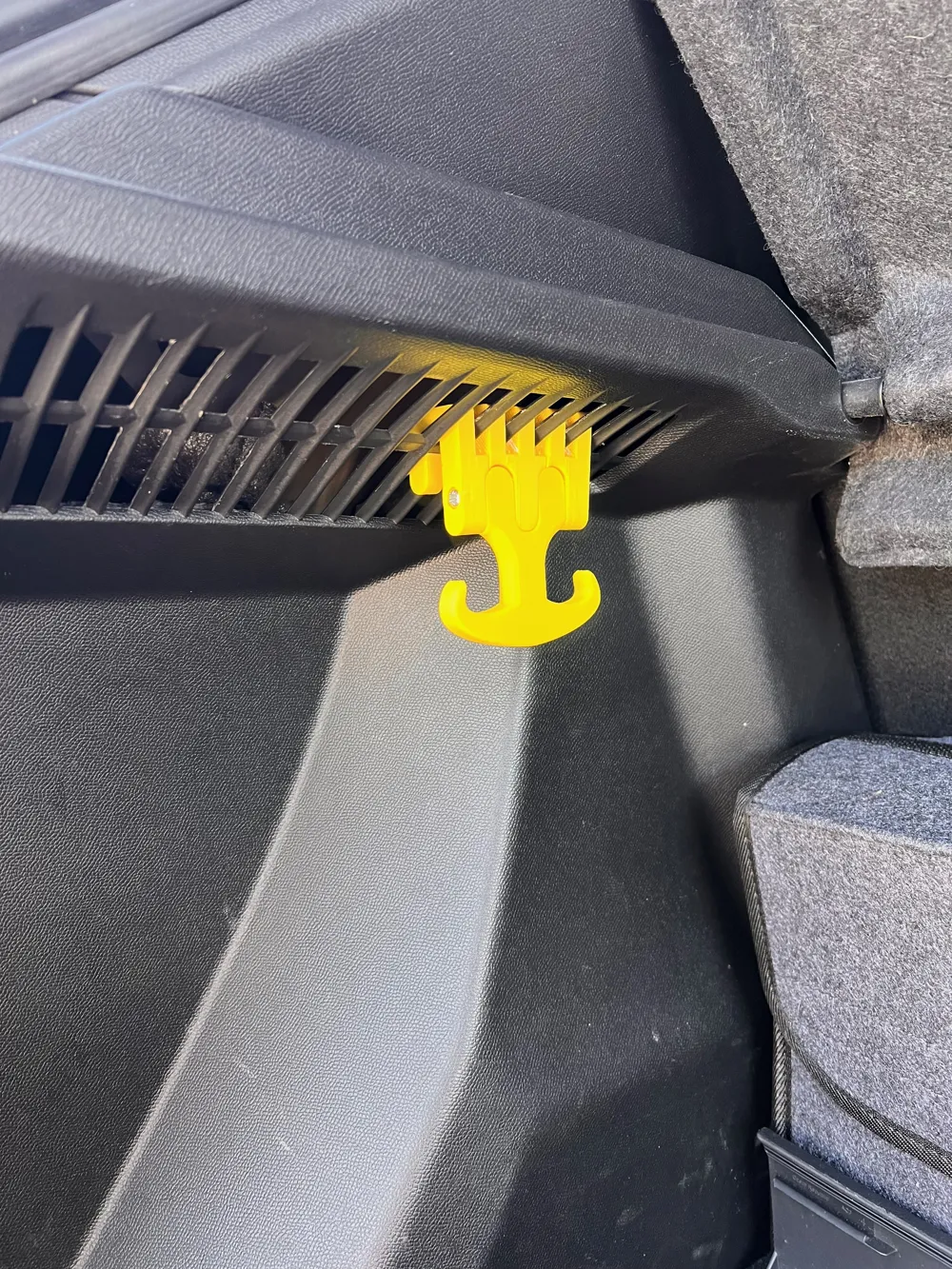

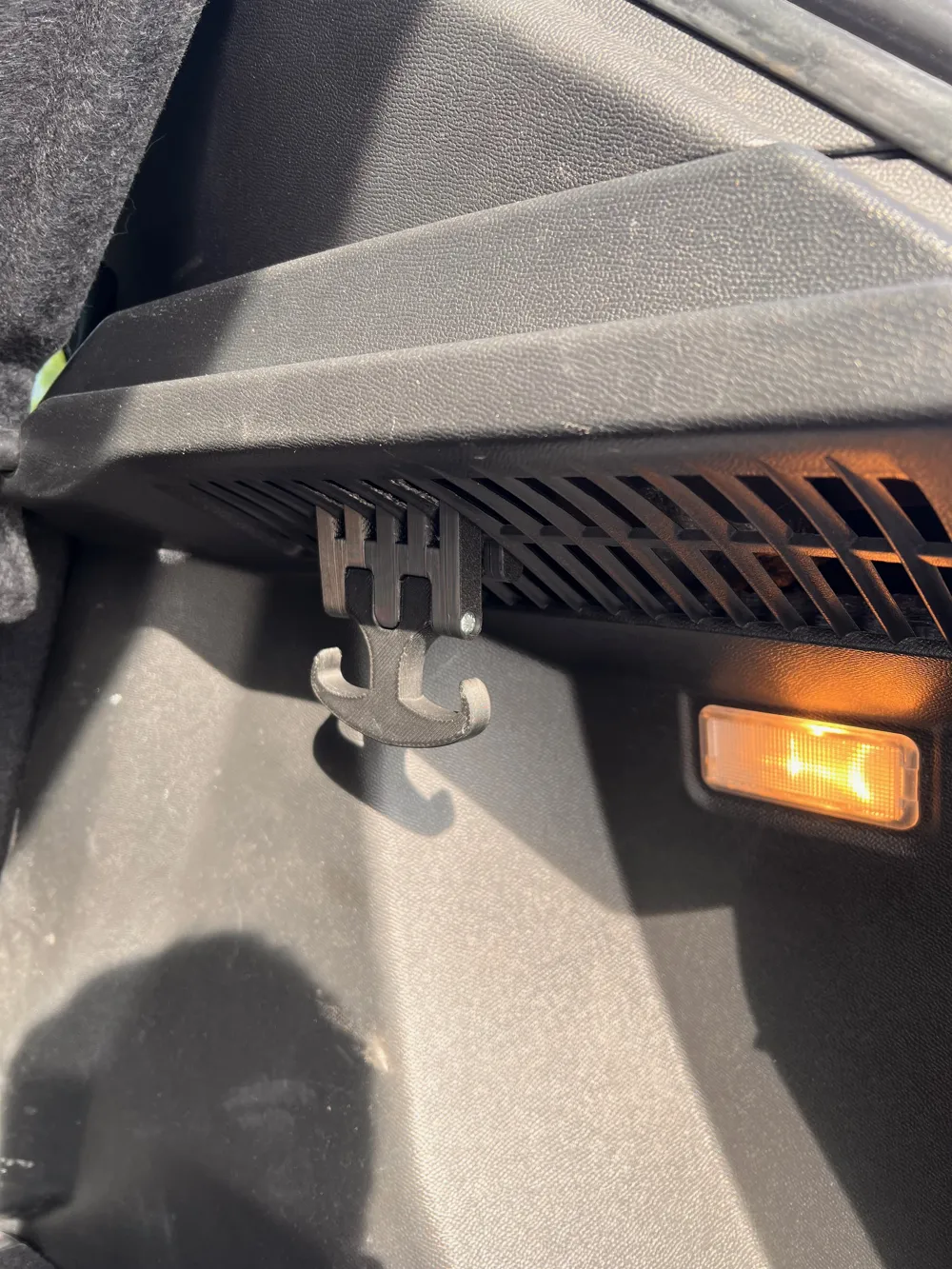

🔧 Designed to hook into the ventilation slots in the trunk.

🔩 Assembly:

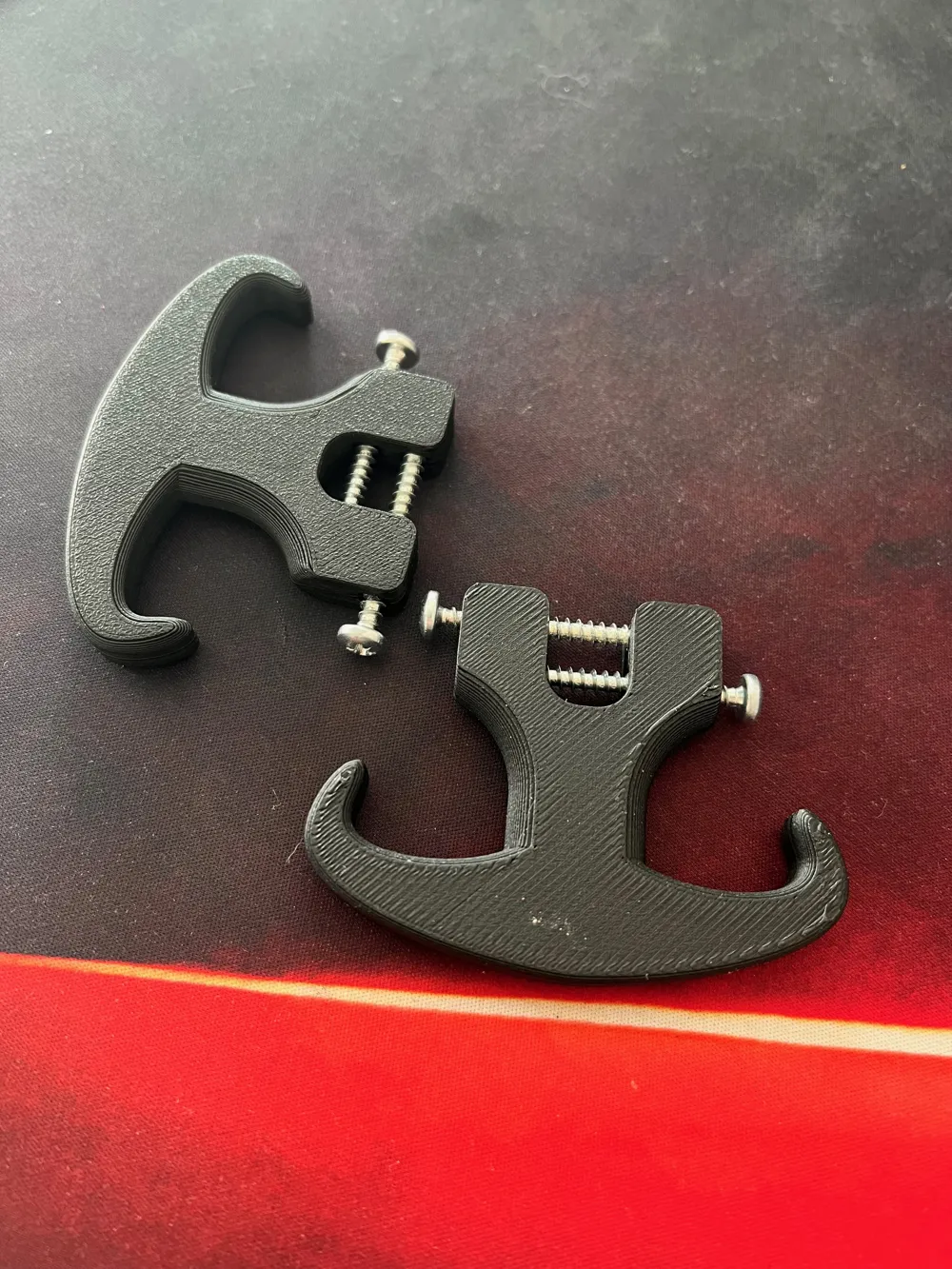

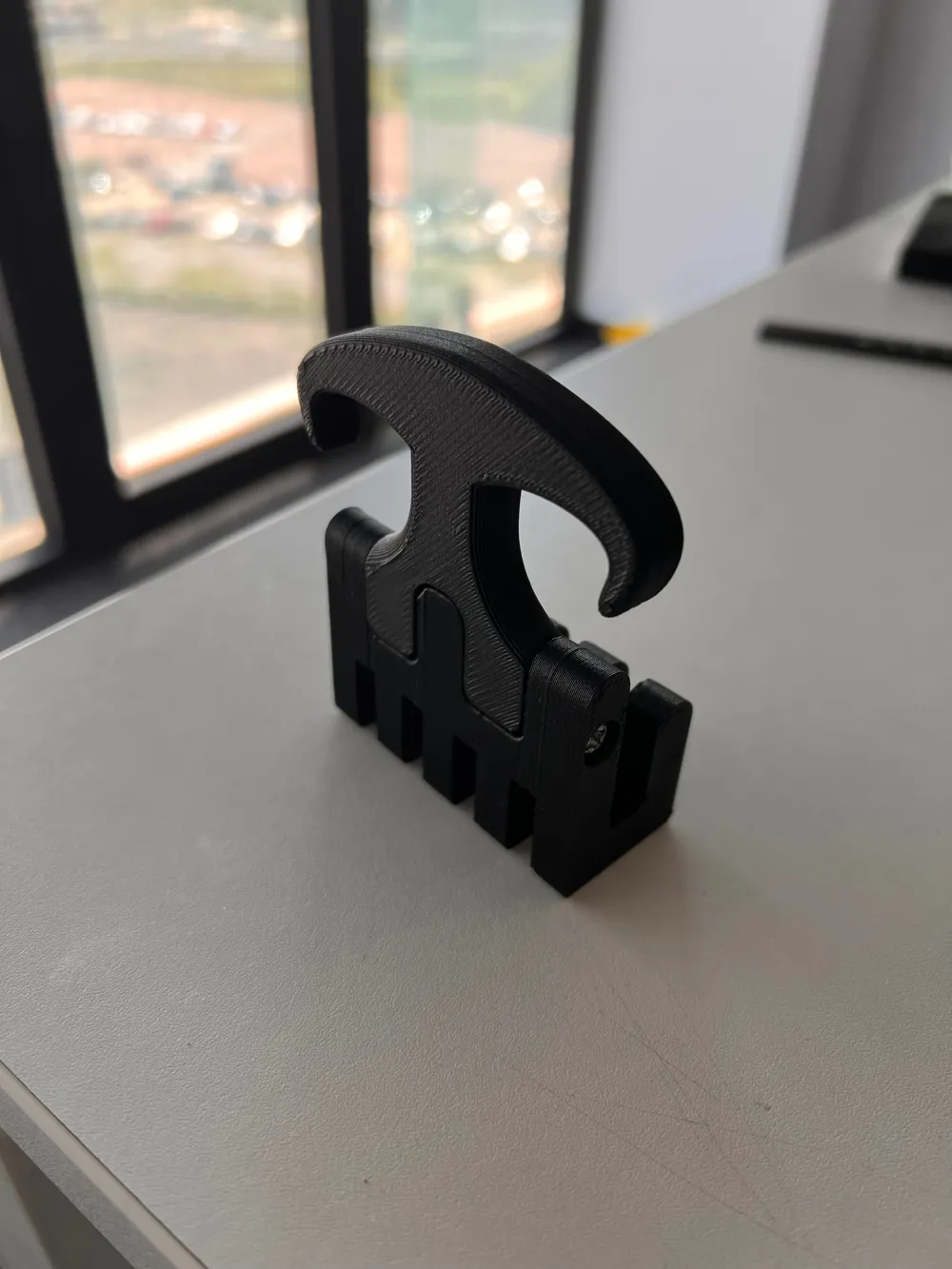

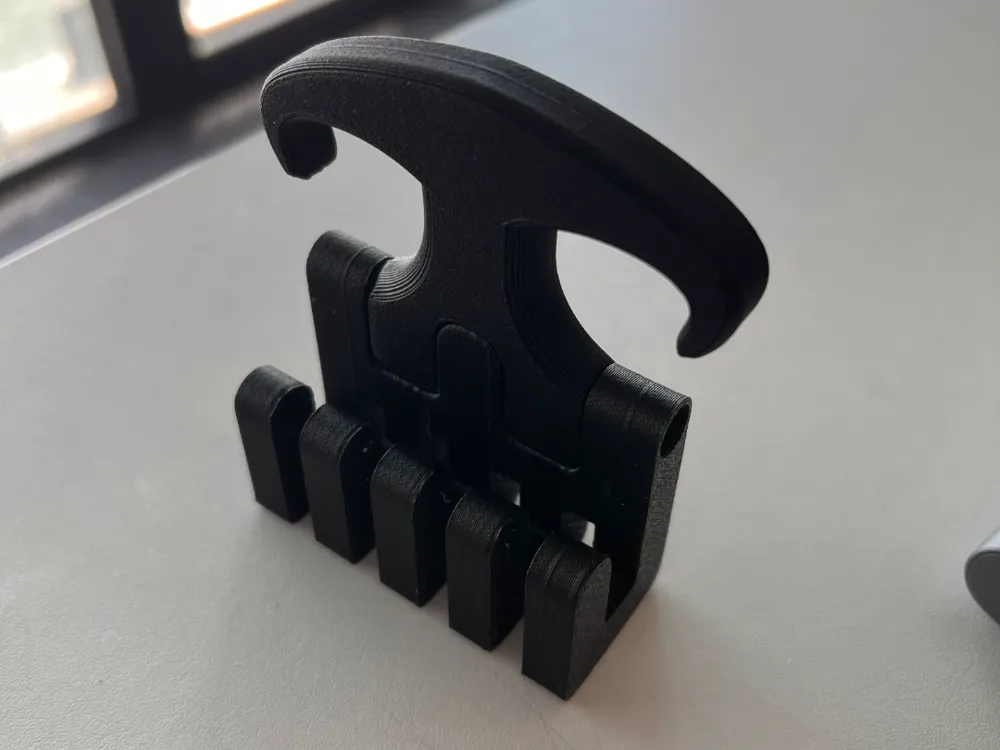

The model consists of two main parts:

• The hook piece
• The vent mount base

These parts should be printed in different orientations (see below) and assembled using:

• 4 mm diameter × ~40 mm long screws
  OR
• M4 × 40 mm bolts (should fit perfectly).

🖨️ Printing Recommendations:

• Do not reorient the model!
  Each part is already positioned for maximum strength:
  • The hook is oriented for maximum load-bearing strength.
  • The vent mount base is oriented to provide strong lateral support for the hook.
• Supports: Required
• Material: Use different type plastic for support, to avoid crash model while removing supports

⚠️ If the parts are printed in different orientations, the hook may become weak and prone to layer separation.
