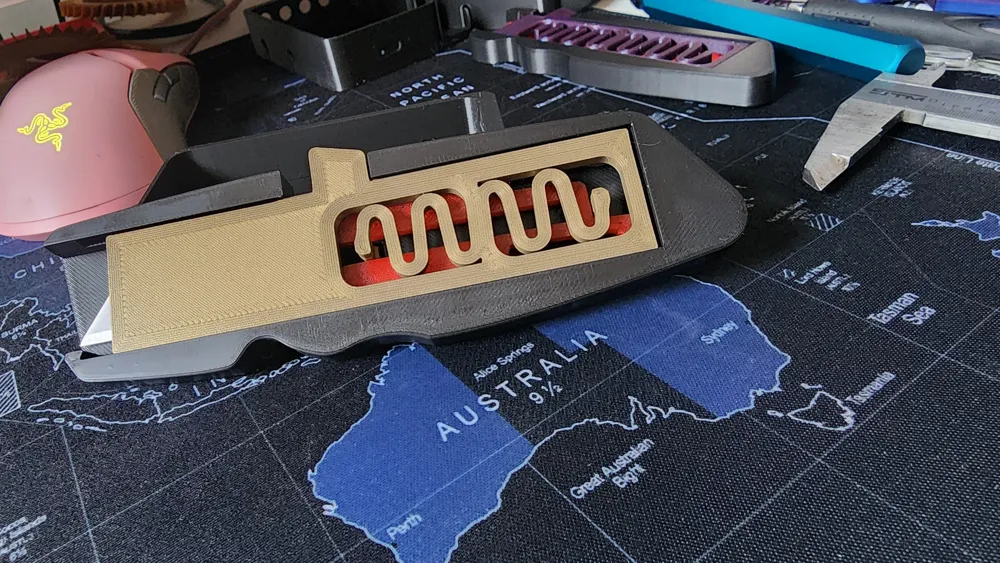

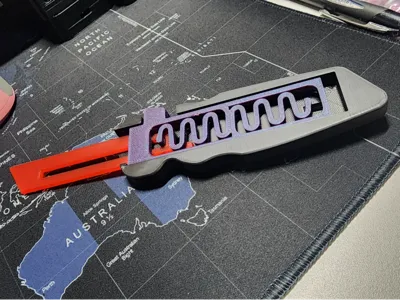

This is a remix based off my remix of the OG OTF Knife/Toy

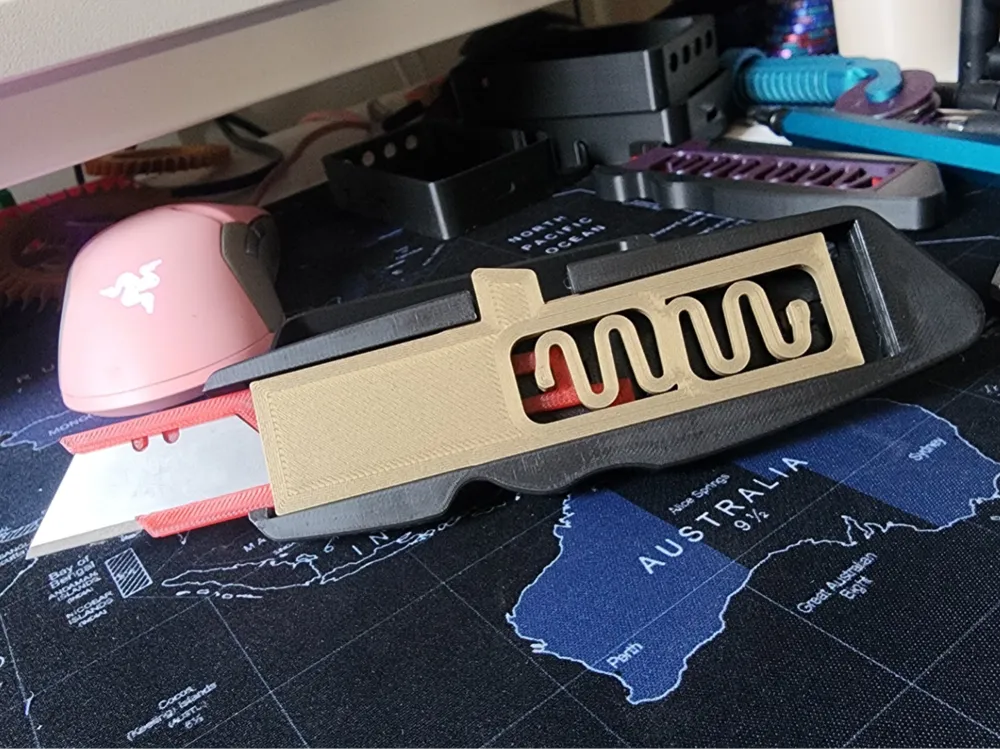

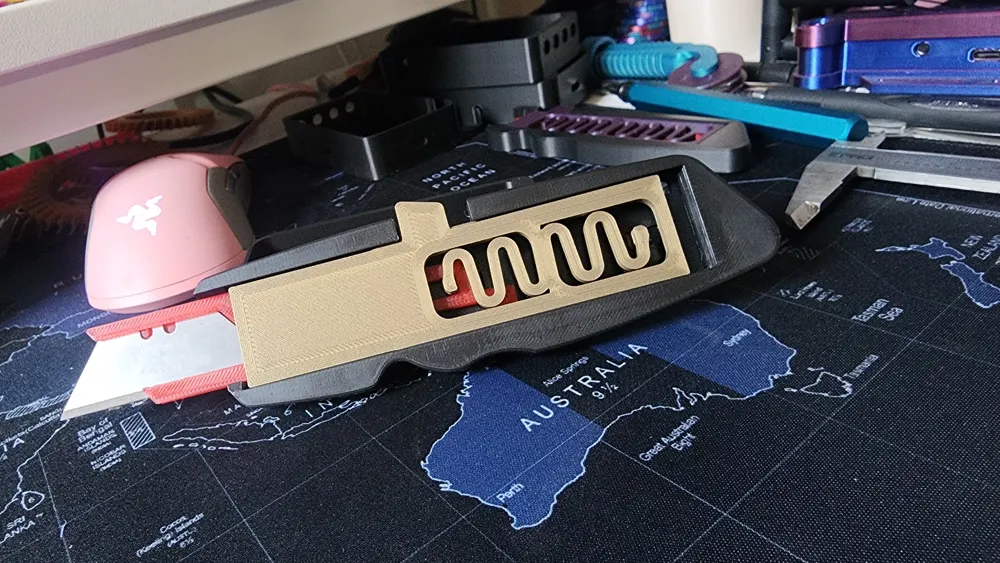

The 'blade was modified to hold a generic stanley blade with a small press clip at the top, the latching hooks were also adjusted.

The spring slide was modified extensively to re locate the spring to allow for the blade, but also mostly cover it.

The handle was modified to suit measurements of the new blade and slide.





Tips For Assembly:

Sit the blade in the ALMOST locked position

Sit the top section of the side in first (the side with the push lever)

Ensure the spring ends are located correctly.

Press the lower side of the slide in the middle and it will slip into the lower groove.



BEWARE THIS IS A SHARP TOOL AND MAY CUT YOU, I AM NOT RESPONSIBLE FOR WHAT YOU DO WITH THIS TOOL, ANY INJURIES ARE YOUR RESPONSIBILITY.
