Description

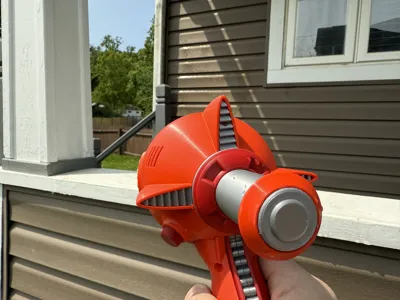

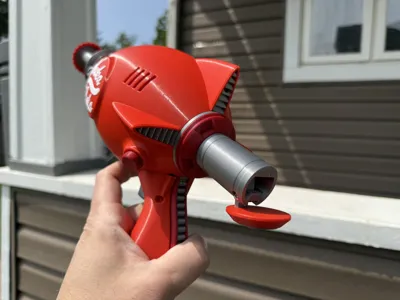

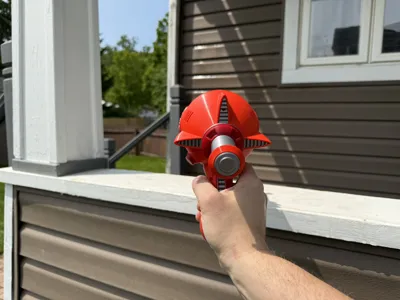

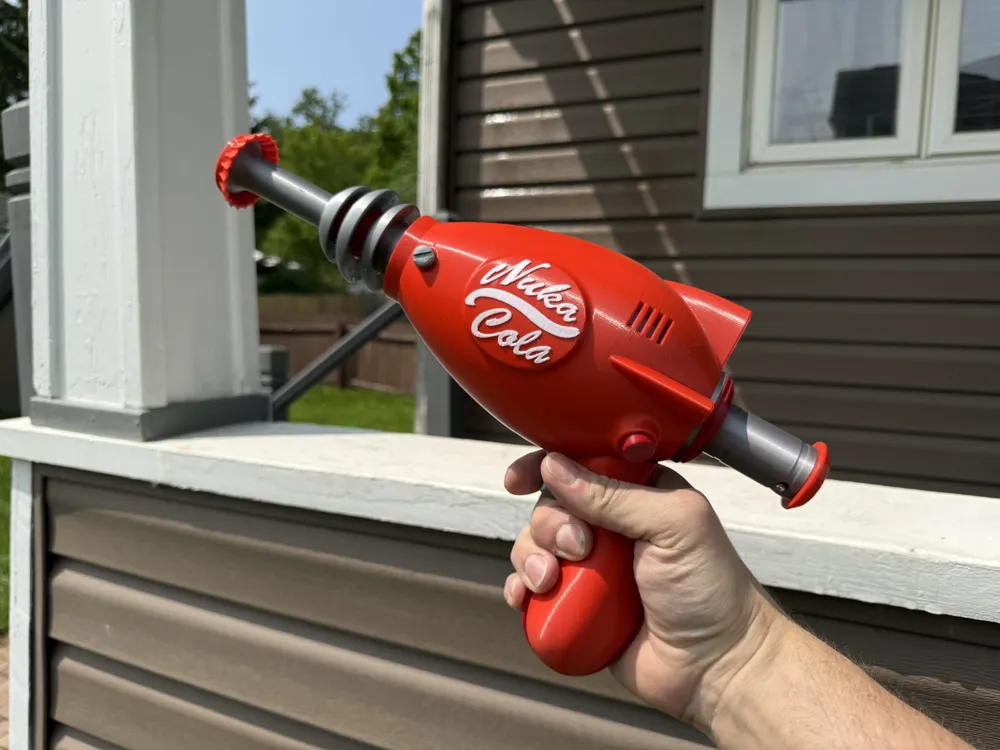

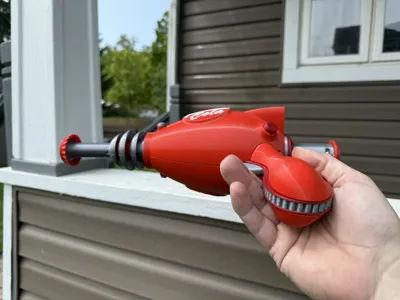

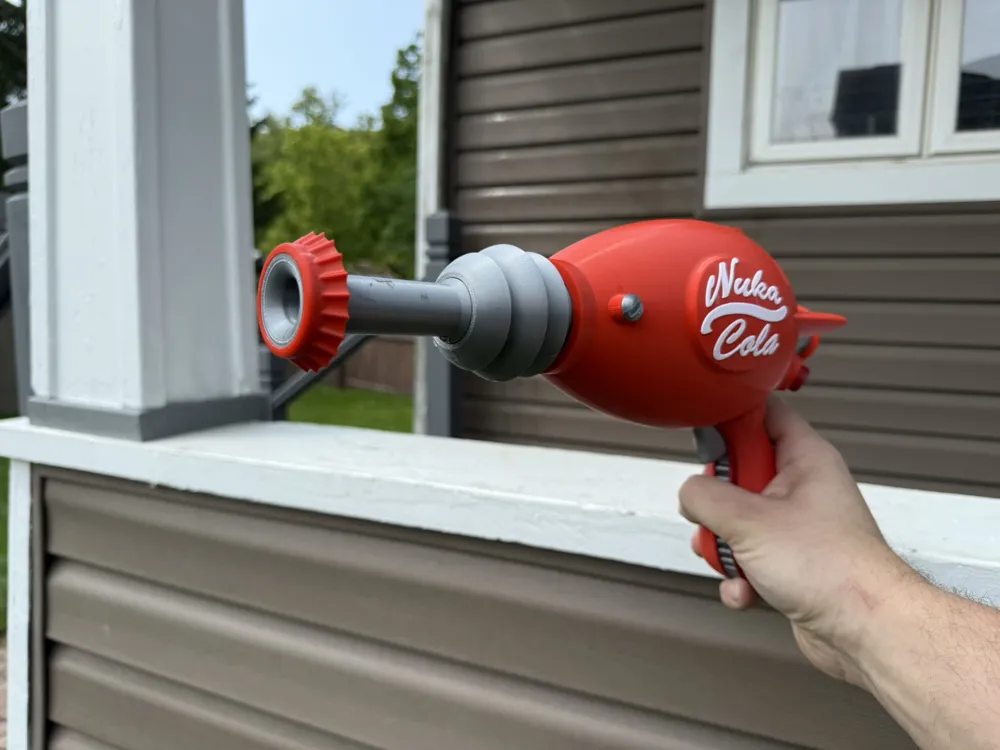

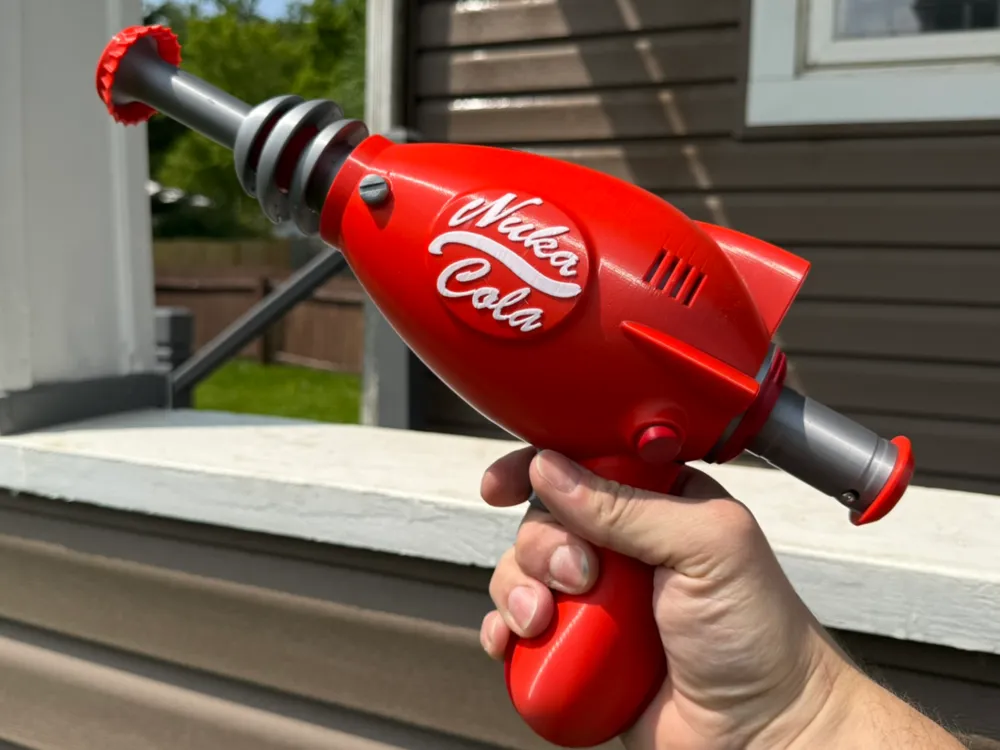

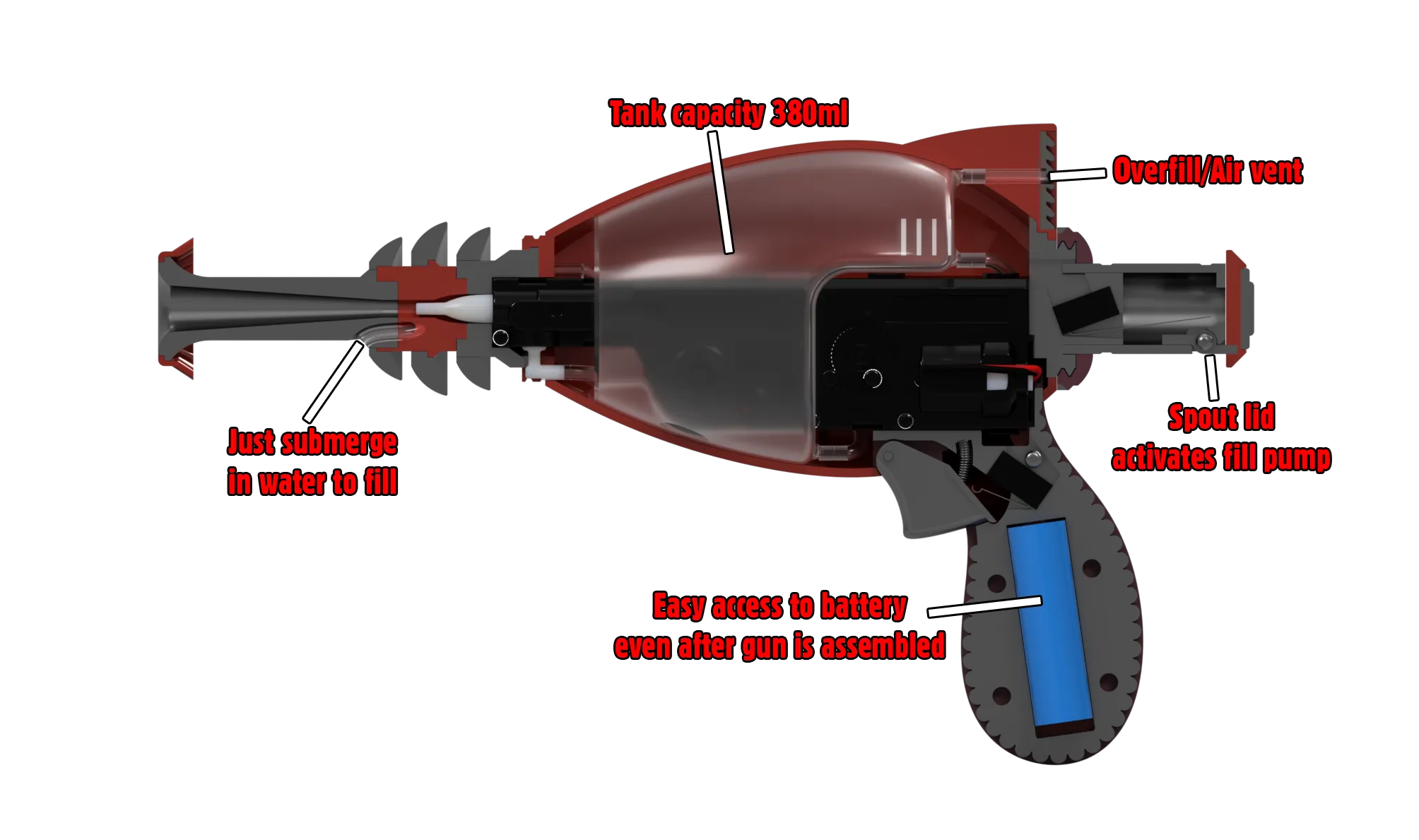

My versions of a working Thirst Zapper from Fallout 4 and 76. I used the Electric Water Spray Kit 01 - ZC004 kit as the base for this model and sized the rest of it around it. It is almost 100% accurate to the in game model with a few adjustments done to fit components and to allow easier assembly (for example the barrel is slightly longer and the grip is wider for the battery).
Parts list
- 1x Electric Water Spray Kit 01 - ZC004
- 1x 3x5mm Transparent Silicone Tube 2m (Tubing for filling water tank and supplying water to the gun)
- 1x 3x25mm Stainless Steel Dowel Pin (Trigger rotation pin)
- 1x 0.5x5x25mm Helical Compression Spring (Trigger spring for tension/recoil)
- 2x M3x8 BHCS Machine Screw (To hold grip covers)
- 1x M3x16 BHCS Machine Screw (Rear spout lid hinge)
- 1x M3 Steel Hex Nut (Rear spout lid hinge)
- Super glue (CA)
Helpful materials
- Electrical tape for securing wires out of way of closing parts
- Scissors for tape and tubing
- Nuka Cola or water if can not be found
- Targets
Documentation (1)
Assembly Guide (1)
Thirst Zapper Assembly Guide.pdf
