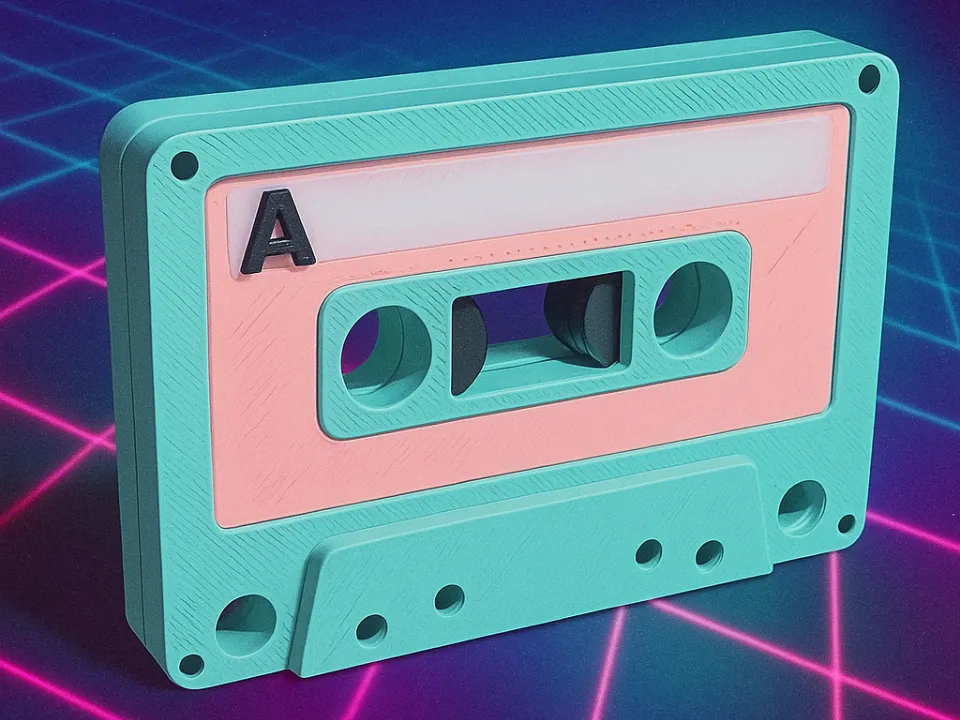

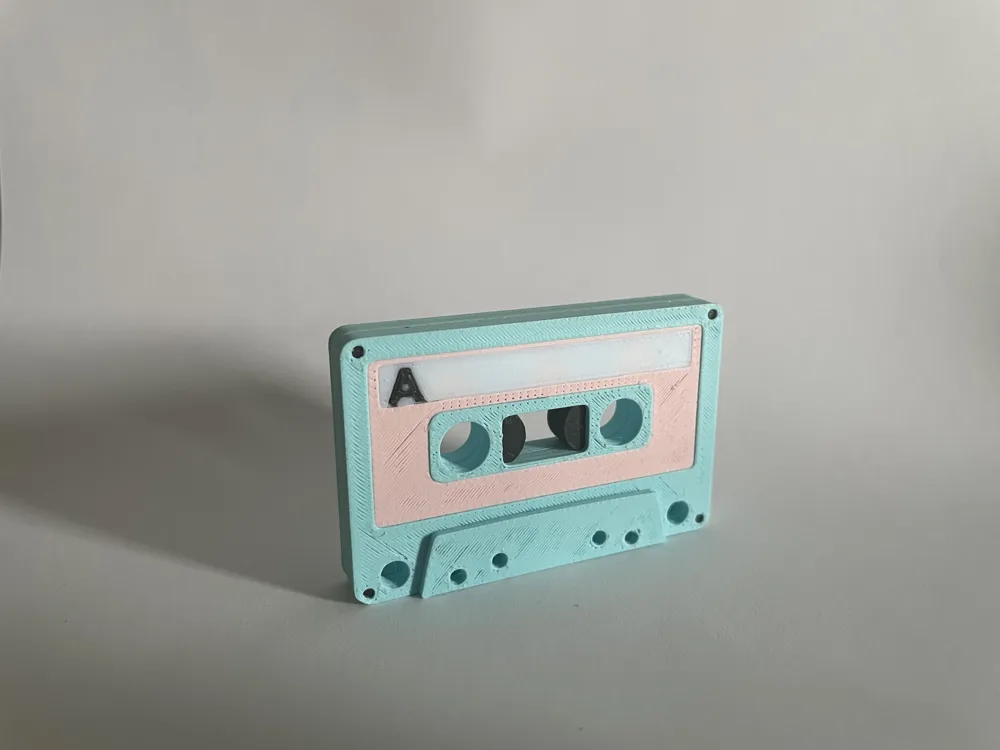

A nostalgic fidget slider designed after the iconic audio cassettes of the 80s and 90s.
Made in two pieces, it uses 6x2 mm magnets to create a smooth and satisfying mechanism: each slide generates slight magnetic resistance, making it perfect as a pocket or desk fidget.

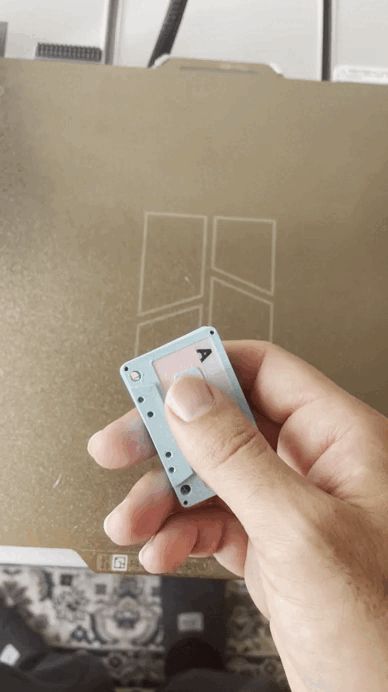

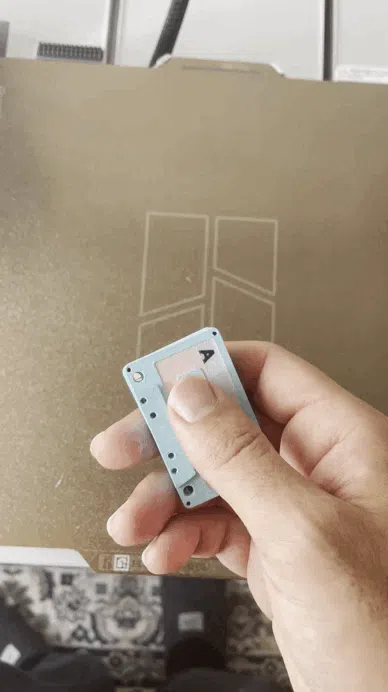

The slider moves back and forth thanks to the magnet arrangement, offering a pleasant tactile and sound experience.
Boost Me (for free)
If you like the project, leave me a BOOST, this will help me continue designing other models
⸻
Model contents

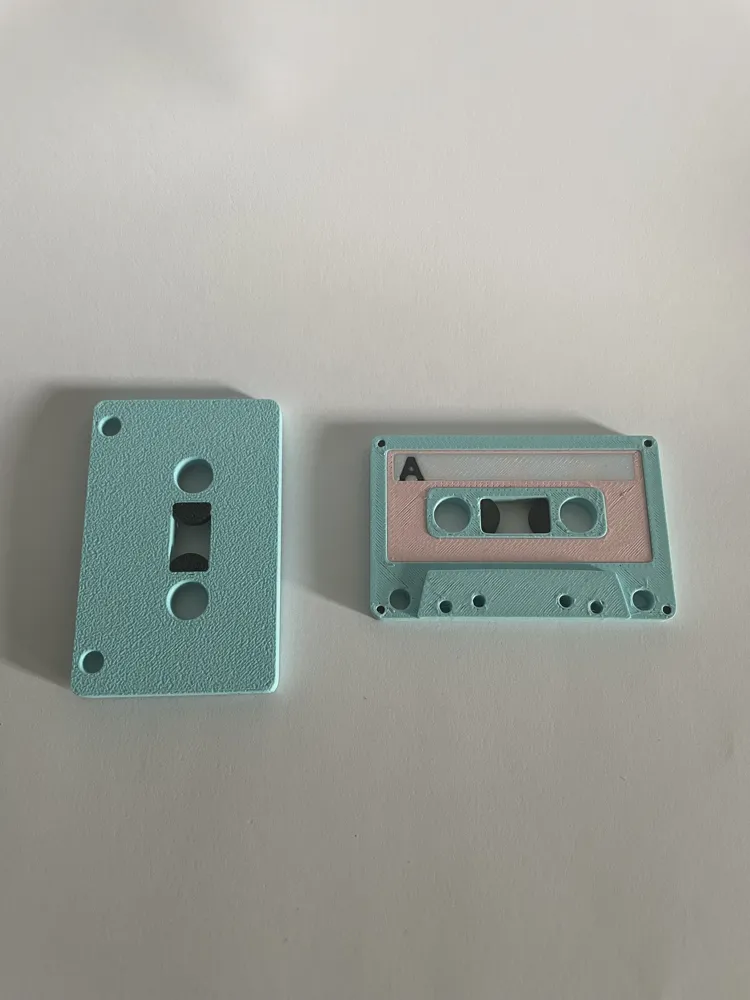

• 2 separately printable pieces
• Integrated slots for 6 magnets, 6 mm in diameter and 2 mm thick for each piece (12 in total)
• Compatible with multicolor printing via AMS
⸻
Printing tips
• Material: PLA or PETG (PETG recommended for greater durability)
• Layer height: 0.2 mm
• Infill: 20–30%
• Supports: Not necessary
• Orientation: print both pieces flat on the bed for maximum precision of the magnetic seats
• Smooth bed recommended, but textured bed also offers excellent smoothness
⸻
Assembly
• Insert 6 6x2 mm magnets into each piece with a pause at level 14
• Make sure the magnetic poles are oriented correctly to obtain the desired attractive/sliding effect
• No need to glue them if the fit is tight, otherwise you can use a drop of cyanoacrylate glue
