Robot M02 & Armed Pack

Hi, everyone! I'm glad to introduce the latest robot design Robot M02 to you.

It retains the basic body structure of Robot M, so I classify it into the M series. I have redesigned the head to make it more interesting, and added some assembled movable parts. You can print these parts in different colors to change the color scheme of the robot. Of course, if you use AMS, you can personalize the color scheme more flexibly.

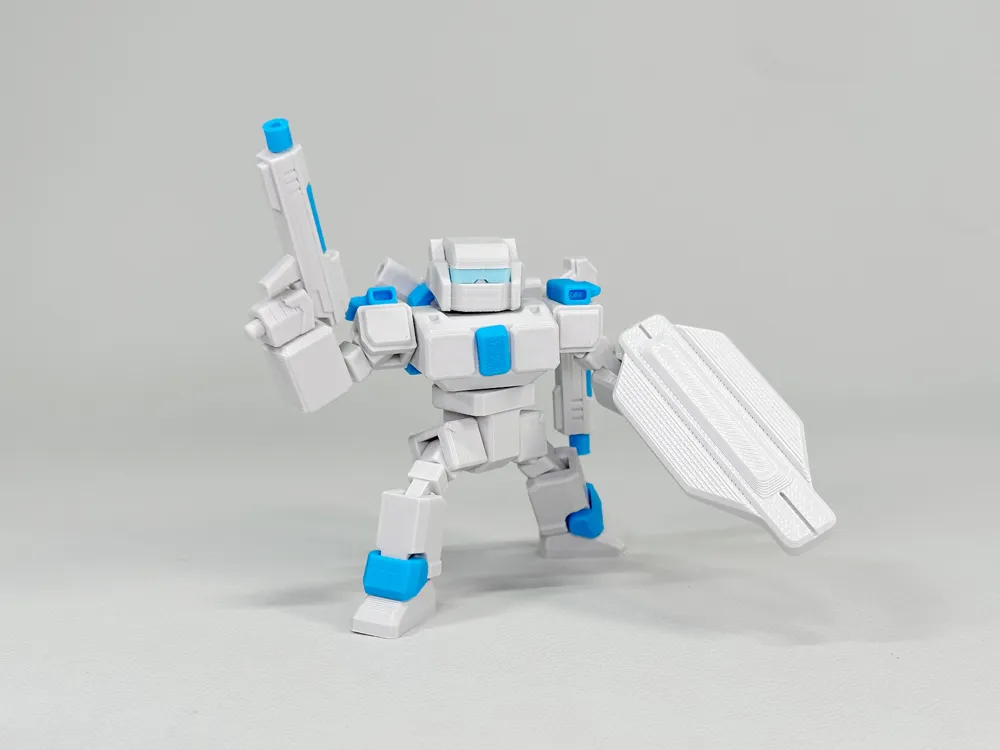

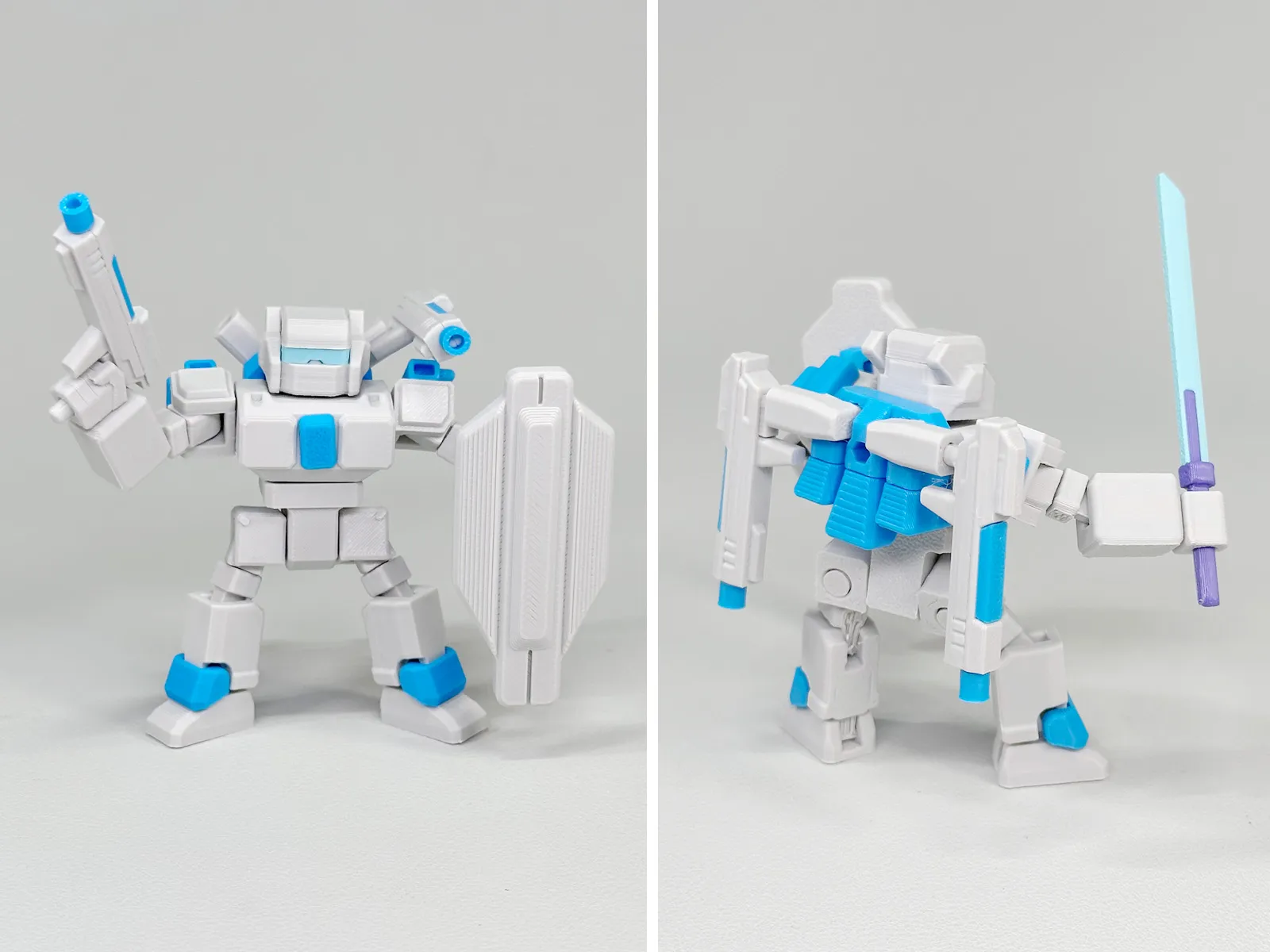

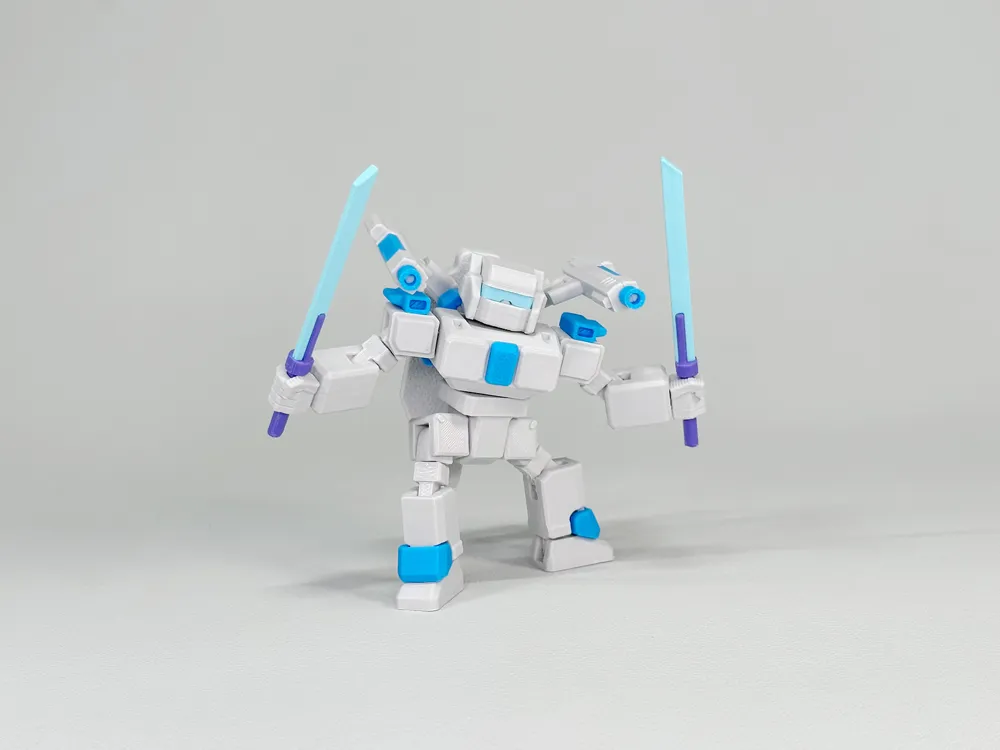

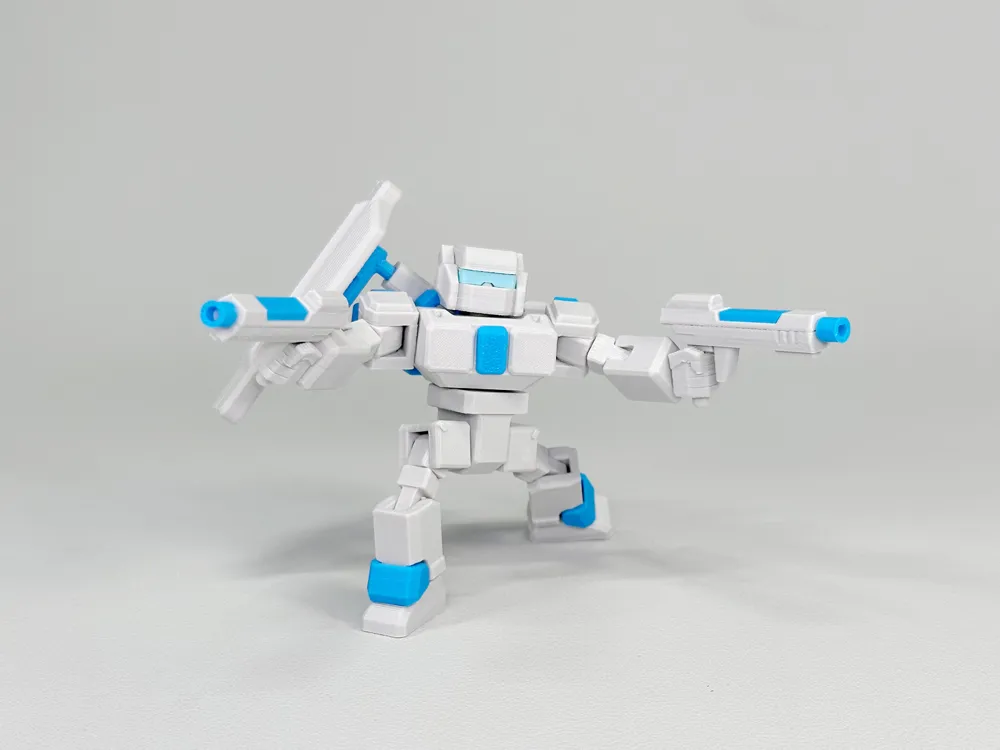

This time I have designed more mounting port on the robot and introduced new weapon kits Armed Pack, which can be displayed in multiple forms. I have included some parts that need to be assembled, but I still try to retain the print-in-place feature of the main body as much as possible. This is a new attempt, and if you have any suggestions, please feel free to leave a message.

It can use the weapon accessories of Robot M. If you need to print them, you can click [here] to find them. If you need to use the accessories of Robot C, you need to enlarge them to 150%.

Other robots here.

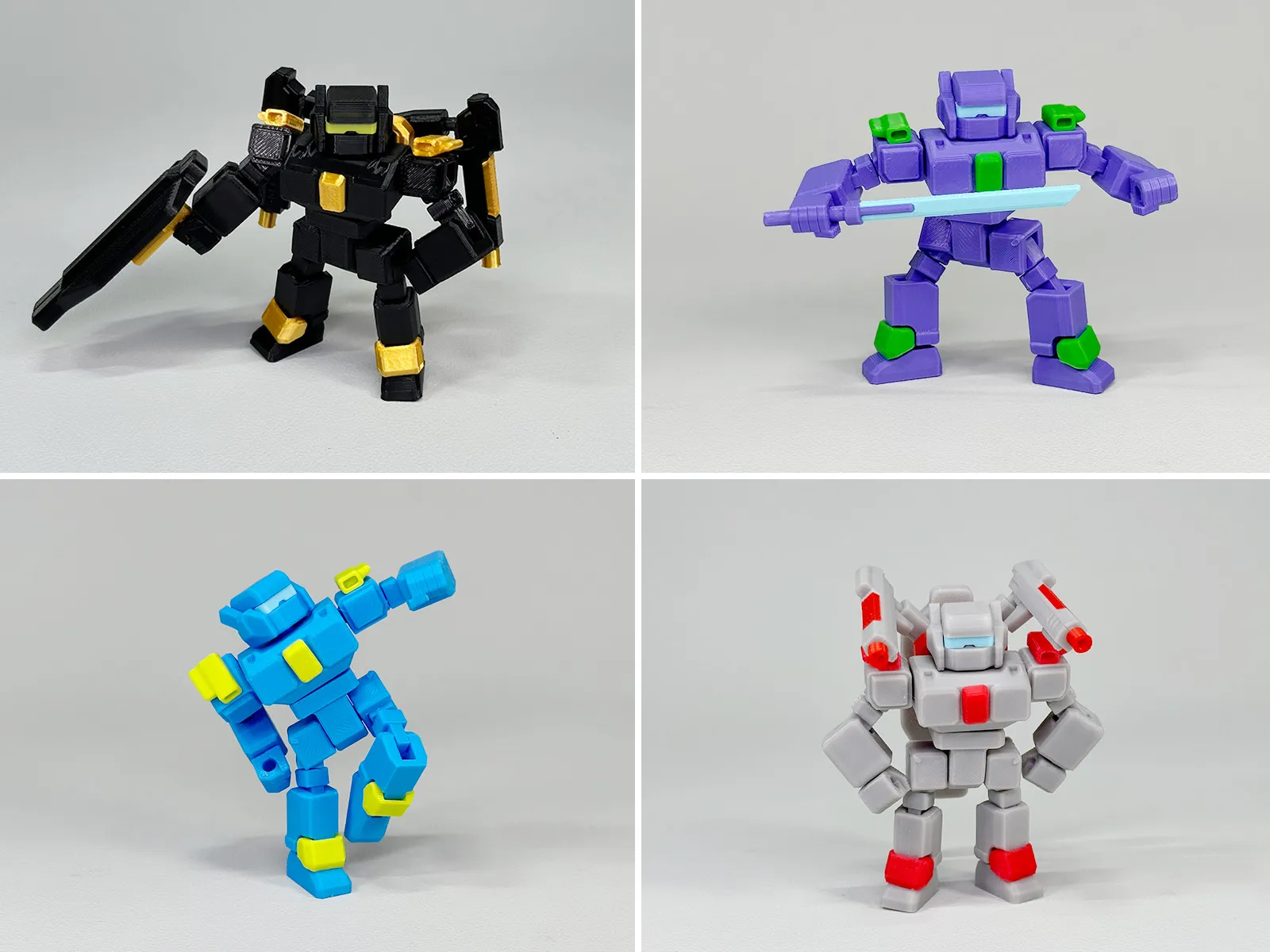

Here are some other color scheme references.

Robot M02 Assembly

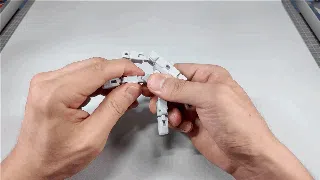

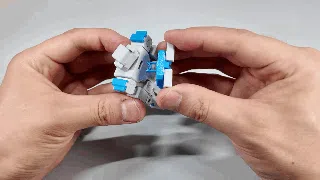

When move joints, you can refer to the methods shown in the gif to reduce potential damage.

Armed Pack Assembly

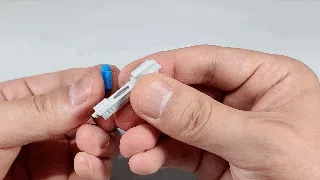

For installing the handle part, it is recommended to press it in with the help of a hard surface.

Printing Instructions

Except for the robot body, no support is required for printing other parts.

Ensure good heat dissipation during printing, otherwise adhesion issues may occur.

This design uses my A and P series machines with basic PLA filaments. Other machines and materials may require adjusting printing parameters.
