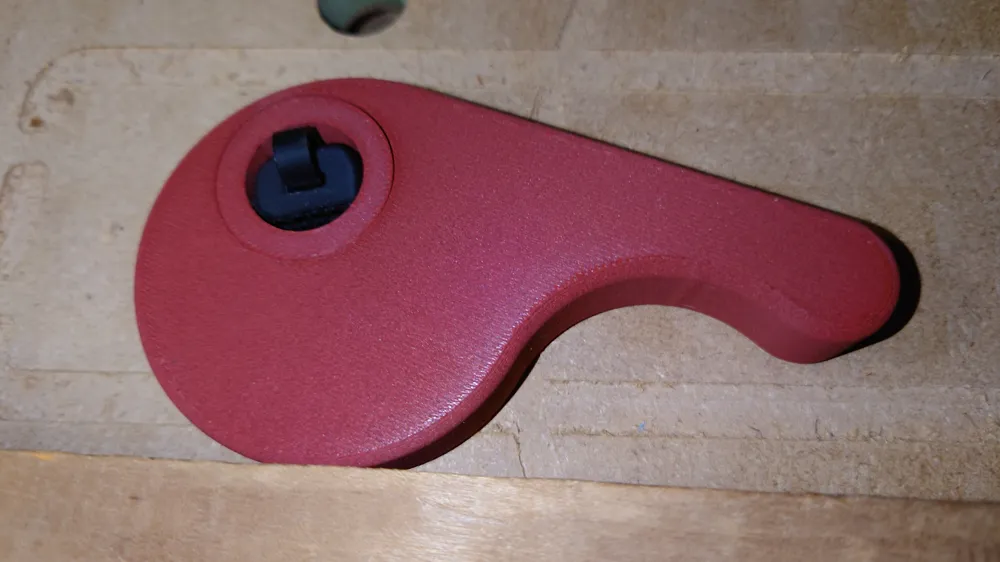

Eccentric CNC Clamp (print in place)
Print Profile(1)
Bill of Materials
Description
I needed a clamp to go with my other CNC clamp design. This one provides more clamping force, whereas the other is more something to clamp against. Eccentric clamps are a pretty common (and great, super simple) solution to this problem. However… just like with the other clamp, I did not want any metal in the machine - I don't like shrapnel!
This version of the eccentric clamp secures using a ¾ inch bench dog (such as these or these) so it could not be quicker or easier. Then it just pivots around a print-in-place axle. No assembly required!
