Adaptor Blocks to Mount Kadee Coupler to Aristo FA

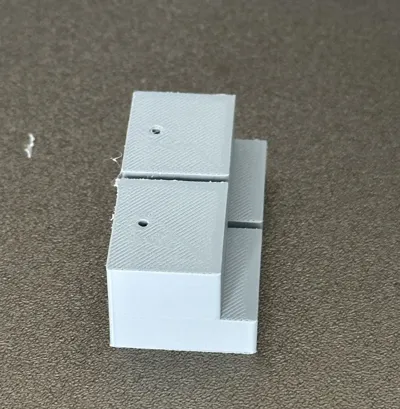

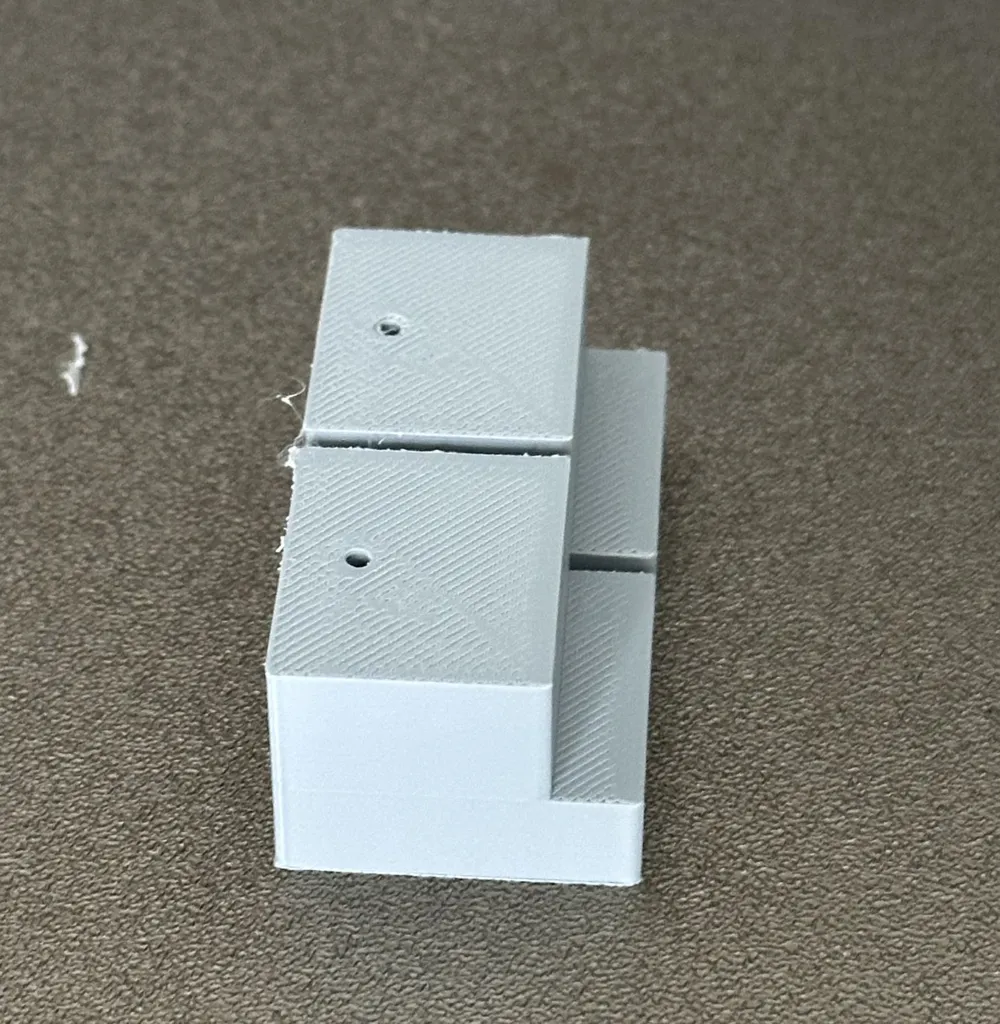

This is a G Gauge adaptor to Body Mount Kadee #907 G Scale Type E Centerset Couplers to Aristocraft Alco F units. These can be installed on the backend of the FA units, and both ends of the FB units.

Instructions:

1. Remove the Aristocraft coupler and swing mount. You will have to remove the car body from the frame first to access the Aristocraft coupler and swing mount screws.

2. Locate the place to mount the block to the underside of engine, and drill a hole through the frame using the mounting hole as a guide.

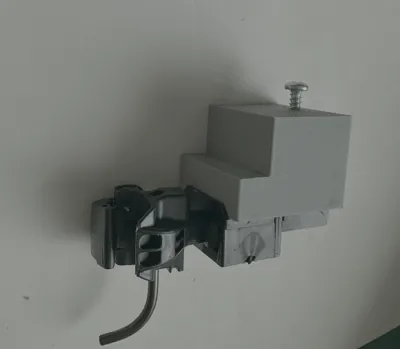

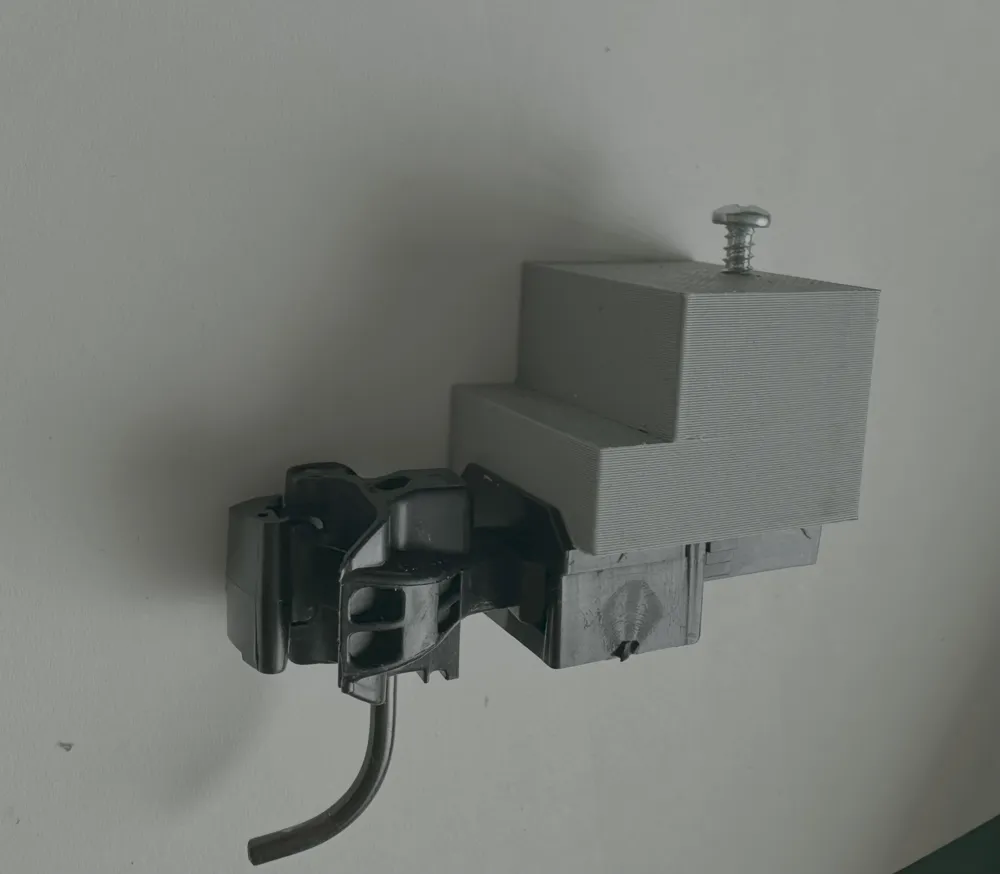

3. Screw the Kadee 907 to the bottom of the block with two sheet metal screws supplied by Kadee

4. Paint the block

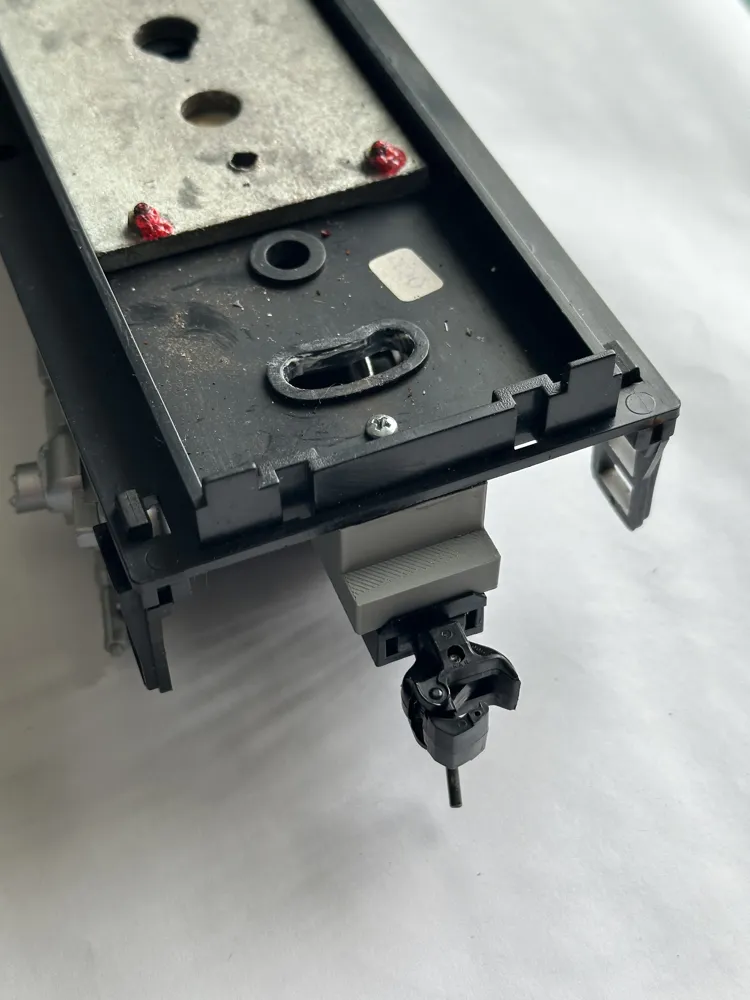

5. Mount the block to the frame with a screw through the frame hole previously drilled.

6. Check the height with a Kadee track gauge or a car with properly mounted couplers.  Shim if necessary.

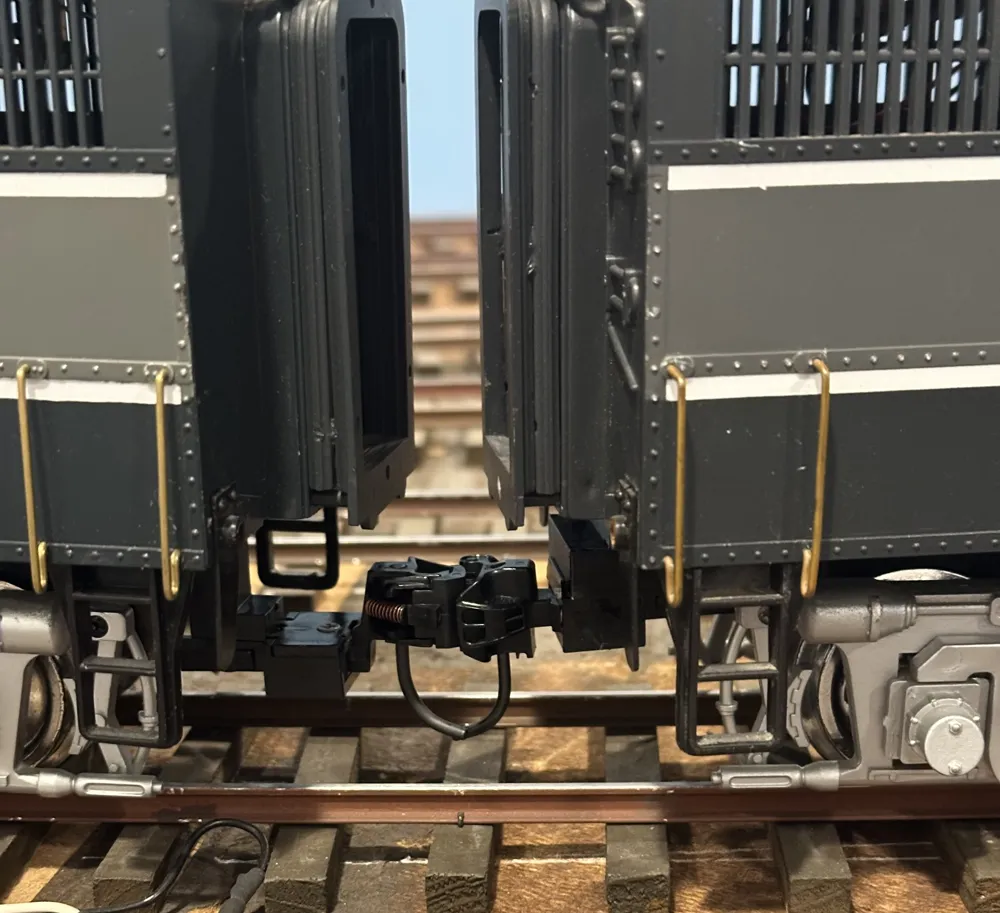

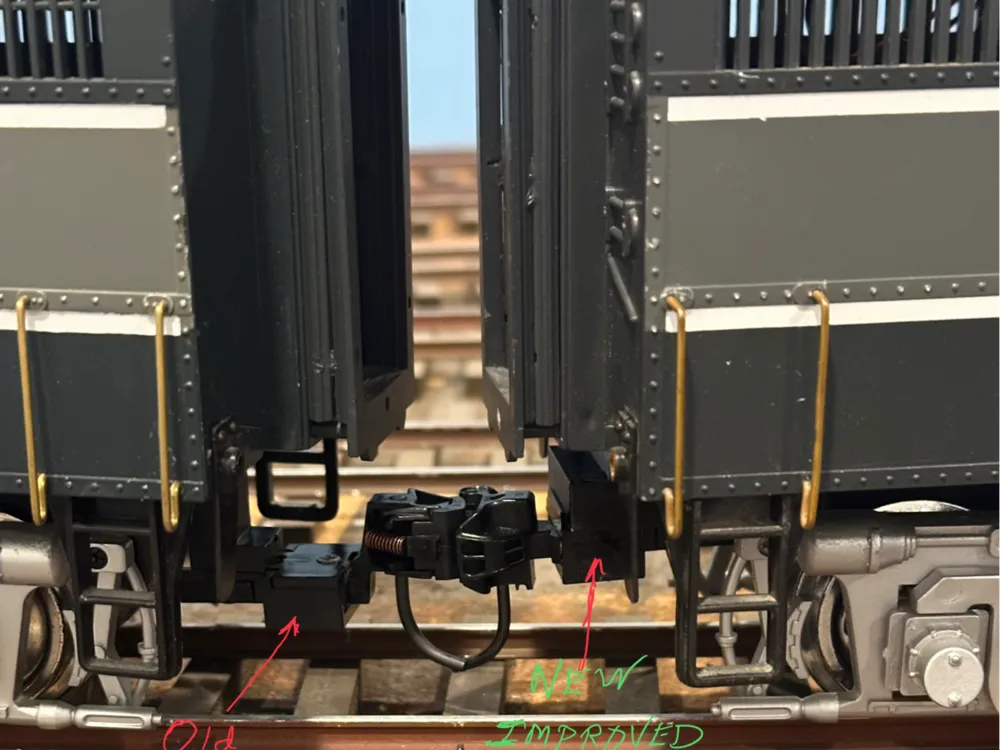

I used these blocks to mount 907’s on 5 different Alco F units.
