A1 Z-Axis Cable Guide - V2
Print Profile(1)
Description

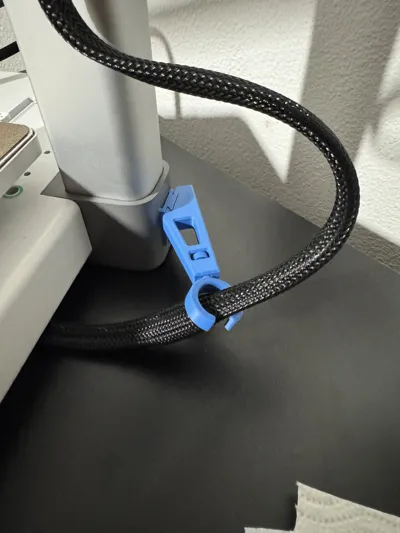

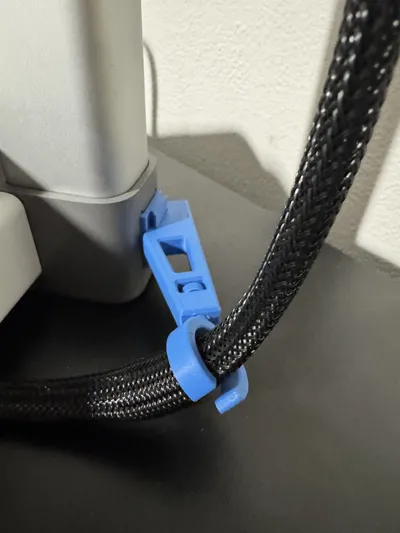

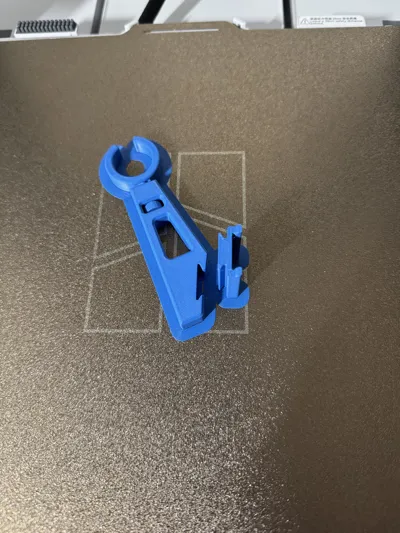

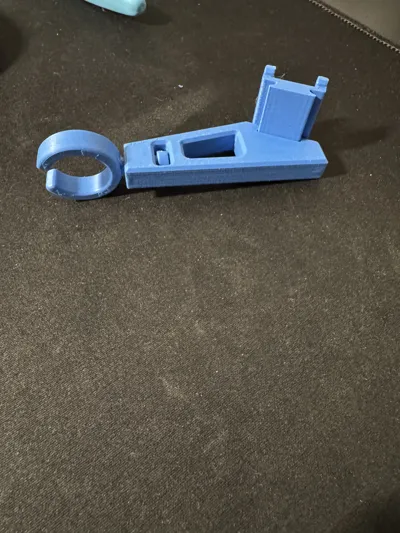

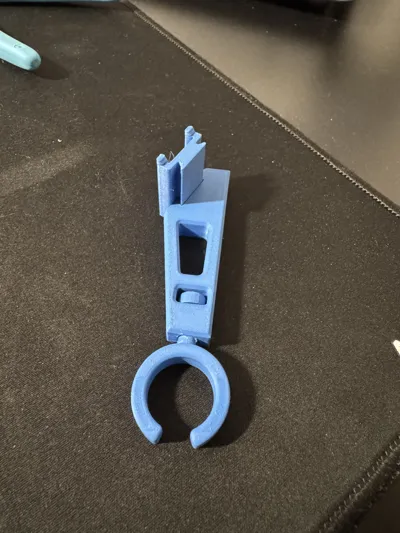

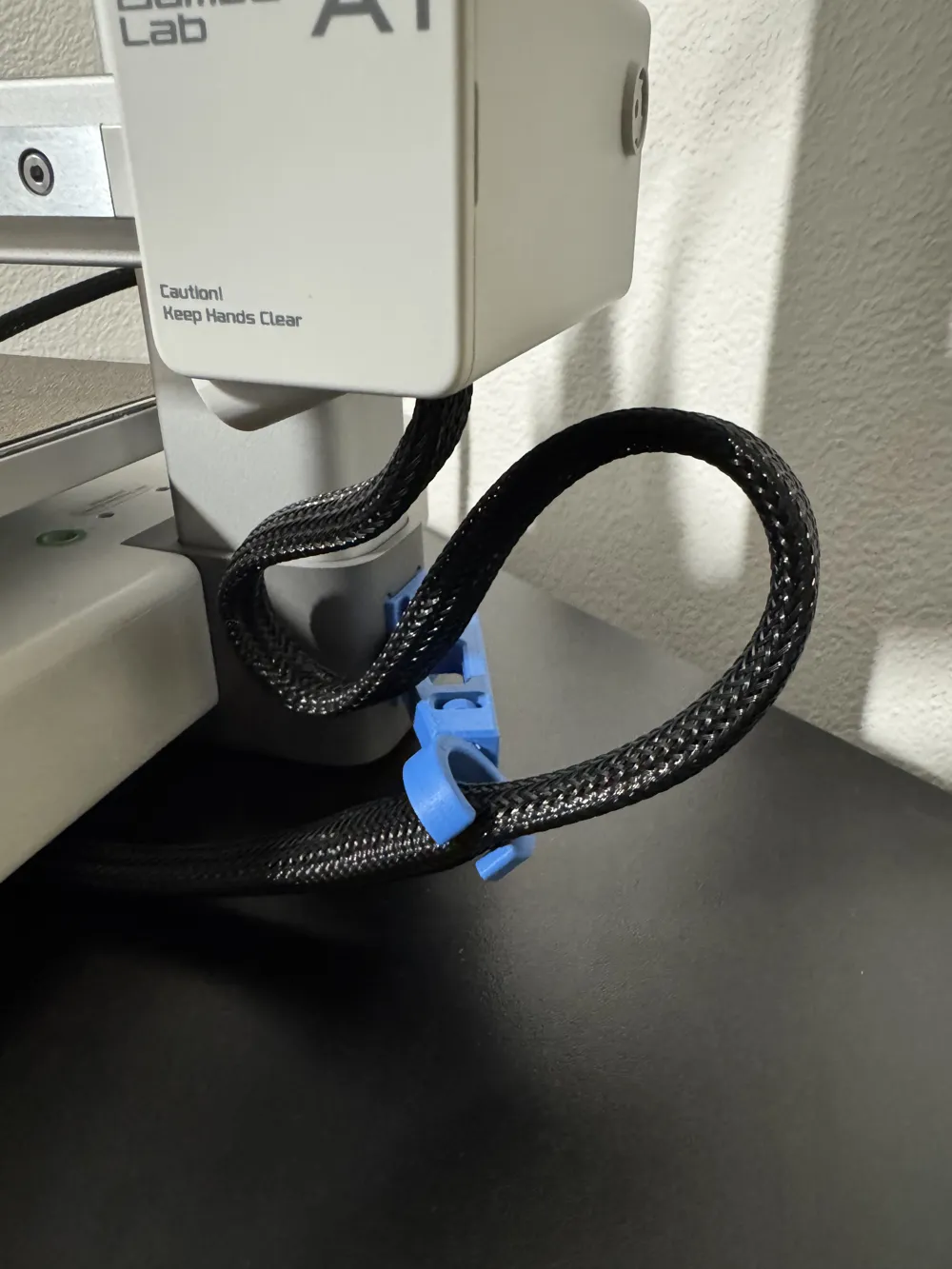

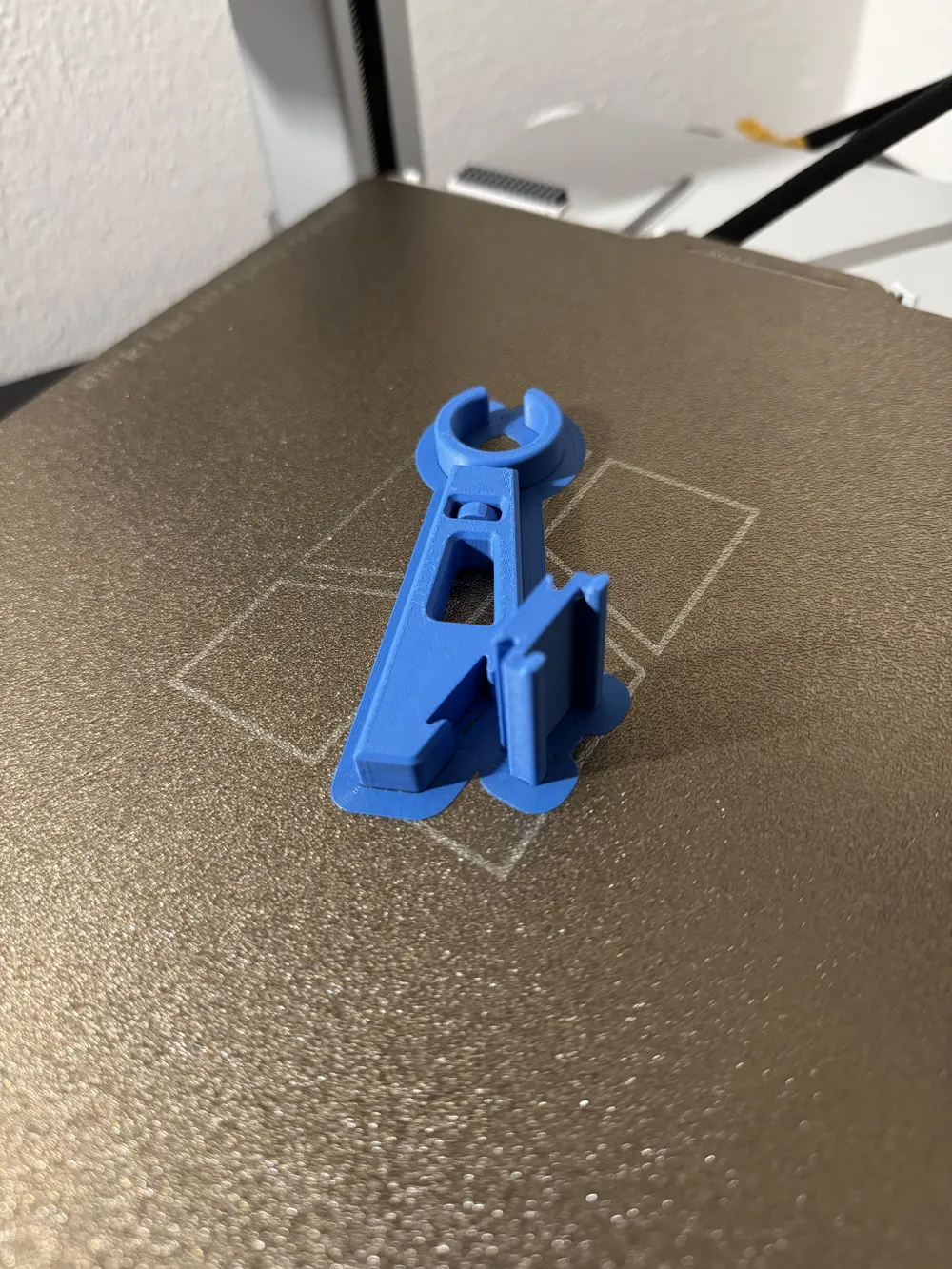

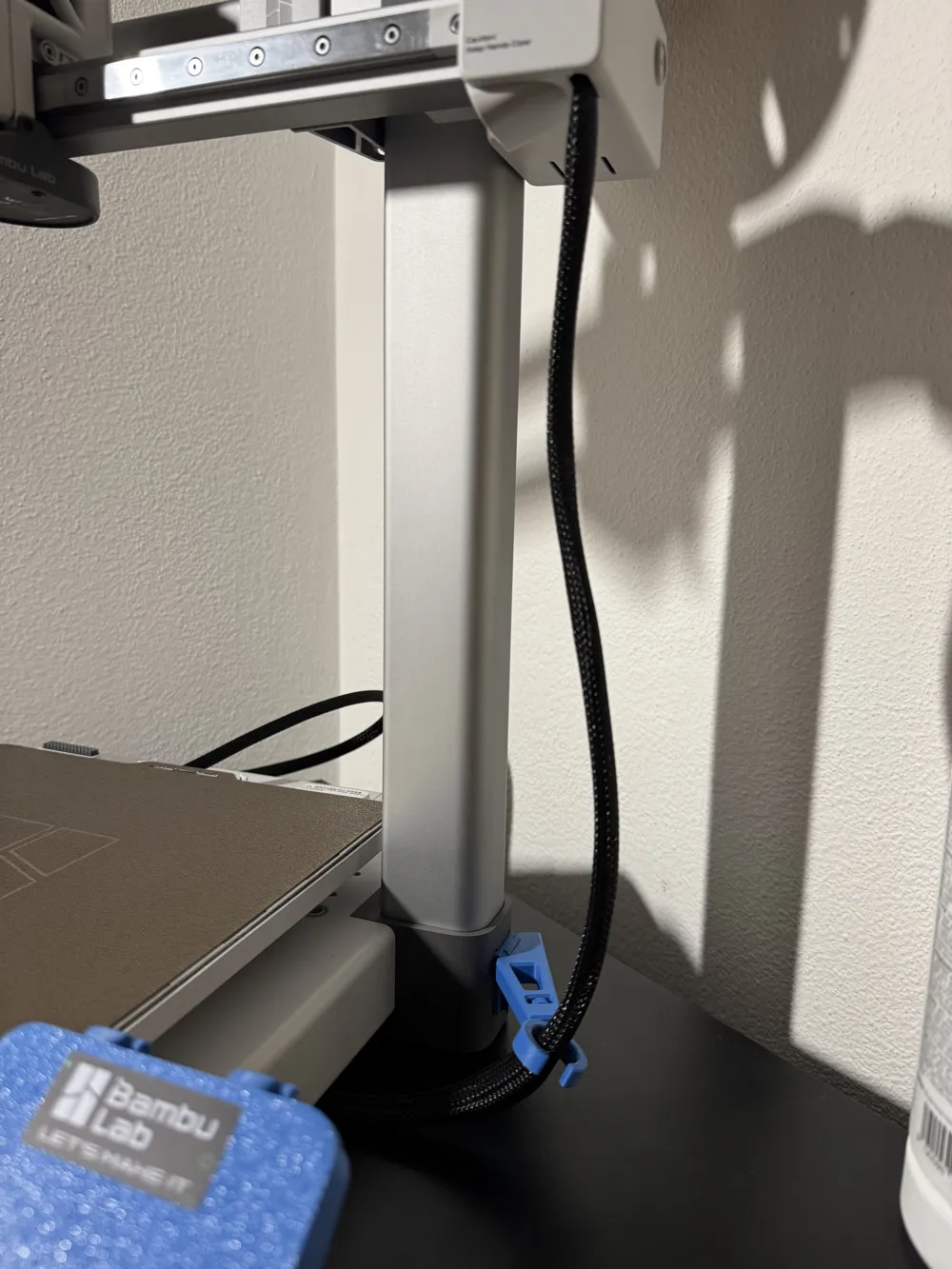

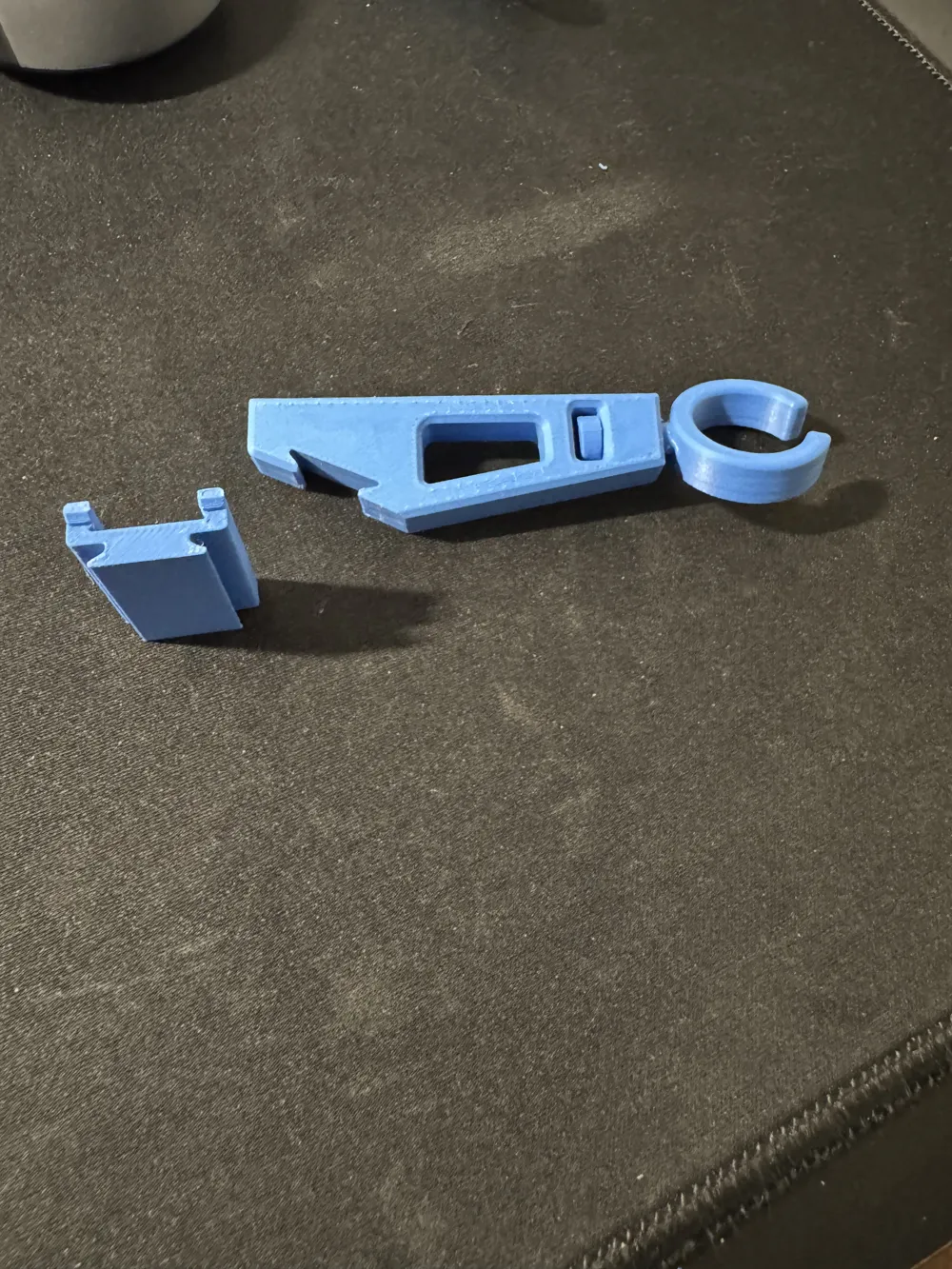

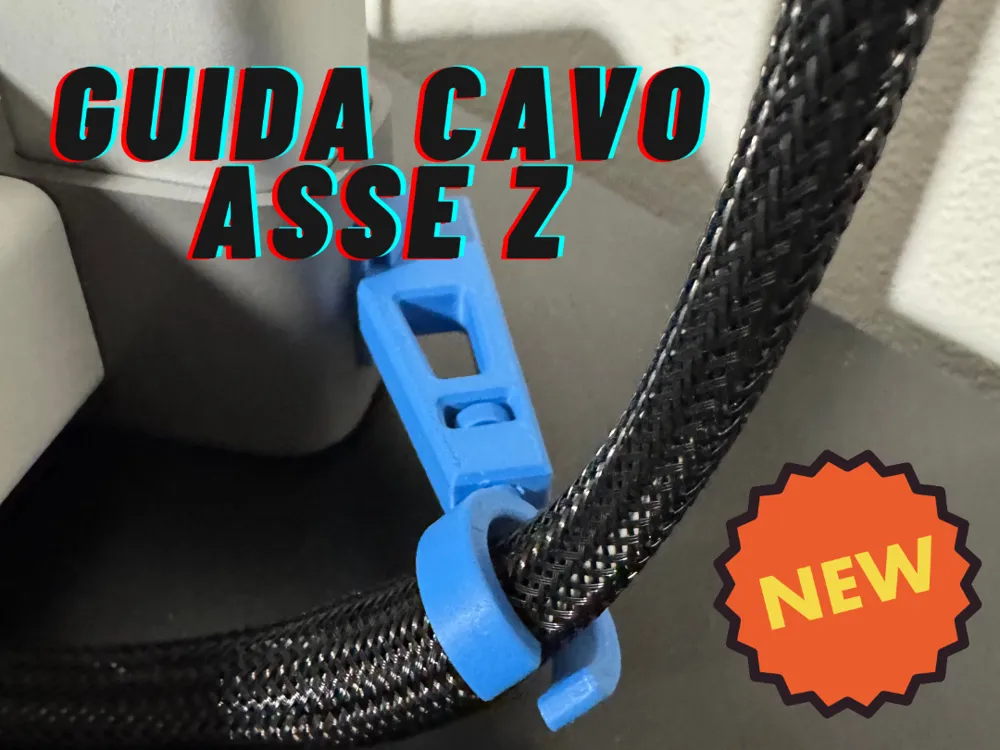

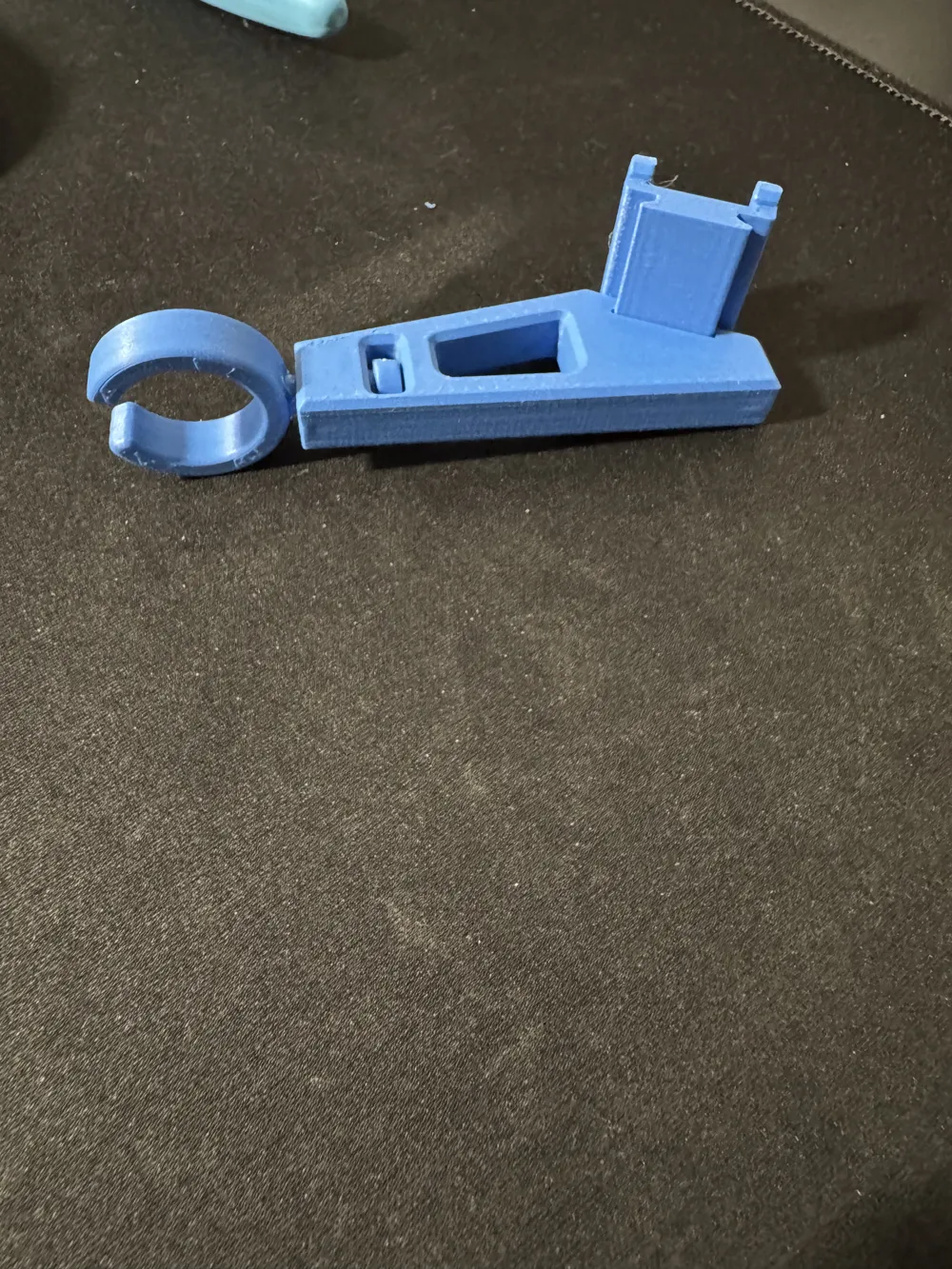

I designed this Z-axis cable guide for the Bambulab A1 because I was unsatisfied with the ones available. The main problem was that once the Z-axis reached its limit, the printed cable guides would detach. Mine solves this because the cable follows a precise, straight path without any strange movement! This is Version 2, optimized from V1, which had issues holding when the Z-axis reached the top. I've improved the slider that inserts into the frame, and the retaining eyelet rotates 180°, allowing the hook to adjust. The print is in two parts; to unlock the eyelet, simply push or slightly rotate it. The clip inserted into the frame should be placed with the points upward for a secure hold. The hook then slides into the clip via a dovetail system! PRINTED WITH POLYTERRA PLA
