Hyperkin Xbox Duke Joystick Cap Adapter
IP Report
Print Profile(2)
0.16mm layer, 3 walls, 15% infill
Designer
13 min
1 plate
0.2mm layer, 4 walls, 15% infill
10 min
1 plate
Open in Bambu Studio
Boost
0
0
1
0
2
1
Released
Description

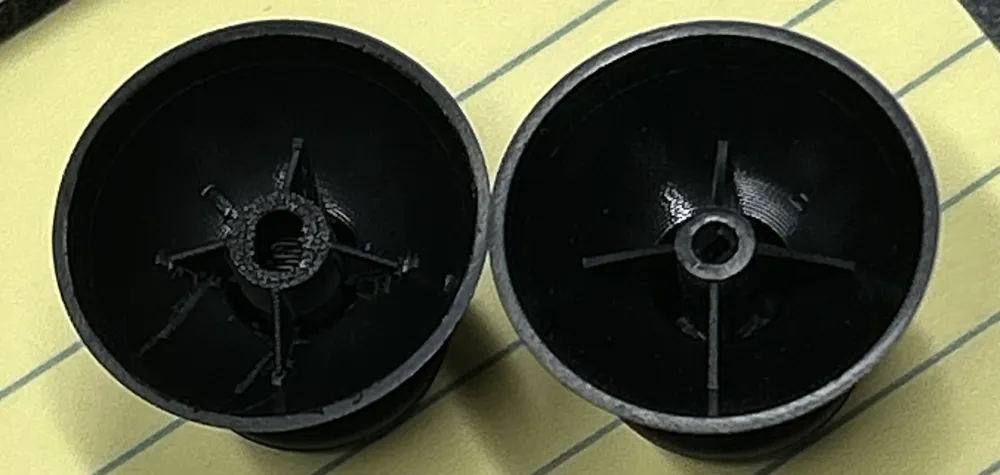

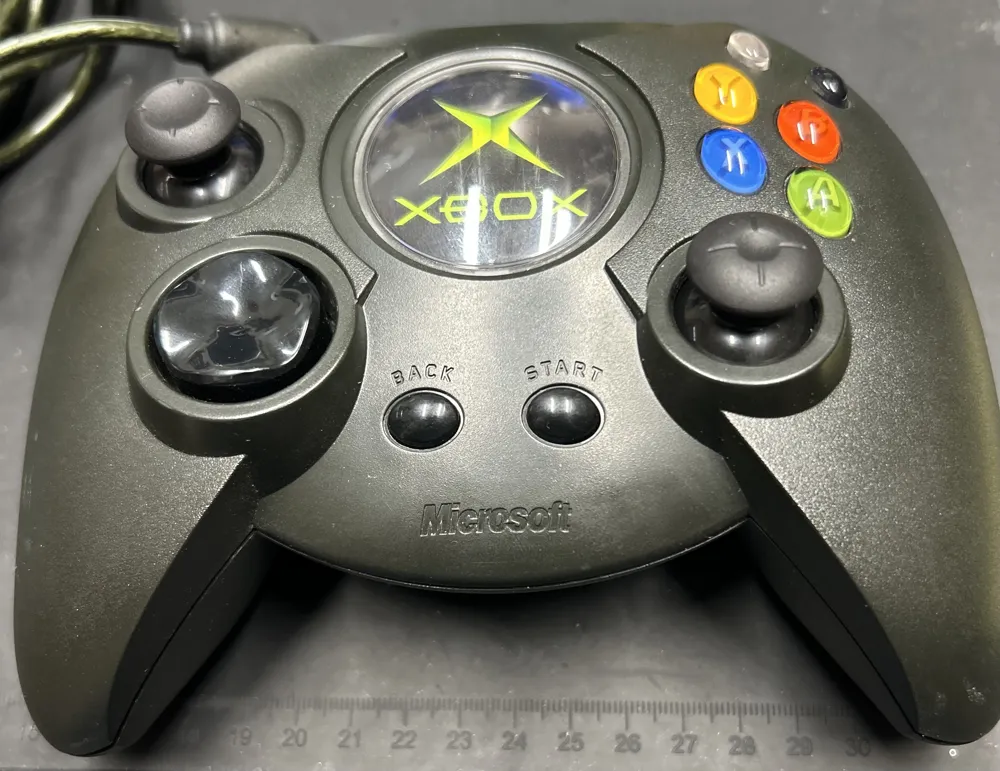

The replacement sticks that Hyperkin offers (https://a.co/d/expu1iF) are designed for use on Hyperkin controllers. The center hole is too small to fit the official Xbox duke controllers. This design adapts those sticks to fit on the OEM duke controllers.

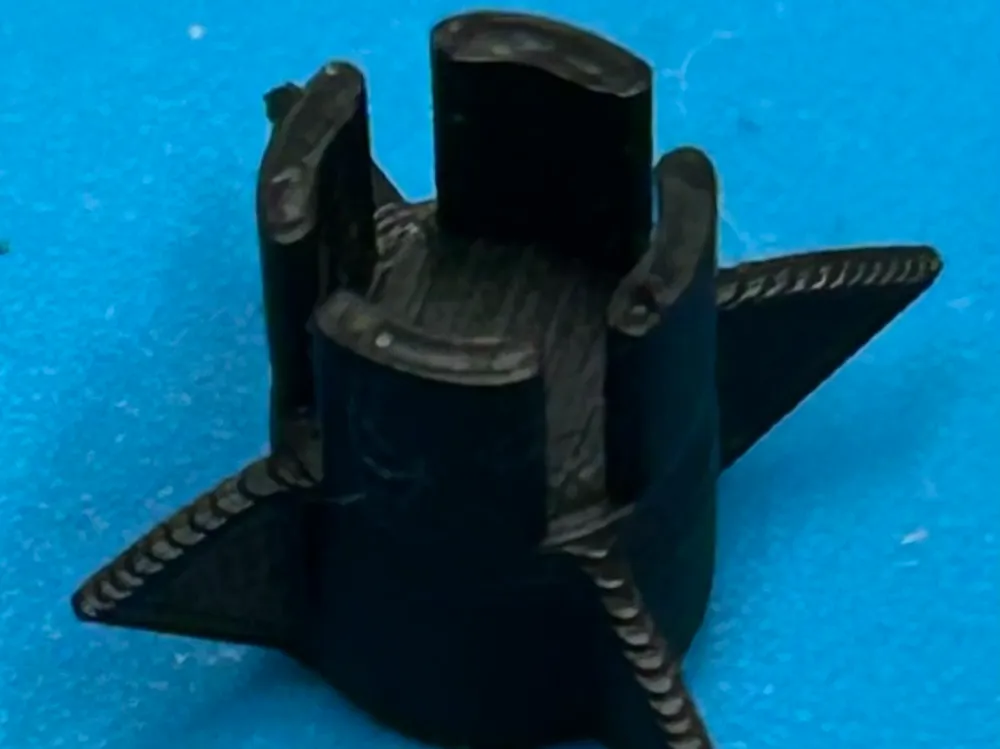

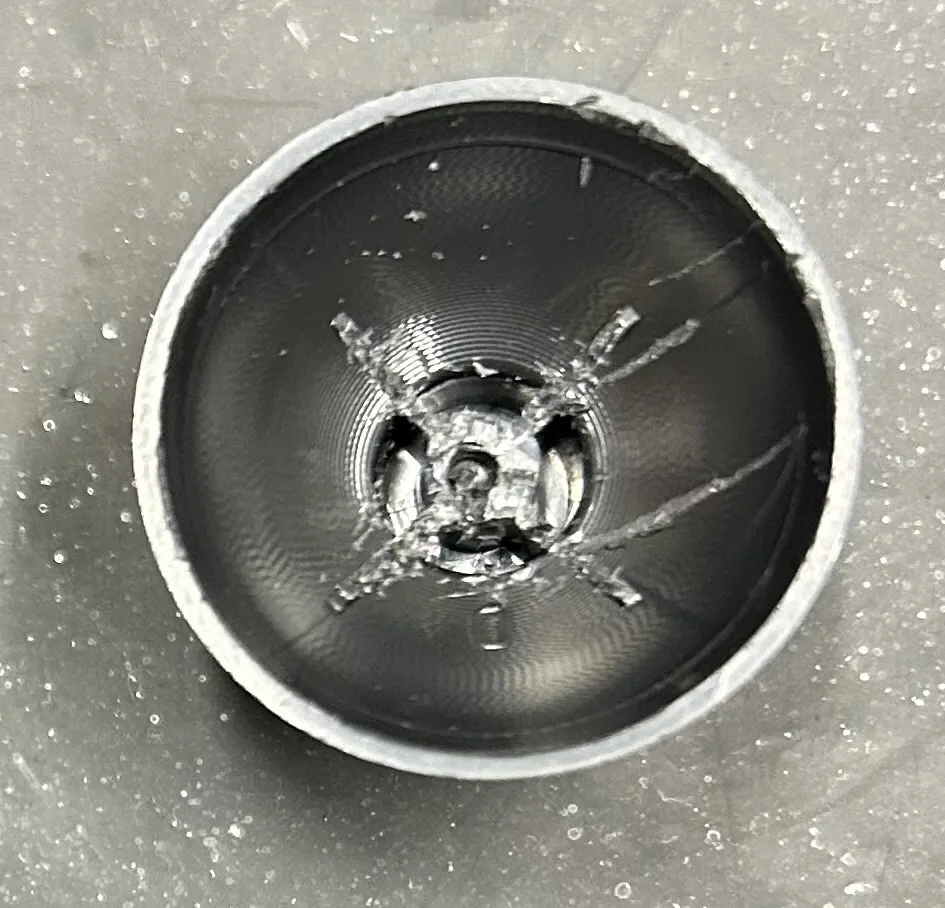

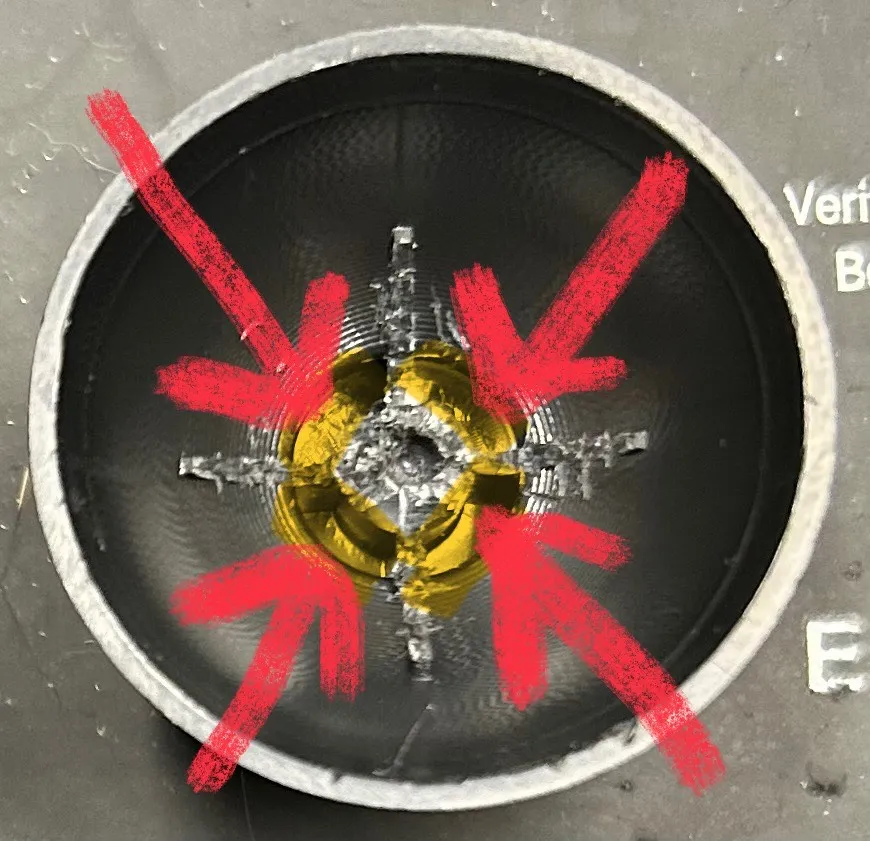

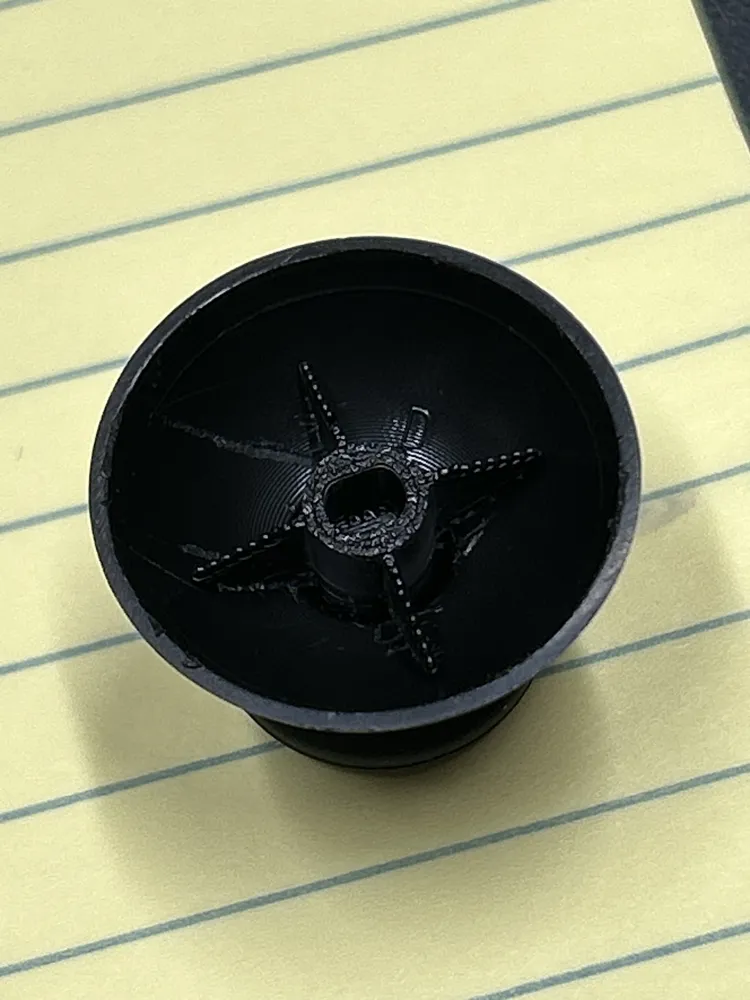

You have to use flush cutters to remove all of the material inside the joystick cap. Once removed, there will be 4 slots left behind - see pic with highlights. The print simply plugs into those slots. It is highly recommended to print in PETG and use epoxy to secure them further into place. PLA may be too brittle and snap with time and wear.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-NoDerivatives
