Pegboard Wall Mounting Solution (No-Drill Screw Adhesive)
Print Profile(2)
Description
This solution is suitable for my designed "Infinitely Assembleable Pegboard": https://makerworld.com/zh/models/932107
It is also suitable for pegboards with pre-drilled M4 holes (M4 hole center distance is 25mm)

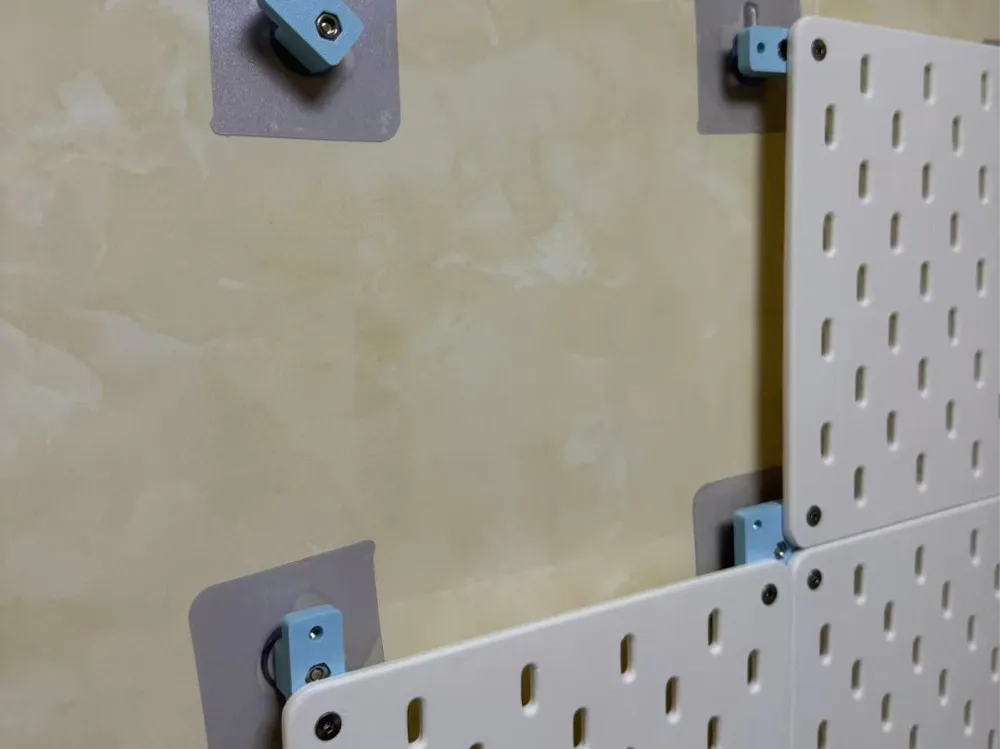

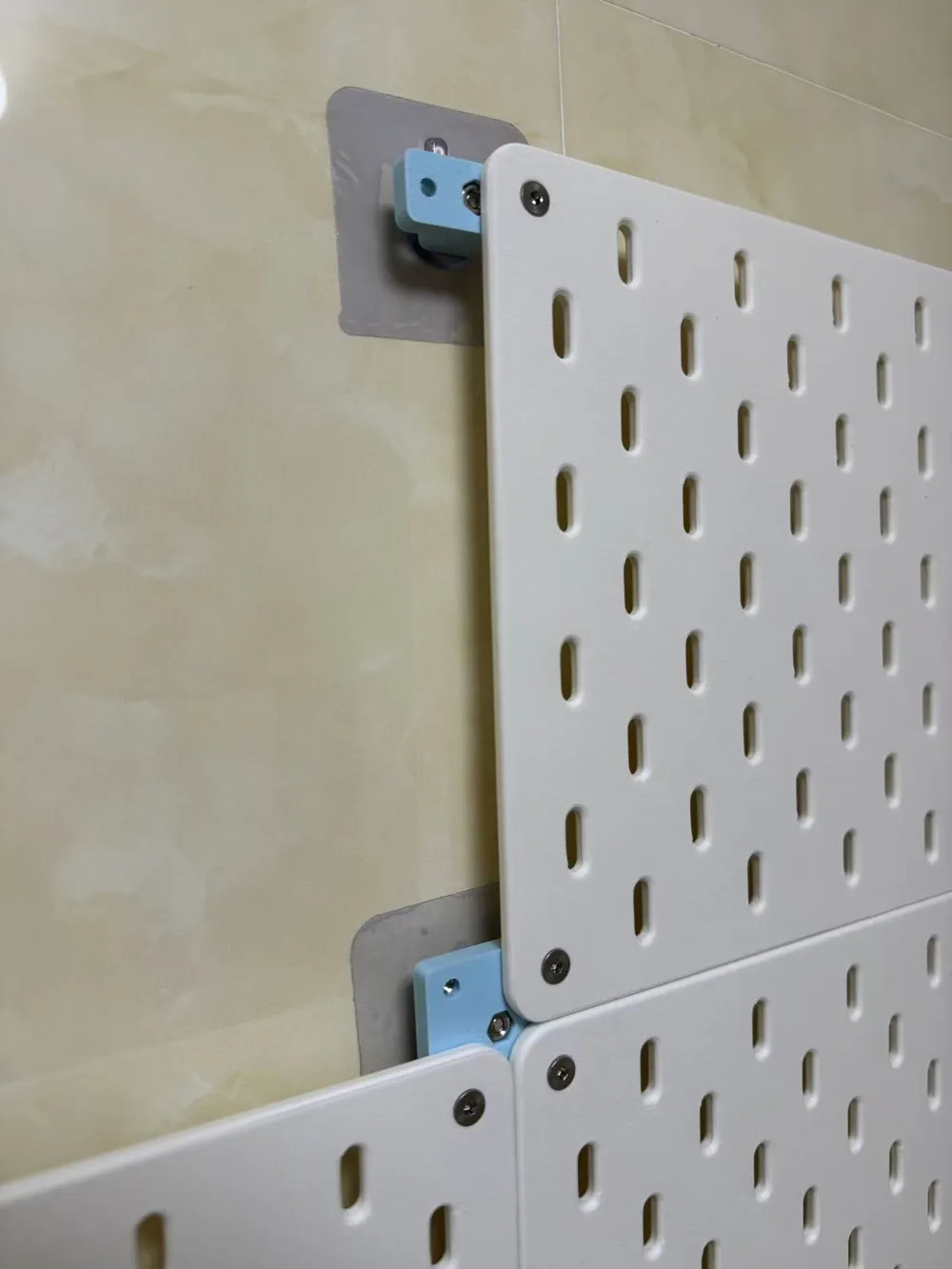

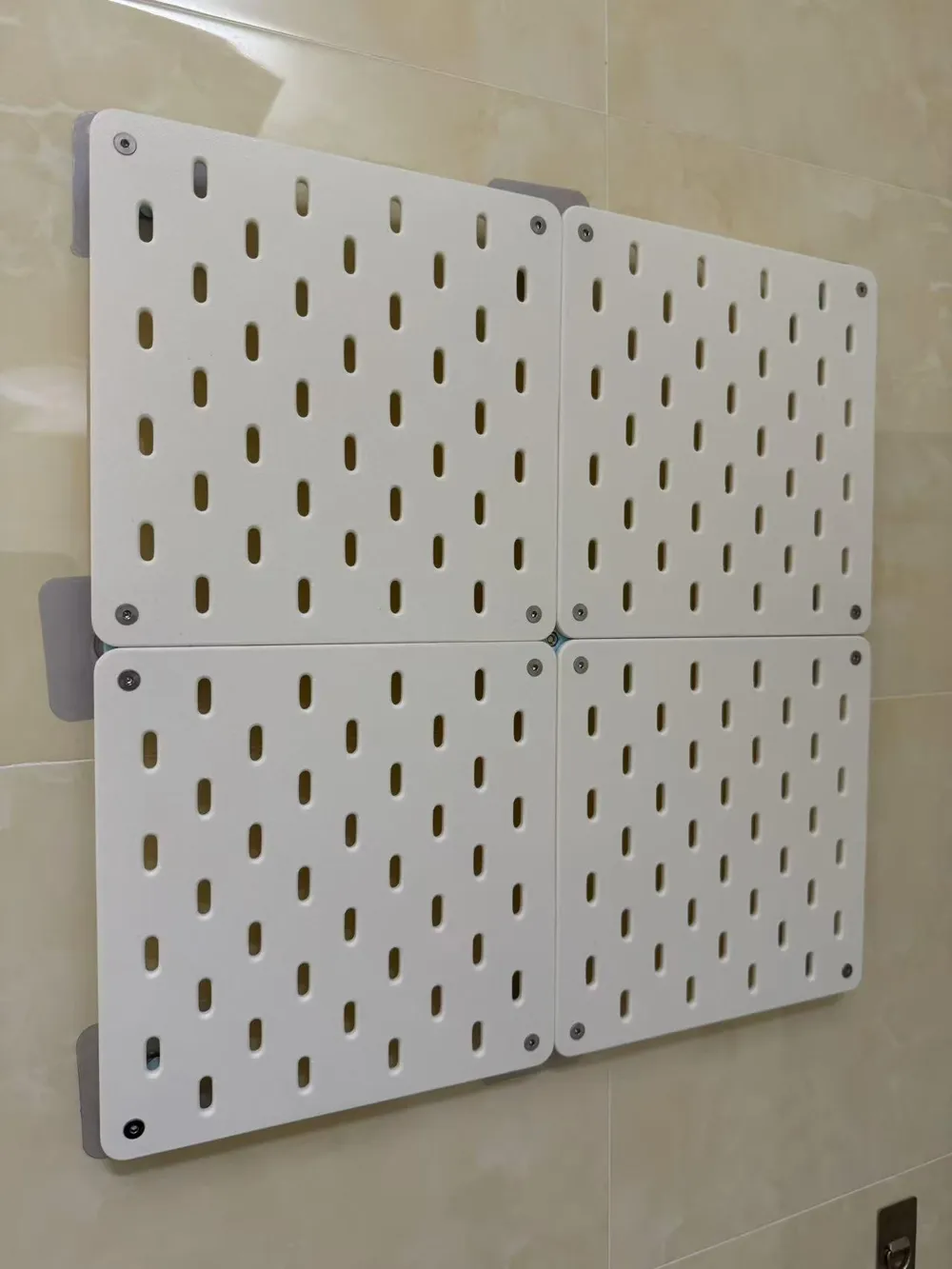

This solution is suitable for installation on smooth and flat walls, such as tiles, marble, glass, etc
Additional accessories to be purchased: M4x12 countersunk screws, M4 nuts, M4x12 no-drill adhesive screws

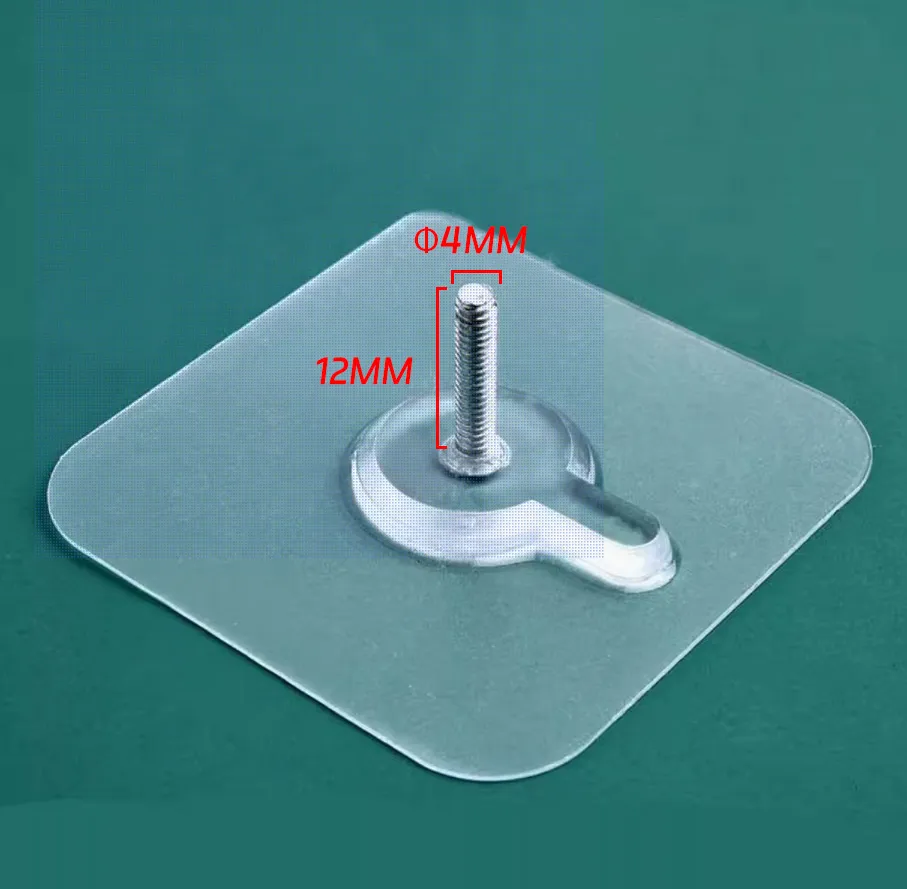

(Note: The no-drill adhesive screws require a screw rod length of 12mm, as shown in the figure below. Please verify and confirm with the seller before purchasing)

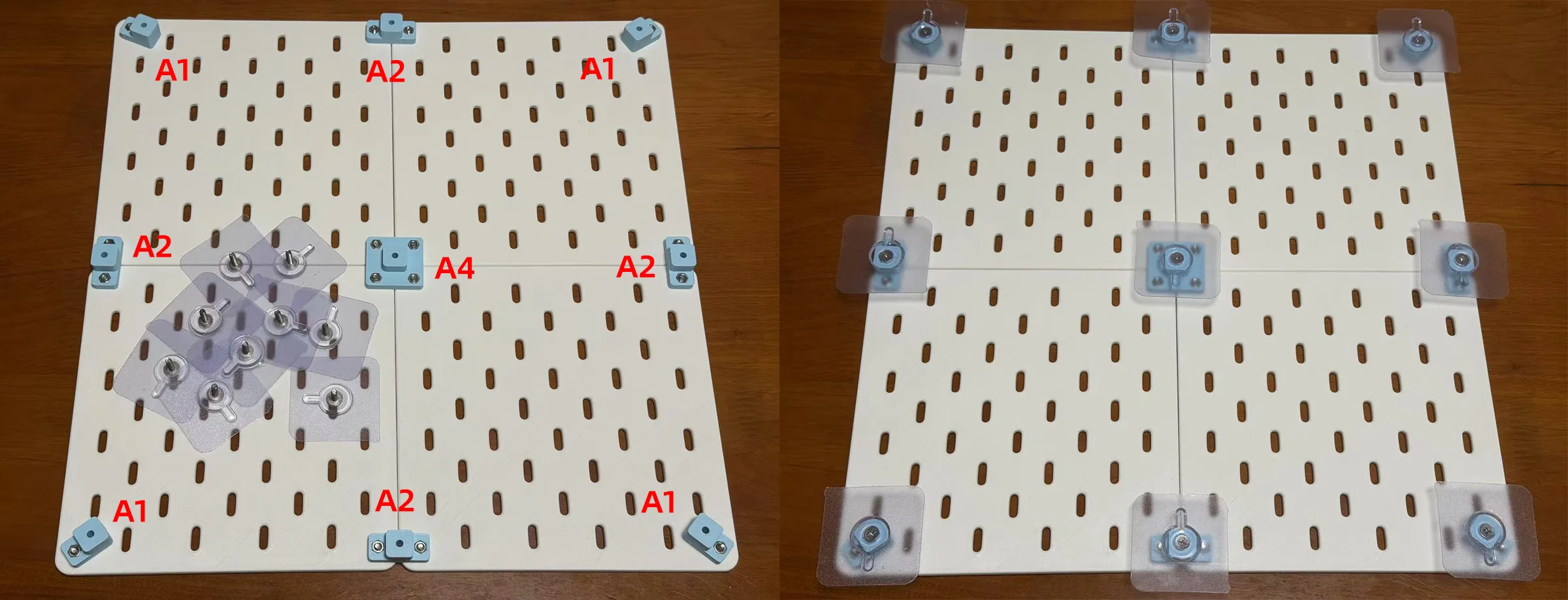

The simplest installation method is to assemble the whole thing and then stick it to the wall all at once
2025-09-28: Updated and added 10, 14, 16, 18mm versions to facilitate those who encounter errors during installation or choose other length accessories

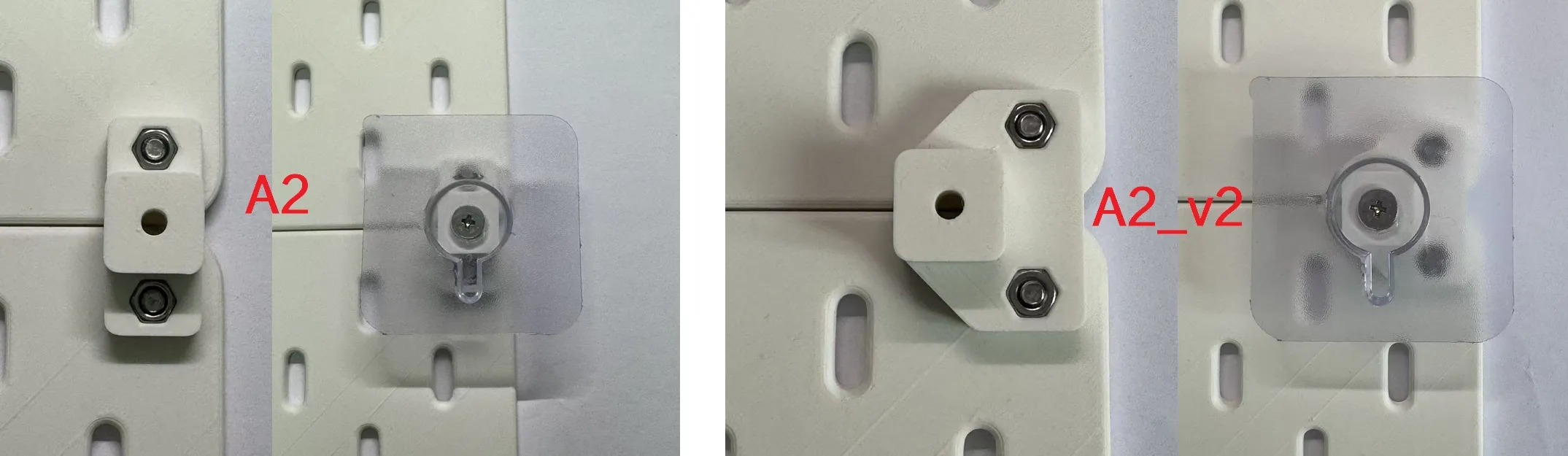

2025-11-19: Added A2_v2 module. Using this module, the installation position of the screw patch can be shifted inward by 12mm, thereby reducing the exposed area

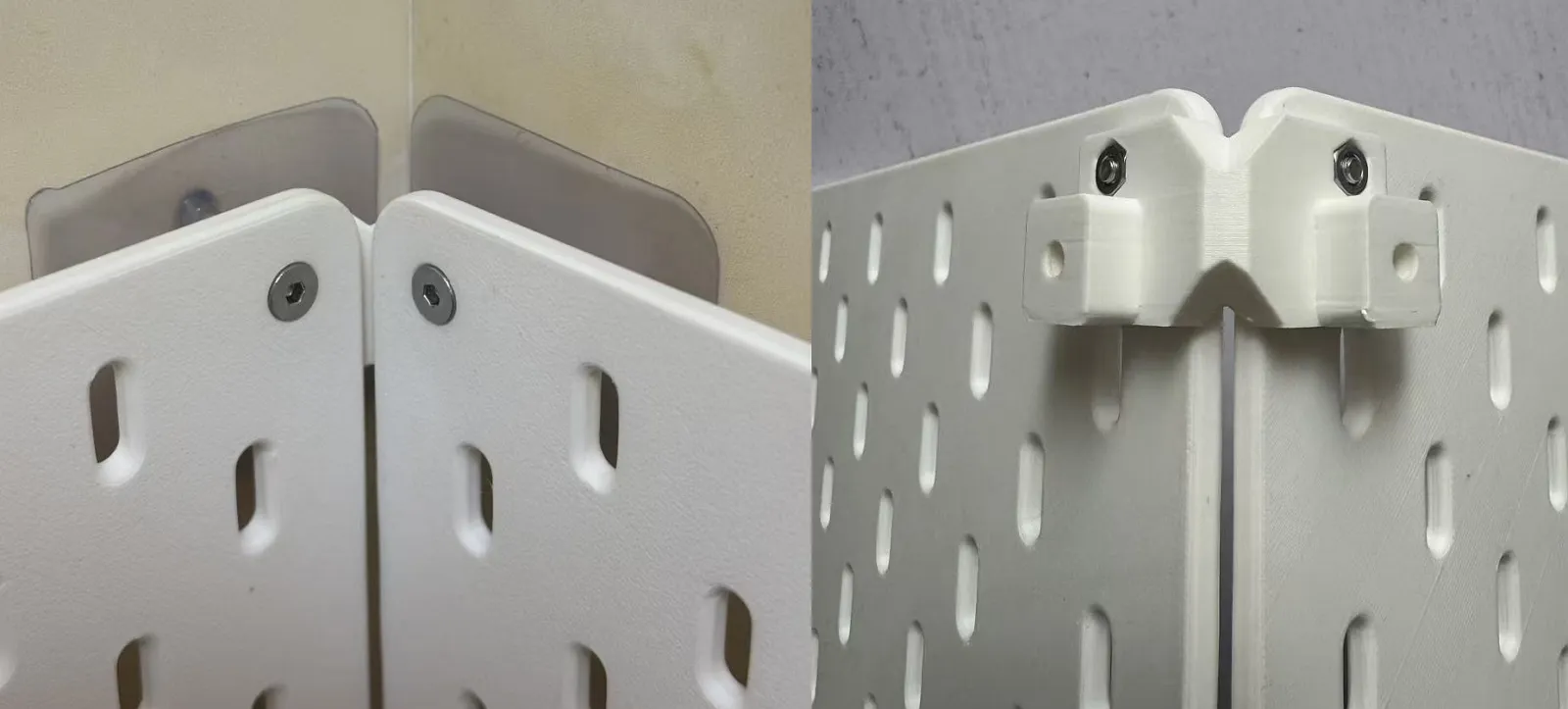

2025-12-07: Added B module for installation on concave corner walls

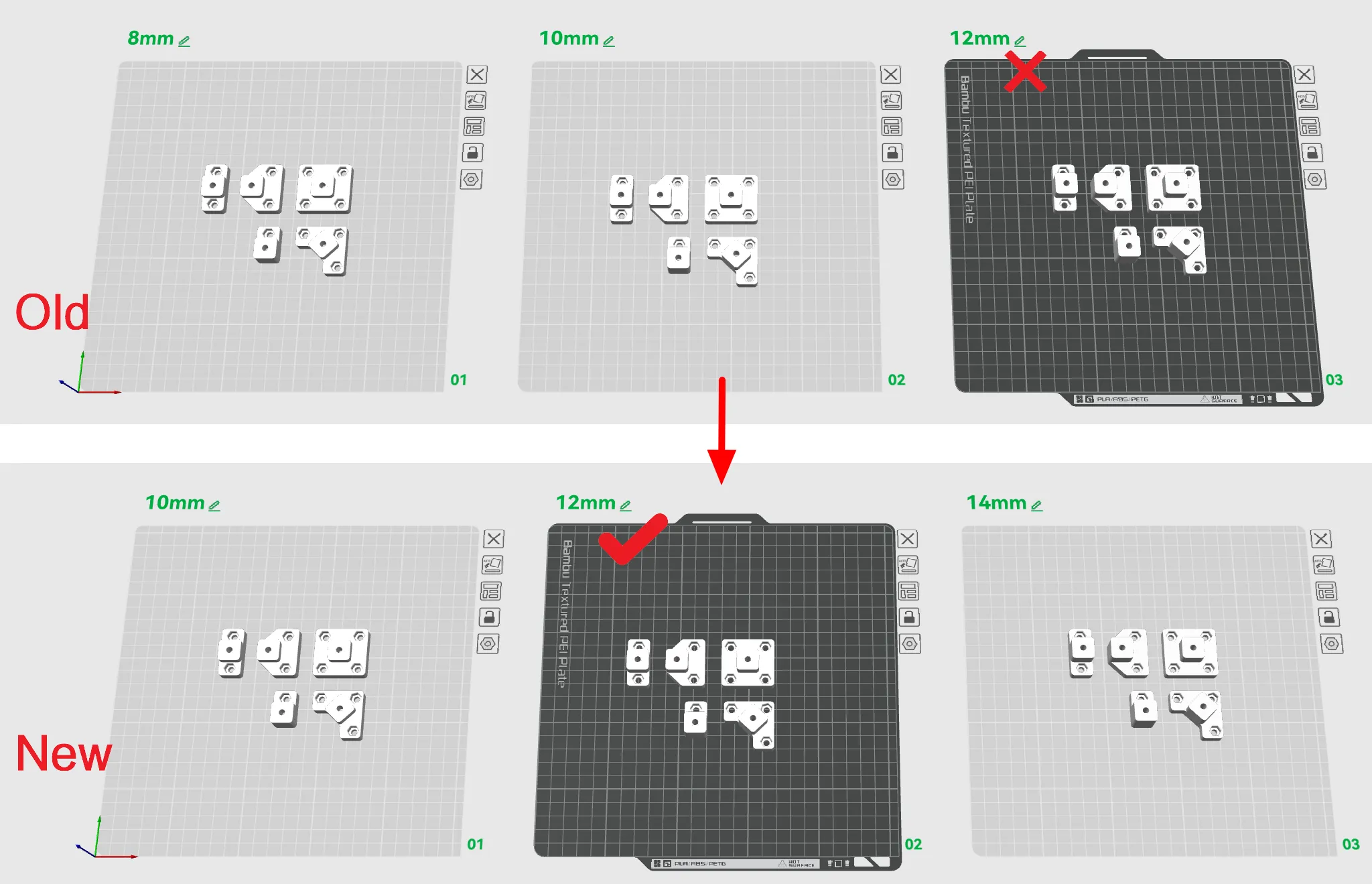

2026-06-20: According to feedback from multiple users, the previously recommended modules generally had the problem of screw patches not fully engaging the nuts. Now the module names have been re-adjusted as shown in the figure below
