Makita 18V Battery Portable Light
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
3.1 h
1 plate
Open in Bambu Studio
Boost
51
113
5
3
127
34
Released
Bill of Materials
List other parts

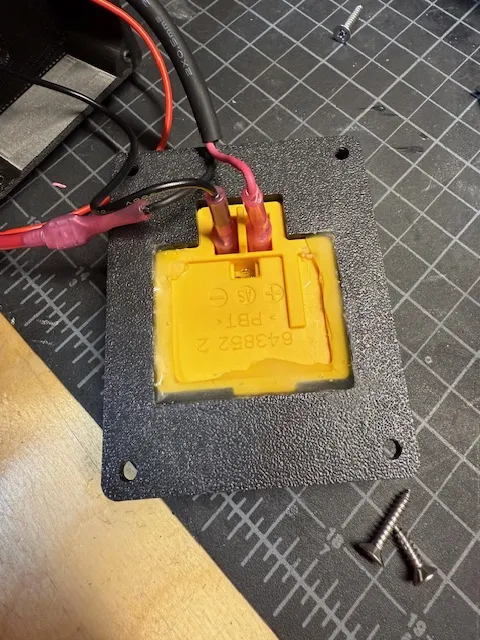

- Makita Terminal 643852-2 x 1: Battery Connecting Terminal
- SPST Rocker Switch x 1: Simple On/Off
- Self Tapping Screws #6 3/4" long x 4: Connecting the 2 sections together
- .250" Spade Wire connectors x 2: For connecting to Battery terminals
- LED Tractor Light 12V x 1: Operates between 9V-32V
Description

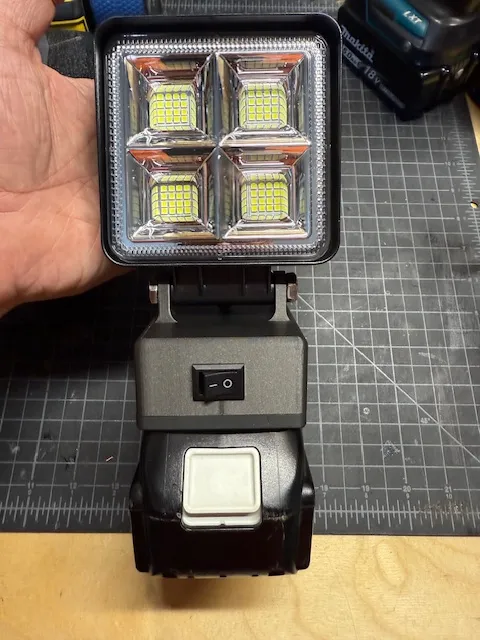

Portable Light - Very Bright
Adapt your Makita 18V battery into a bright portable light(5700 Lumens/Color Temp 6500). Lights up a 3 car garage. Simple to put together and a great portable utility light.

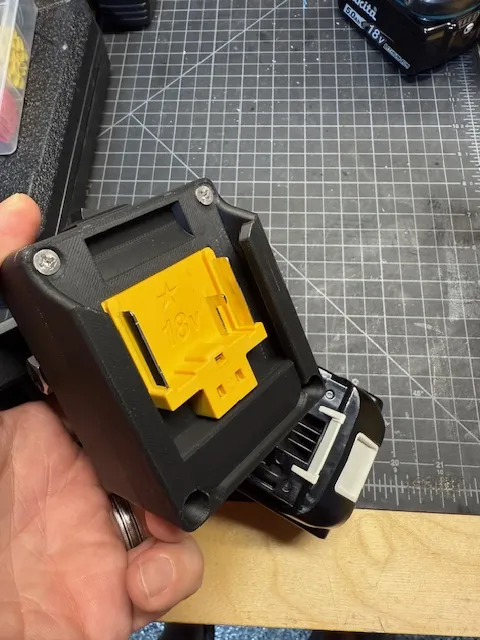

The Makita adapter section is from @Wiseone in MakerWorld. I created the additional box for connecting the light and packaged them together in one file. The Fusion 360 file of added box is included. You can modify to accept many other light sizes, shapes & styles or even a different switch.

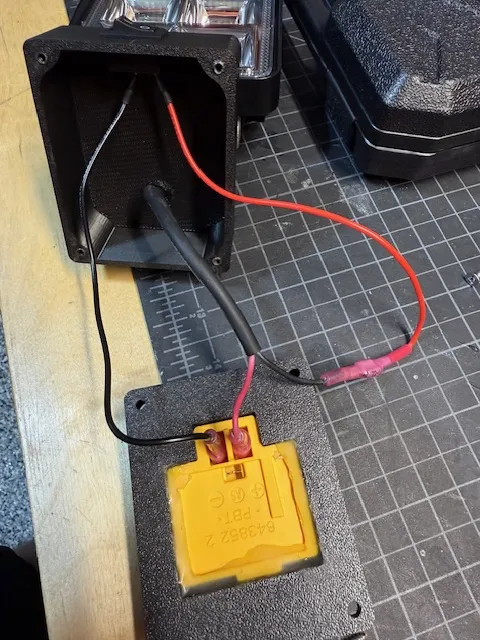

**** See included parts document w/ links & wiring diagram ****
Bambu PLA Metal was used.
Enjoy!
Build & use at your own risk
Documentation (1)
Other Files (1)
Makita 18V Portable Battery Light.pdf
