Yamaha R6 Mirror Blockoff Plates
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
59 min
2 plates
Open in Bambu Studio
Boost
9
34
1
0
37
25
Released
Description

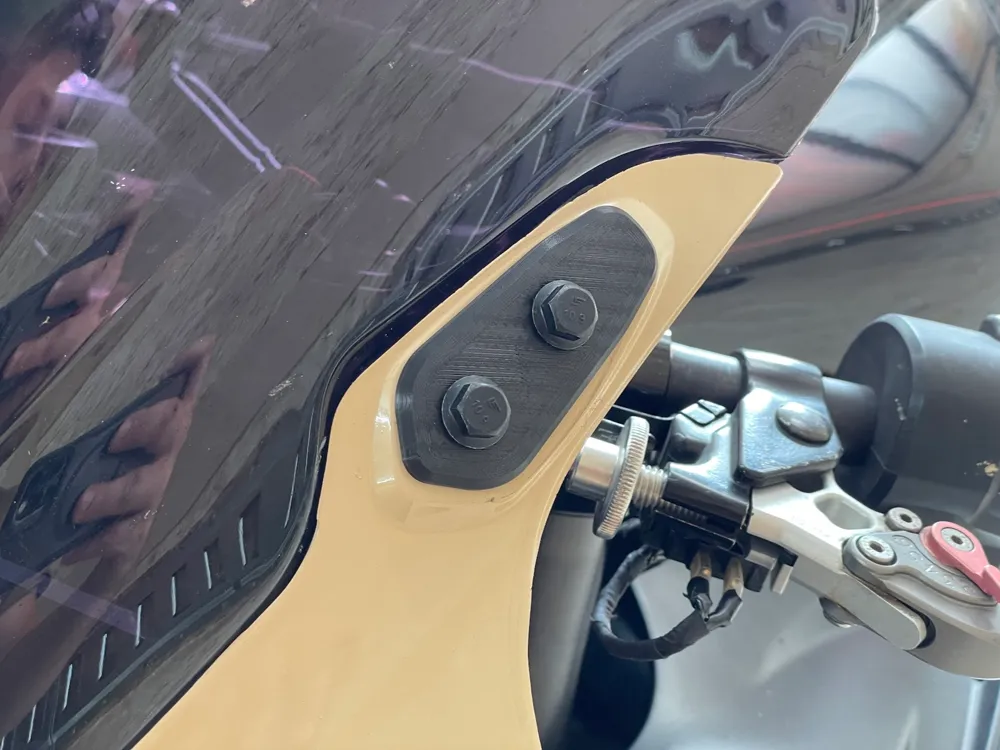

2003-2005 R6, 2006-2010 R6S mirror blockoff plates.
This is my very simple design to just get the job done.
I'd suggest printing with a more temperature resistant material than PLA. I also used a textured carbon fiber buildplate to get that surface finish.
Non-3D Printed Parts
For Version 2 (ea)
- M6-1.0x25mm Flange Bolt
- M6-1.0 Flange Nylock (or oem nuts)
For Version 1 (ea)
- 2x M6-1x20mm bolts with 10mm heads
- 2x M6 washers on the back side
- 2x M6-1 nuts on the back side
