Bird Feeder Camera Solar Birdhouse

Hello bird lovers,

Here you have the opportunity to observe the birds in your garden while they are eating.

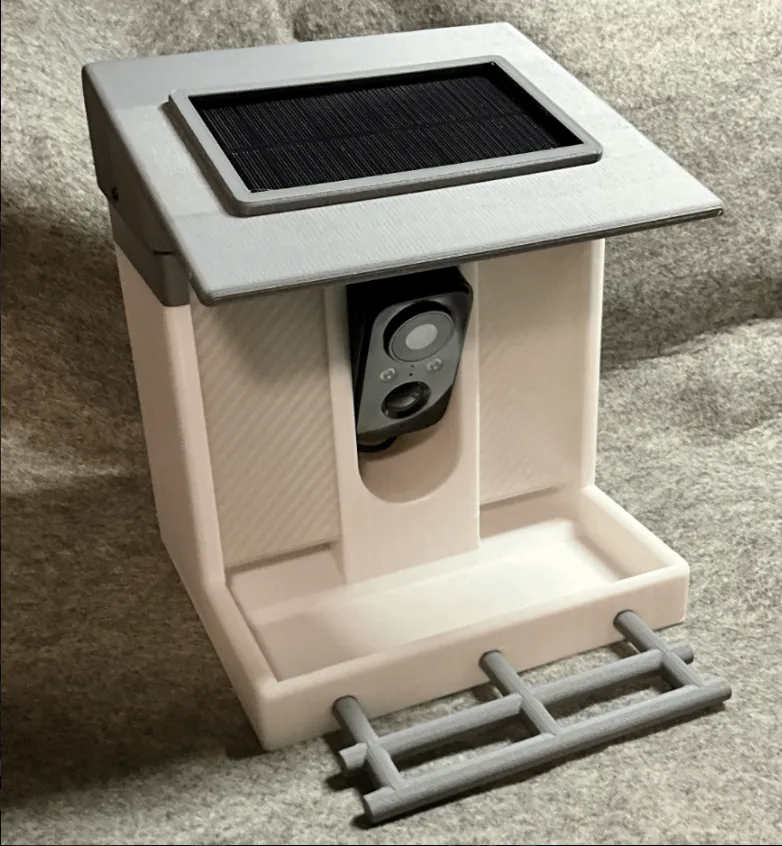

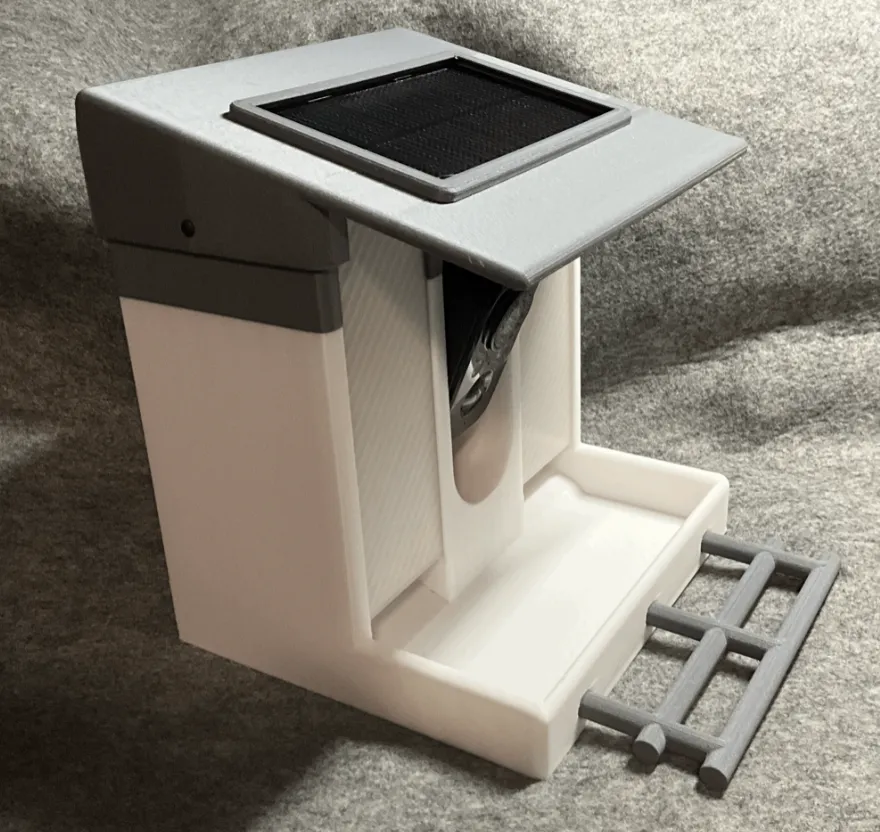

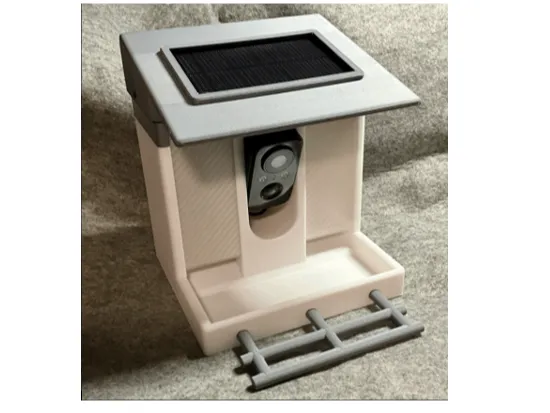

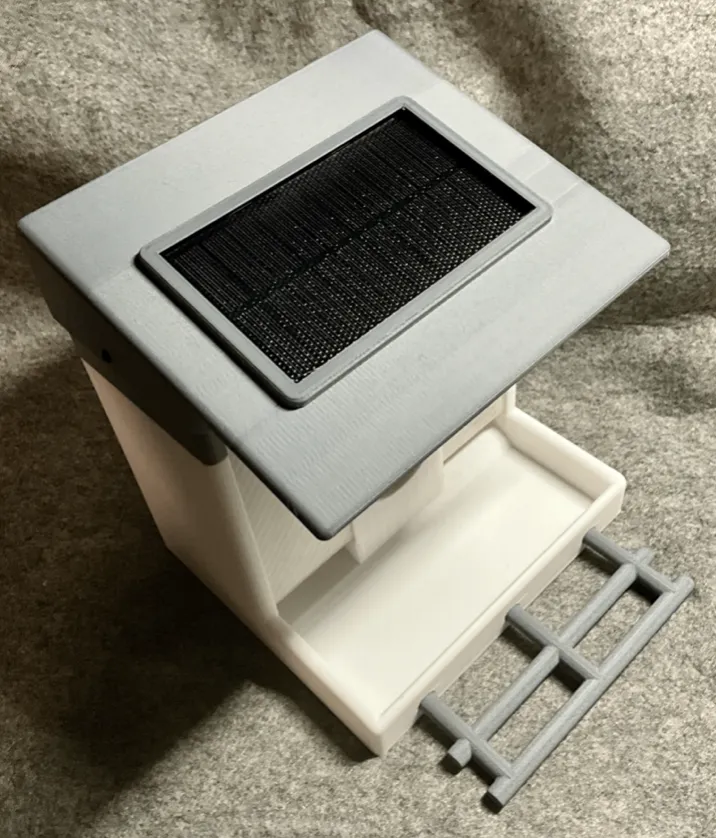

The birdhouse model consists of 6 parts.

The only thing you need to do after printing is download the app from the App Store and connect the camera to your WLAN.

Then nothing stands in the way of cheerful bird watching.

You will be surprised by the variety of birds that will enjoy the food.

The panes can be printed transparently, so you can always see the current fill level of the feed.

Additional material:

8x M4 threaded inserts - press-fit nuts (For the back)
2x M3 threaded inserts - press-fit nuts (For the lid)
2x M3 screw 10 mm (For the lid)
Camera (e.g. IHOXTX surveillance camera see below)

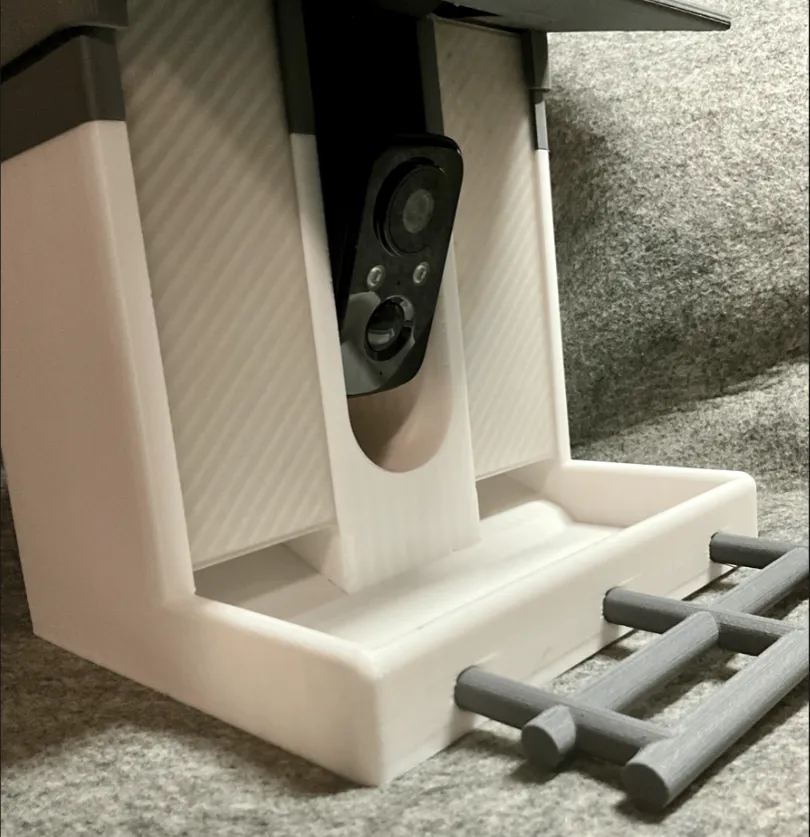

This camera fits perfectly into the model:

IHOXTX Outdoor Surveillance Camera Battery Solar: Outdoor Surveillance Camera WLAN with Colorful Night Vision PIR Motion Detection 2-Way Audio IP66 Waterproof Year-Round Uninterrupted Protection

No affiliate link:
https://www.amazon.de/dp/B0BKG4Z1NK?ref=ppx_yo2ov_dt_b_fed_asin_title

Here is some information about the installed camera:

Due to the solar panel, it does not require any other power source and the house can be placed or hung almost anywhere.

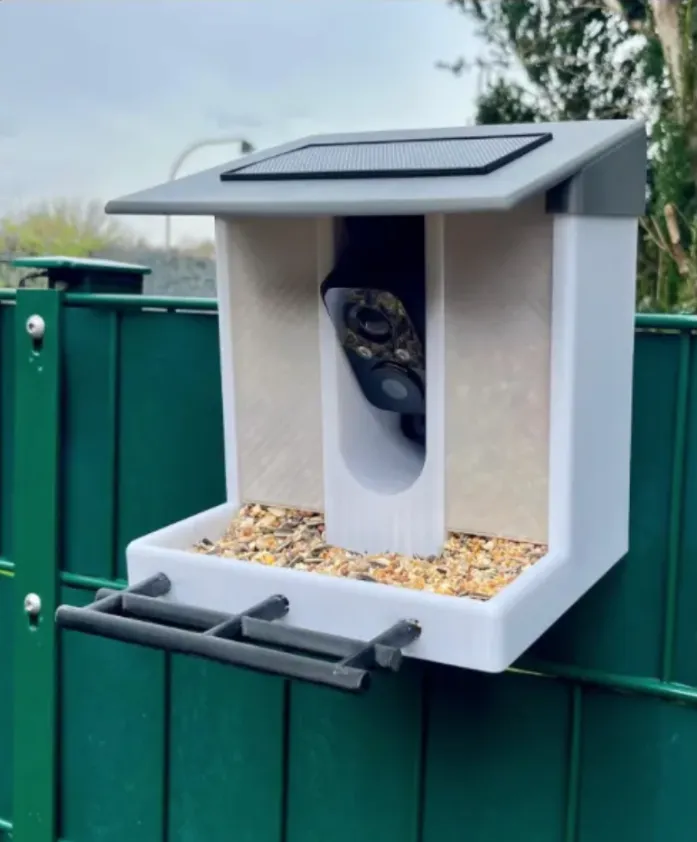

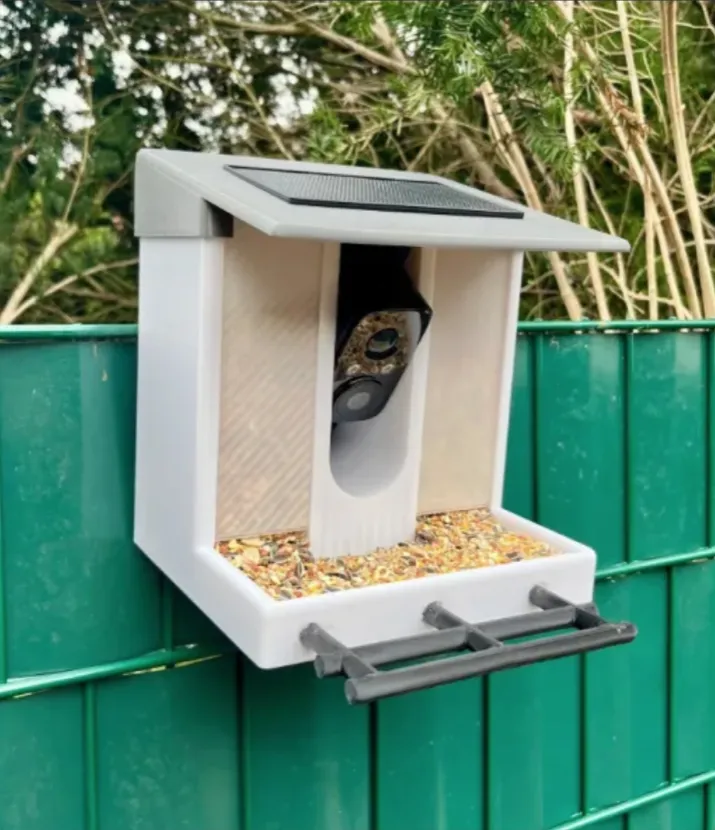

Whether balcony, terrace or garden, the bird feeder can be placed or hung almost anywhere. The only requirements are WLAN reception and enough sun for the solar panel integrated in the roof.

With only 2 hours of sunshine per day, the WLAN camera can be used all year round. The Wifi camera has a battery capacity of 5200 mAh. Even without sunlight, it can work for 1 to 3 months.

It has a motion sensor, so the app can inform you directly when a bird is eating.

When motion detection is activated, a photo is also taken directly and stored on the camera. You can then download it to your smartphone via the app.

During the livestream, you can start a video recording at any time. We would be happy to send you one or more videos via Whatsapp.

The camera stream can be accessed and viewed from anywhere via the app. You also have a kind of surveillance of the area where you place the bird feeder.

With an additional SD card, you can also automatically record videos when motion detection is activated and download them afterwards.

Fastening:

On the back of the bird feeder there are already 8 threads for M4 screws. These give you all the possibilities to mount the house with your own holder at any place where you want it.

3D PRINTING SETTINGS

The model consists of 6 parts

• Body
• Grid
• Roof
• Baffle
• 2x Panes

Due to the sun exposure, at least PETG should be used.

Print-Settings:

0,4 mm nozzle
0,2 mm Layer height

Organic support for the roof and body.
All other files do not require support.

The roof should best be oriented on the back on the print bed and printed with organic supports, so it is much easier to remove the support.

Attention:

The model was uploaded as a .3mf file, which contains all 6 parts. Please do not print all 6 parts at once. This is not a “Print in place” model.
