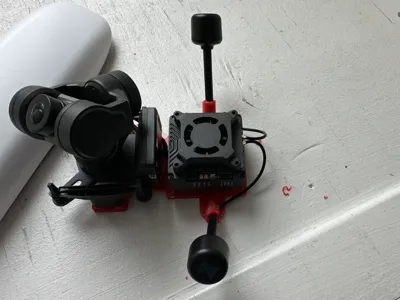

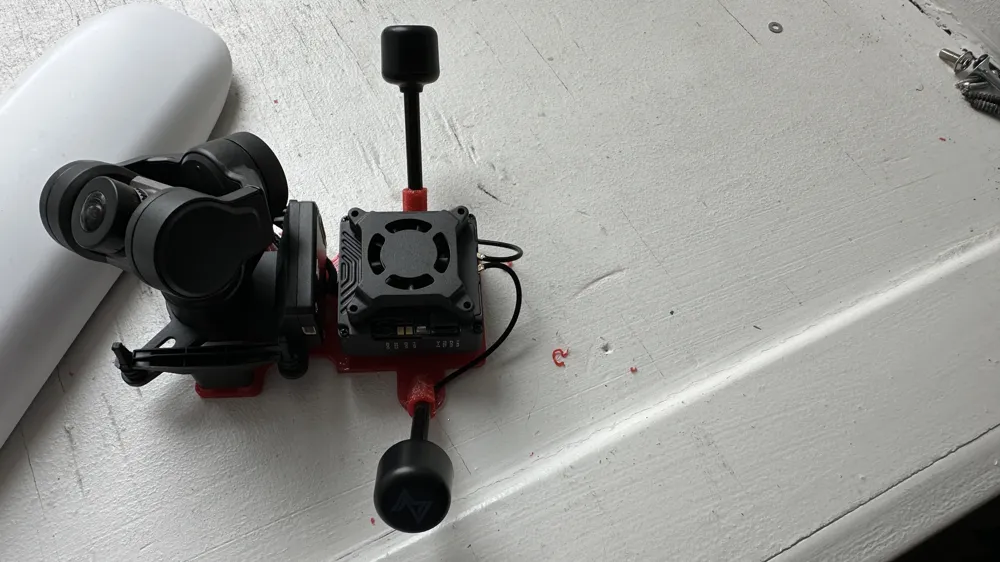

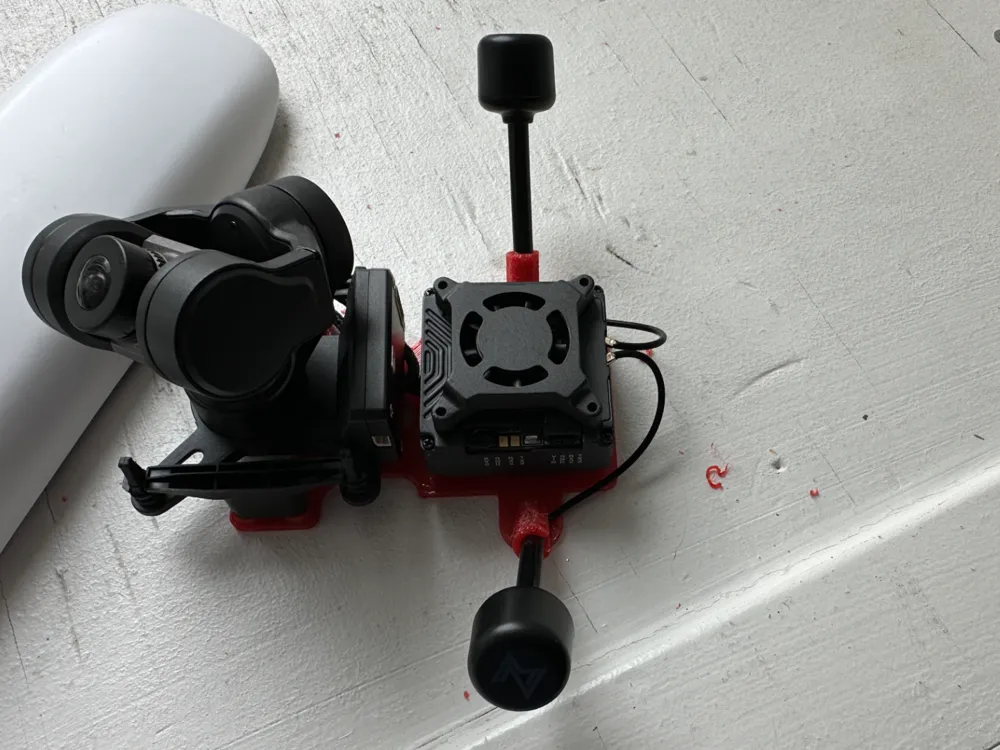

Mount for Caddx GM3 and a VTX with double antennas
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
24 min
1 plate
Open in Bambu Studio
Boost
13
34
5
0
54
25
Released
Bill of Materials
List other parts
- screws 2x5 mm x 8: use those that Caddx supply or unbraco bolts
- Velcro x 1:
Description

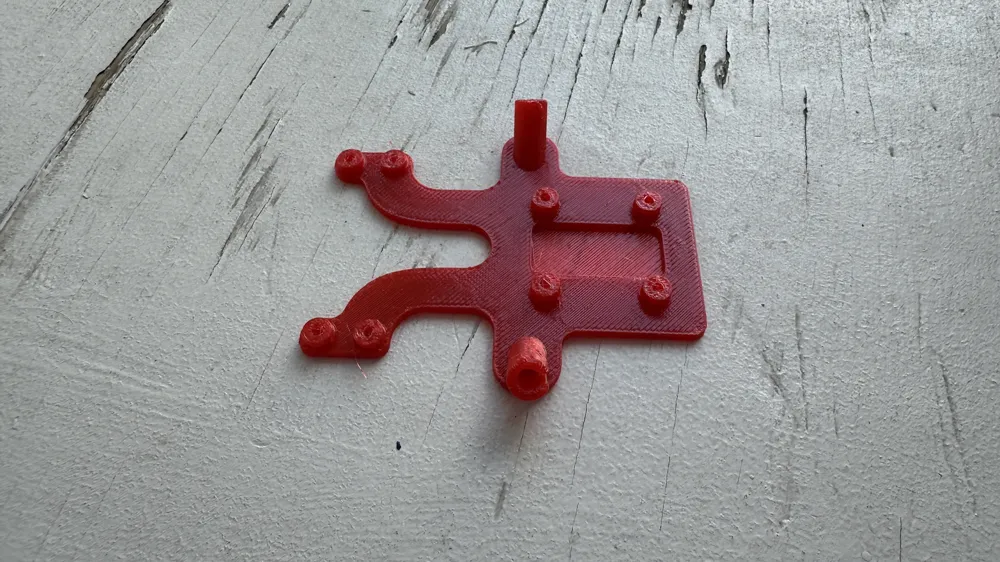

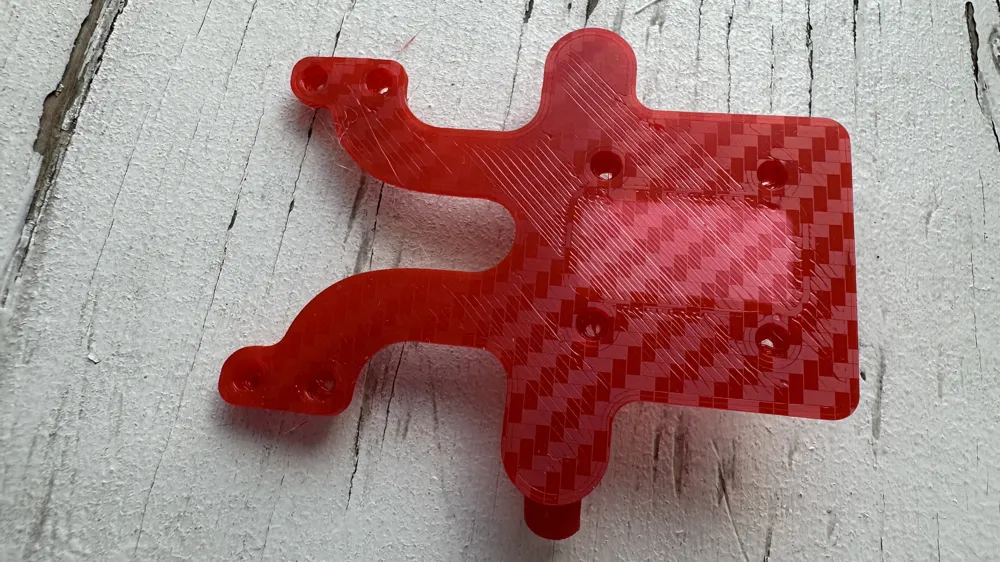

Found a model that almost fit my need, but unfortunately it did not have countersunk holes in the bottom to accommodate the screws. The bottom is closed so the Velcro has no accessible adhesive when mounted.
No support needed, just remove the small treads that might be in the holes before the screws are added.

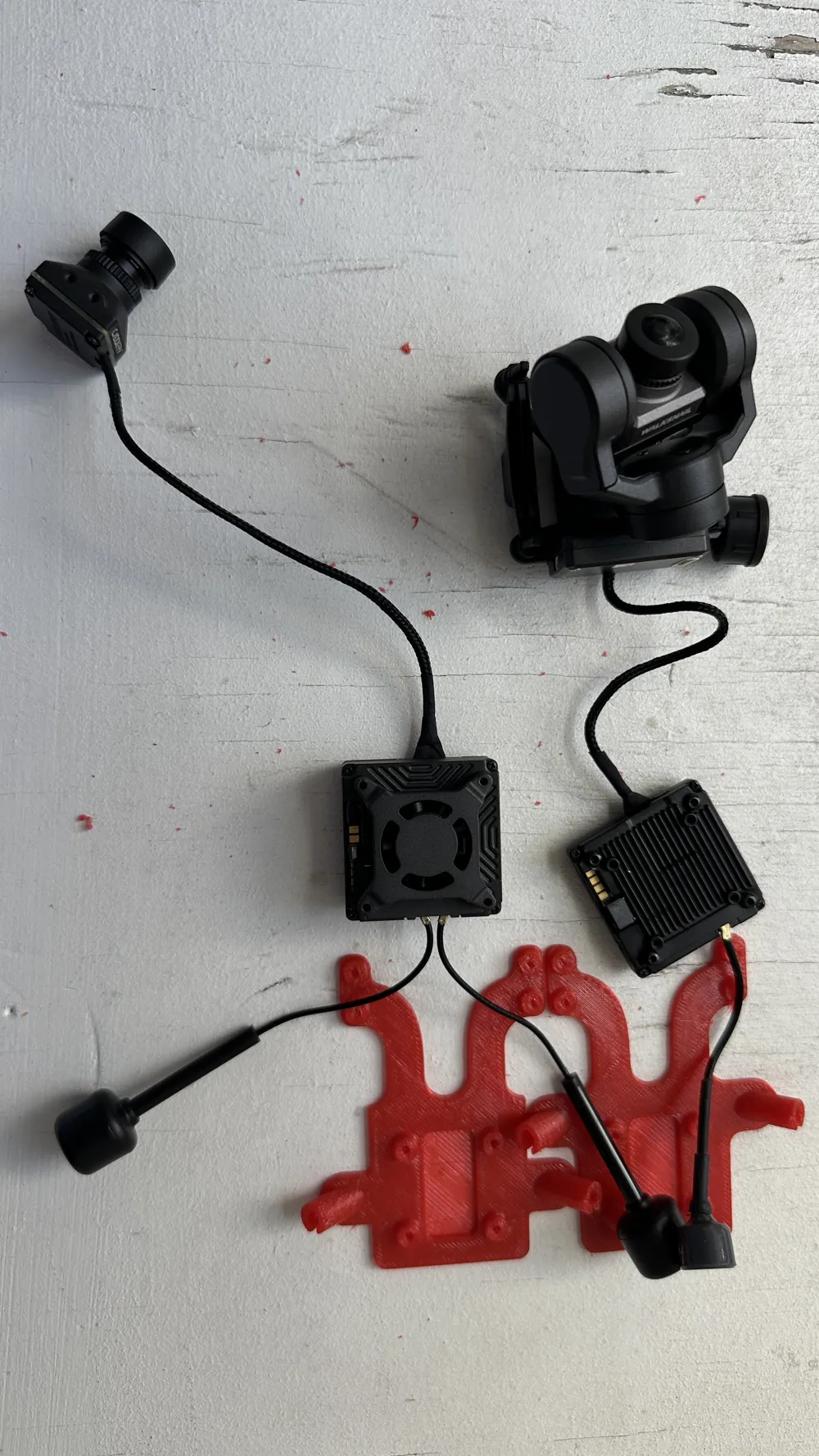

Two versions, one for normal VTX and one for GT-VTX (2 watt transmitter)
It is a good idea to use a magnetic connector for the wires so that they are not overloaded during a crash landing where the mounting plate is separated from the aircraft.
