Aircraft Model Stand - Exquisite 200/400 Scale Fixed Angle Print in Place Version
Print Profile(2)
Description
May 30 Update: Updated to v3, interface adjusted to 2.8mm (original version was 2.82mm—note the difference in the first print profile); chamfers added to the interface for increased strength
Note: This is a monolithic, non-articulating print; an adjustable version is also available Link:
MakerWorld China:
MakerWorld Global:
Exquisite 1:200/1:400 Scale Plane Model Stand - Monolithic 3D Printed Version with Fixed Angle
Exquisite 1:200/1:400 Scale Plane Model Stands - Monolithic 3D Printed Version with Fixed Angle
Notice/Notice:
Compatible with 2.5mm–2.9mm circular hole model interfaces, such as 1/200NG and 1/200 JC models If the interface is slightly oversized, it can be gently sanded; if undersized, the linked part can be 3D printed
If you are designing an aircraft model and wish to use this stand, simply pre-drill a 2.8mm circular hole in the underside of the fuselage
Future updates will include additional model interface sizes and scales, expanded base designs, reserved space for plaque installation, and support for customized plaque designs

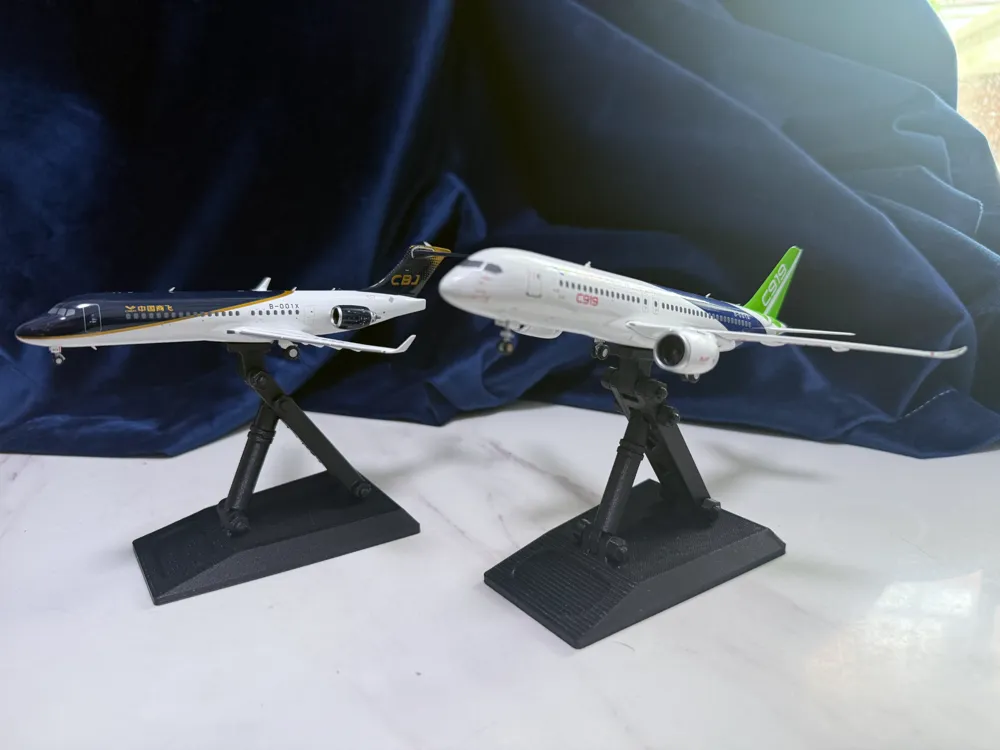

Many 1:200 and 1:400 scale precision metal aircraft models lack stands, and those that do often lack aesthetic appeal; current 3D model stands are quite rudimentary, so I spent a day designing this one and am sharing it openly for everyone to enjoy

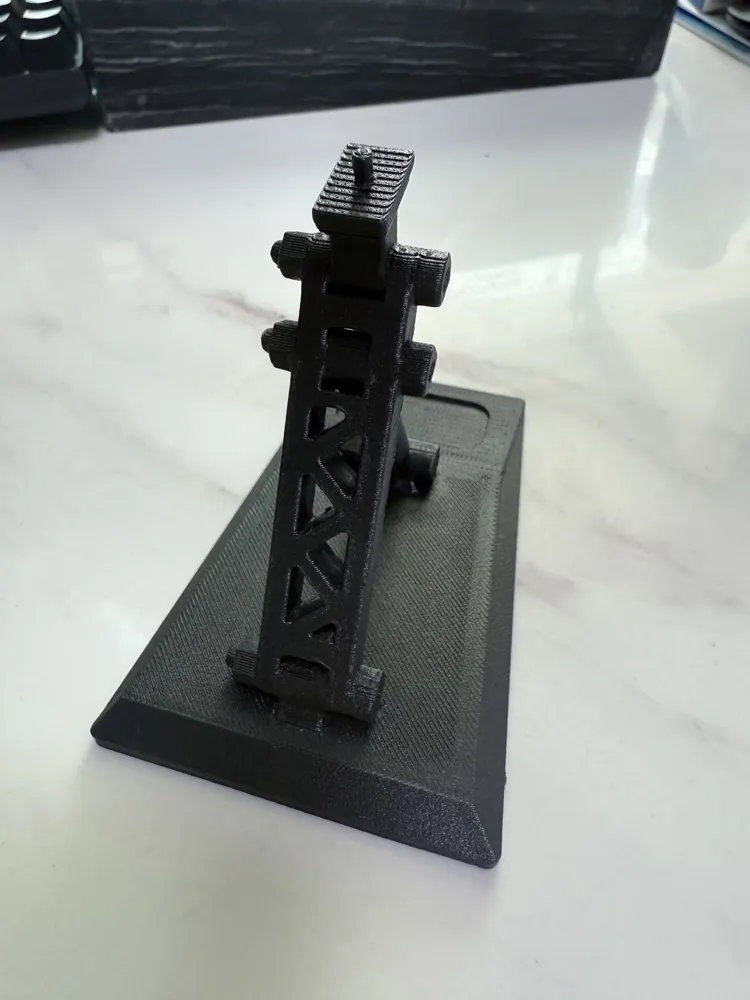

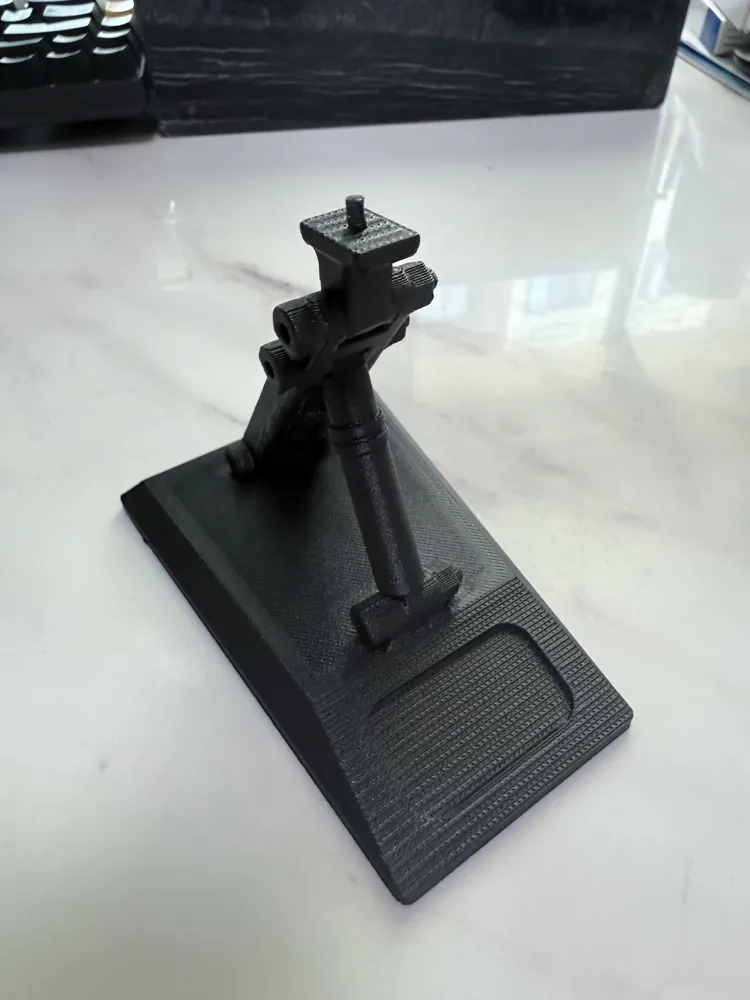

Monolithic 3D Printed Version - Fixed Angle Monolithic 3D Printed Version - Fixed Angle
Print directly; no supports required I used PETG-CF, but other PETG and PLA materials should also print well
This monolithic version features a 2.8mm circular interface, suitable for 2.7mm and 2.8mm NG brand 1:200 models and some 2.6mm JC brand 1:200 models
Advantages: convenient printing, suitable for printing multiple stands simultaneously; no assembly, supports, or fasteners required
Disadvantages: non-adjustable aircraft pitch angle; less detail than the modular version; minor warping in some overhanging areas (see the last two photos for a comparison of the two versions)
Modular Assembly Version - Pitch Angle Adjustment Modular Assembly Version - Pitch Angle Adjustment Link:
MakerWorld China:
MakerWorld Global:
Supports have been added to this version; consider using the 3D printed screws and nuts included in the design, or purchasing metal ones
The 3D printed screws and nuts are not threaded; the screw diameter is 3.9mm (0.1mm less than the 4mm hole) for easier assembly, but it might still be difficult; test fit each pair of holes before attaching to the base; 502 adhesive can be used for additional security. An extra screw and nut are included in the print file.
Recommended Metal Fastener Dimensions:
Screws: 3 * M4*22, 1 * M4*18; alternatively, use 3 * M4*20/25, 1 * M4*16/20
Nuts: 4 * M4
