Electric Lightning Cello - 3D Printed Cello

Print Profile(1)

All
A1
H2C
H2D Pro
H2S
H2D
P2S
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
40.3 h
6 plates

Open in Bambu Studio
Boost
27
95
11
4
39
4
Released

Bill of Materials

Bambu Filaments
Select all
Blue (10601) / Refill / 1kg
Black (10101) / Refill / 1kg

Description

First, thank you to Conor O'Kane for the O'Cello. I used his great design for inspiration but designed all the parts myself.

The O'Cello: https://www.thingiverse.com/thing:1703629

I printed the Electric Lightning Cello on my Bambu A1 3d printer but if you split the parts up farther it can be put on smaller print beds. The only piece that cannot fit on smaller beds is the larger knee rests.

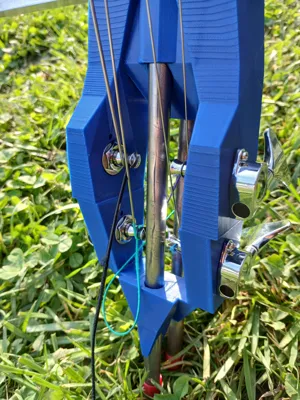

The cello is designed for a mostly screwless assembly with the only screws holding the endpin.



Parts list:

  • M5 30 mm Machine Screws: 2
  • M5 Wing nuts: 2
  • 4/4 size cello strings
  • 2 left 2 right guitar tuning pegs

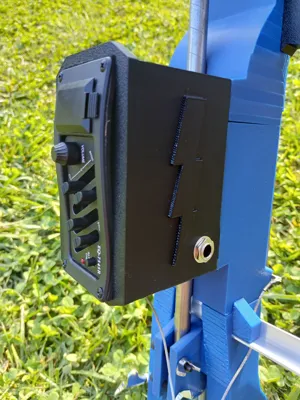

  • Preamp
  • Piezo
  • 2 Steel rods 3/8 in by 36 in

I will put all the amazon links in the Electric Lightning Cello Instructions.





I did not paint the fingerboard because the strings will rub it off.

Please be careful the parts may be sharp!
