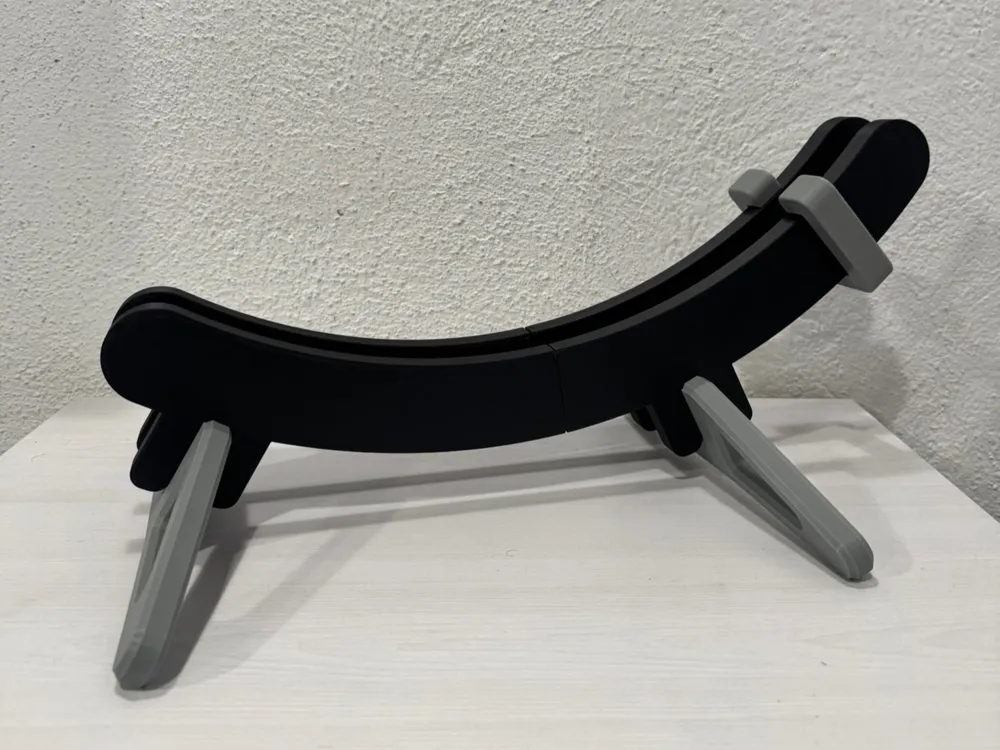

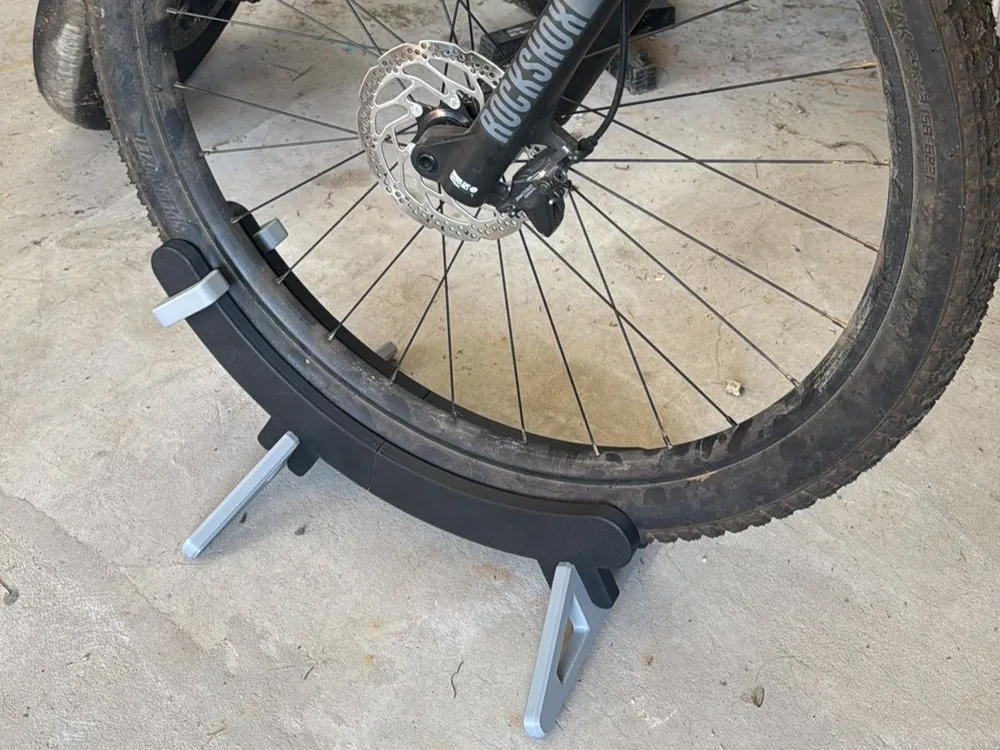

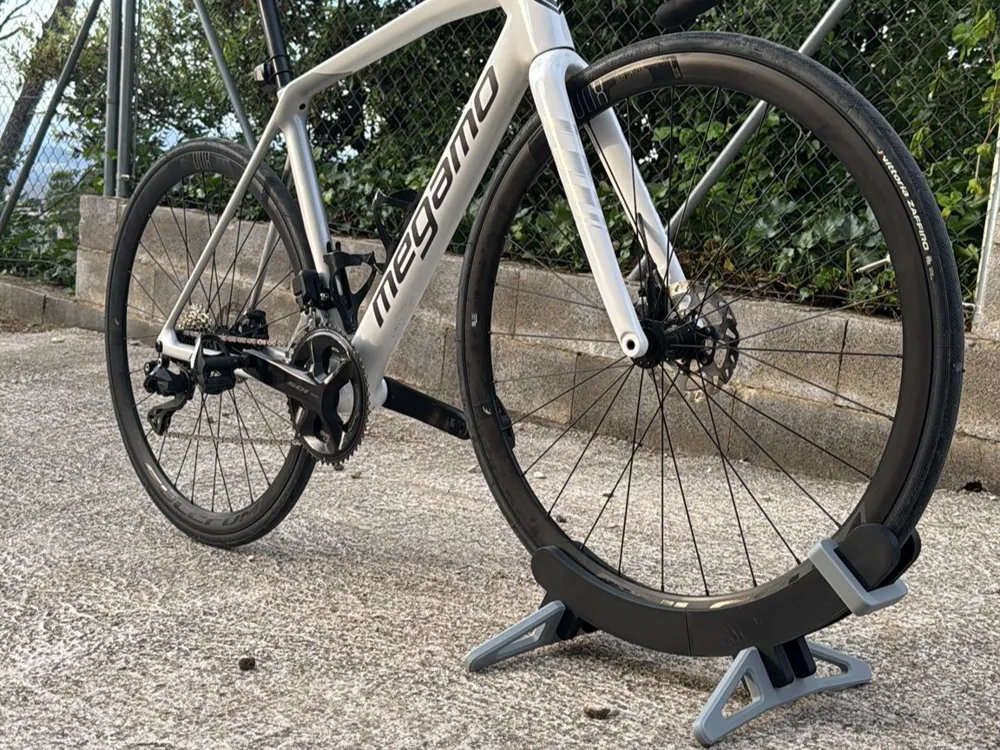

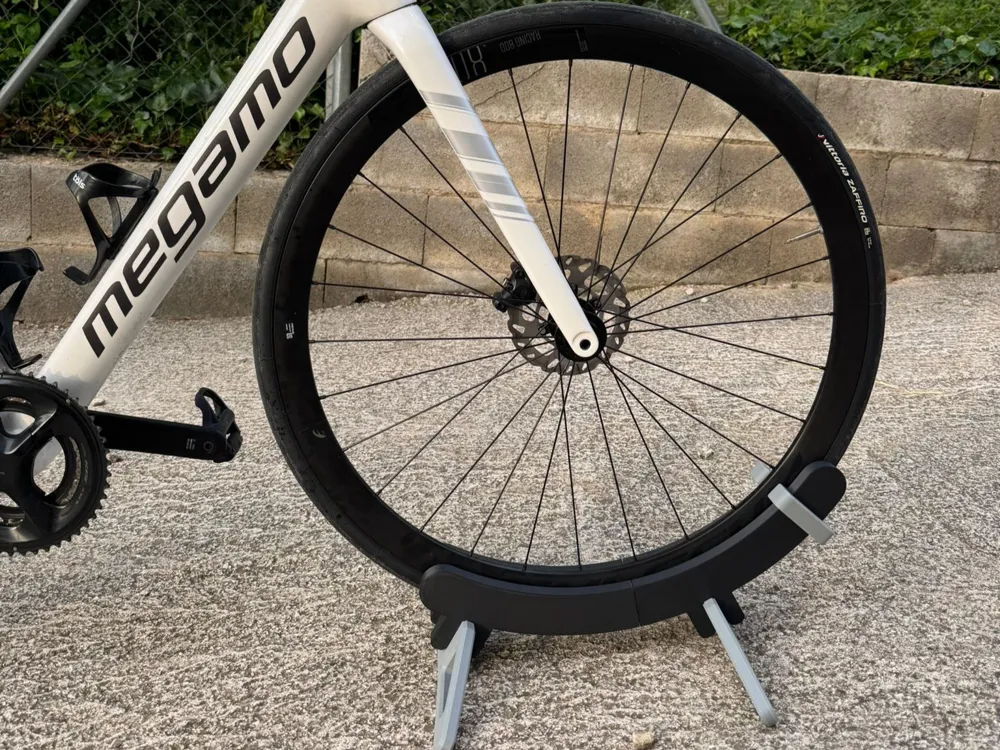

Universal Bicycle Wheel Stand – Road, Gravel & MTB

🚲 Universal Bicycle Wheel Stand – Road, Gravel & MTB (Adjustable & Foldable)

Tired of your bike falling over or not having a stable place to store your wheel?
This stand is designed to keep any wheel secure, stable, and organized in seconds.

📏 Universal adjustable version
Compatible with road, gravel, and MTB wheels. Just choose the correct size for your tire.

🔒 Integrated locking system
Keeps the wheel firmly in place for extra stability, even on smooth surfaces.

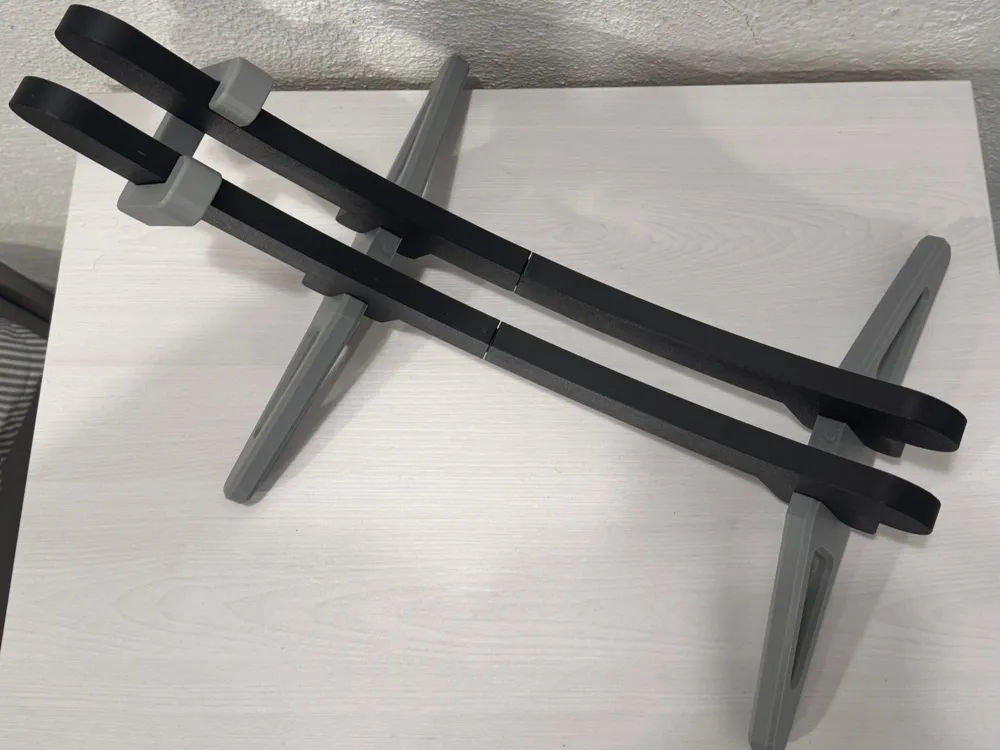

🧩 Modular & foldable design
Easily disassembled to save space or transport without hassle.

🎒 Portable & lightweight
Perfect for carrying in your car, races, or group rides.

🛠️ Printing Instructions

• Each stand has its size marked in millimeters (mm) on the part itself.
• Print 2 units of the stand to complete the setup.
• On the second print, the clip is optional (recommended for extra strength).

Black versions:

• Print 1x double plate (2 stands)
• Print 2x single plate (1 stand each)

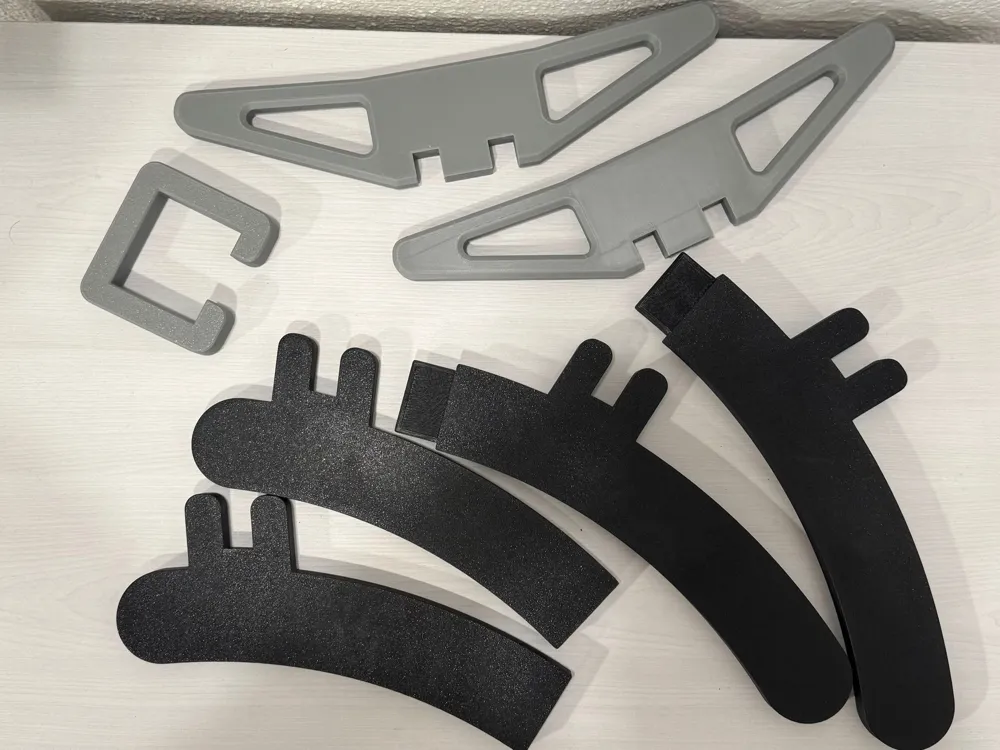

📸 Check the reference image to see all required parts and the full assembly.

💡 Depending on your printer, you can combine multiple parts on one plate to save time.

📐 How to Choose the Right Size

1. Measure your tire width.
2. Select the stand with +2 mm clearance for a perfect fit.

Example:
If your tire is 28 mm → use a 30 mm stand.

📩 Missing Size?

If you can’t find your tire size among the available supports, leave a comment and I’ll upload the missing sizes!

✅ Benefits

✔ No tools required
✔ Compact and sturdy design
✔ Saves space at home or in the garage
✔ Compatible with multiple bike types

Road:

-700x 25 → 28mm

-700x 26 → 28mm

-700x 28 → 30mm

-700x 30 → 32mm

Gravel:

-700x 32→ 34mm

-700x 35 → 38mm

-700x 38 → 40mm

-700x 40→ 42mm

-700x 45→ 47mm

-700x 50→ 52mm

MTB:

-29 x 2,20 → 56mm

-29 x 2,25 → 58mm

-29 x 2,30 → 58mm

-29 x 2,35 → 58mm

-29 x 2,40→ 58mm

-29 x 2,50→ 61mm

-29 x 2,60→ 61mm

🖨️ Print Settings

• Material: PLA
• Layer height: 0.2 mm
• Infill: 15%
• Wall loops: 4
