🏠 DIY Indoor Unit – Weather Station Project (Part 2)
Hello everyone,
Here’s the second part of the small DIY weather station project – this time covering the indoor unit.

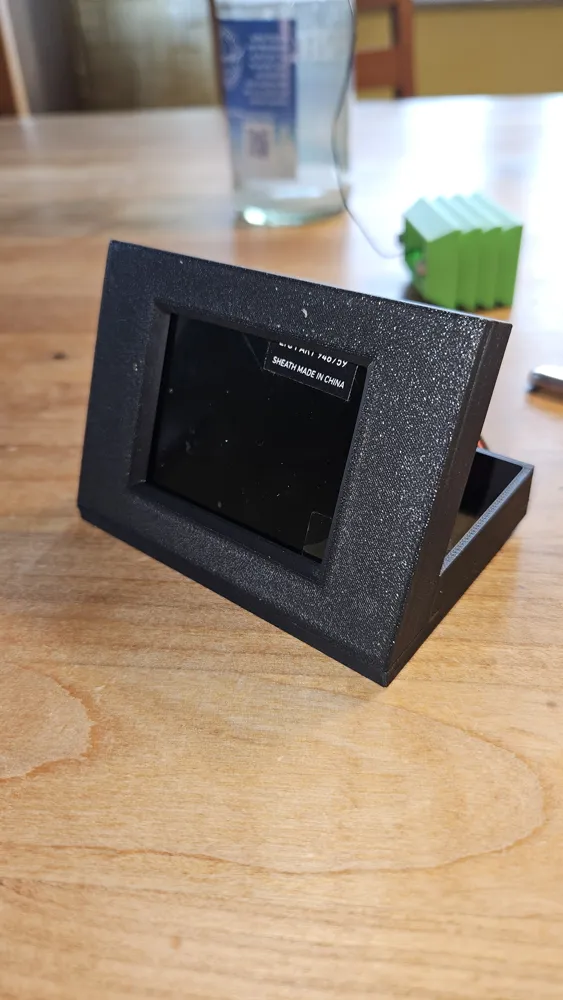

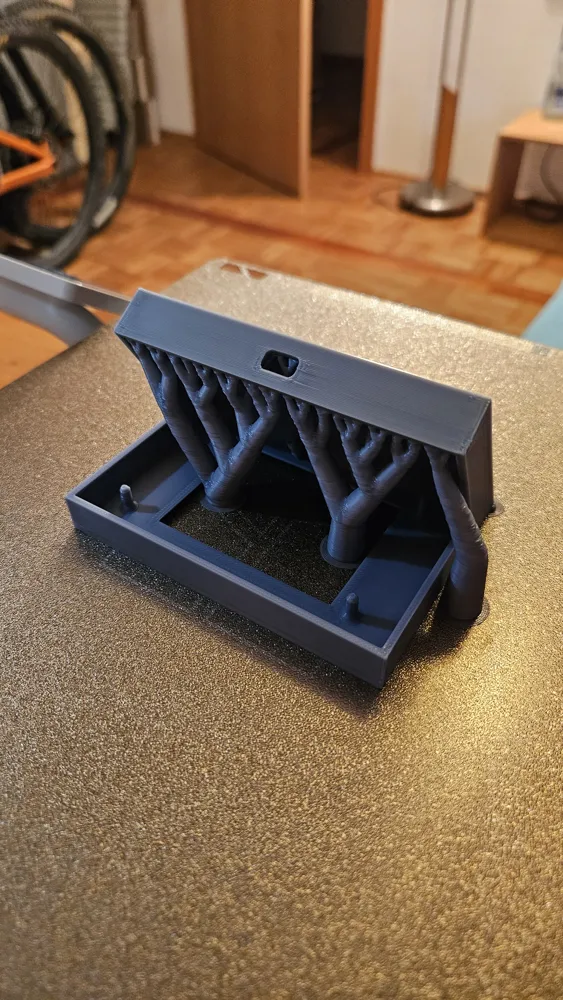

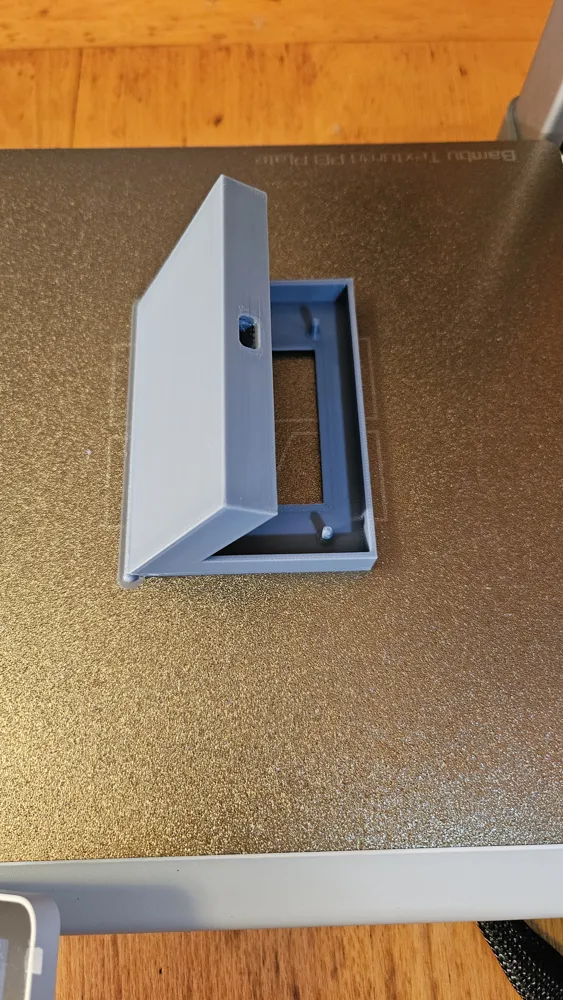

There are two versions of the enclosure:

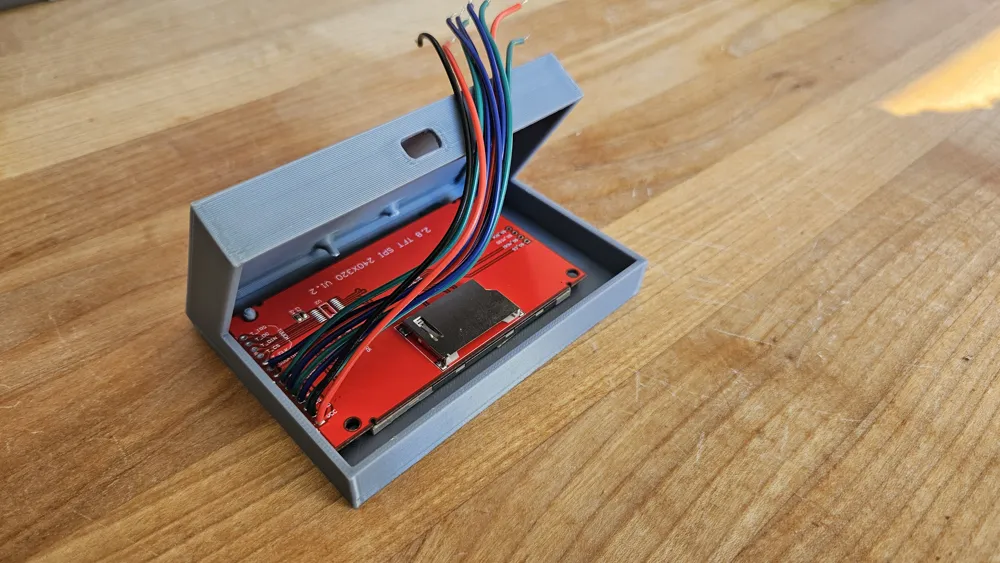

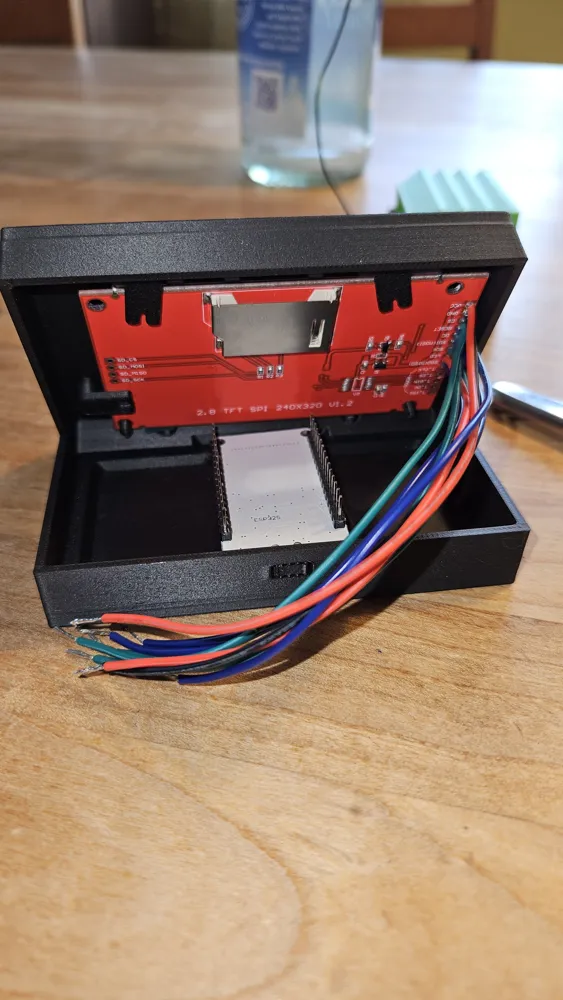

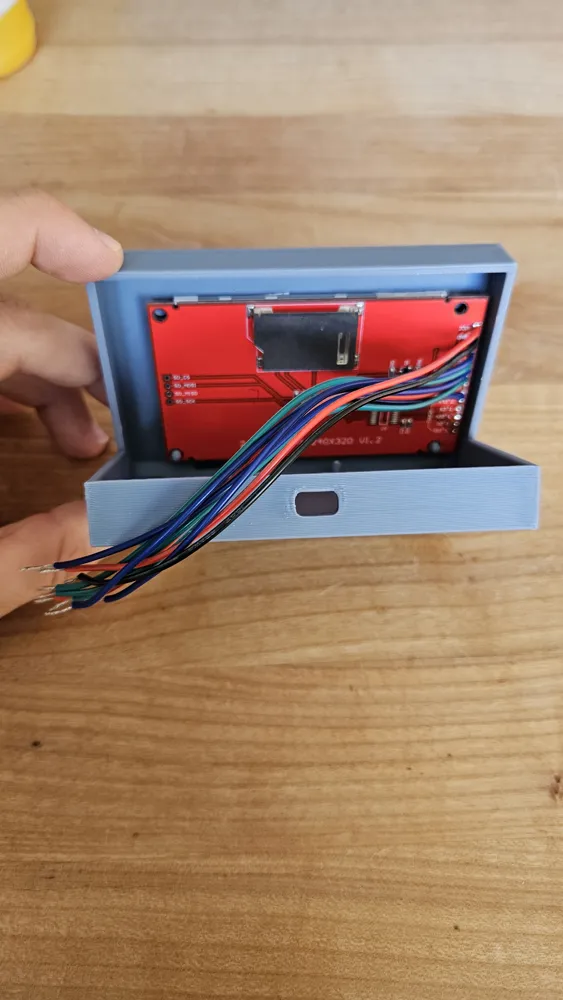

- One version fits a 2.8" ILI9341 display with touchscreen
- The other version is for the non-touchscreen variant
At the core is an ESP32 development board, allowing you to:

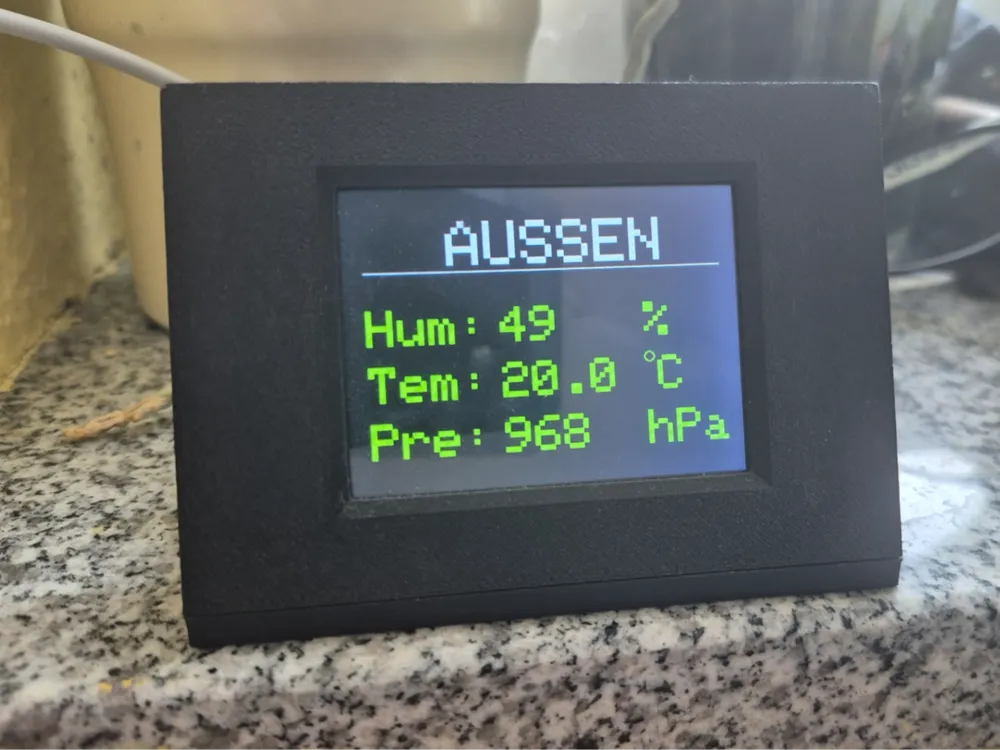

- Host a local HTML page showing the measured data
- Integrate the unit into Home Assistant
- Or build your own custom applications
🧰 Components Required
| Component | Description | Link |
|---|---|---|
| 📺 2.8" ILI9341 Display with Touch | Touchscreen version | AliExpress |
| 📺 2.8" ILI9341 Display without Touch | Non-touch version | AliExpress |
| 🧠 ESP32 Development Board with USB-C | Main controller | AliExpress |
| 🌡️ Compact AHT20 Sensor | Indoor temperature & humidity | AliExpress |
🔧 Additional Tools & Supplies
- 🔥 Soldering iron & solder
- 🔌 Wires for connections
- 🕓 A bit of patience, especially when soldering the display
🤝 Final Thoughts
Enjoy building the indoor unit!
Feel free to reach out if something is unclear or doesn’t work as expected. 😊
