Table Leg Joint Bracket
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 100% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
8
17
0
0
5
0
Released
Description

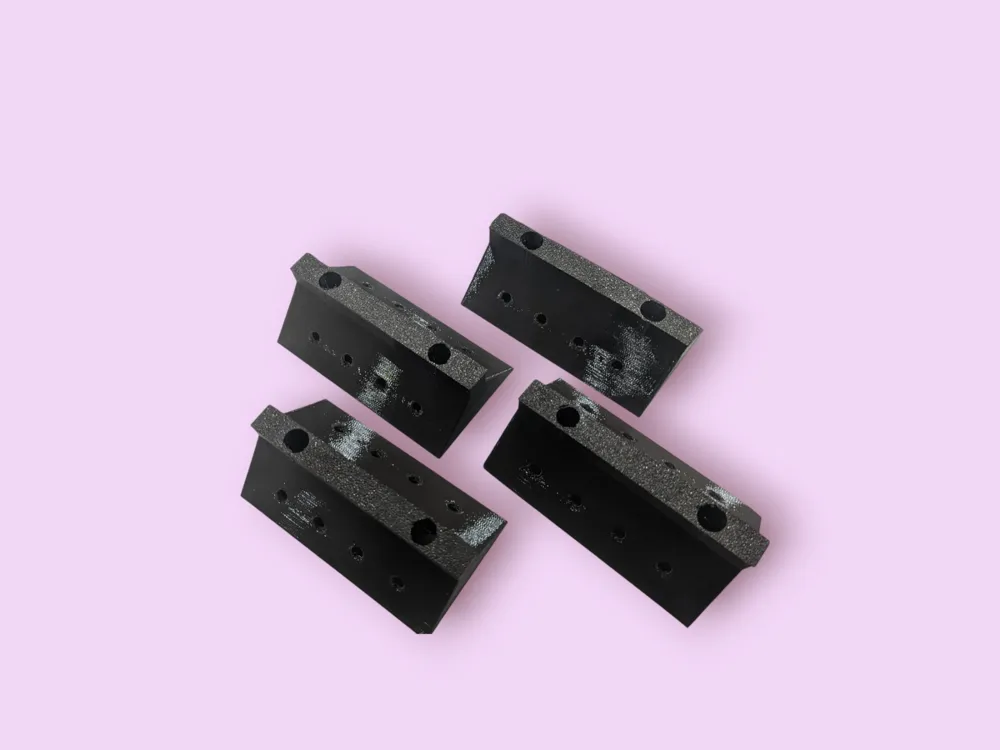

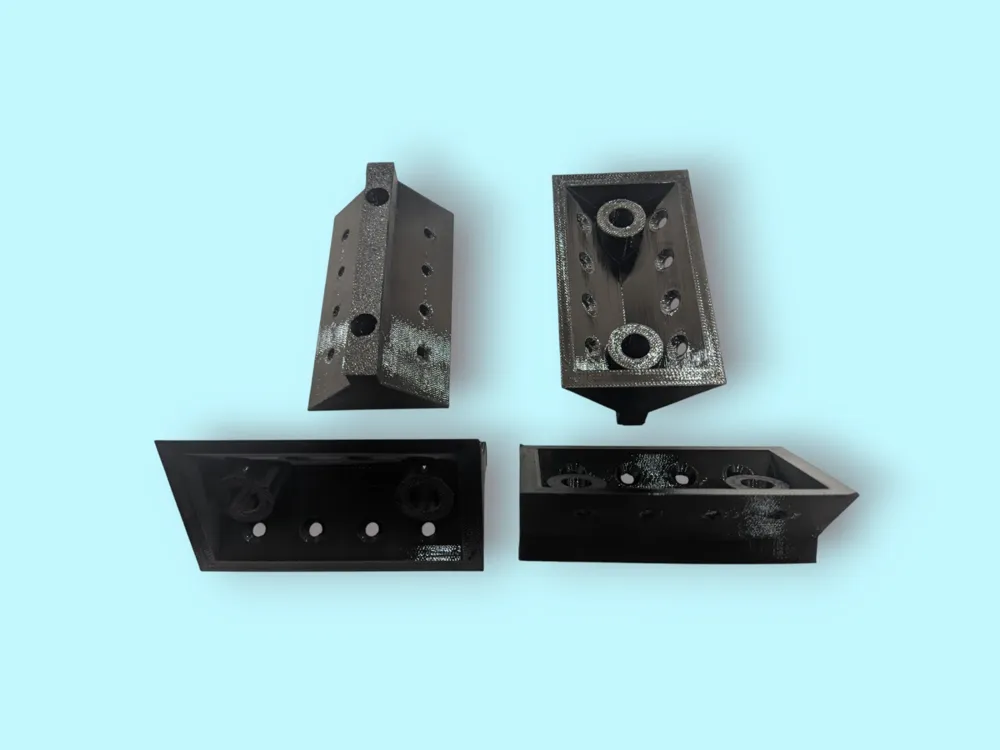

🧩 Internal Table Bracket – Reinforced 3D Printed Joinery
This model is a structural internal bracket designed to connect the side beams and leg of a table seamlessly. Perfect for DIY furniture builds or repairs, it offers strong, clean connections with invisible hardware.
🛠️ Features:
- ✔️ Designed for 4 mm diameter wood screws – 8 countersunk holes total (4 per side)
- ✔️ Supports one leg attachment with 2 holes for 8 mm diameter wood screws
- ✔️ Clean internal mount – hidden bracket, nothing visible on the outside
- ✔️ Sized for standard builds – height: 85.6 mm, compatible with 40 mm table legs and 85 mm beams
- ✔️ Optimized for PC filament, but adaptable for high-strength PLA+ or PETG
🖨️ Printing Info:
- 💡 Best printed with engineering-grade materials (e.g., Polycarbonate (PC))
- ⏱️ Estimated print time: ~1 hour
- ⚖️ Filament usage: ~30g
- 🔧 Infill: 🟫 100% for maximum strength and durability
🧱 Ideal For:
- Furniture assembly
- Custom table or bench builds
- Hidden, robust support where aesthetics matter
