AICS magazine pouch
Print Profile(1)
Bill of Materials
- M5 Allen socket head cap screw x 2: 25 mm
- M5 screw (prefably flat head but socet head will work) x 3: 8 mm
- M5 nut x 5: One for each screw
Description

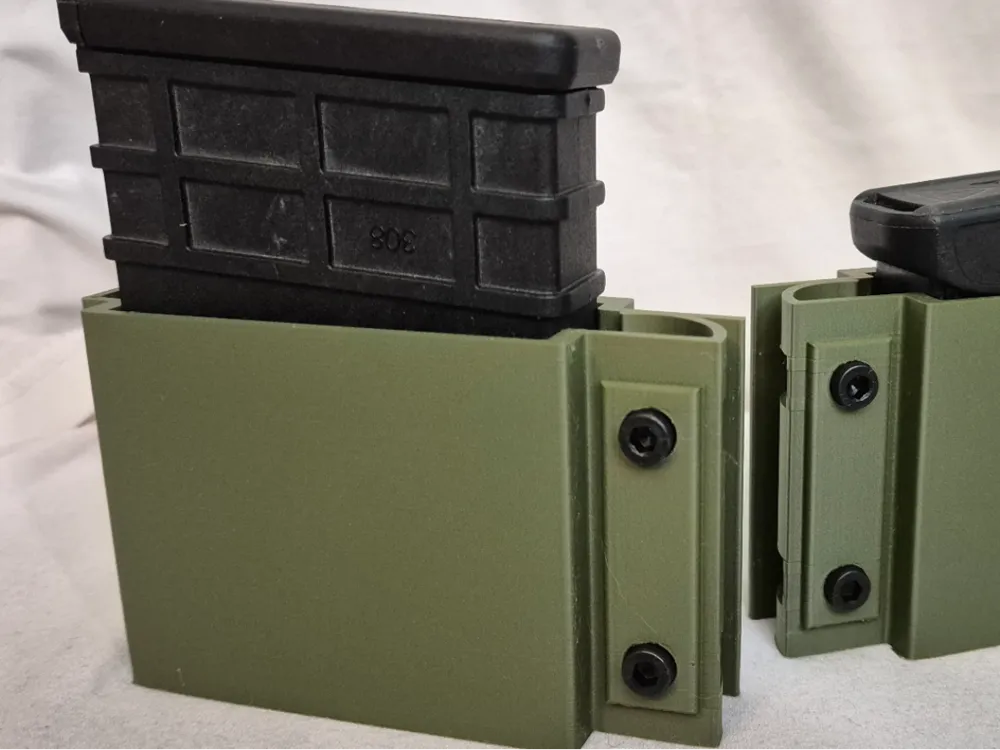

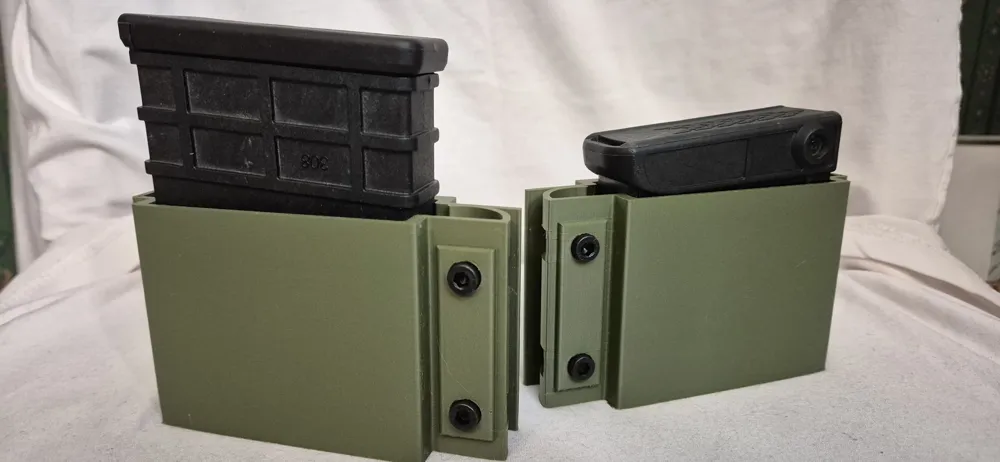

This is a mag pouch for AICS magazines. It will work for MDT AICS 308, Tikka T3x TAC A1 308 or 6,5 Creedmoor. It will most likely work for SAKO TRG 308 and other magazines in the same size. Will it work for airsoft? I dont know but i guess it will since those toys often imitate the real deal when it comes to size and weight.

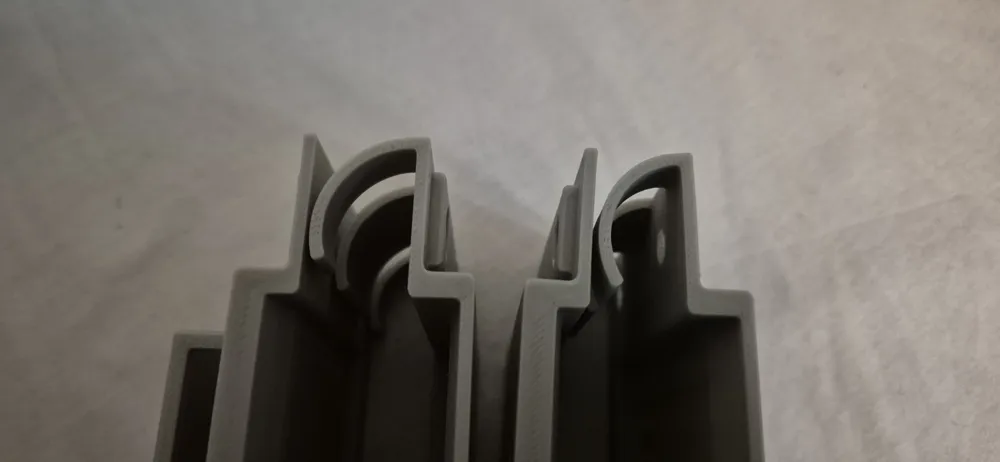

Some of these magazines are rectangular, others are isosceles-ish shaped with a somewhat broader back vs the front part of the magazine. Therefor i have made the pouch slightly adjustable on one side. Note that this is a plastic product, when you screw together the adjustable side the plastic will dull over time (the second last picture will illustrate this) and there is no guarantee that the “feather” will spring back to its original shape. Unscrewing the bolts will however still alow the pouch to take the more rectangular magazines.

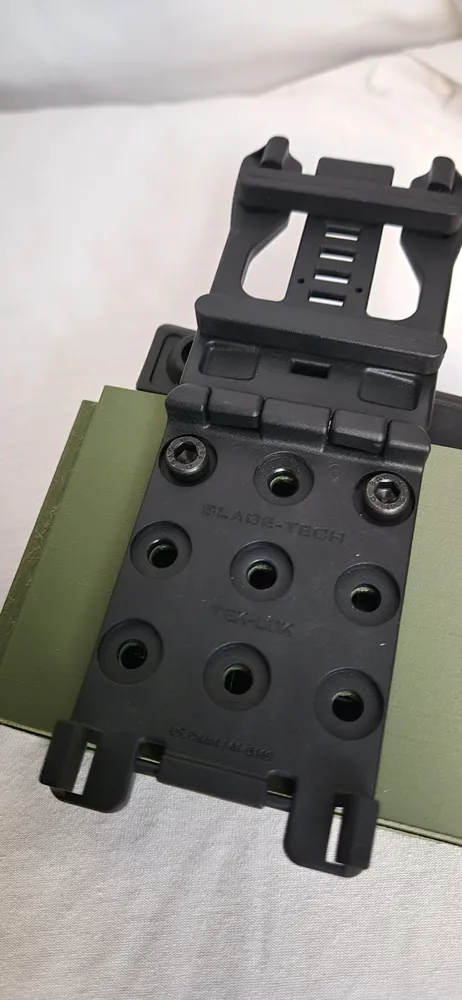

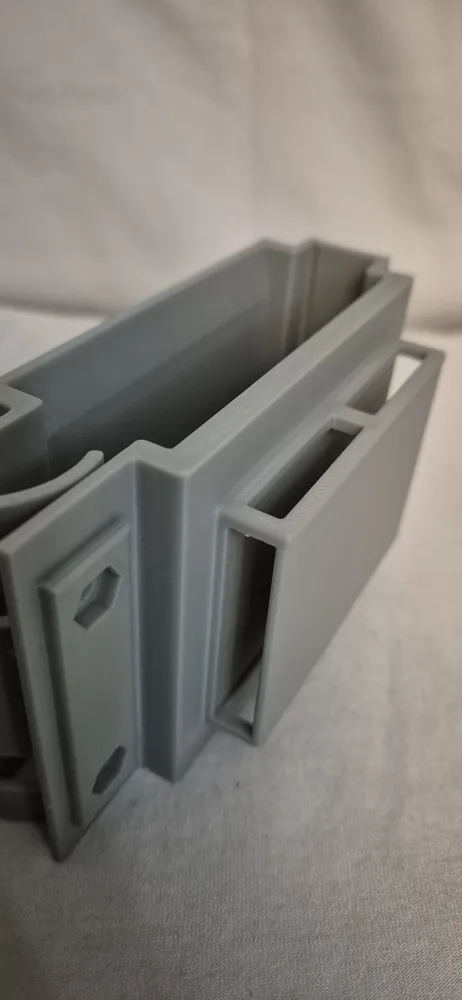

There are two versions. One with holes to fit a TEK-LOK belt attachment from Blade-Tech, one with a simple fixed belt loop. Both these are available as a right or left side pouch. You will probably want to print a pouch that allows you to grab the magazine and put it your rifle without having to rotate the magazine.
I have used M5 screws and nuts. The TEK-LOK fix is using a 8 mm long screw, the adjusting part of the pouch is using a 25 mm long screw.
