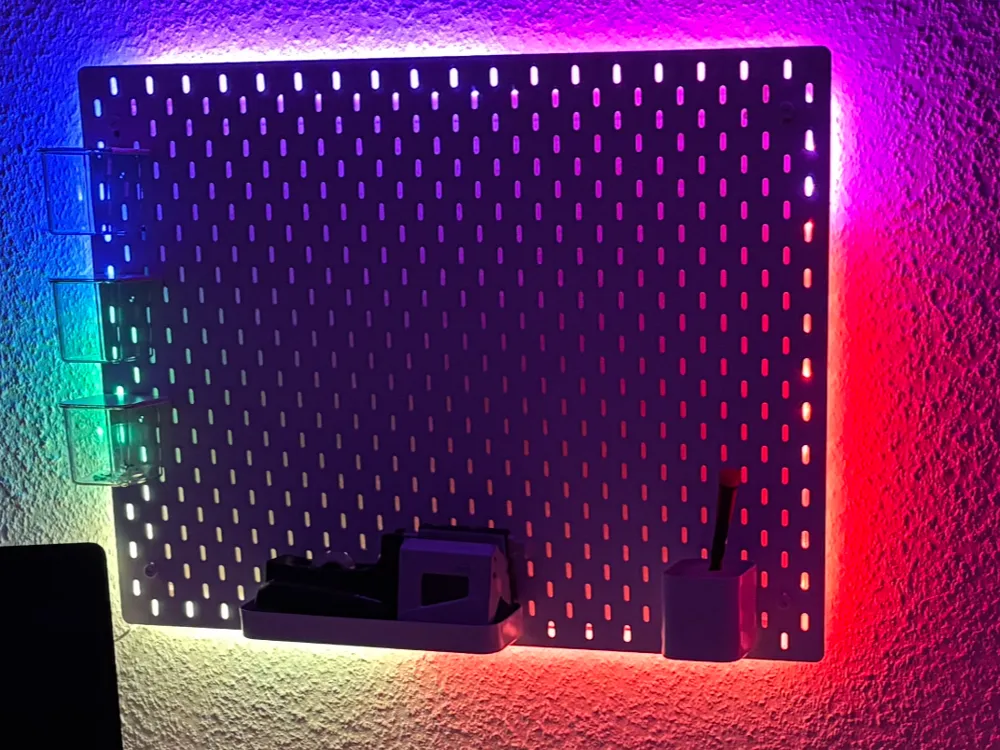

IKEA SKADIS LED Backlight Corner Holders

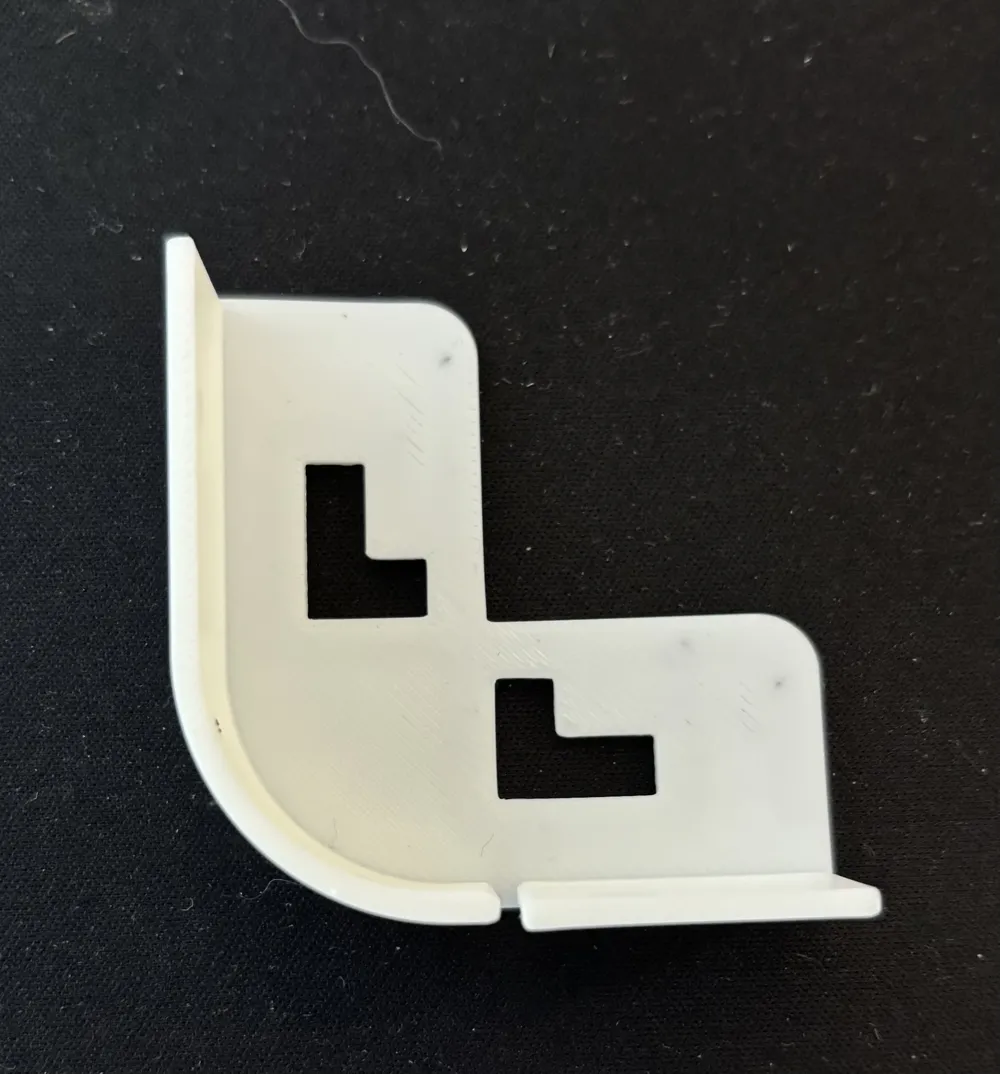

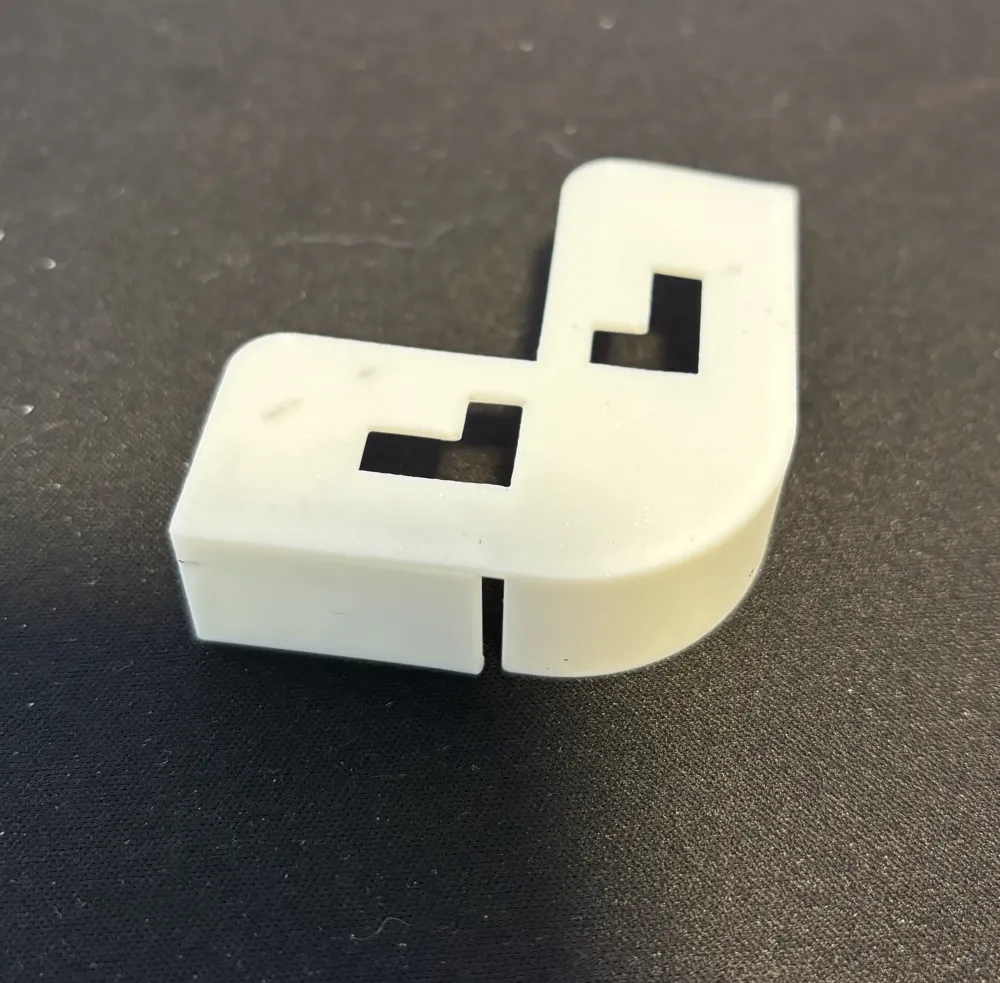

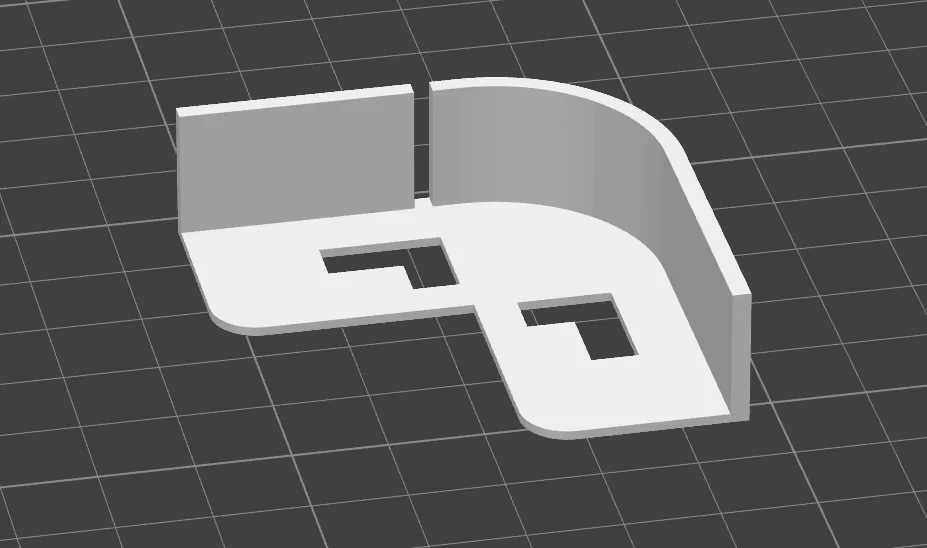

I designed these corners to make my Skadis a real eye-catcher. The corners are simply screwed between the board and the bracket with the Skadis screws. The gap in the surface where the LED strip is glued is for the beginning of the strip. This hides the controller behind the board and only a thin cable leads down from the power supply.

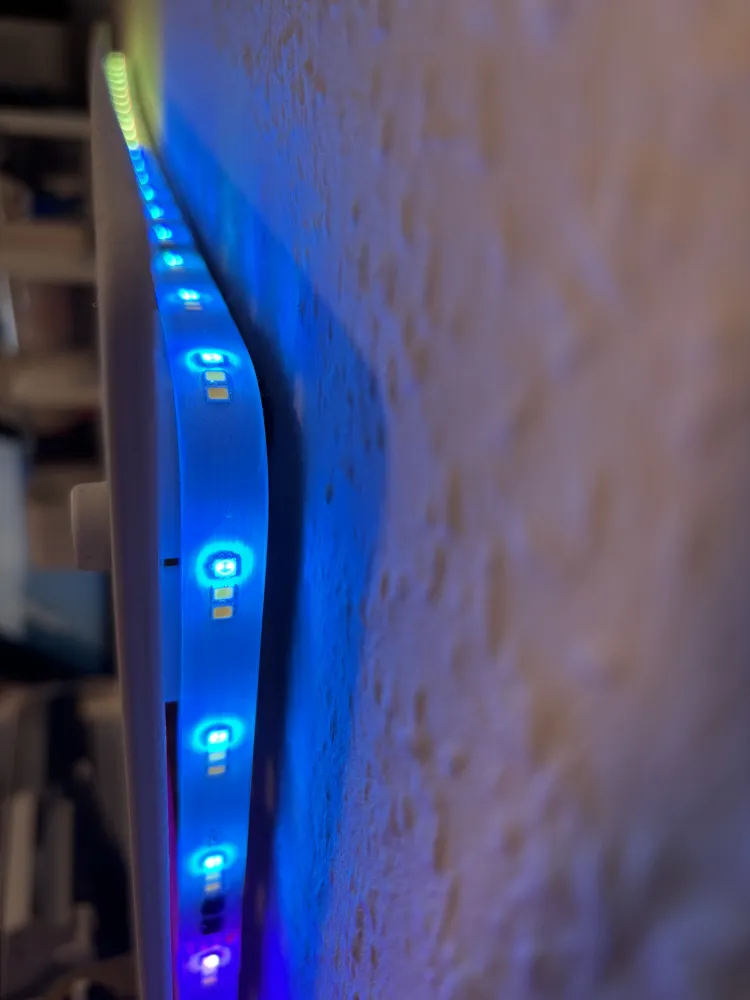

Due to the rounding, the LED strip can be glued on very well and has held for more than 6 months. Only the four corners are needed, no further holders. The LED strip adheres so well to the corners that the strip is stretched all around. (see picture)

Which LED strips you use is up to you. Personally, I think it's just great with the WS2812 LEDs when the colors change slowly. All four are the same corners. Once the LED strip is glued on, you can tighten the LED strip a little more with the bottom two corners, as I have designed some extra play into them. By tightening the screw, the corners are then fixed and no longer move. The lighting is very clearly visible even in bright light!
