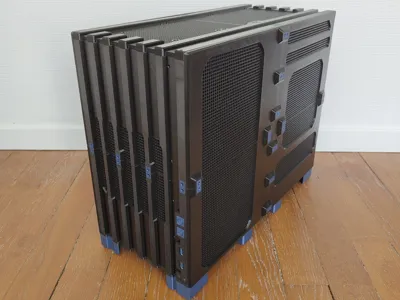

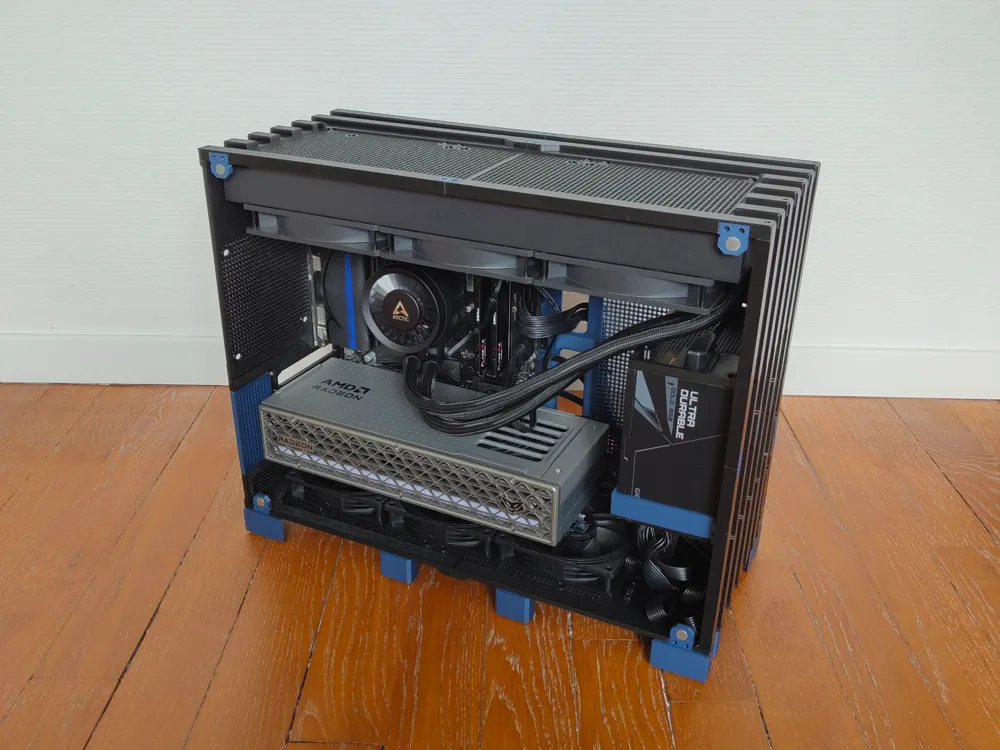

**LxW Basic Plus² – A Compact Case for High-End mATX Builds**
The LxW Extended is a larger evolution of my previous mATX case, designed to support *full-size hardware* in a space-efficient form. It aims to remove the usual trade-offs you make in compact builds, offering full GPU length clearance and 420mm AIO compatibility without bloating the overall size.
Specs & Features:
- Motherboard: mATX

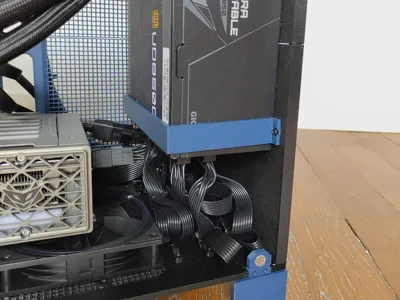

- PSU: ATX

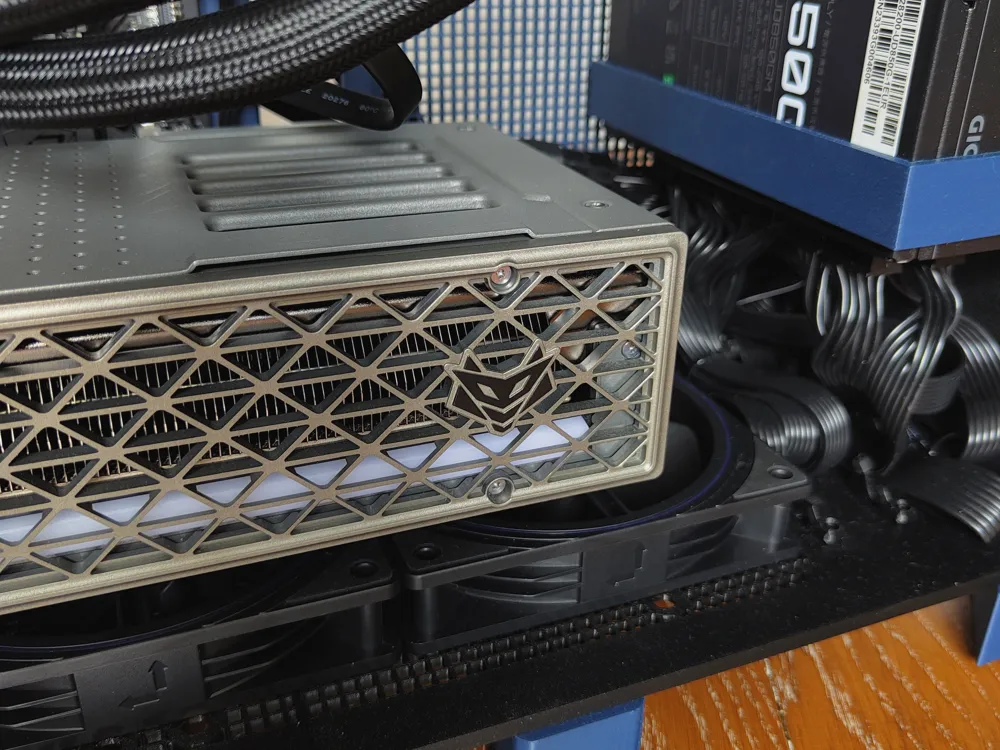

- GPU: Up to 4 slots thick, unrestricted length

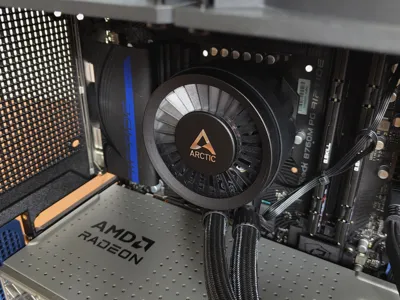

- CPU Cooler Height: Up to 159mm
- Cooling Support:

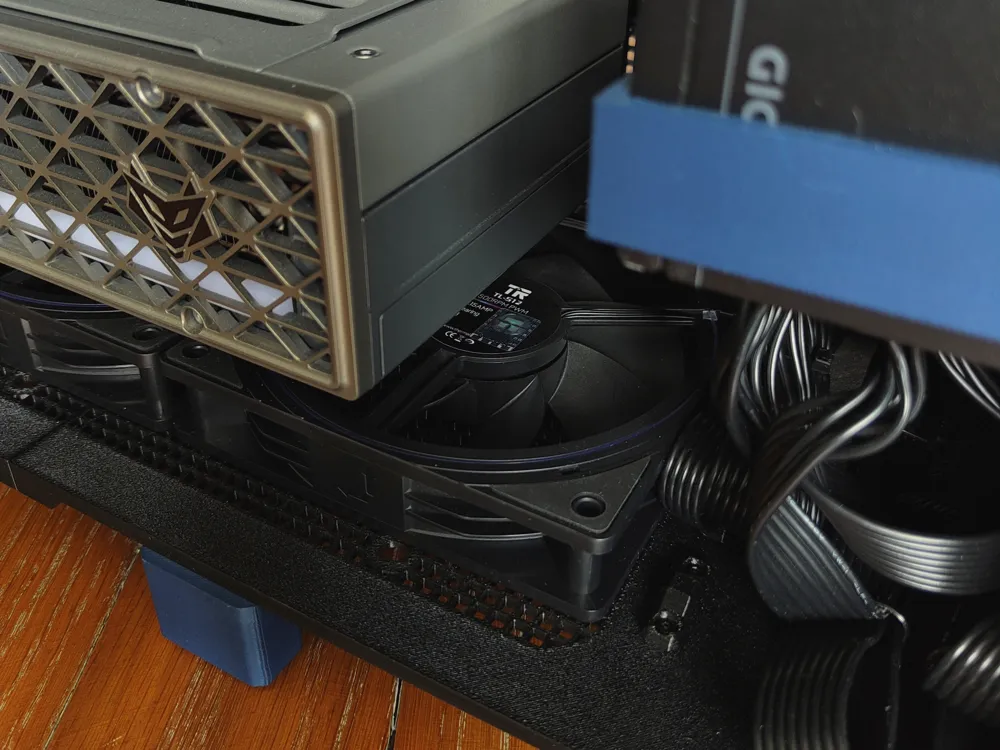

- Bottom: 3x 140mm or 2x 120mm
- Rear: 1x 120mm
- Top: Up to 3x 140mm or 120mm (if no AIO installed)
- Storage: 2x 2.5" drives (7mm thick max)

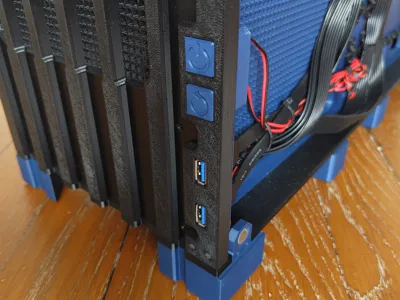

- Front Panel: Power + Reset switches, 2x activity LEDs, USB 3.x ports

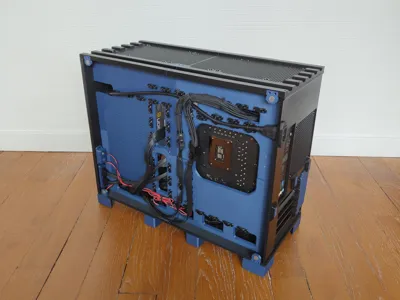

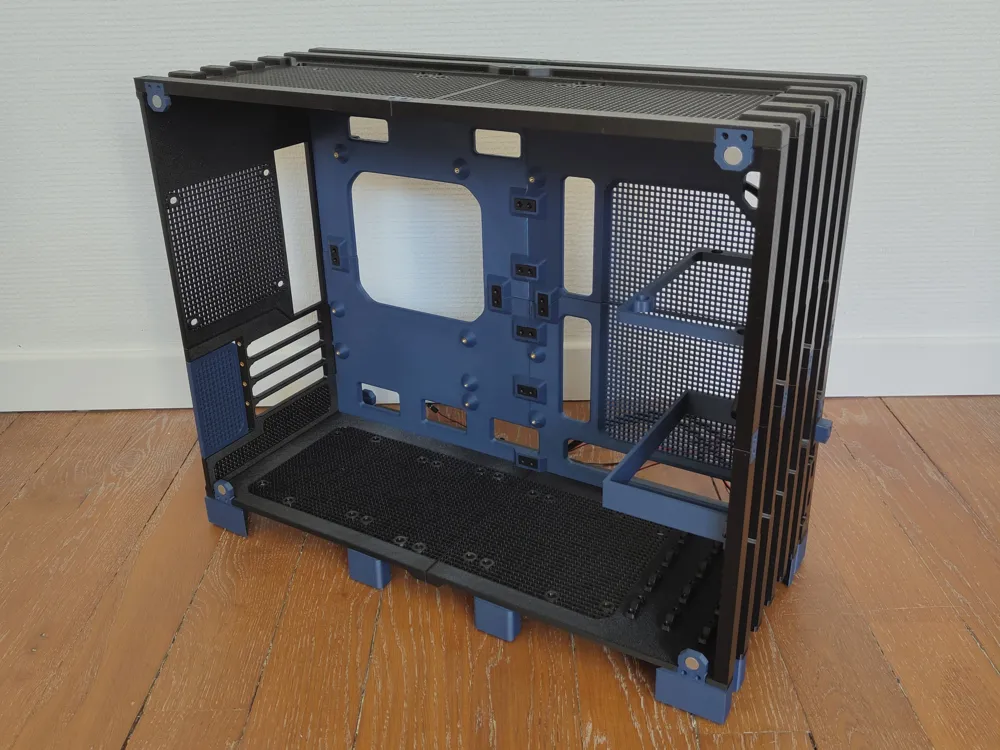

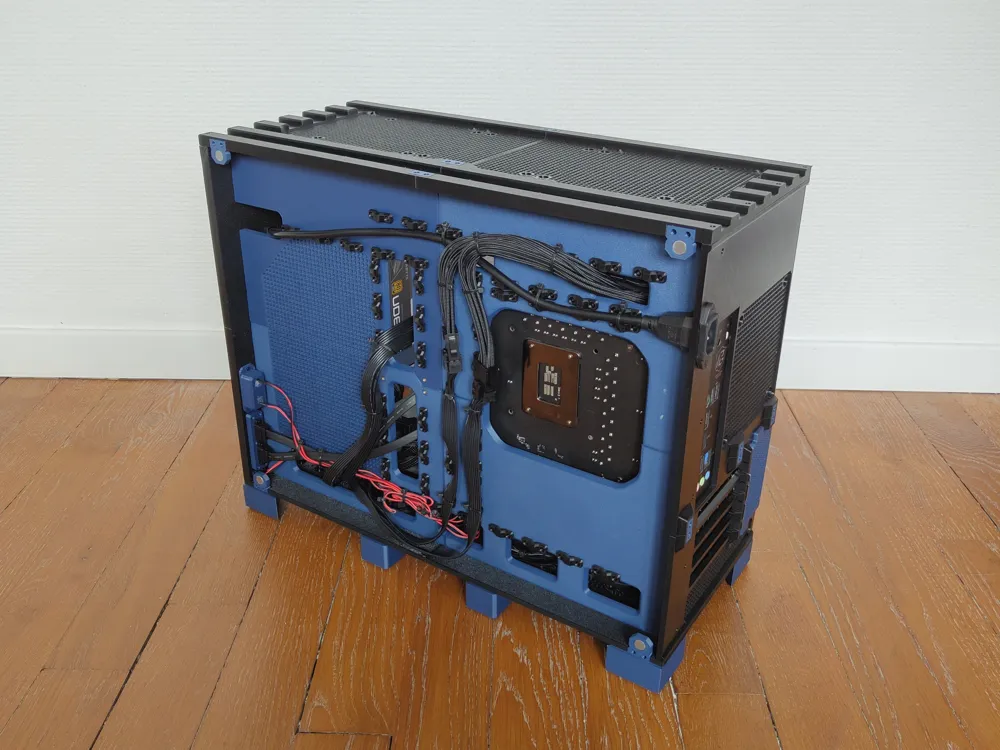

- Cable Management: Integrated hooks across the rear panel

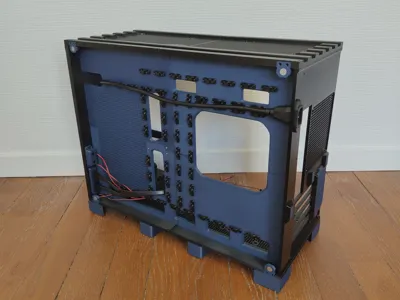

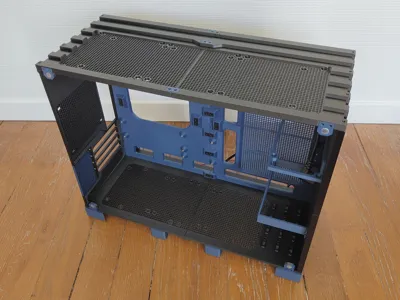

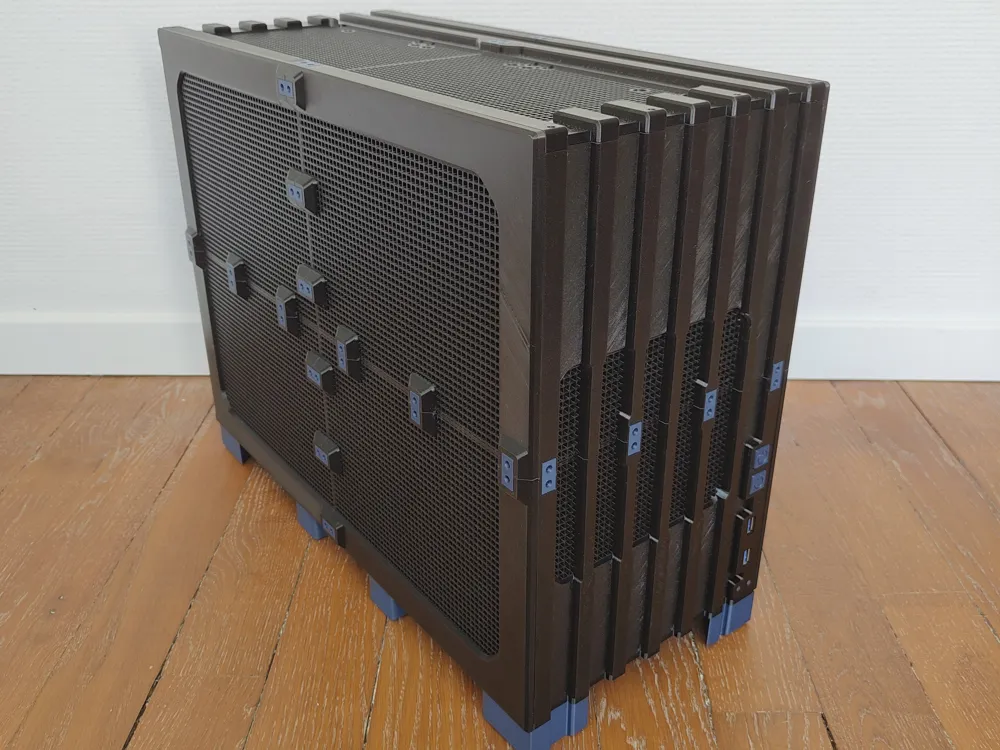

📏 Compared to the previous version, this model keeps the same height but is **longer and slightly slimmer**, balancing airflow and layout for larger hardware. It’s printed in black PETG for structure and dark blue matte PLA for the accents.
🛠️ Assembly is straightforward if you’ve built in my other cases before, but feel free to reach out with any questions.
Feedback is always welcome—it’s what helps refine these designs and make them even better for the whole maker community.
Let me know what you'd like to see in future revisions!
