Finecoar Dial – No M5x30mm Threaded Nut Needed

Version V2:

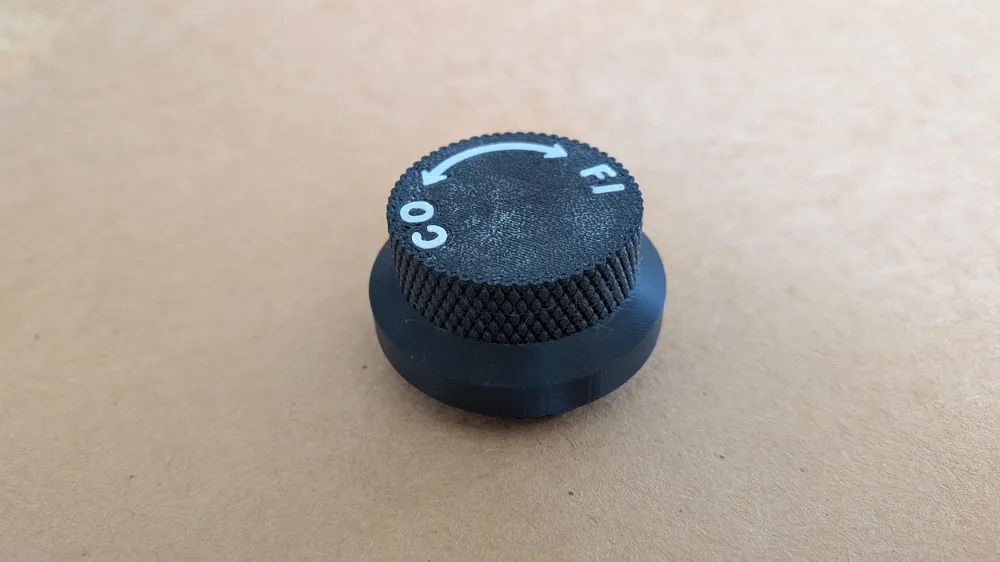

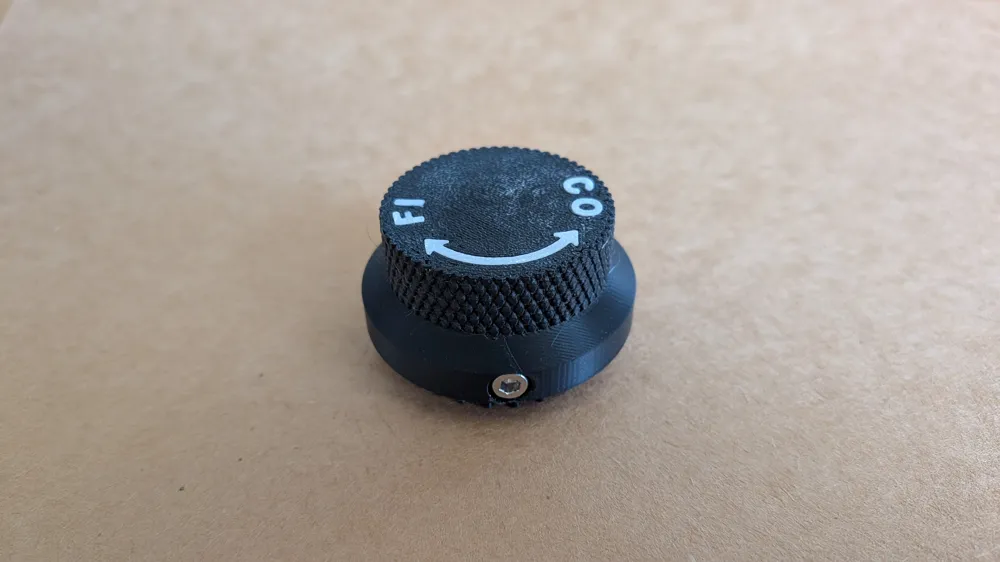

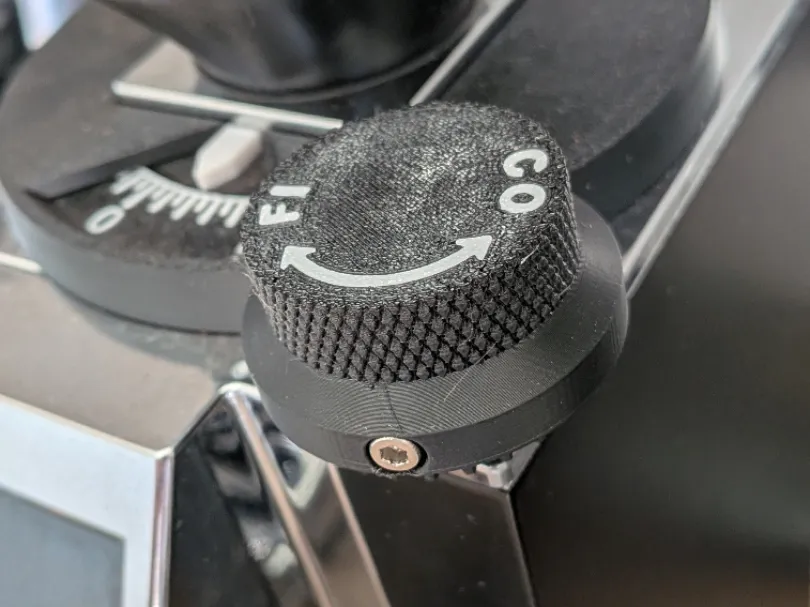

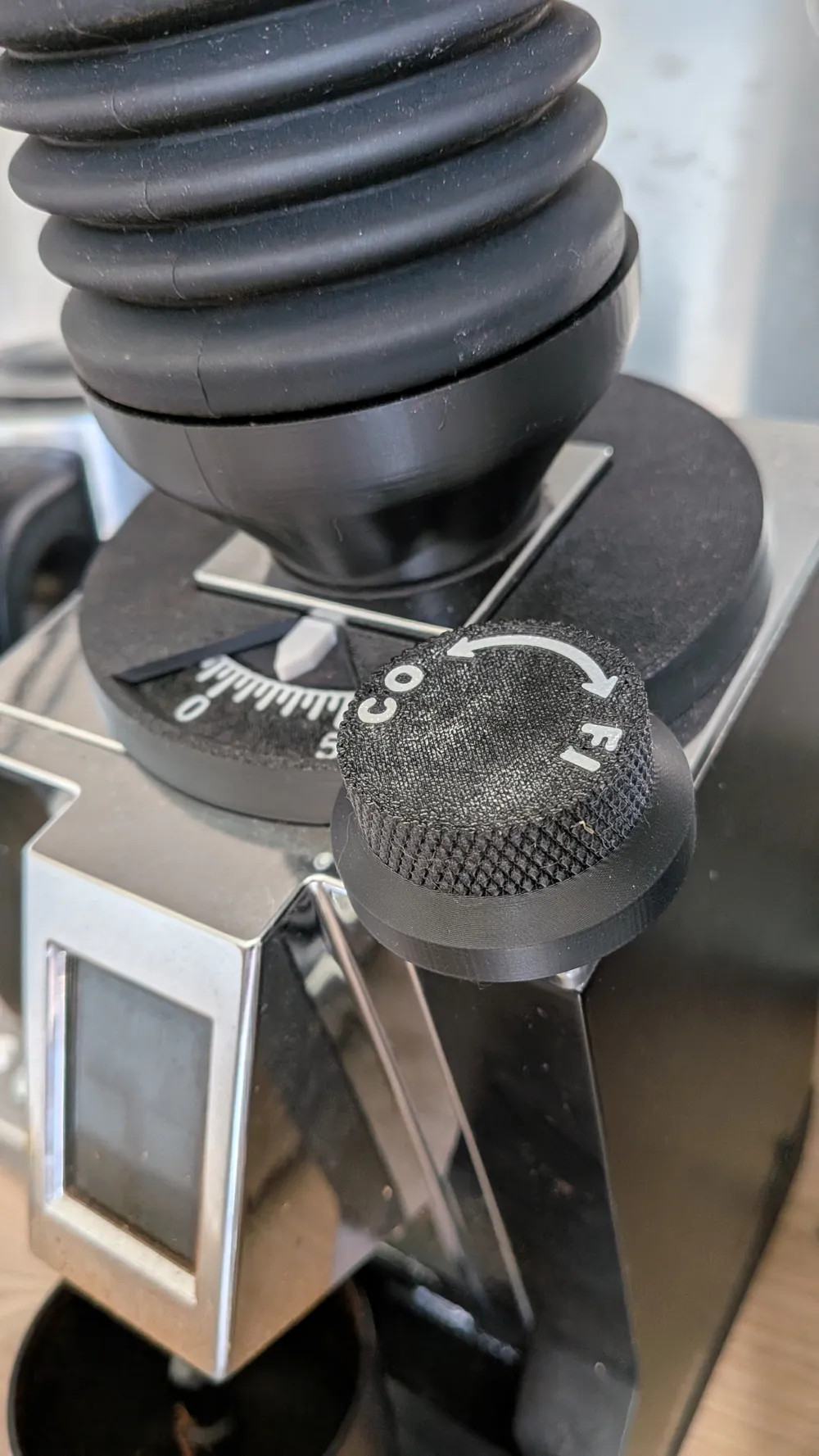

This version builds on an alternative model that avoids the need for the M5x30mm threaded nut required by the original Finecoar mod. To visually match the Finecoar setup, I added the original lettering from the Maker World version. I also adjusted the mounting hole to fit a M3x8mm screw flush with the surface. Using a longer screw will cause it to protrude, so a M3x8mm screw is recommended.

Version V1:

This earlier version fits directly over the original Eureka knob and replicates the Finecoar knob's basic functionality. It also eliminates the need for a M5x30mm threaded nut—only a short M3 screw is required to hold it in place. I used a M3x8mm screw, which protrudes slightly but doesn’t affect function. However, this version lacks the visual refinements of the full Finecoar setup and doesn’t fully match its design aesthetic. That’s why I designed Version V2.

Links:

• Alternative model base: https://www.printables.com/model/1005202-eureka-mignon-magnifico-grind-settings-dial-for-20
• Original Finecoar design: https://makerworld.com/de/models/199935-finecoar-grind-setting-dial-v2-1-for-eureka-mignon#profileId-220507
