Lab Rax 10" Server Rack - Bolted Version - 5U

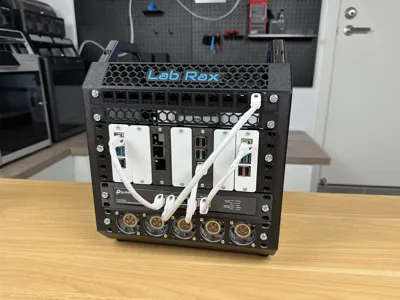

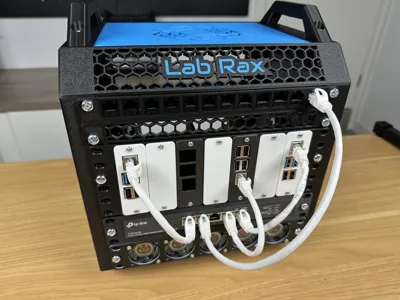

Lab Rax is a fully 3D printable, modular 10-inch server rack for homelabs. Perfect for Raspberry Pi setups, mini PCs, and networking gear, this DIY rack is cost-effective, easy to assemble, and highly customizable.

This is an adapted version of my original Lab Rax project which used brass inserts. This version has been modified to only use standard M6 or #10-32 button head screws and M6 or #10-32 nuts for assembly.

All you need to complete this basic 5U rack is;

Metric;

M6x12mm Button Head Screws (16 Required For Frame + Additional For Racks) - Buy Here

Optional Black Version of Above to Match Print - Buy Here

M6 Nuts (16 Required For Frame + Additional For Racks) - Buy Here

Imperial;

#10-32 x 1/2 Button Head Screws (16 Required For Frame + Additional For Racks) - Buy Here

Optional Black Version of Above to Match Print - Buy Here

#10-32 Nuts (16 Required For Frame + Additional For Racks) - Buy Here

Gluing the nuts into the back of the vertical posts makes it much easier to install and remove racks - Recommended Glue

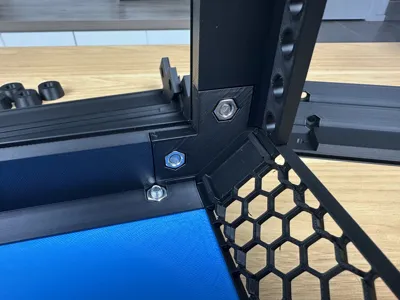

This version assembles in the same way as the original but screws go in from the opposite side (nuts on the inside in the hexagon cavities).

The handles, feet and all panels are compatible with the original version. Only the 12 edges are different.

Here's the set of different size posts and panels if you'd like to customise the size - Lab Rax 1-5U Posts & Panels

Here's the set of joiners and extensions side panels if you'd like to extend your Lab Rax beyond 5U - Lab Rax Extension Side Panels & Post Joiner

Here's my video of the build and config options - YouTube

Visit my blog for the step-by-step assembly instructions and BOM - The DIY Life
