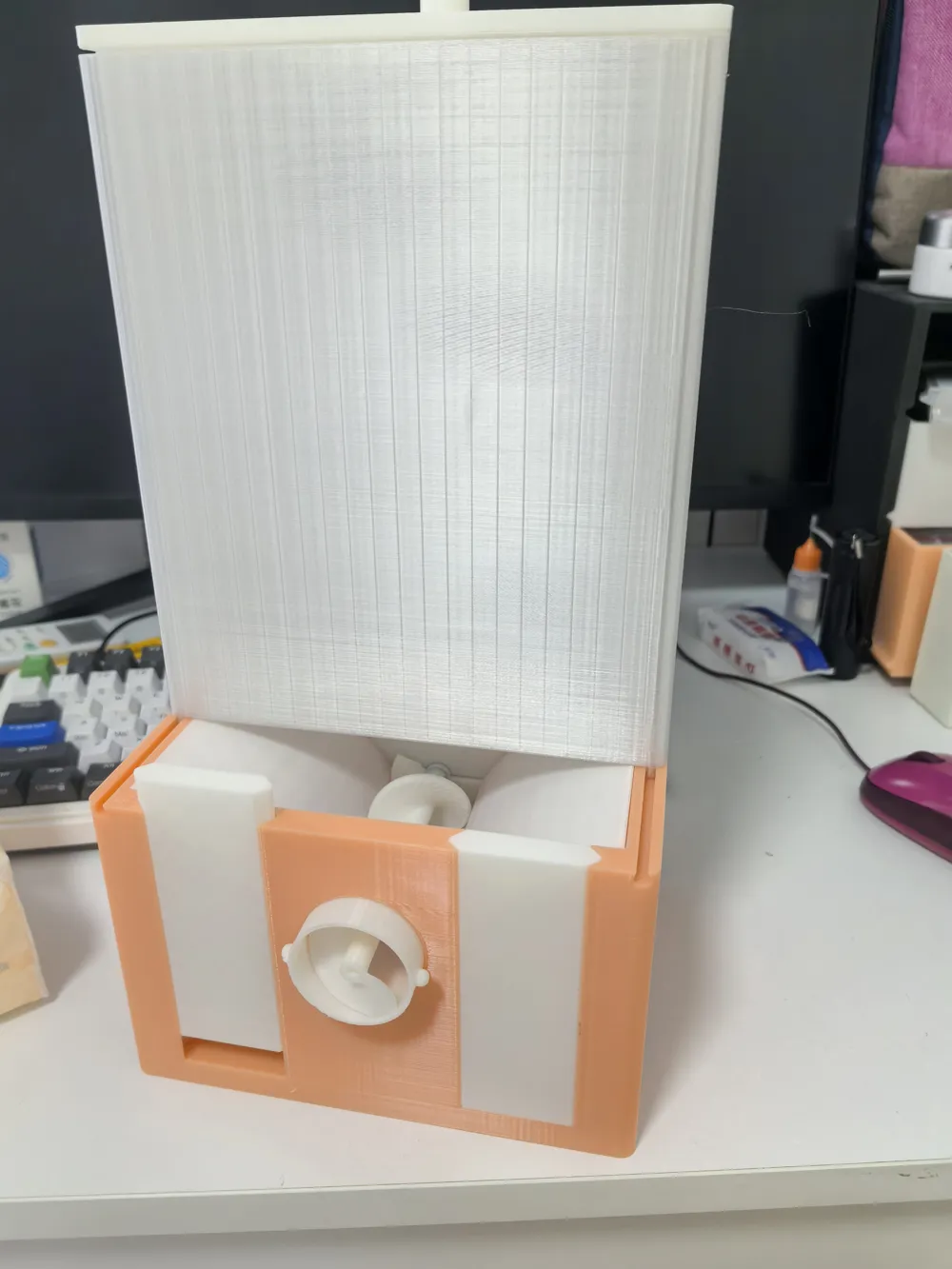

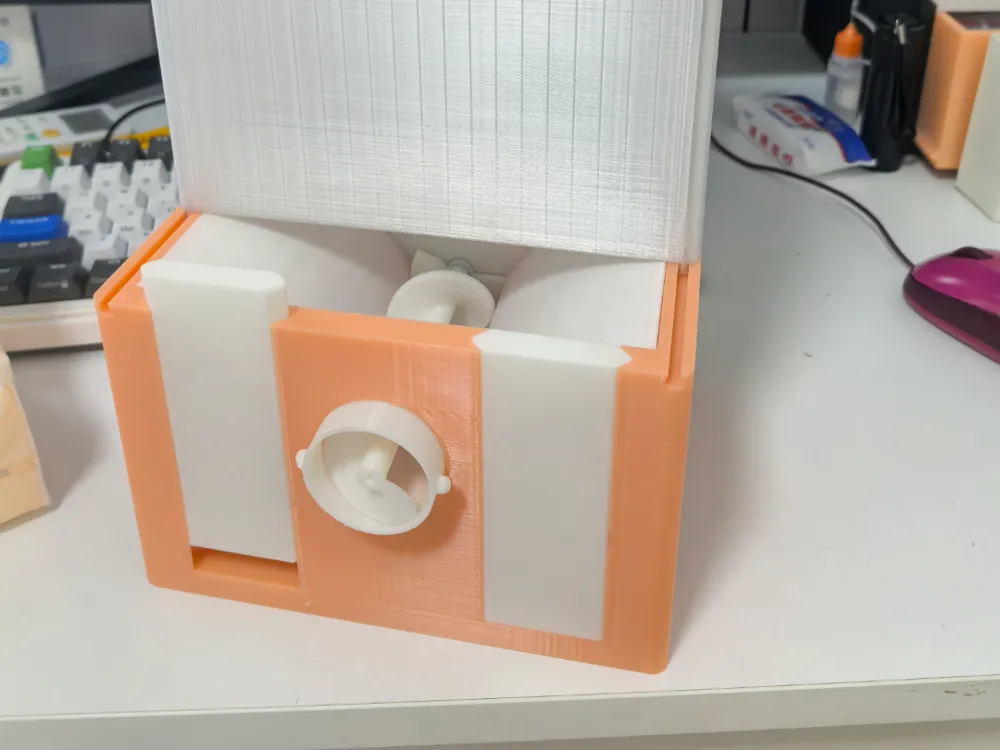

Pet Auto Feeder Replicate

Redesigned replicate worm gear design logic, 30 Yuan Smart Pet Feeder from Song Chunyu MakerWorld: Free download 3D model.

1. Uses a pluggable speed reduction motor slot, leaving the possibility of replacing more cost-effective motors.
2. Reserves a monitoring replacement panel to add monitoring locations at any time.
3. Reserves a footrest slot, allowing for easy height adjustment.
4. Both the food bin and top cover use sliding fixation, preventing them from being knocked over by pets and causing a gluttonous feast.
5. Reserves a momentary switch position.
6. Reserves a mainboard slot.

Welcome more secondary creation players, open source model original files.

Installation Method

1. Wiring, specific wiring refers to the link above.
2. Insert the motor slot into the bottom shell.
3. Place the motor in the slot.
4. Insert the tunnel bottom shell.
5. Secure the mainboard and its power board.
6. Cover the tunnel top cover.
7. Slide in the food bin.
8. Pour in pet food.
9. Slide in the top cover.
10. Connect the power.

Required Hardware

1. 1A 4.2v charger module C port *1 https://item.taobao.com/item.htm?_u=fkkep6b813d&id=734328872283&skuId=5789965855770&spm=a1z09.2.0.0.23312e8dstwnVU
2. 12MM metal button reset switch *1 (optional) https://item.taobao.com/item.htm?from=cart&id=563050370222&pisk=gA8qf2_BSq3Vr28qI_bazBhc857A-ZDIQF61sCAGGtXmHmIGsTRnMtitDd-yILIfnxnAj1XynPsX7CUNsCvtMOGxVIdAWNDIdFuBMIB3KSjpuO2orQC_oPm5mVlr4lHId2gZm7bZ3v9b6HCzE65hSsjGSgcP11P0jdjcqaXR612csrcyZTBuSsXciaqlG1U0mdf0qTfOTO40oNjlq1WlINfMIQcy3IAgz6sm9f9DjsqA0iWHiTzewU5DzodVUV36z3SRK26zSPYPgQOj1azEf9xdhM6pE4aV7QfwhT9n-z7lYHd1_Ku4oZtk2EQXPvy10dWcxUszOf7Rbt-kogPgSQAf3MKw3xrAnn9Pv_ju_2CWdTAvo3lTEIvC3ZflV2ceZGxWkMLjEr7HvI_XjdnQ2ZRMmaSP0RCl-gTOIMENm_CPdblPBXTAiBQmRSqTXgbda9GfGlEOm_CPdblzXlIle_WIGs1..&skuId=5047997126641&spm=a1z0d.6639537%2F202410.item.d563050370222.41b57484UA7Qdl
3. 16v3300UF capacitor *1 https://detail.tmall.com/item.htm?from=cart&id=720021174968&pisk=g5lmfe1jPxyfaemdD0PXQsHbxfp-GZN_bcCTX5EwUurSMEwTXY4ZX0T6lS3ajcm8VjLbBlHlS2iojRTbXlriXVkvyBdKlqN__cxp9BIlirC-m1yN_Fyz8r88uxnZBkF__HKGe1yXt5iBC7iFgTzzVP4abRoaa7zYJ5z4Q18u4P4CQioa_UYuRPfV3-zwauza-5S4Q5uzUPUG01W47a8u5uza_5ktL1rn_bGyDOiG0Xmd7v40nku40q3xatefh4rkIdloERqe9ufN_b4myqLTZ6vTYvZYpkiywsVizPmY2DRFZ7yndVUimIf4MYkSGShJxGemjoyEw8bpS7wgmYl4EN5ZzqE0dAmDmtZqH02Qz87MOznL4qGqEFsruDE0gzyJTe0zQYhbdjKPiWkIkSHZfpB7iVk4Zg-1U9rgO1GnoB61C-z7rknugHSqBRVK3UYldKw4PrKprUX1C-z7rkLkr9s_3zavv&skuId=5015093356807&spm=a1z0d.6639537%2F202410.item.d720021174968.41b57484UA7Qdl
4. Easy micro-link module *1 https://item.taobao.com/item.htm?from=cart&id=720205159992&pisk=g5XKfhwVMP4hPdv0KJNMrenvEJZgmTIFXwSjEUYnNNQOPaKoEgTkeaQRyeA78pXRWa_JqYj5E36JLOfnEe4eeg_Der40n-jFYUJ7orqDS28phnxIP4YI1C9k2MvSDFSFYL8Sj4Nc1MuRoC9IR3T7XdtJV39WOQis5F-JA2_WRCg6DnJWPa_WChty44GWF3g_CF-2VUOWFA96mHnIAQ_5flKy5UMduuYsaUMRZPkwTCzyoYM5BHd_sMT_diW6vUTAA9HSF0-p9EsBWrbweOR14QBr4YLCAs7ycwgQoBS56NKpeRcBhGC5khWQn2KNtGsD5injhipdMtpC9PlwKwB6C91xVYs9peRyXC3LWE6FftJ6s-ZAfO7hYOIoV8tGoFsFdLeb0ppBRdKNEPkBy115KBJrRrAFV1Q9vKsPFtXxeR3DojGQXlhraBtZWTuiJPsapSK9okFoabRgGhL0XklSNqkWXEqGUblysS1..&skuId=5410888650460&spm=a1z0d.6639537%2F202410.item.d720205159992.286f7484ejiEaj&utparam=%257B%2522traceId%2522%253A%25222150464617346795941761269ee703%2522%252C%2522cart_id%2522%253A%25225884476093237%2522%252C%2522item_id%2522%253A%2522720205159992%2522%252C%2522item_price%2522%253A2200%252C%2522hasCouponPrice%2522%253Afalse%252C%2522umpLog%2522%253A%2522%2522%252C%2522sku_id%2522%253A%25225410888650460%2522%252C%2522isPreHeatRequest%2522%253Afalse%252C%2522isChecked%2522%253Afalse%257D
5. 370 metal worm gear motor 6v *1 https://item.taobao.com/item.htm?_u=8kkep6b754d&id=727742429115&pisk=gnxmzLsm5E7brqRLMQSjRHuz5_g8G-s6bCEO6GCZz_5SCrUxhNWwICx9kd5OjCAMssQZGiKMZp9thhHf0cXw9Qj9HsC9ZAAvClhj5iEasI9EGKCthhfNZIRG5x1O_1A9QEH-vDpXhGsZsXnKv1S-_fR001WZQuWFQYBqFEow8GsZ9f48bZihfBg9bcWazT55IOWVQC5PU91PQtz2__7PL9FVbGRZEgWC355NgGzzUO1zgOr40T7PdOeV3ZWqEL55QG5Zhlz1tIOp4bYoo_eJyPtPnZfe3sJv63z1kr9PZBAB4tvlTK7_bl-lnZxtbmqQXZLwdwtv0cq5DpYP49pjmuje39AAwBoUqgJJUCQBPfZdPQxG7n73QY5ymQxf0I3axBjDsw-VrRr9HL5cqT-EBy1JqsdwmakLxNIyvwS2y4GAWiXH_nO0IlReepKfPhc3a1TAdgWphmqlYKWN4M4z8JQ3fTTEMPa1uT6l9QjqTSyU8ANSEY4I4ZW5h0DoEPghuT6ouYDuRy_VFt7h.&spm=a1z09.2.0.0.73242e8dC2cB0L

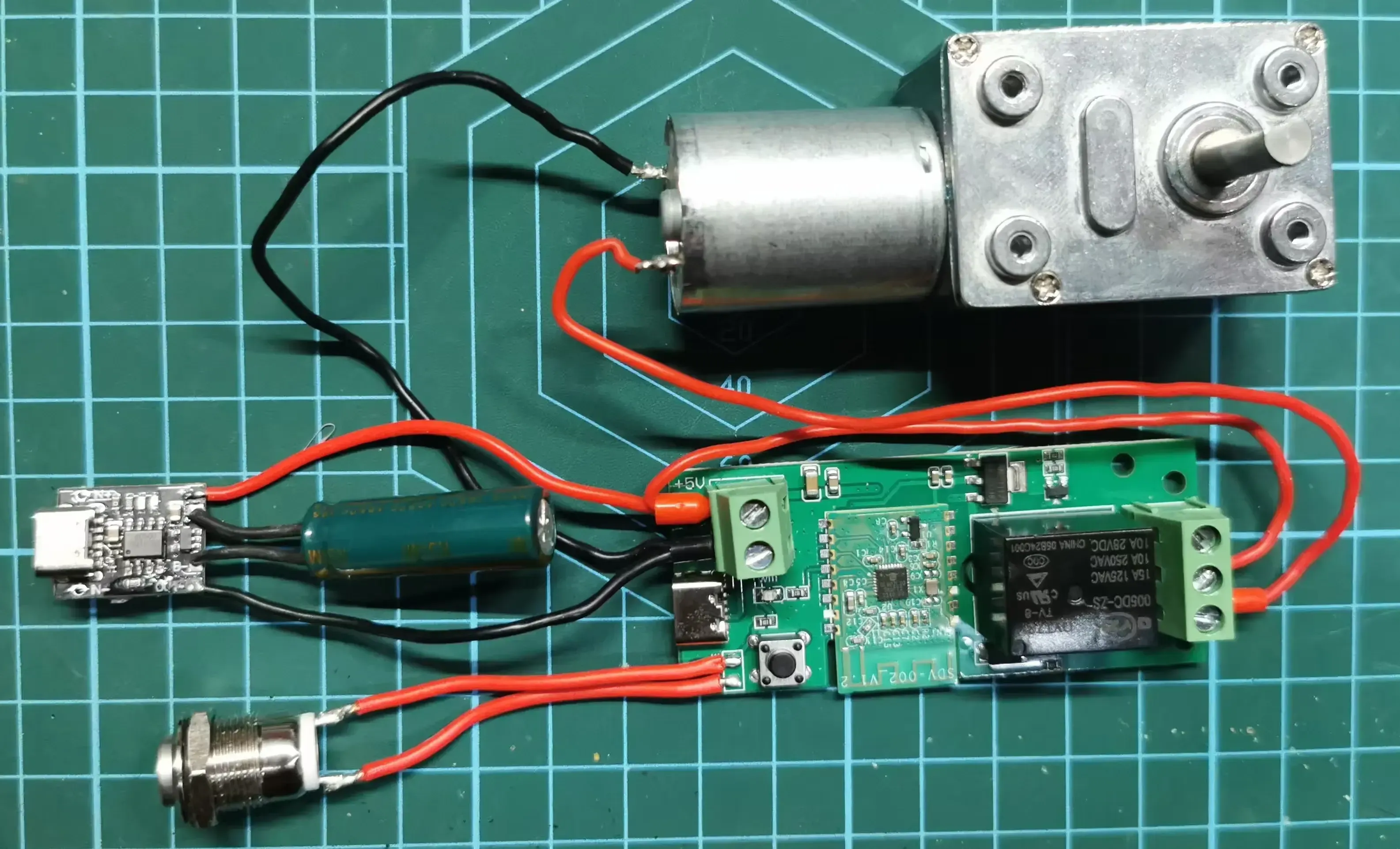

Wiring Diagram
