BLDC trim router
Print Profile(1)
Description

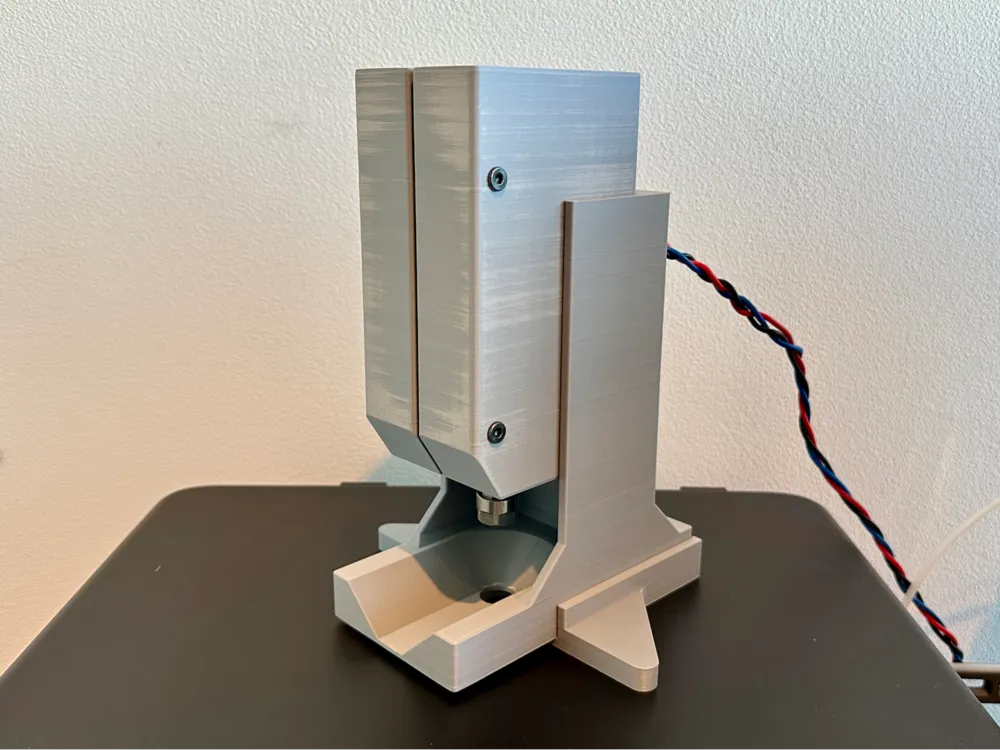

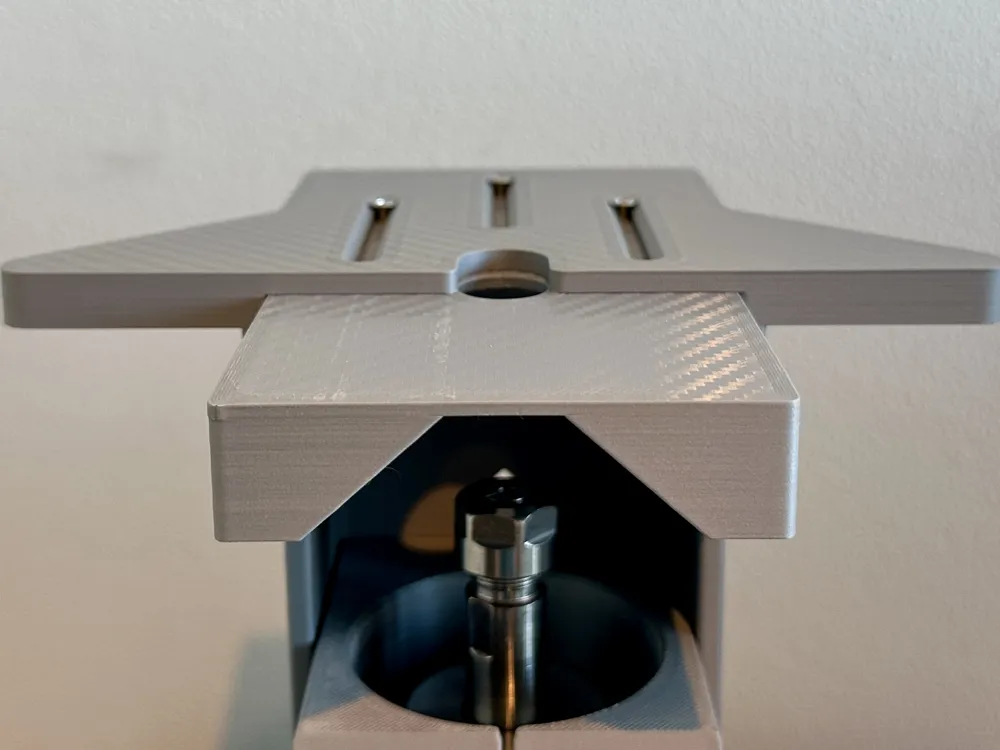

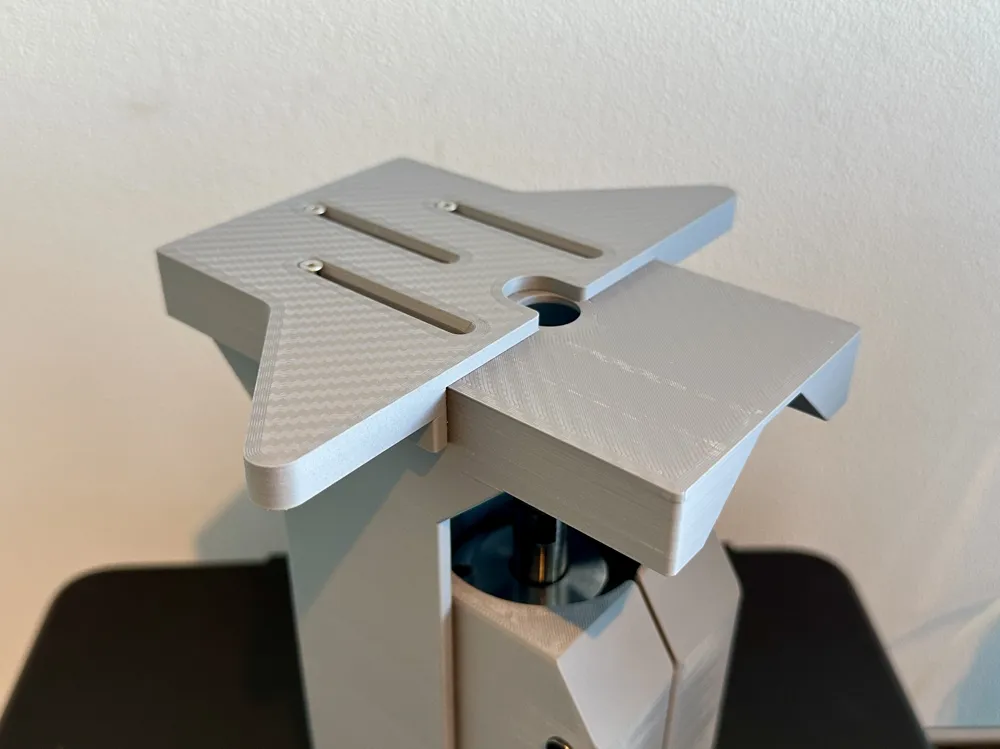

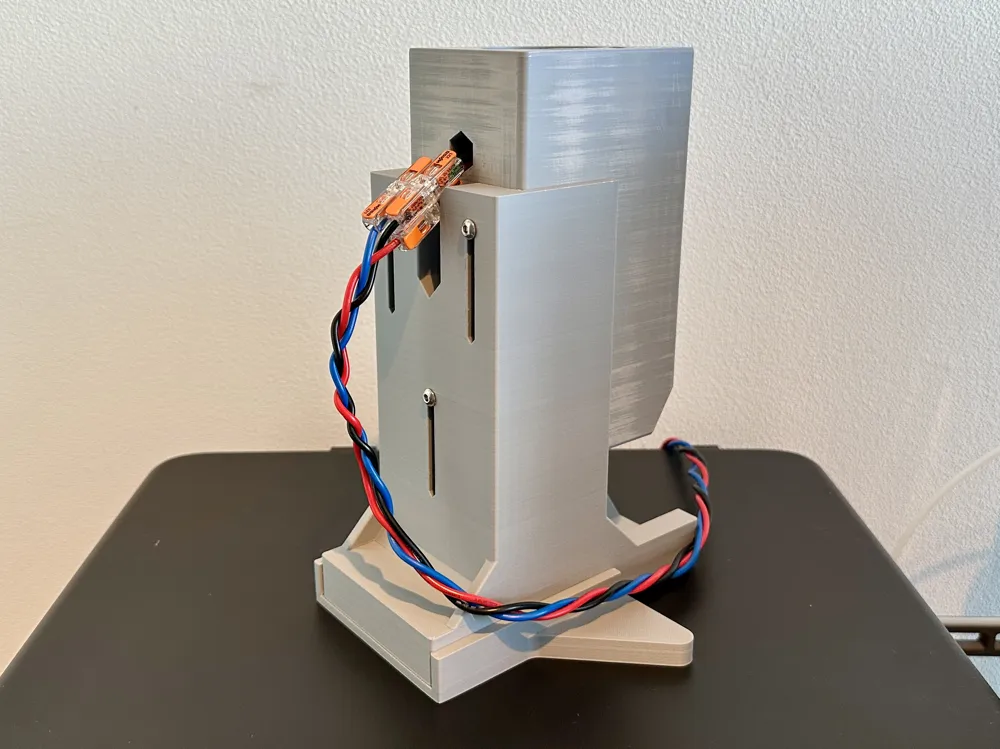

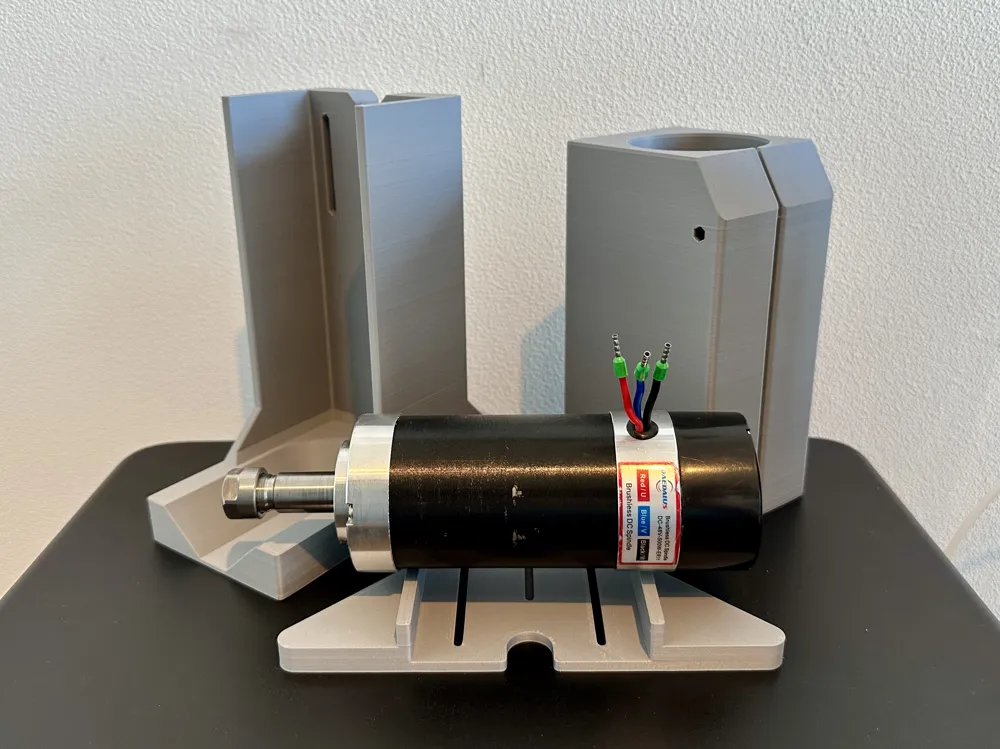

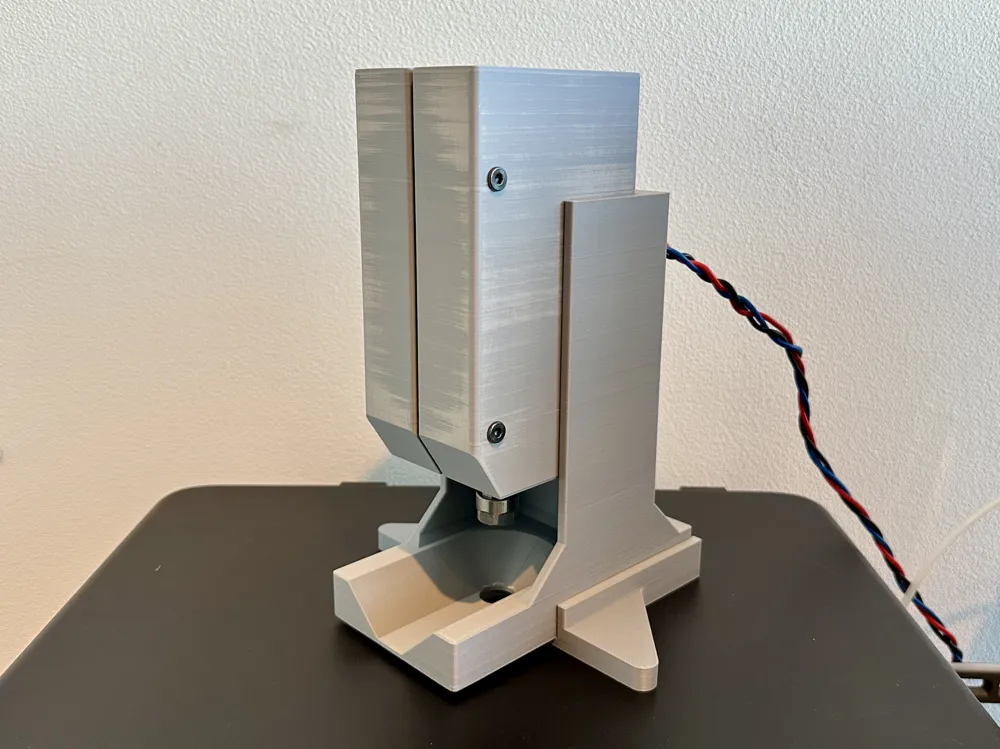

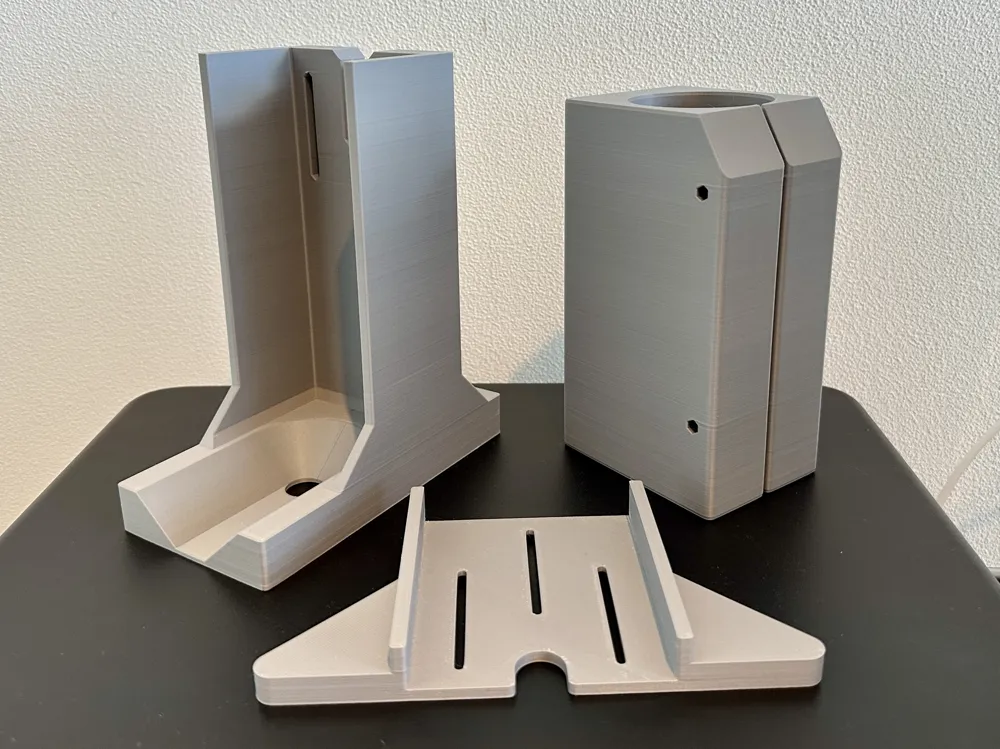

I had a spare 500W 12kRPM BLDC spindle and made ultra-simple, yet robust body for it, turning it into a trim router with depth and width adjustment. Design is optimised for 3D printing, with no supports or post-processing required. Fits 500W Daedalus BLDC spindle with ER11 collet. Requires some screws: 2x M5x60 (button), 3x M4x30 (button), 3x M3x10 (conical). Screws bite well into hex holes without tapping. I used same spindle in a desktop CNC and it's capable of machining aluminium.
