DX Racer Simracing FEET 50mm + TPU

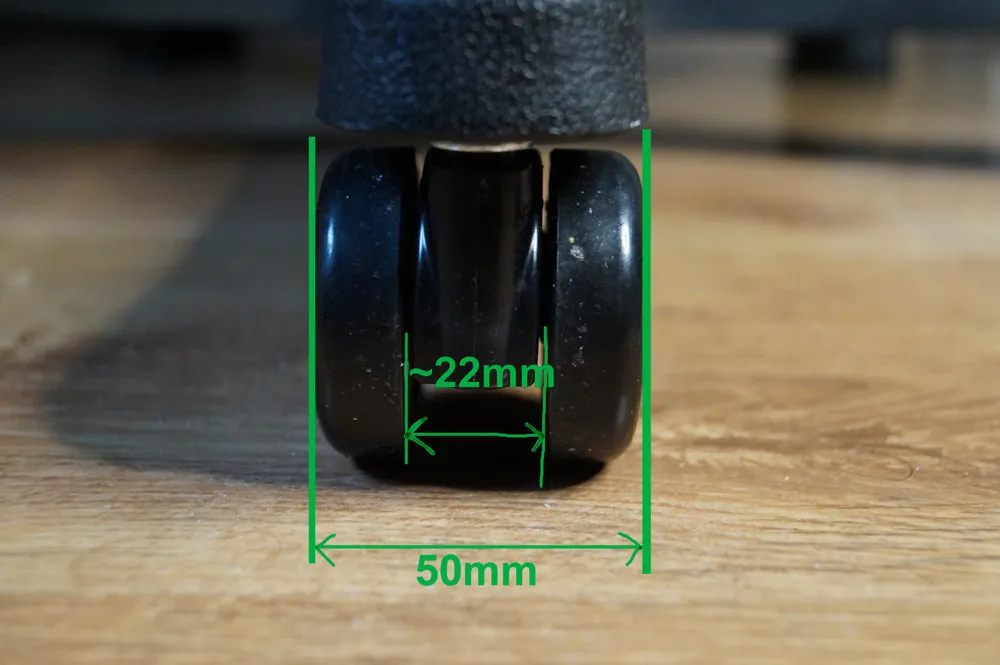

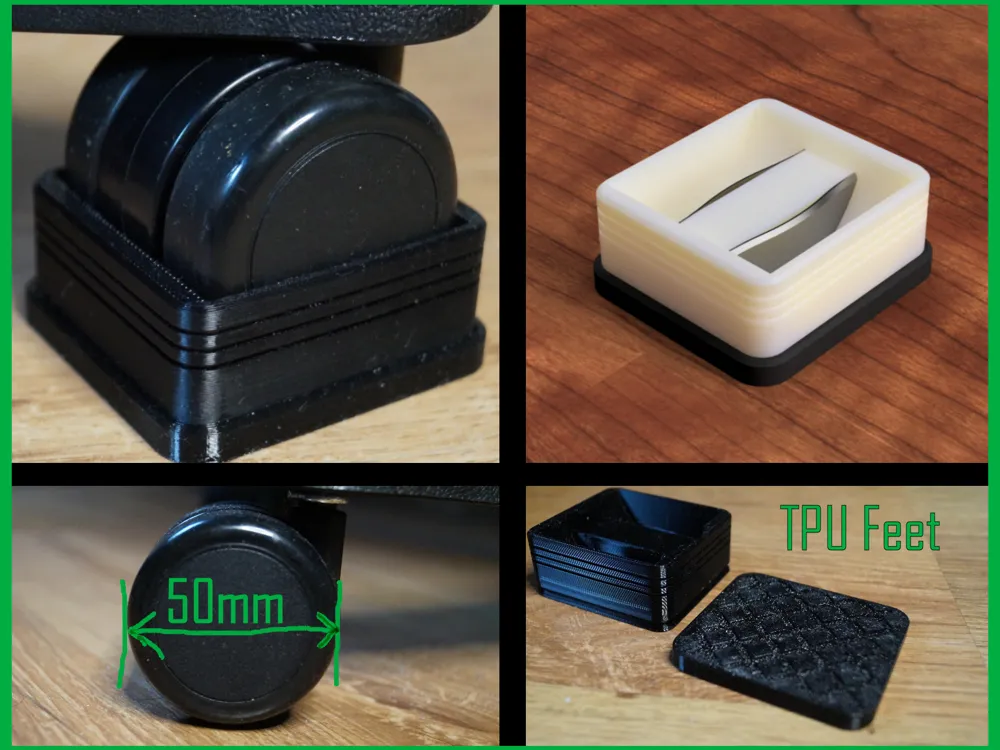

Hi, i made these FEET 🦶🦶 for my DX Racer, which got 50mm wheels.

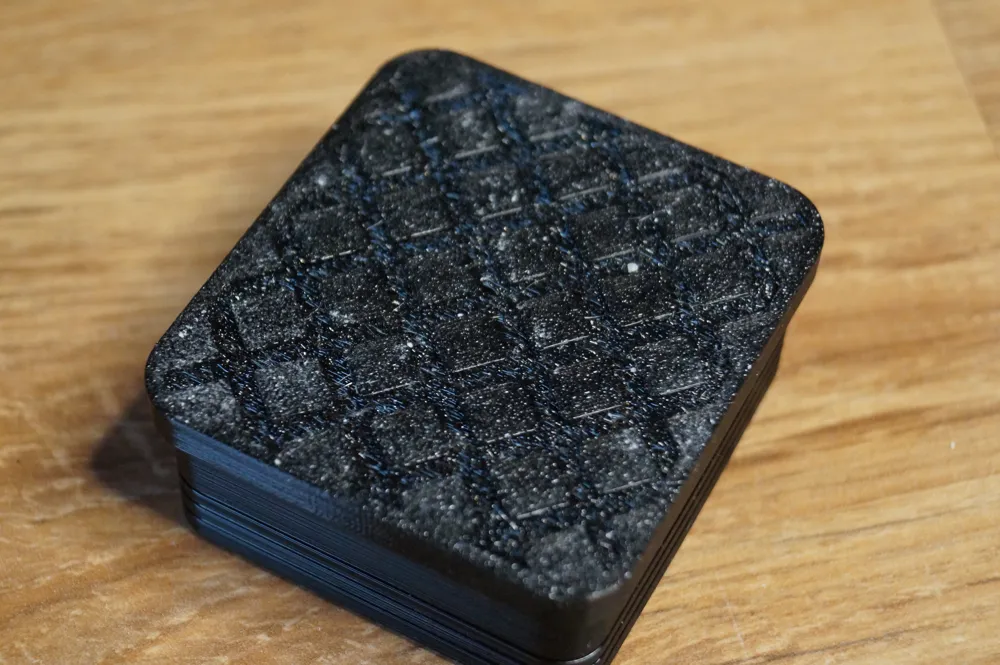

You can Print the Bottom Part with TPU or if you need them for Carpet, just choose the full PLA / PETG version.

I made a 10mm test print on Plate 2, so you can quickly check if it roughly fits your wheels.

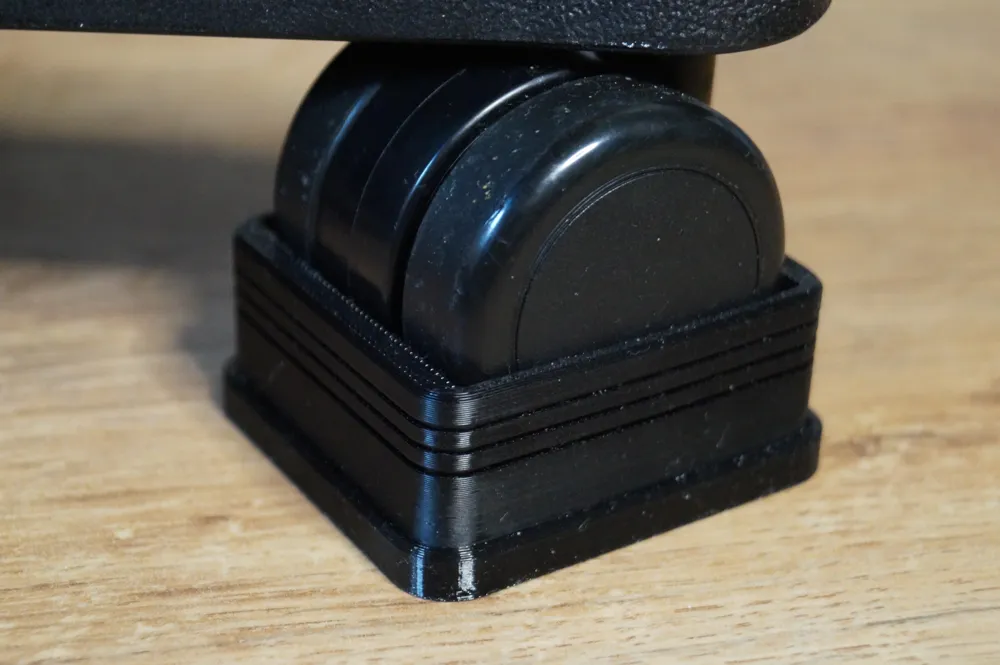

The special thing is, i designed a spring in the middle, so the FEET will stick onto the rolls, even if you lift the chair.

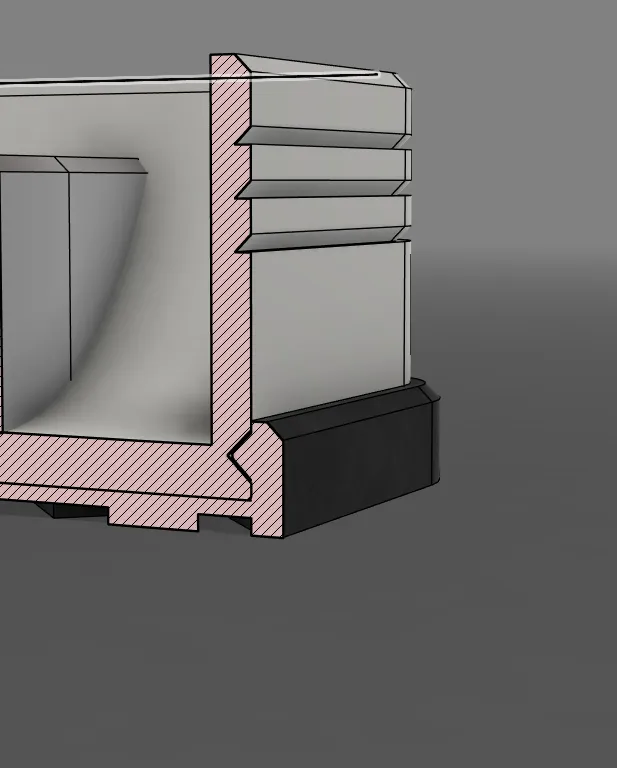

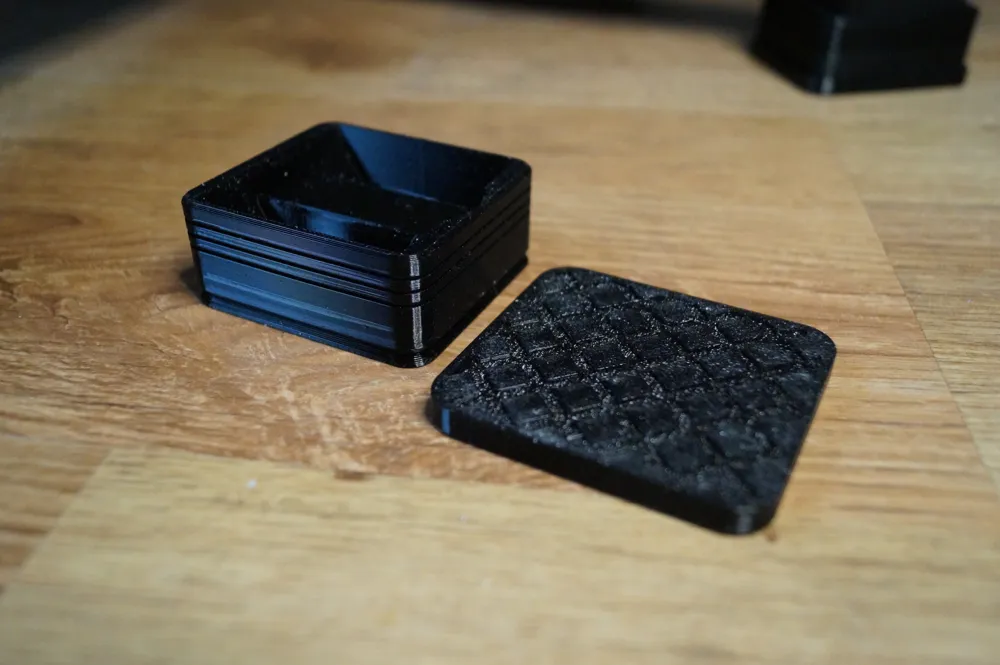

The TPU part snaps tightly into the upper part through a railing.

First Printing profile contains The "modular" base for TPU rubber feet and the following plates contain full PLA single part versions as following:

first Print profile:

Plate 1 - Base for TPU Feet 5x

Plate 2 - Test slice

Plate 3 - Full PLA version with Flat bottom 5x

Plate 4 - Full PLA version with GRID bottom 5x

Plate 5 -  Full PLA version with circular bottom 5x

second Print profile contains the TPU bottoms:

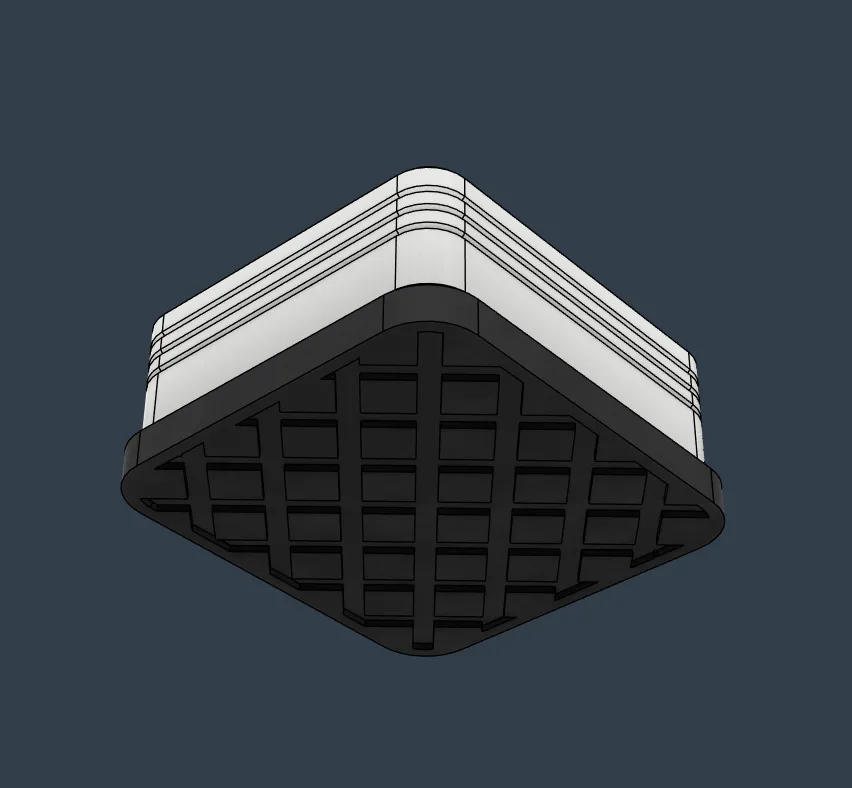

Plate 1 - Grid Pattern 5x

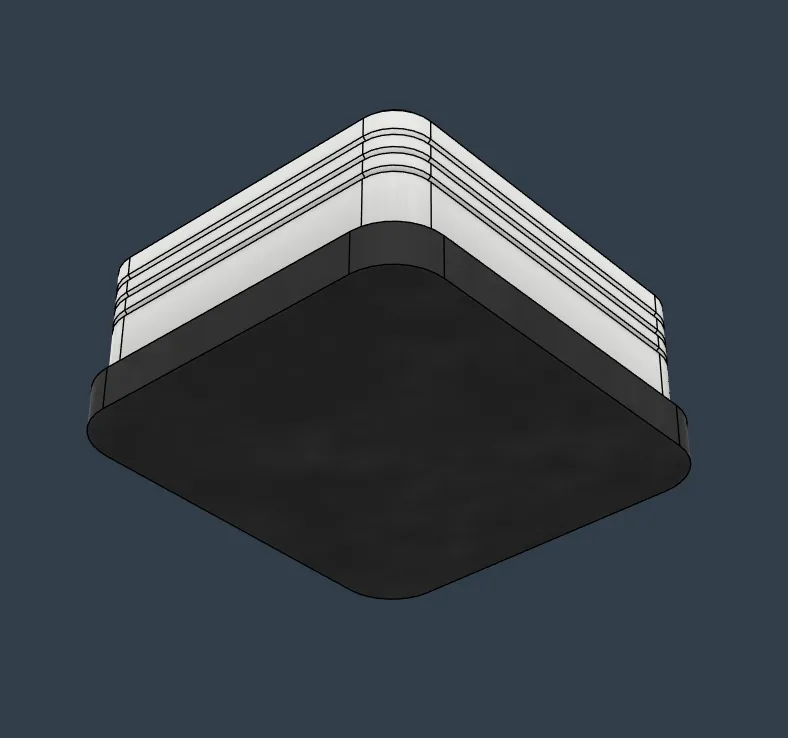

Plate 2 - Flat no Pattern 5x

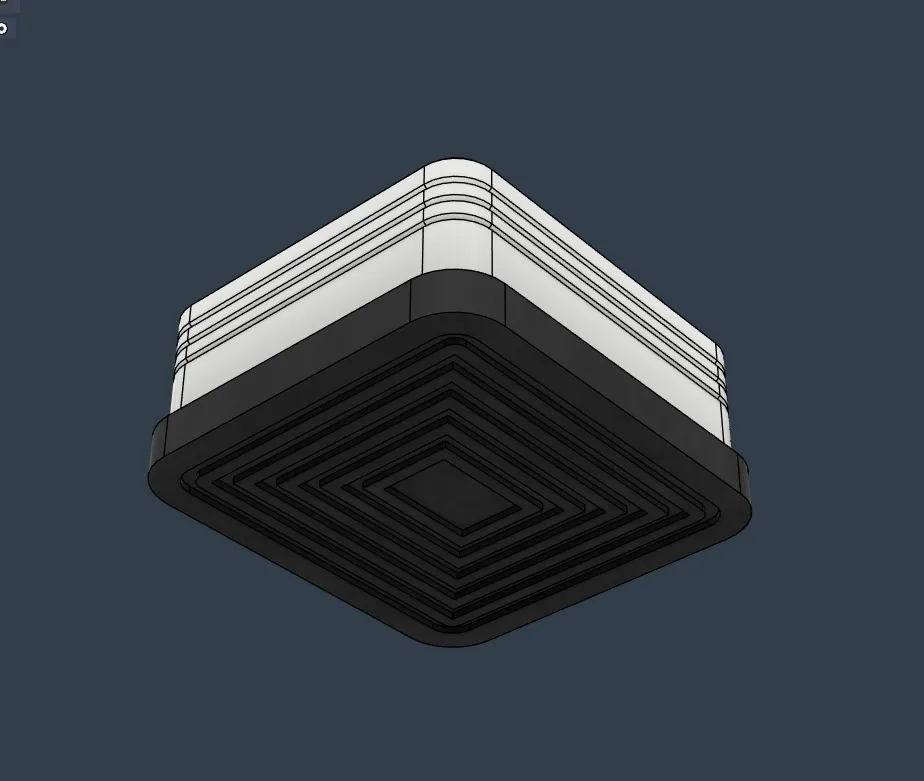

Plate 3 - Circular Pattern 5x

Printing TPU is it's own challenging adventure, don't blame me. I used this A1 mod btw https://makerworld.com/en/models/607244-a1-extruder-lever-optimized-tpu-pultruded-pet#profileId-530177

Single STL files got uploaded.
