<p>0.2mm Schichthöhe</p><p>0.2mm Strength Profil</p><p>20% infill GRID</p>

<p>0.2mm layer height</p><p>0.2mm Strength Profile</p><p>20% infill GRID</p>

0.2mm layer, 6 walls, 25% infill

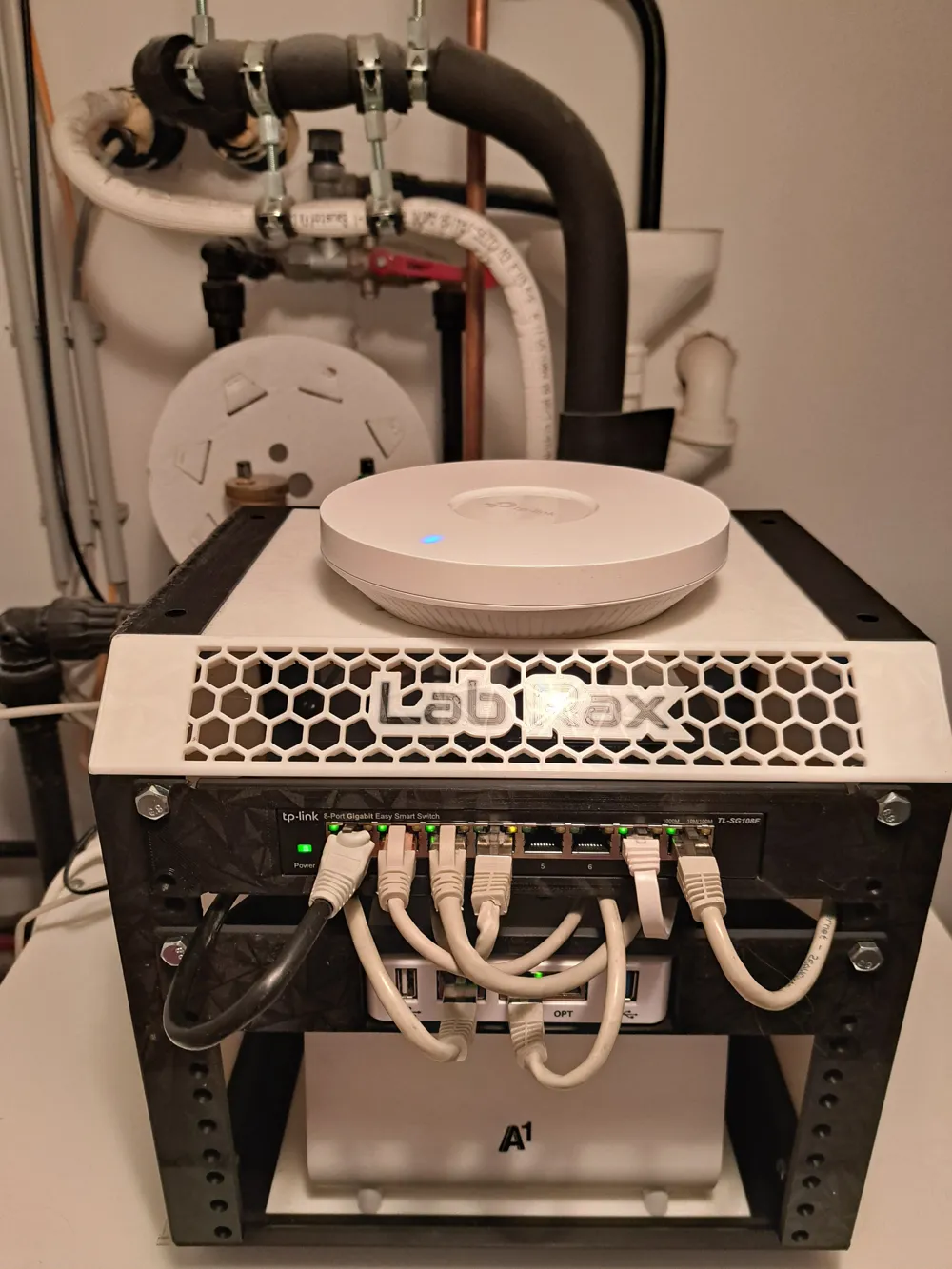

<h3>📦 <strong>Produktbeschreibung – 10-Zoll-Halterung für Netgate SG-1100 (3D-Druck)</strong></h3><p><strong>Kurzbeschreibung:</strong><br>Diese Halterung wurde speziell für die kompakte und sichere Montage einer <strong>Netgate SG-1100 Firewall</strong> in einem <strong>10-Zoll-Netzwerkschrank</strong> entwickelt. Die Konstruktion wurde im CAD-System <strong>PTC Creo</strong> modelliert und im <strong>FDM-3D-Druckverfahren</strong> mit <strong>Bambu PLA</strong> hergestellt.</p><h3>🔧 <strong>Technische Details</strong></h3><figure class="table"><table><thead><tr><th><strong>Merkmal</strong></th><th><strong>Beschreibung</strong></th></tr></thead><tbody><tr><td><strong>Material</strong></td><td>Bambu PLA (Polylactid), Filament von Bambulab</td></tr><tr><td><strong>Fertigungsverfahren</strong></td><td>3D-Druck (FDM), fertige Druckdatei im Bambu Studio-Format beigelegt</td></tr><tr><td><strong>Dateiformate</strong></td><td>STEP (.stp), STL (.stl), Creo (.prt, .asm) im bereitgestellten Ordner</td></tr><tr><td><strong>Montagesystem</strong></td><td>Kompatibel mit Standard-10-Zoll-Racks</td></tr><tr><td><strong>Positionierung der Firewall</strong></td><td>Fixe hintere Endanschläge, keine horizontale Verschiebung möglich</td></tr><tr><td><strong>Befestigung der Firewall</strong></td><td>Langer Kabelbinder führt durch vorgesehene Führungen und hält die SG-1100 zuverlässig in Position</td></tr><tr><td><strong>Schrankmontage</strong></td><td>4 Befestigungspunkte mit Durchgangsbohrungen</td></tr><tr><td><strong>Empfohlene Schrauben</strong></td><td>4× <strong>M6x30 Sechskantschrauben</strong> + 4× M6-Muttern</td></tr><tr><td><strong>Montagehöhe</strong></td><td>1HE (Höheneinheit)</td></tr></tbody></table></figure><p>&nbsp;</p><h3>🛠️ <strong>Besonderheiten &amp; Vorteile</strong></h3><ul><li>Kompakte, mechanisch stabile Konstruktion</li><li>Keine Veränderung oder Bohrung an der Firewall nötig</li><li>Schnelle Entnahme durch Lösen des Kabelbinders</li><li>Leichtgewichtige Lösung durch PLA-Druck</li><li>Ideal für platzoptimierte Mini-Rack-Installationen(LAB-RAX) in Heim- oder Testnetzwerken</li></ul><h3>📁 <strong>Dateiübersicht (Ordnerinhalt)</strong></h3><figure class="table"><table><thead><tr><th>Dateityp</th><th>Beschreibung</th></tr></thead><tbody><tr><td>.stp / .stl</td><td>CAD-Modell zur Nachbearbeitung oder Neu-Druck (Hochauflösende STL)</td></tr><tr><td>.3mf </td><td>Druckfertige Datei für Bambu Studio</td></tr><tr><td>.prt</td><td>Native Creo-Dateien zur Weiterbearbeitung im Engineering</td></tr></tbody></table></figure>

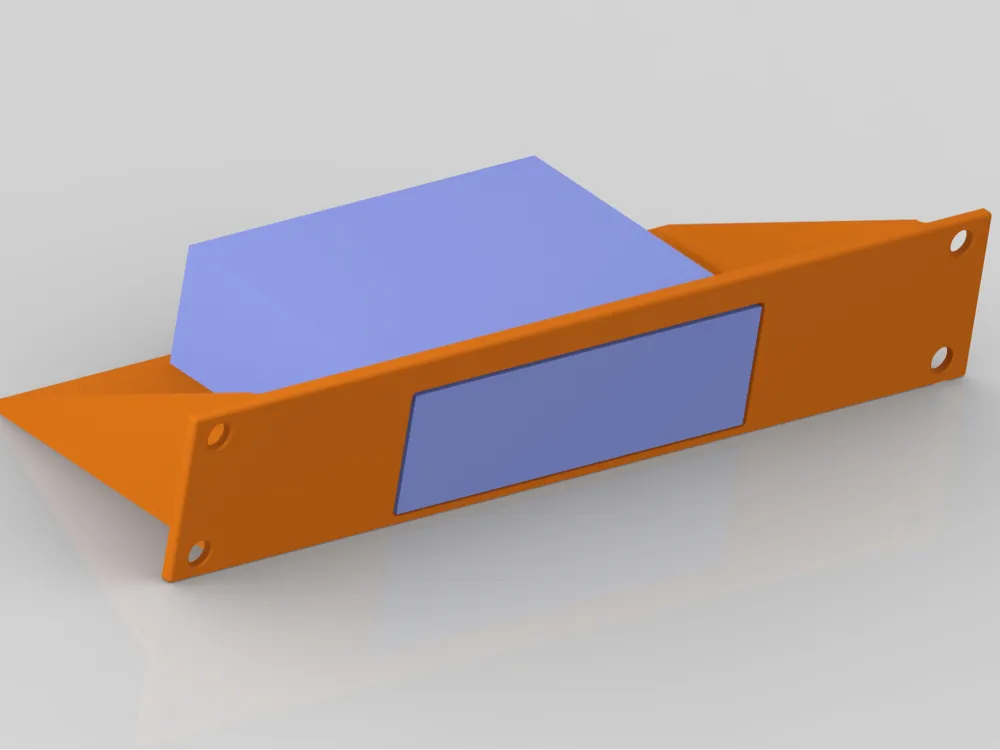

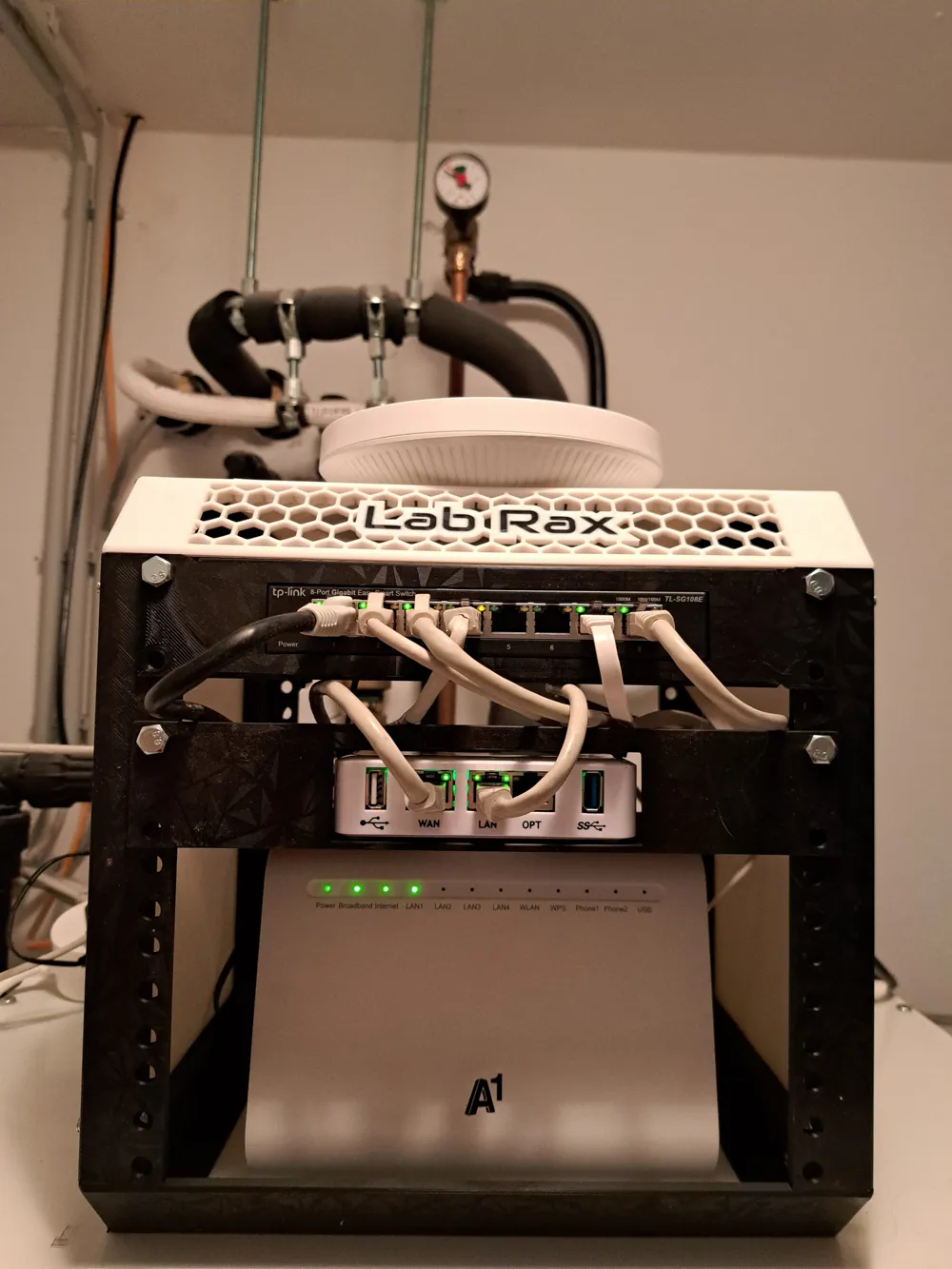

<h3>📦 <strong>Product Description – 10-Inch Mount for Netgate SG-1100 (3D-Printed)</strong></h3><p><strong>Short Description:</strong><br>This mount was specifically designed for the compact and secure installation of a <strong>Netgate SG-1100 firewall</strong> in a <strong>10-inch network rack</strong>. The design was modeled in the CAD system <strong>PTC Creo</strong> and manufactured using the <strong>FDM 3D printing process</strong> with <strong>Bambu PLA</strong>.</p><h3>🔧 <strong>Technical Details</strong></h3><figure class="table"><table><thead><tr><th><strong>Feature</strong></th><th><strong>Description</strong></th></tr></thead><tbody><tr><td><strong>Material</strong></td><td>Bambu PLA (Polylactic acid), filament from Bambulab</td></tr><tr><td><strong>Manufacturing Process</strong></td><td>3D printing (FDM), ready-to-print file in Bambu Studio format included</td></tr><tr><td><strong>File Formats</strong></td><td>STEP (.stp), STL (.stl), Creo (.prt, .asm) in the provided folder</td></tr><tr><td><strong>Mounting System</strong></td><td>Compatible with standard 10-inch racks</td></tr><tr><td><strong>Firewall Positioning</strong></td><td>Fixed rear stops, no horizontal movement possible</td></tr><tr><td><strong>Firewall Securing</strong></td><td>Long cable tie runs through provided guides and securely holds the SG-1100 in place</td></tr><tr><td><strong>Rack Mounting</strong></td><td>4 mounting points with through-holes</td></tr><tr><td><strong>Recommended Screws</strong></td><td>4× <strong>M6x30 hex screws</strong> + 4× M6 nuts</td></tr><tr><td><strong>Mounting Height</strong></td><td>1HE (height unit)</td></tr></tbody></table></figure><p>&nbsp;</p><h3>🛠️ <strong>Special Features &amp; Advantages</strong></h3><ul><li>Compact, mechanically stable construction</li><li>No modification or drilling of the firewall necessary</li><li>Quick removal by releasing the cable tie</li><li>Lightweight solution through PLA printing</li><li>Ideal for space-optimized mini rack installations (LAB-RAX) in home or test networks</li></ul><h3>📁 <strong>File Overview (Folder Contents)</strong></h3><figure class="table"><table><thead><tr><th>File Type</th><th>Description</th></tr></thead><tbody><tr><td>.stp / .stl</td><td>CAD model for post-processing or re-printing (High-resolution STL)</td></tr><tr><td>.3mf </td><td>Ready-to-print file for Bambu Studio</td></tr><tr><td>.prt</td><td>Native Creo files for further processing in engineering</td></tr></tbody></table></figure>

Feature	Description
Material	Bambu PLA (Polylactic acid), filament from Bambulab
Manufacturing Process	3D printing (FDM), ready-to-print file in Bambu Studio format included
File Formats	STEP (.stp), STL (.stl), Creo (.prt, .asm) in the provided folder
Mounting System	Compatible with standard 10-inch racks
Firewall Positioning	Fixed rear stops, no horizontal movement possible
Firewall Securing	Long cable tie runs through provided guides and securely holds the SG-1100 in place
Rack Mounting	4 mounting points with through-holes
Recommended Screws	4× M6x30 hex screws + 4× M6 nuts
Mounting Height	1HE (height unit)
