Description

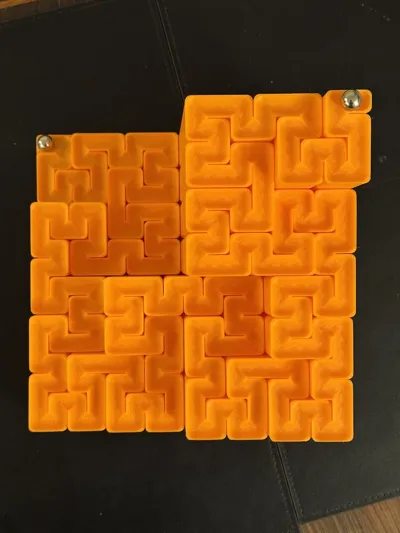

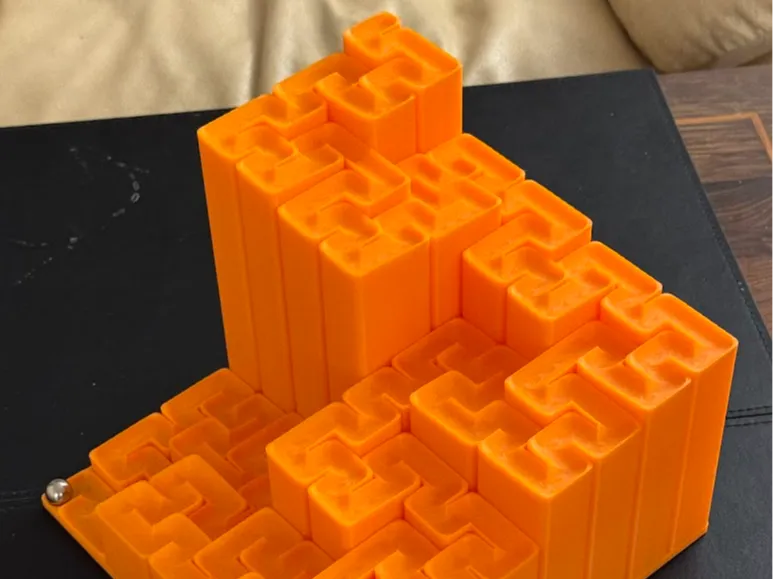

Inspired by some other ones I've seen, I've modelled this from scratch in OpenSCAD.

Printed in Elegoo Orangle PLA+ 10% infill (Hilbert Curve infill of course 😆)

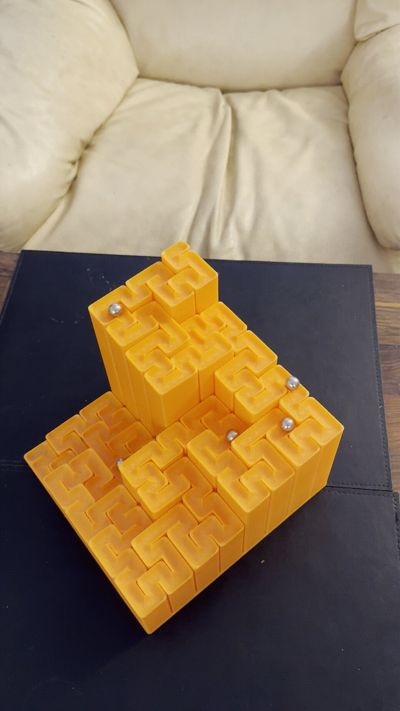

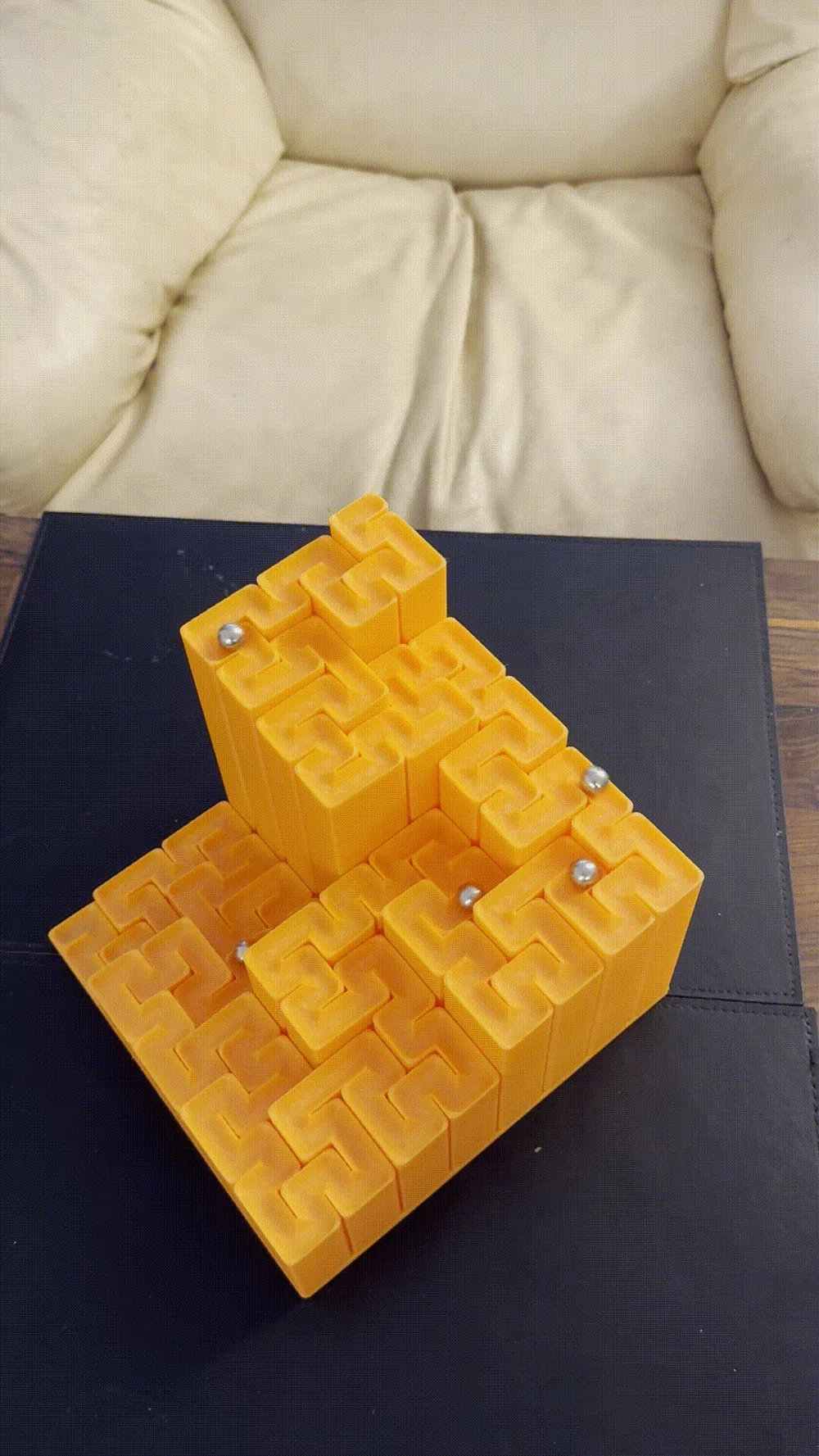

use standard GeoMag balls to roll down it (12.7mm diameter) - or you can re-size it of course.

Please try the smaller test print first (Level 2)

I've got a Level 5 one I'm currently trying to get working…

Comment & Rating (10)

@user_1737098416

Boosted

Print Profile

0.2mm layer, 2 walls, 10% infill

Thus is my largest print on one plate! It used up 1188g!

@user_1737098416

Boosted

Print Profile

0.2mm layer, 2 walls, 10% infill

They also work well with Gravitrax marbles. 👍

@Jeff_Erwin

I would like a license to sell this model in my Etsy store. Please contact me.

The designer has replied

@murkle99

I've sent you a message on Etsy, OK?

@Jeff_Erwin

Replying to @murkle99 :

Got it. Waiting for your response to my email.

@tsrblke

Print Profile

0.2mm layer, 2 walls, 10% infill

Printed fine and a good little test before I went all in because I need a smaller marble.

@emanuel

@murkle Do you have a working 5th order file? I need a file like yours in 5th order. Can we talk?

@Muzak_Man

Print Profile

0.2mm layer, 2 walls, 10% infill

@user_3247768104

Print Profile

0.2mm layer, 2 walls, 10% infill

@user_2427759480

Print Profile

0.2mm layer, 2 walls, 10% infill
