Generic AF Glide Bait1.1(OLD VERSION)No wt.Chamber
Print Profile(1)
Description
LEGACY FILE (v1.1)
This is an older version (pre-weight chamber). It swims OK, but it’s not as tunable as the newest releases.
Want the newest version? Download it here →https://makerworld.com/en/models/1405298
New to 3D Printing lures? Grab the FREE 1-page Generic AF Glide Guide → https://mailchi.mp/12552e6e451a/m-glide-guide
----------------------------------
This (NOW OLD) version improves the swim consistency and has a more level glide on the retrieve. The original 1.0 is fish catch proven, this 1.1 Version is an improvement on the action-more field testing or should I say stream testing is on going.

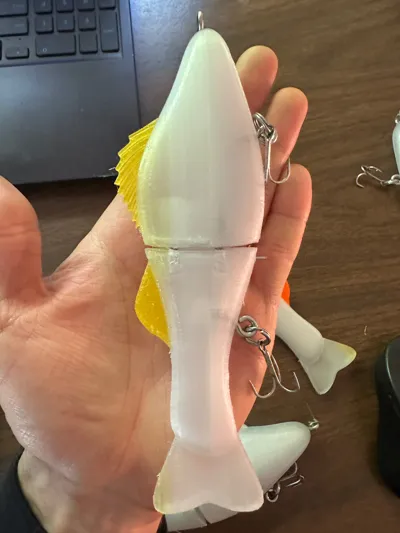

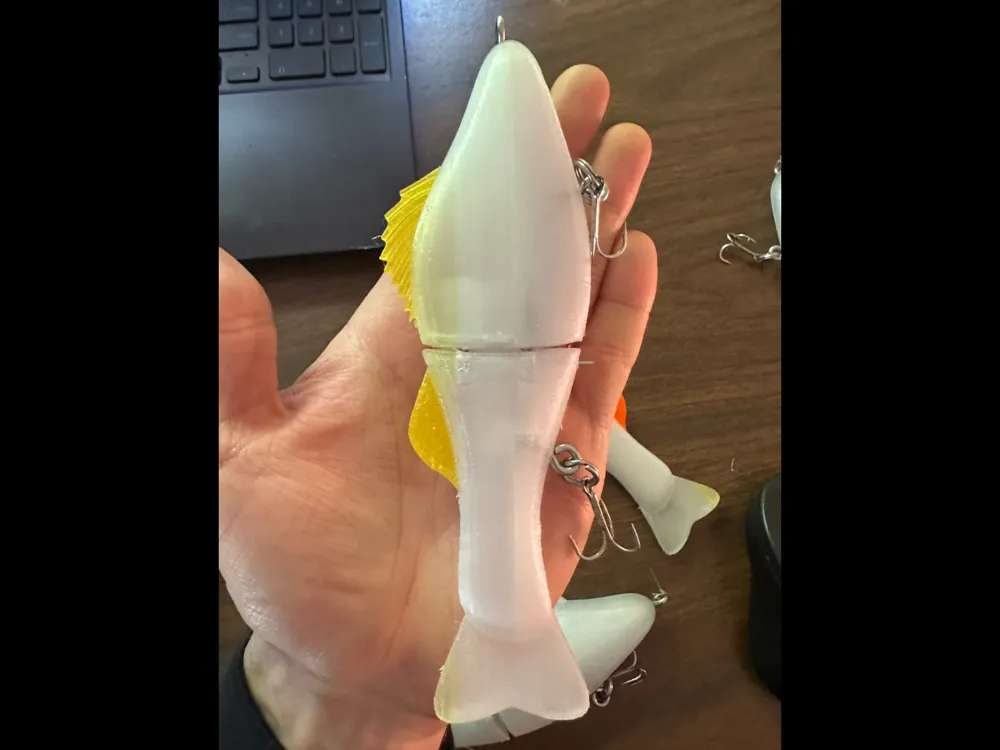

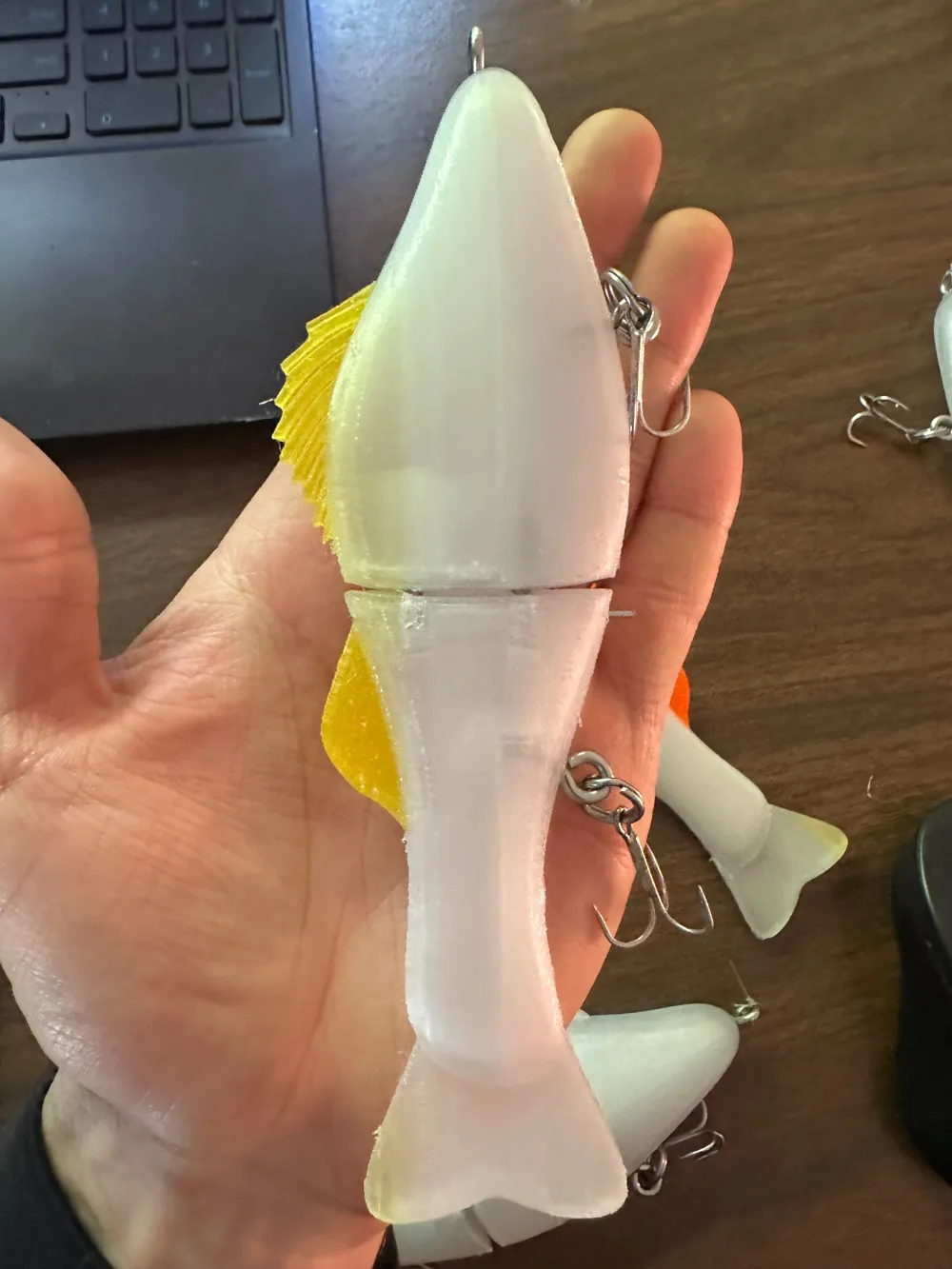

Generic AF Glide Bait:
7" Length
2.3 oz.
Slow Float
PETG Filament Recommended and Personally What I always use
The Generic AF Glide Bait requires no clearcoat! The lure will slowly take in water so bring a few extra to Swap out as needed. You'll notice the action will change after about an hour. If your filament has not been dried and is old it's likely to take in water within 15 minutes.
Dry the Filament Before Printing is Highly Recommend - Allows you to Fish Longer With less water Soaking into the lure and negatively changing the action
Lure Parts Online 4028 .092" Magnum Screw Eyes SKU: 4028-01 34 Style: Closed Eye Size: 3/4"
Lure Parts Online 4431 Wire Shafts (10pk) SKU: 4431-08-051 Size: 8" - .051"
Lure Parts Online 4101 Stainless Steel Split Rings (25pk) SKU: 4101-05 012 Size: 5 - 40lb Color: Stainless (012)
Sportsman's Warehouse Gamakatsu Treble Hook-Size 4 -Round Bend
Thanks,
Kenny
-5.26.25
PUTTING FINAL TOUCHES ON THE PRO VERSION — 7" Generic AF Glide Bait (Flex Tail)
Everything I learned from V1.5, dialed in:
• Built to be clear coated — no more clunky action when you seal it
• Reworked weight — pulled weight out of the top, packed it low; the most resin-like glide I've ever gotten out of a printed bait
• Foam loaded — the best method I've found to truly waterproof and seal a 3D printed glide
• Locking flex tail + tuned weight chamber
See it in action + Catch HERE:
