Life-Size 155mm Artillery Shell | High Detail

Summary

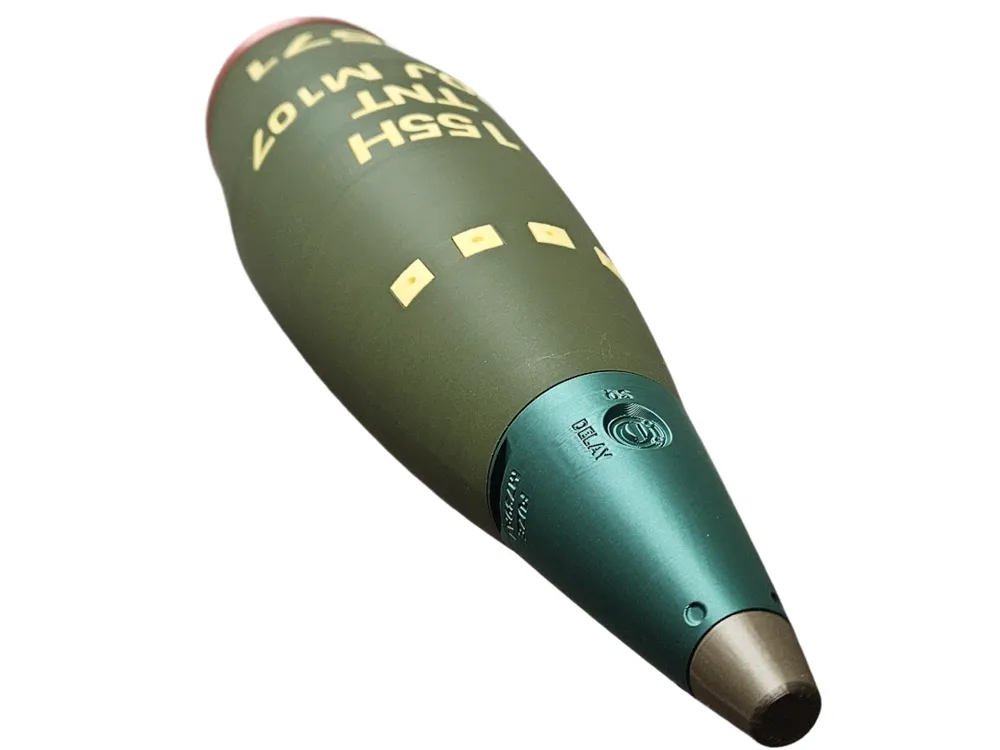

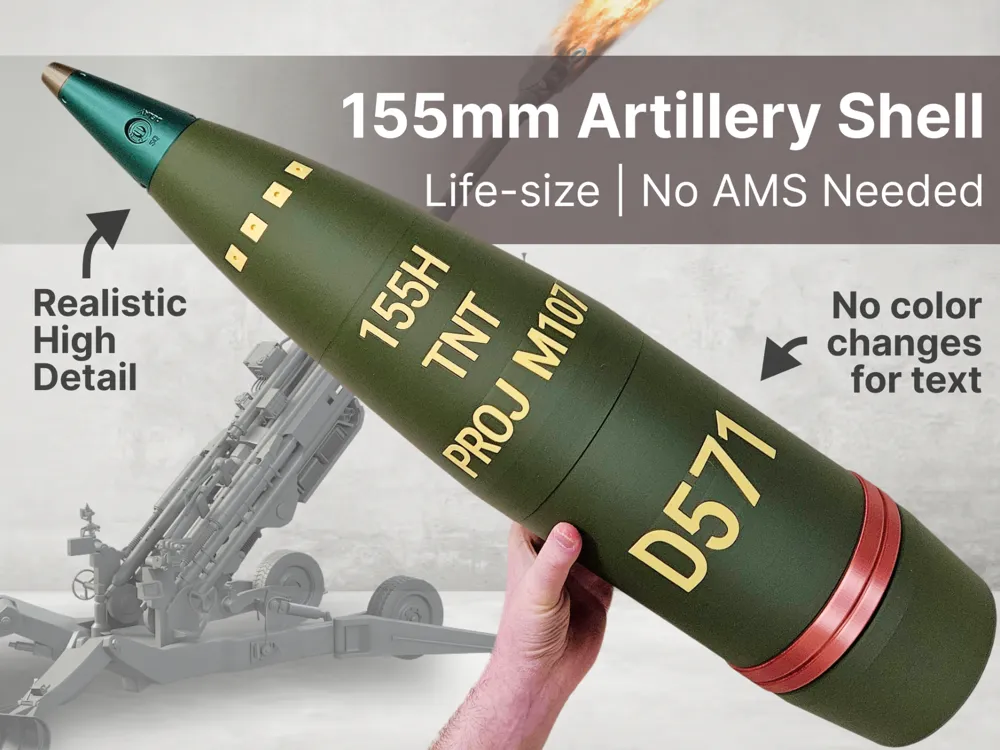

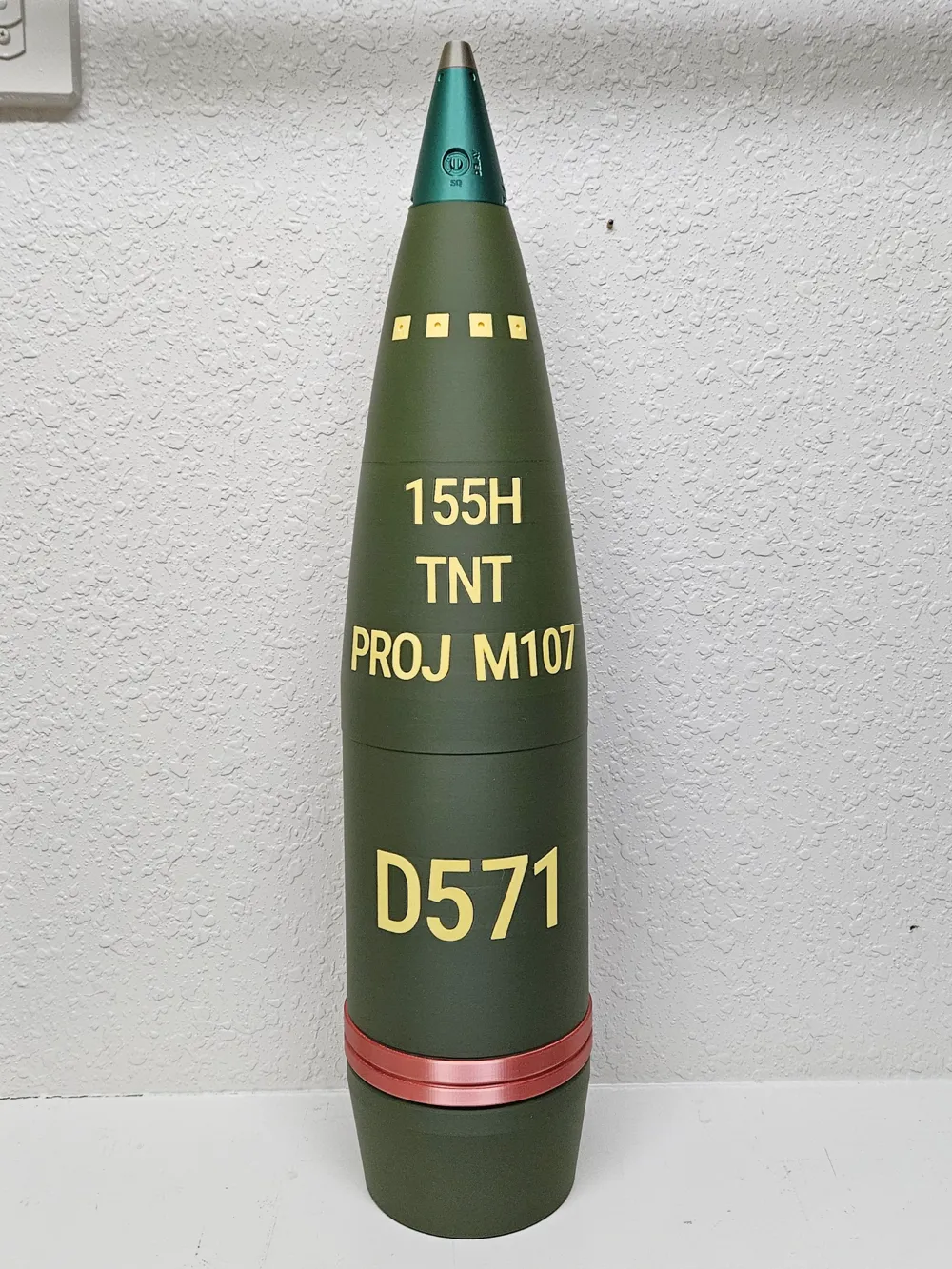

The shell you've asked or is finally here -- the mighty 155mm Artillery shell used by the US, NATO, and many other countries throughout the world.  This is a high-detail life-size shell that doesn't even require an AMS -- all that nice yellow text is printed separately and easily inserted -- no color changes!

[New v2] Easy Screw-together Assembly

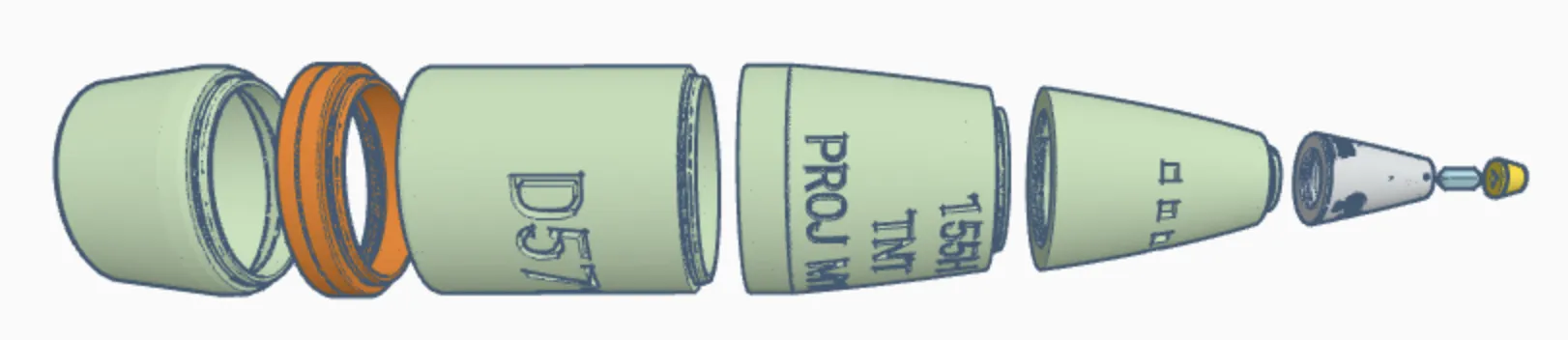

Simply screw the body sections together like you see below (and attach the tippy top with the provided peg).

Insertable Text

1. Be sure to ensure that all the support material is removed from the holes before inserting the yellow text.
2. Make sure the curved (top) side of the text is facing out and the flat side is what you insert into the hole for each letter.
3. Keep track of the order the text was in on the build plate to make it easier to insert the right text in the right order for similar characters like 5 and T.

[Old v1] Peg-based Assembly

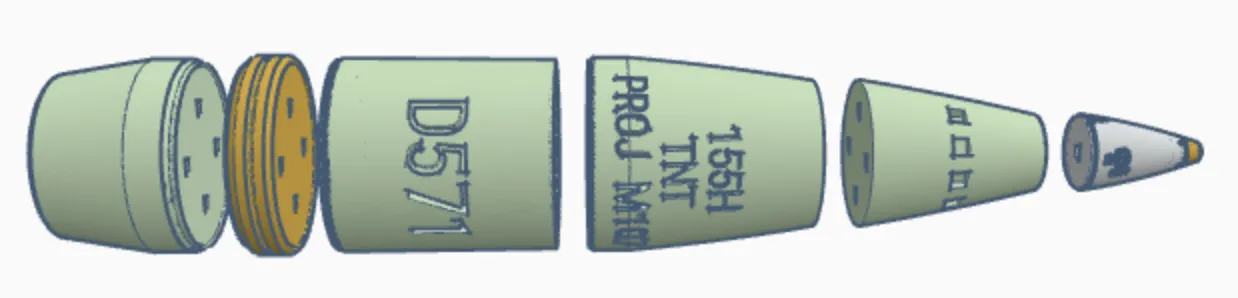

Assembly is a snap, literally, just snap the pieces together with the provided pegs in the order you see in the image below.  I'd recommend you print the really quick-to-print profile called “Text Test”  so you can see make sure your printer and filament will work with the insertable text.  That way you can choose to print the whole shell with the text or without.

Make sure to let the parts cool before removing from the build plate

If you stretch the hot build plate to pop the parts off right away, it can subtly warp the part so that it doesn't fit snugly together.  Its best to wait 10 minutes or so for the plate to cool and for the part to pop off on its own or at least loosen.  Ideally, swap between two different build plates so you can let one cool while you print the next part with the other build plate.

Peg tightness (important)

You have two assembly options, you'll see separate plates for each in the the print profiles:

1. Use the looser pegs provided and apply a little super glue (like Gorilla glue) between the layers and on the pegs.  (this option may end up with a cleaner look overall, so if you have glue this is the best option)
2. Or use the tighter pegs provided to put it together without glue.

Insertable Text

1. Be sure to ensure that all the support material is removed from the holes before inserting the yellow text.
2. Make sure the curved (top) side of the text is facing out and the flat side is what you insert into the hole for each letter.
3. Keep track of the order the text was in on the build plate to make it easier to insert the right text in the right order for similar characters like 5 and T.

Bambu filaments used

• Matte Dark Green
• Matte Yellow
• Metal Iridium Gold
• Sunlu Silk Red Copper (Amazon link)
  • Silk+ Rose Gold would look decent too
• Metal Oxide Green (replace with Silk+ Green or Silk+ Silver if you don't have this)

( ! ) Do not sell my prints — I have not authorized selling prints.  If you sell my prints on Etsy, Amazon, eBay, etc, I will find out.

This 3D print is intended for decorative purposes only and is not suitable for children. Small parts may present a choking hazard and edges may be sharp. By printing this 3D print, you assume all liability for any harm to yourself or others resulting from its use.
