Ubiquiti Unifi U6-IW (U6 In-Wall) Surface Mount

Print Profile(1)

All
A1 mini
A1
P1P
X1 Carbon
X1E
P1S
H2D
X1
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
1.6 h
1 plate
5.0(2)

Open in Bambu Studio
Boost
22
126
3
3
129
57
Released

Description

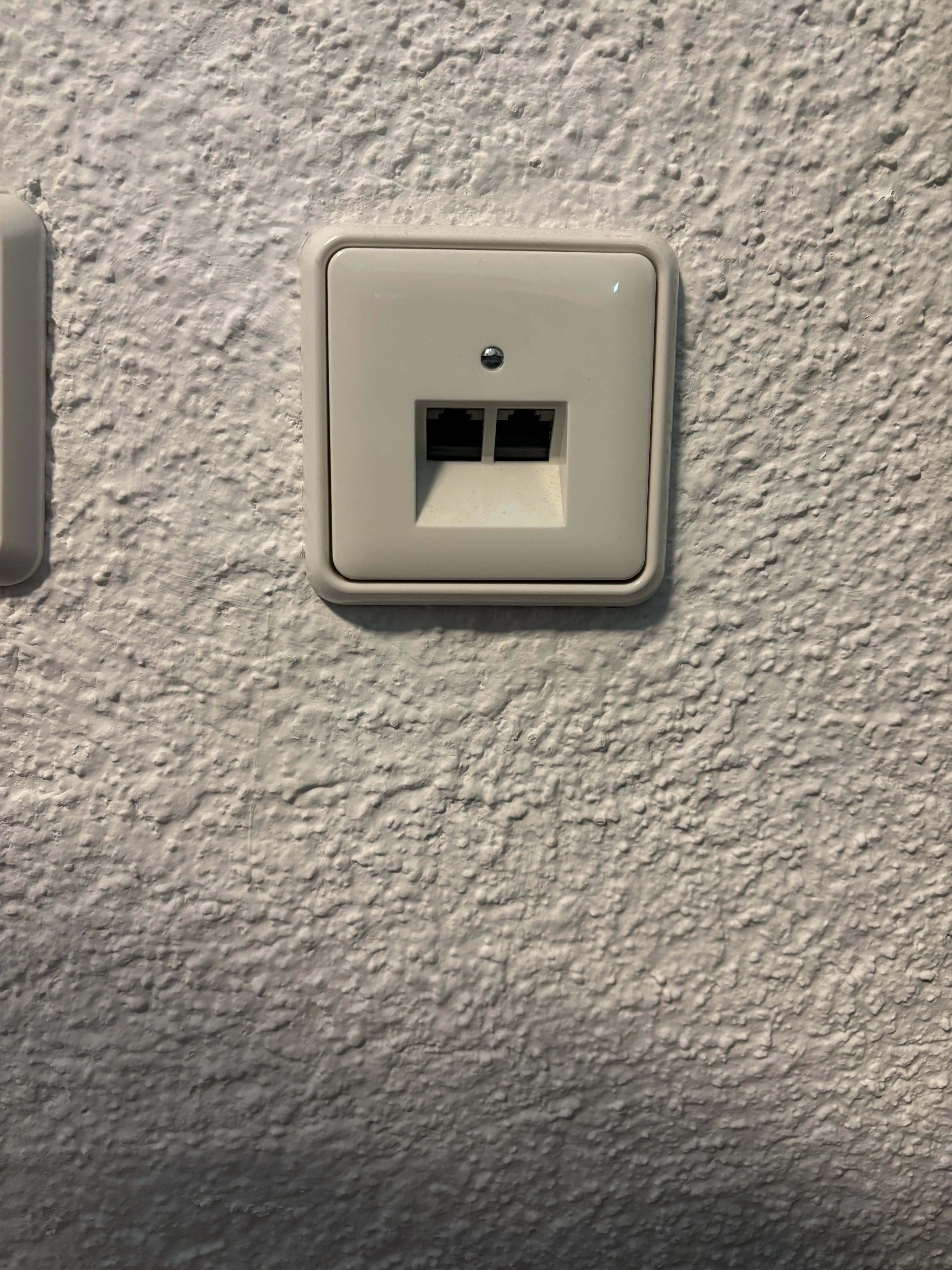

While there are other 3D models to surface-mount a Unifi U6-IW access point on a wall I didn't want to drill additional holes into my wall but instead mount the AP on top of a UAE network socket (with faceplate) while using the screw I have there:

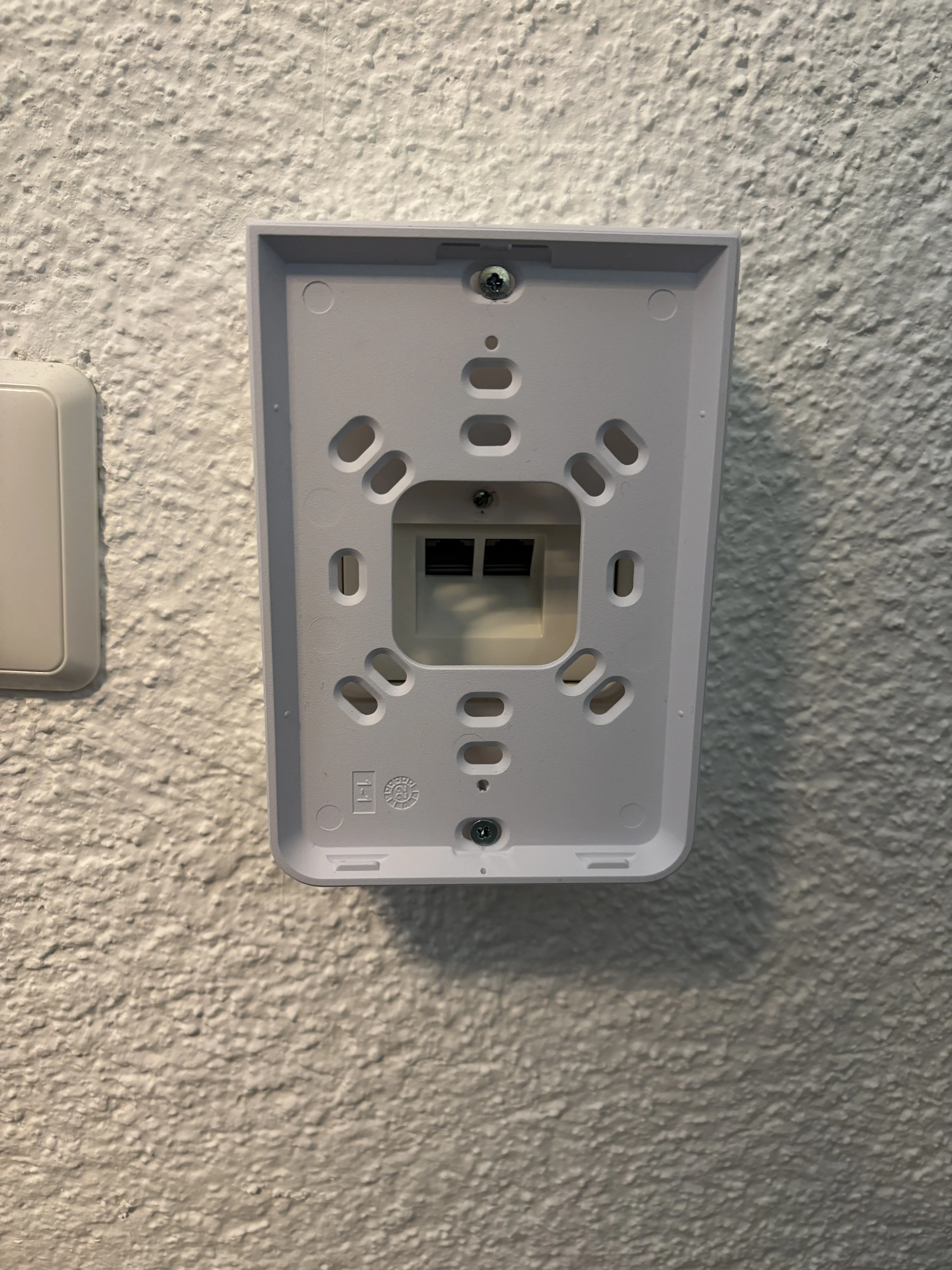

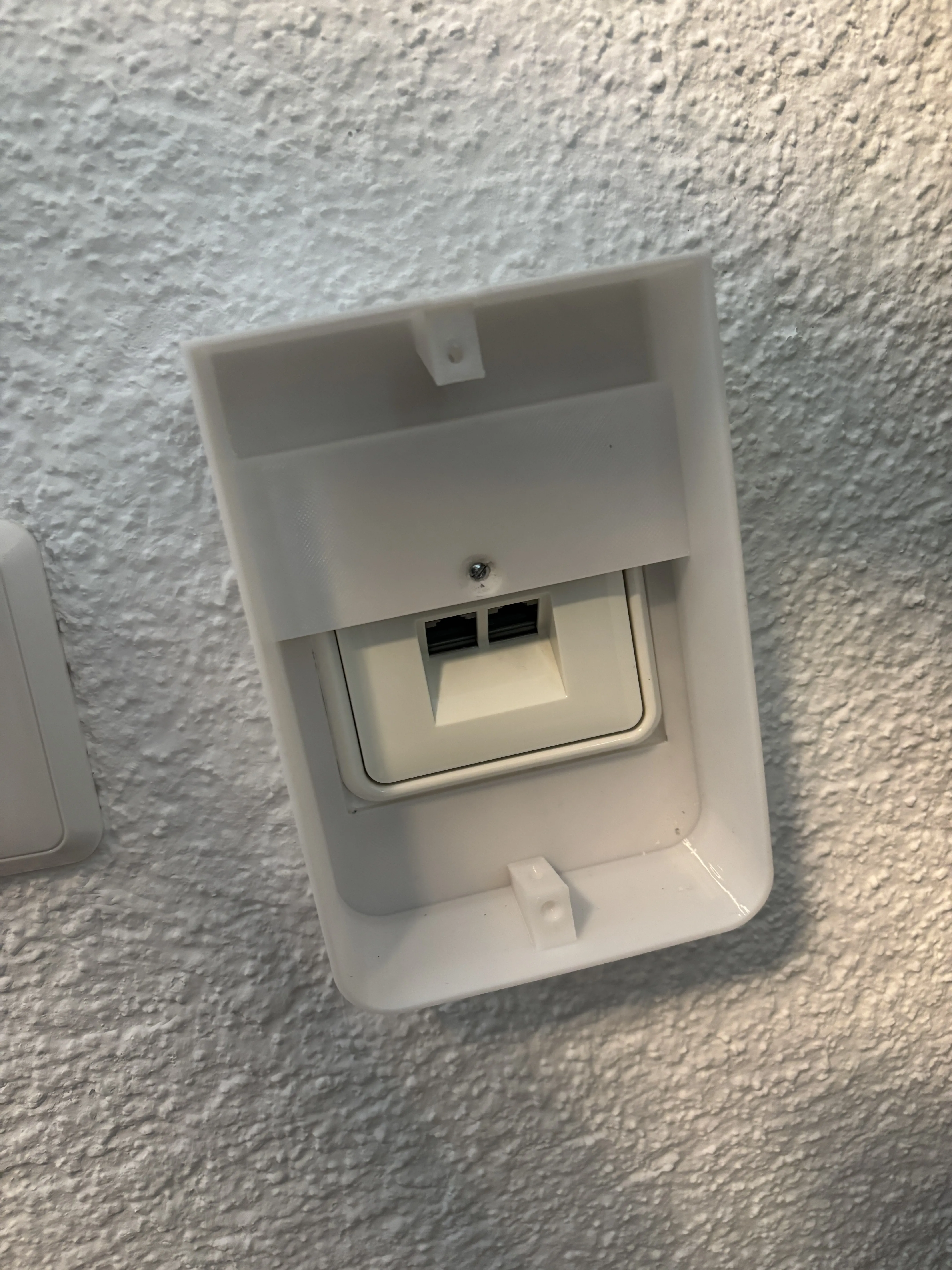

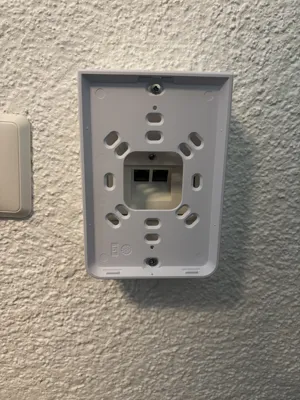

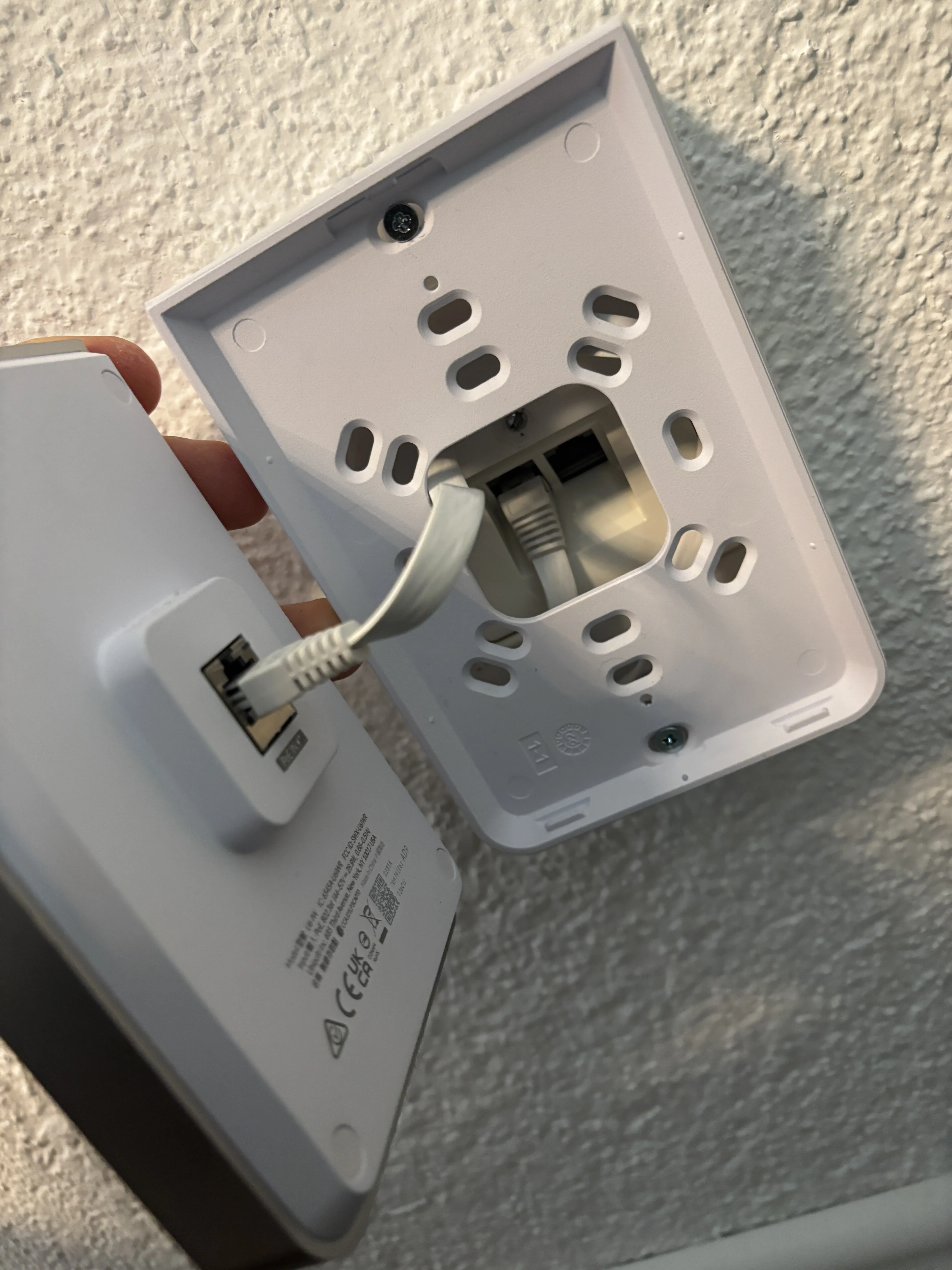

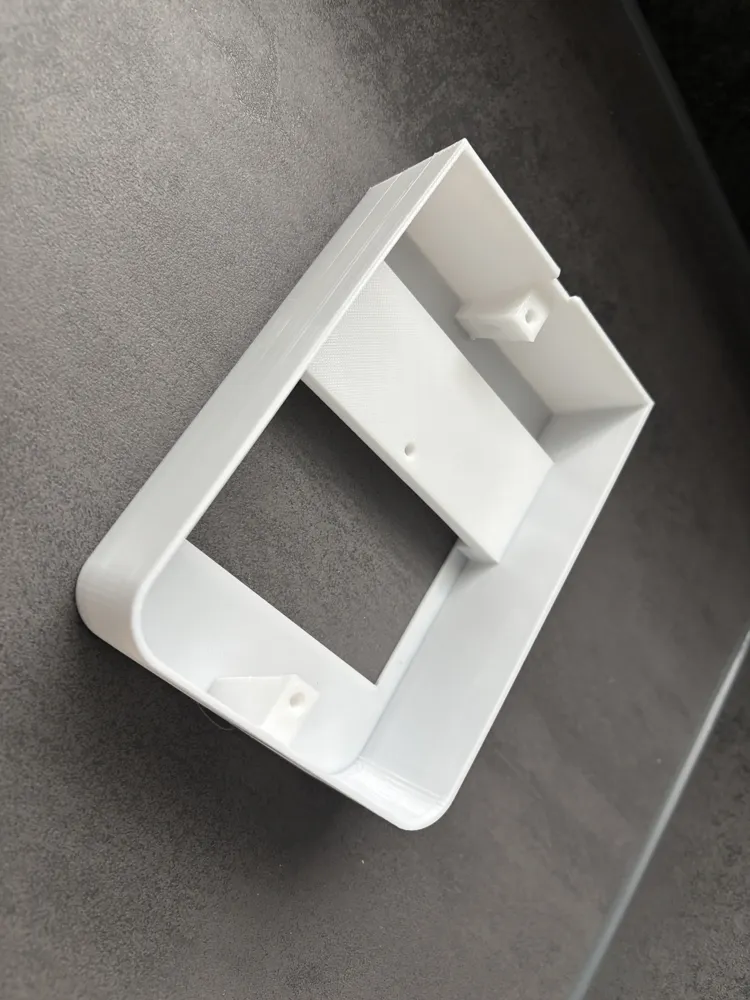

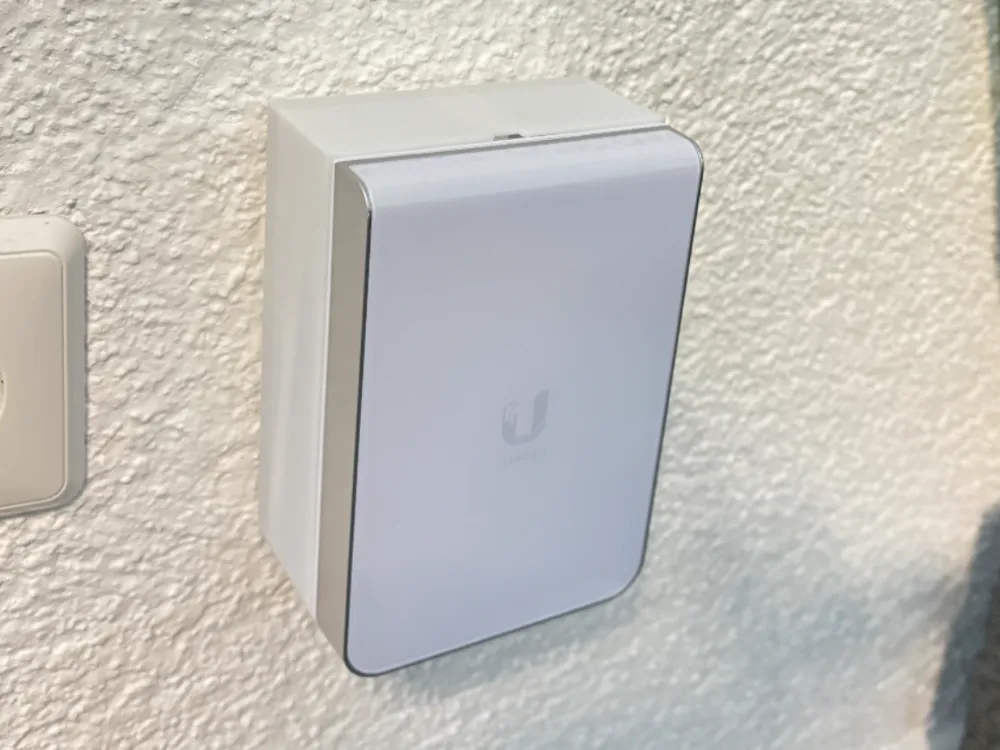

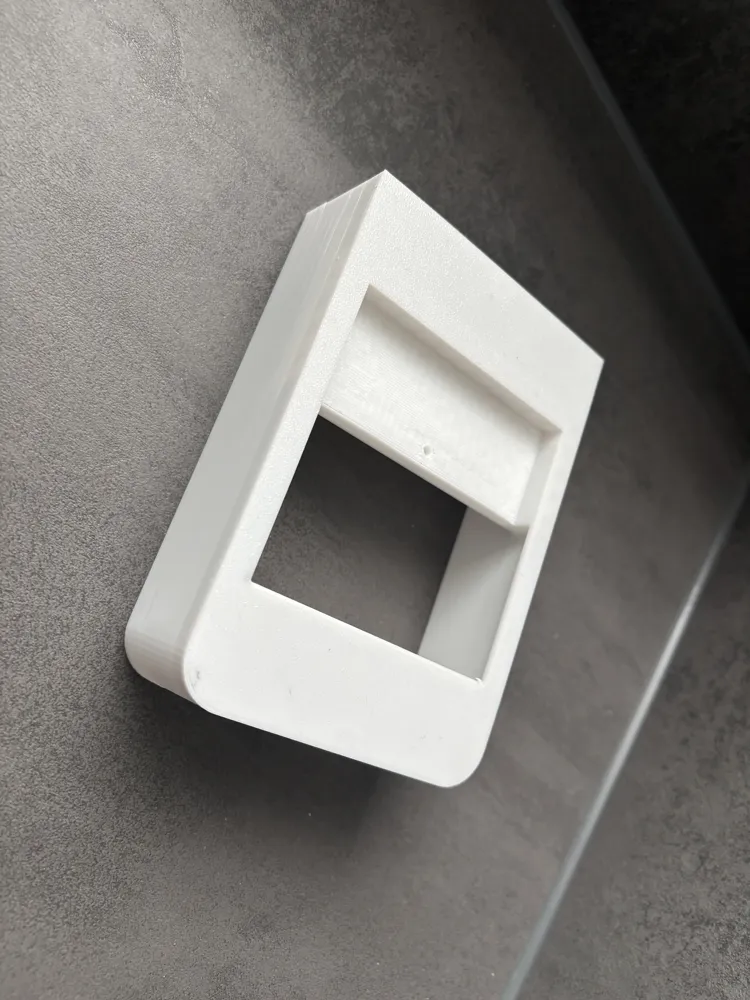

 I therefore designed this model to do exactly this. Just screw the part on top of the faceplate with the available screw. Then mount the metal mounting plate shipped with the U6-IW on top. You can now plug the network cable, tuck it away within the free space and click in the access mount.
