Manual Air Raid Siren—Very Loud
IP Report
Print Profile(1)
0.28mm layer, 2 walls, 15% infill
Designer
17.8 h
9 plates
Open in Bambu Studio
Boost
2383
6507
107
126
4.4 k
1 k
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Description
Content has been automatically translated.

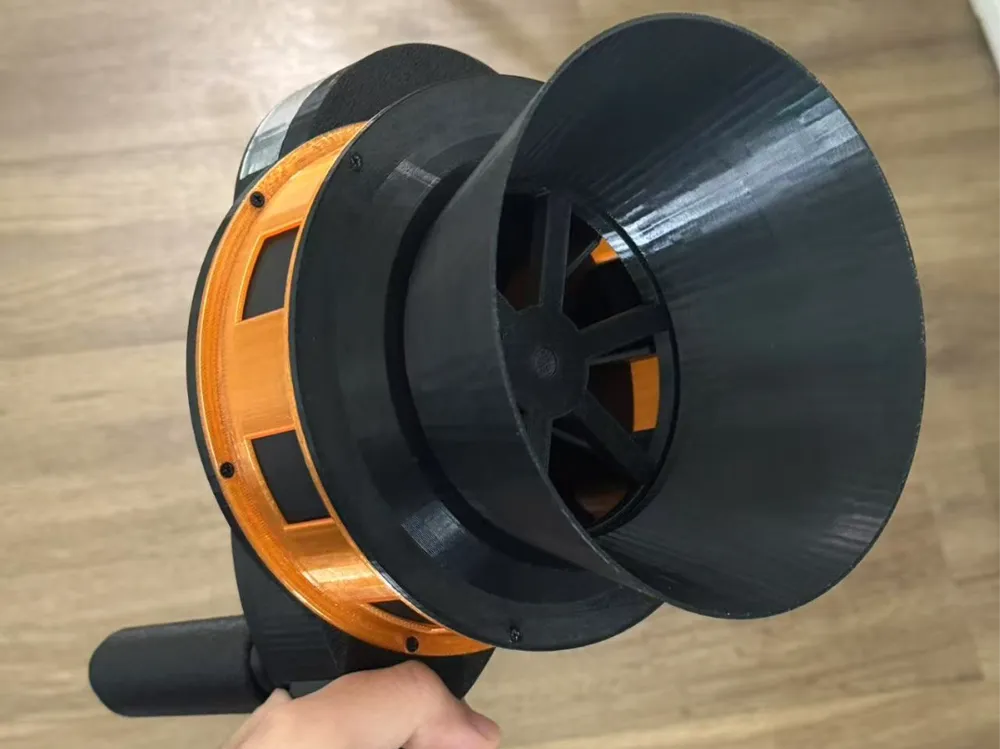

Manual air raid siren, exceptionally loud

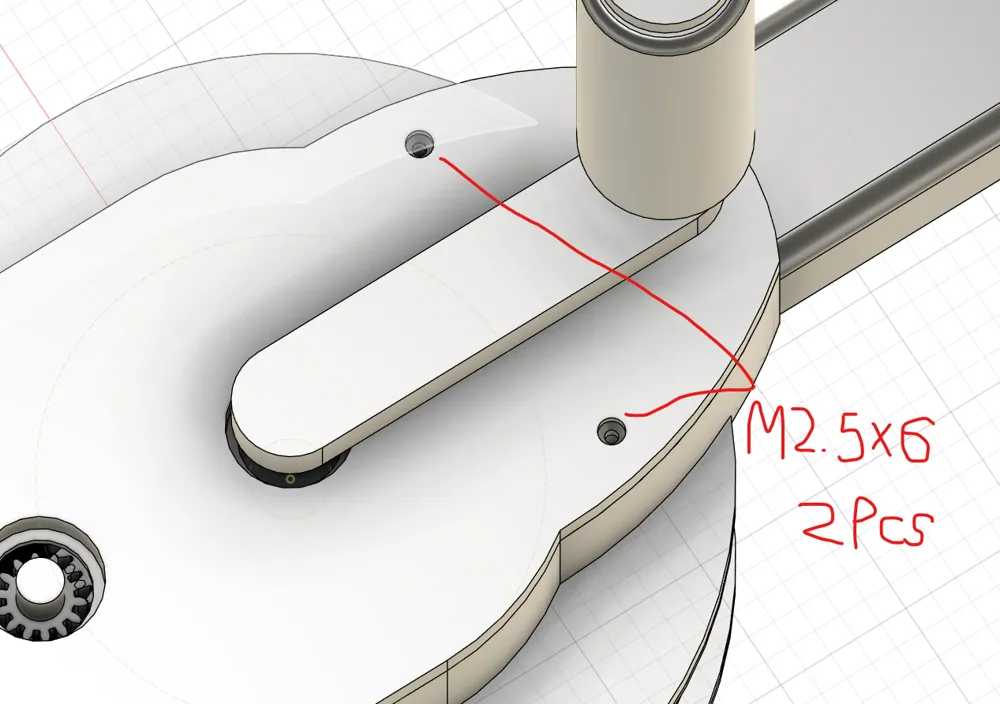

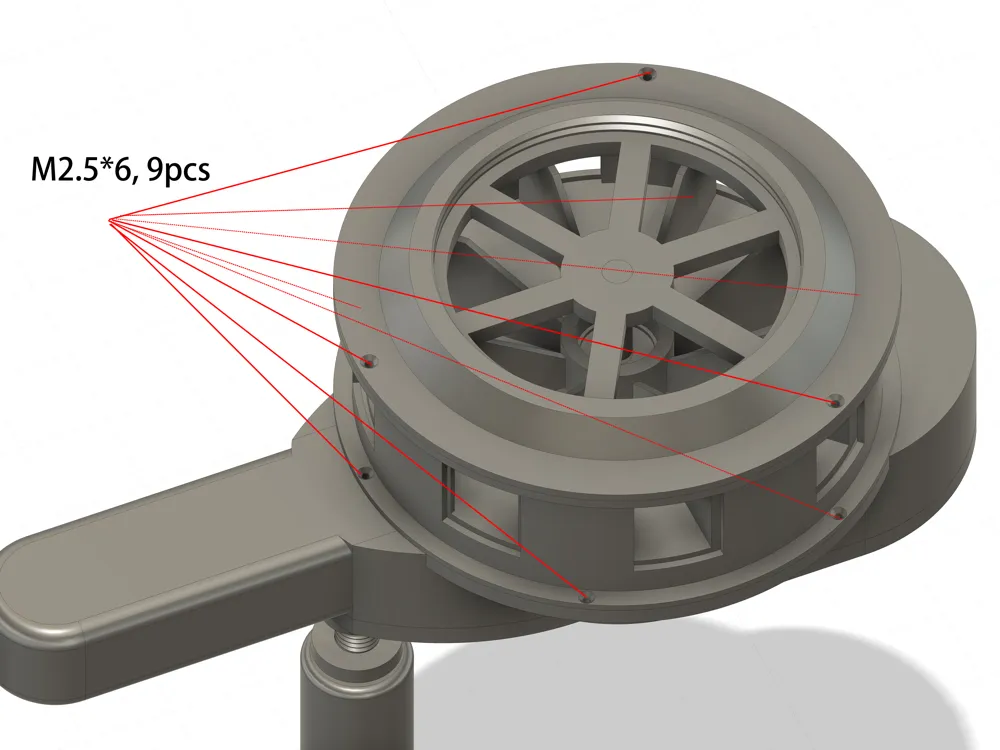

Requires five 608 bearings, eleven M2.5*6 countersunk screws

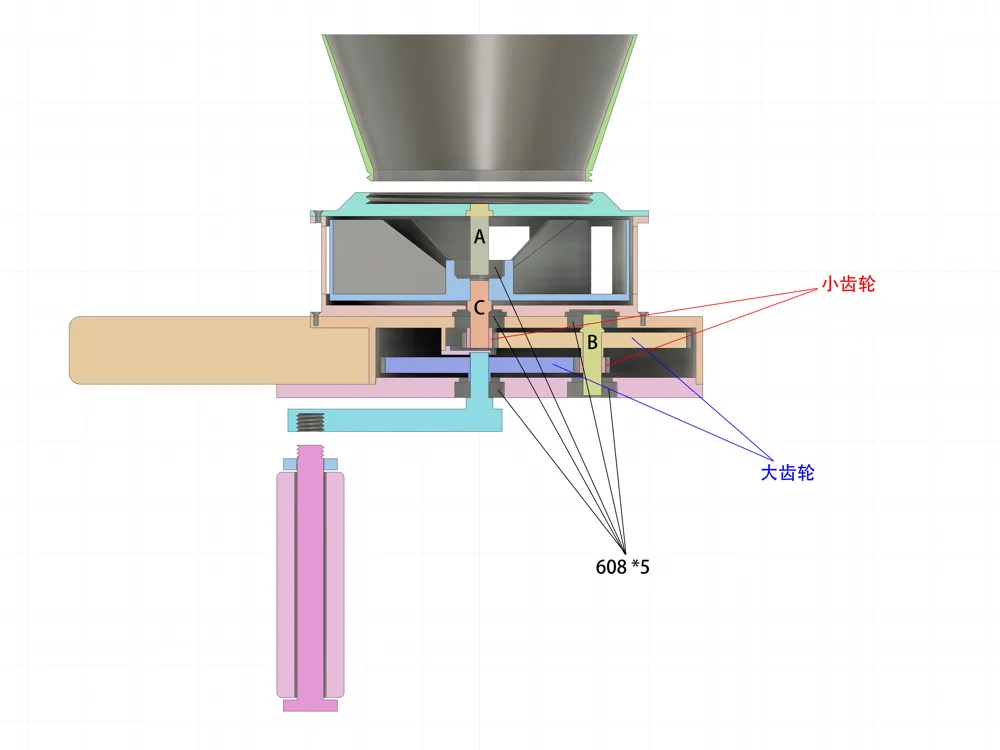

Assembly instructions are shown in the images, illustrated via cross-sectional diagrams
The crank of part 5 must be printed in the default horizontal orientation as specified in the configuration; otherwise, it will lack sufficient strength
After installation, reinforce the crank and the large gear with 502 adhesive
