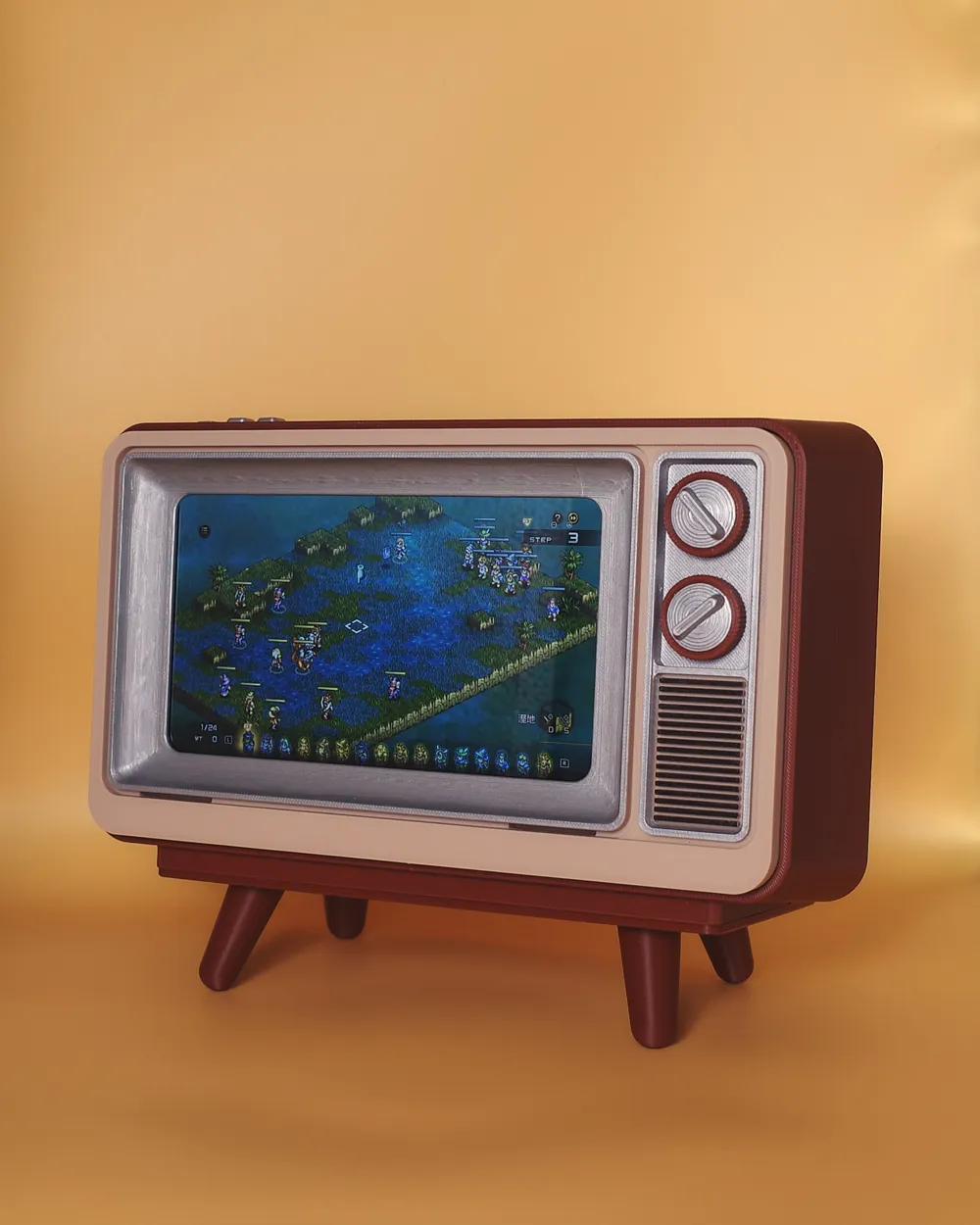

Stand and magnetic reinforcement designed for the Retro TV protective case for Switch

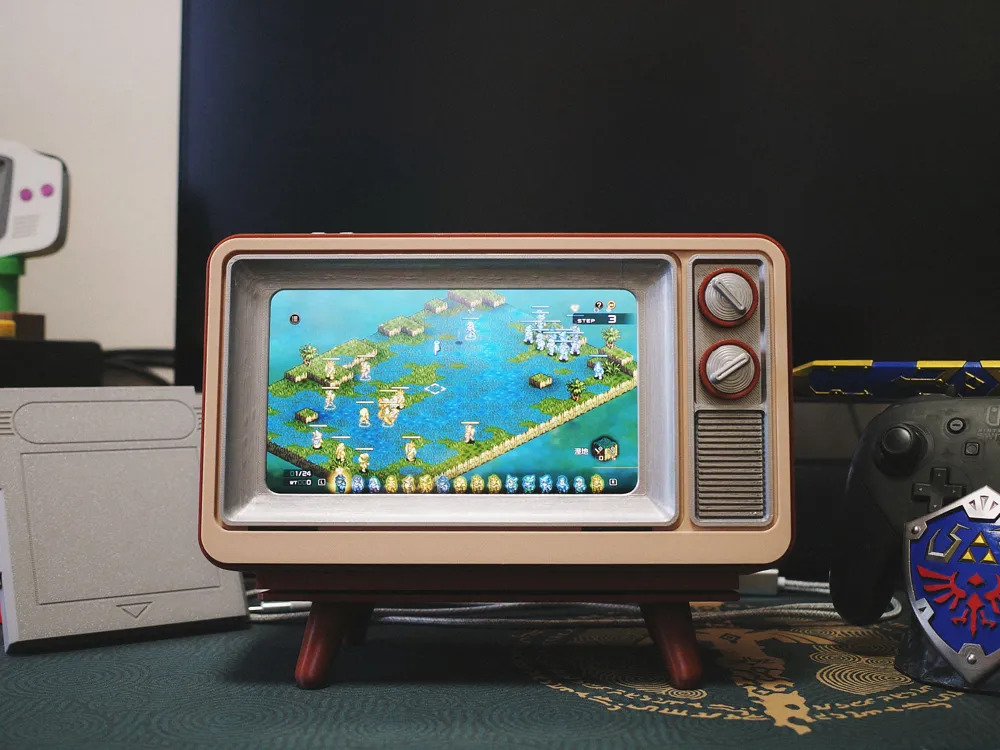

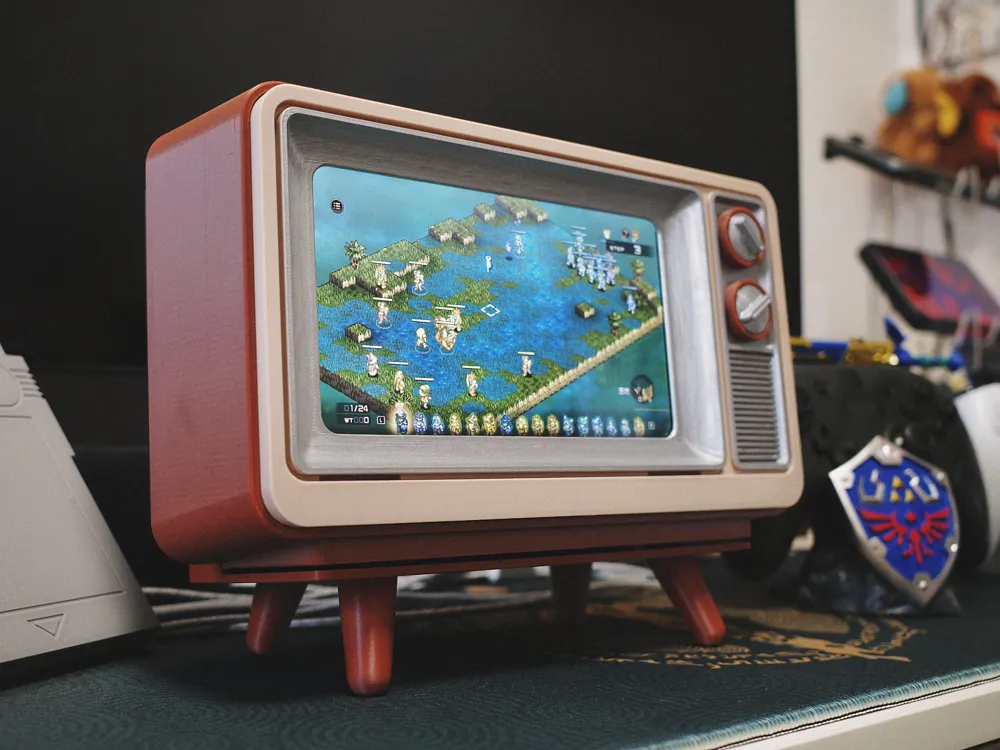

This stand is designed for the Retro TV - Nintendo Switch Case, providing a stylish and ergonomically enhanced viewing angle, and magnetic reinforcement to prevent accidental drops of the Switch.

Design Highlights:

1. Maintains the original retro aesthetic while improving the viewing angle;

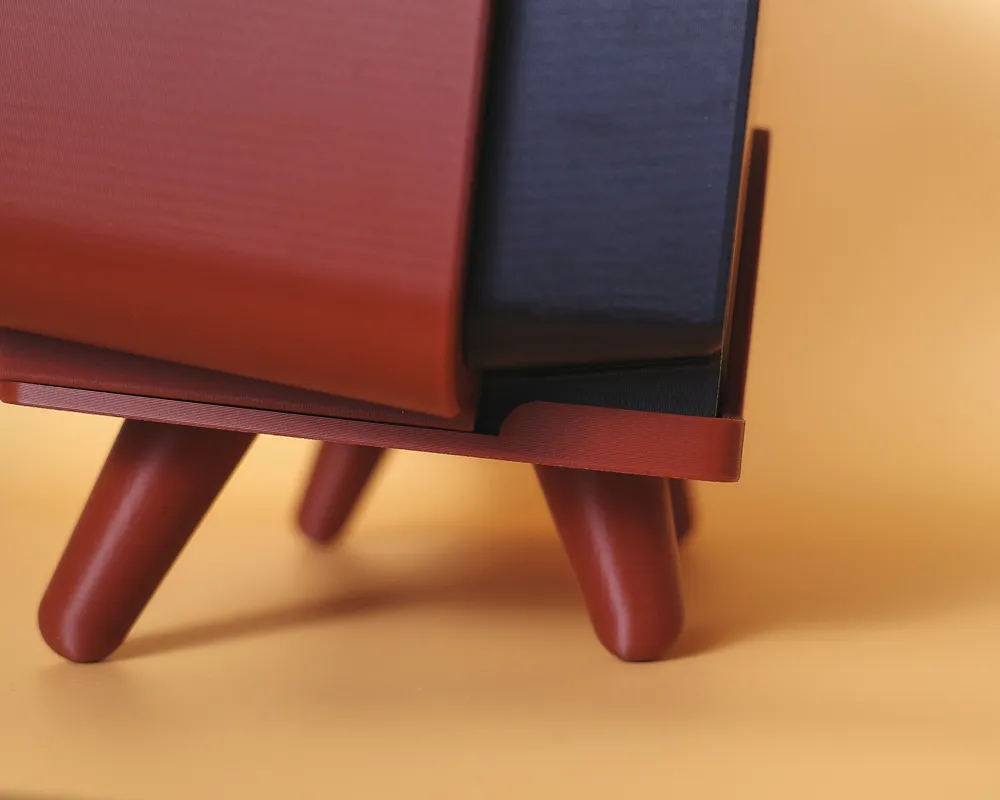

2. Features matching protrusions on both sides for precise Switch centering;

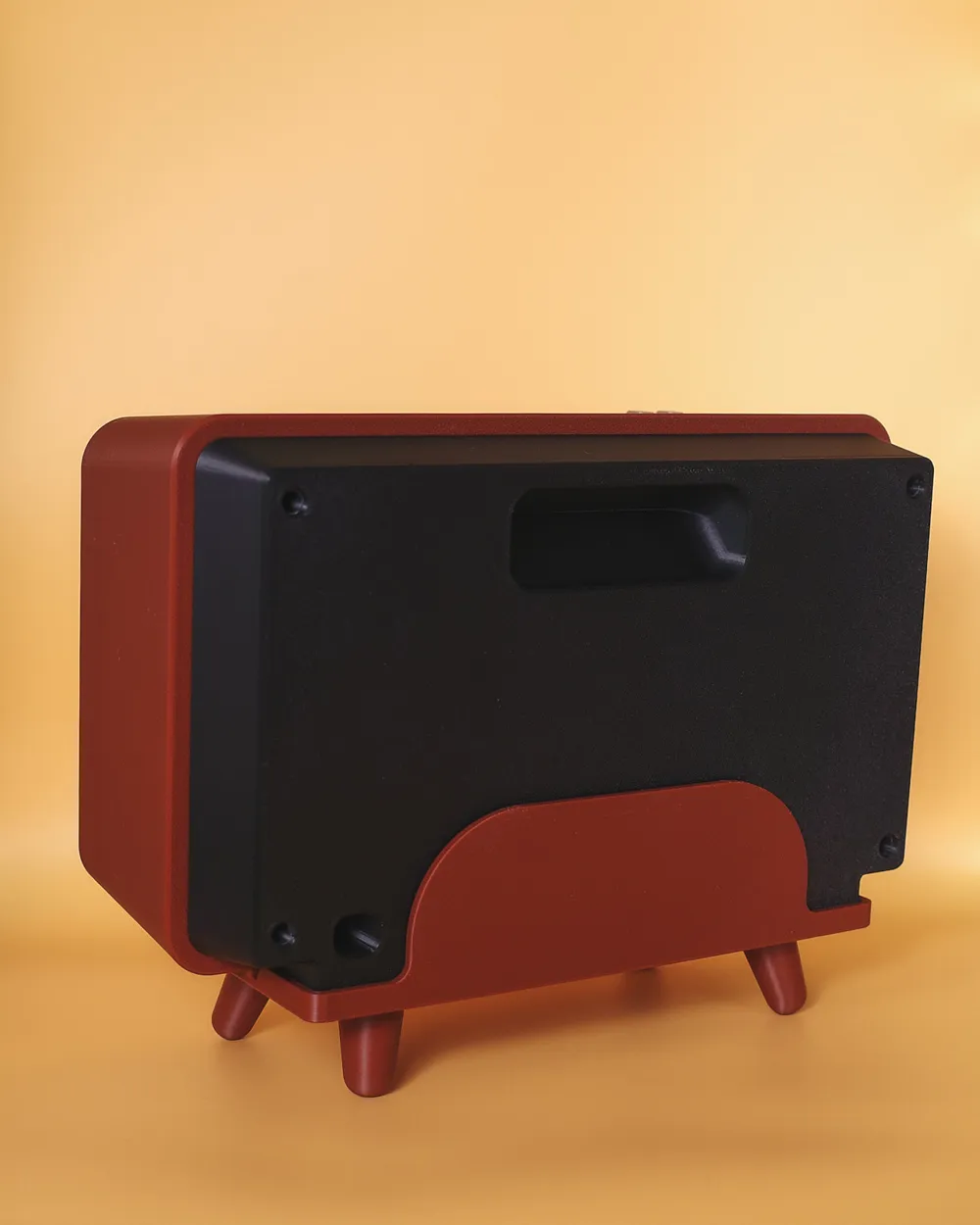

3. The rear support does not obstruct cable ports.

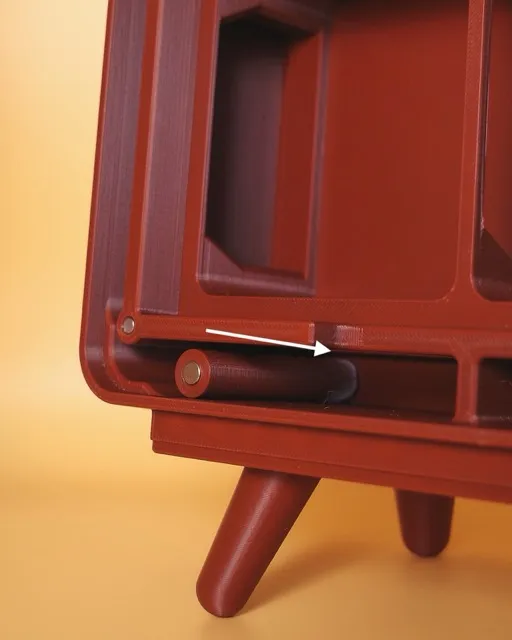

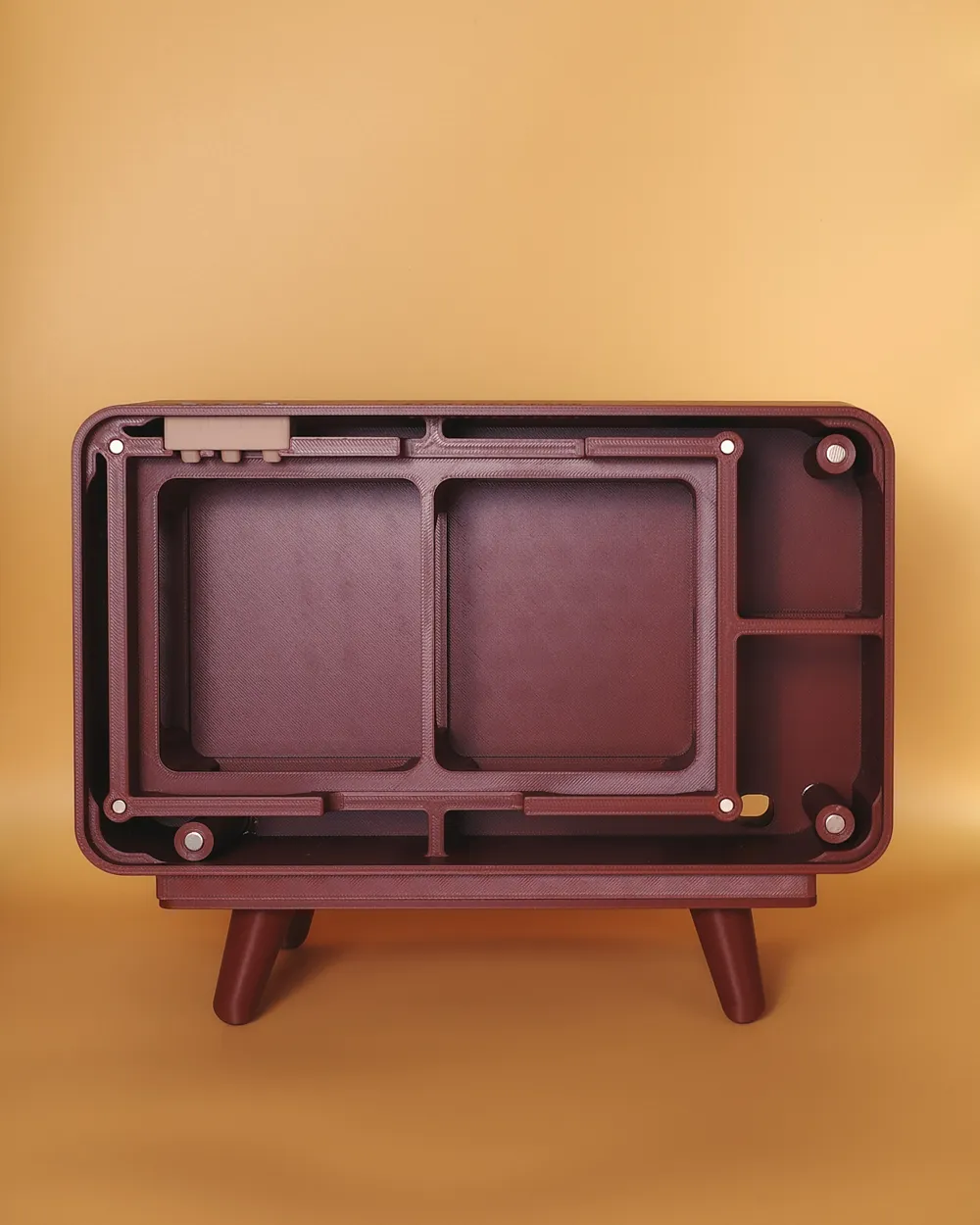

4. Three reinforcement bars enhance the panel's magnetic hold, preventing accidental drops when the case faces downward. The reinforcement bars default to 6*3 magnets; however, you can modify the negative parts in the model to accommodate different magnet sizes.

Installation:

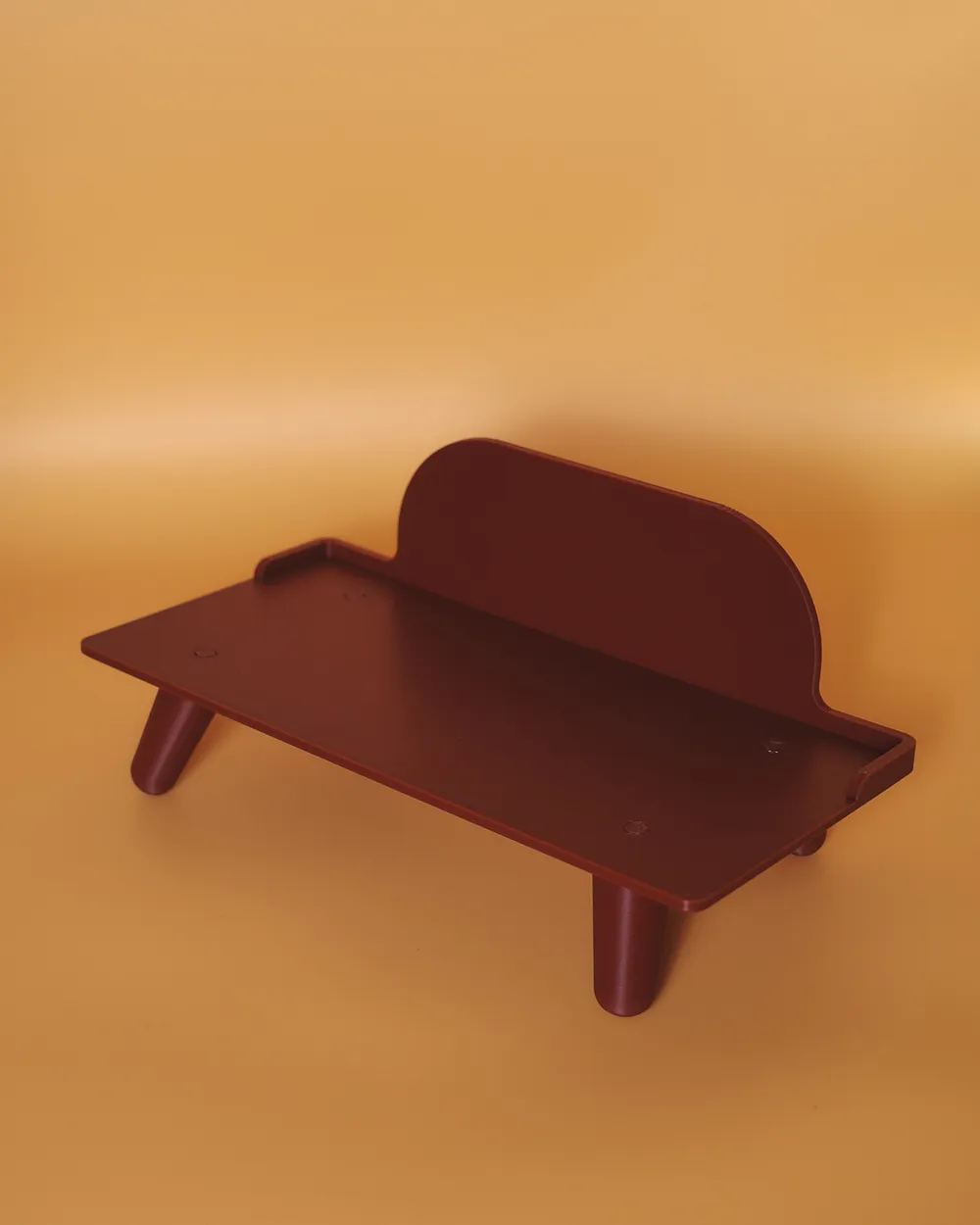

1. Insert the feet and connectors into the base plate. Ensure the angle is correct before securing with adhesive (the angle of the feet can be adjusted to your preference).

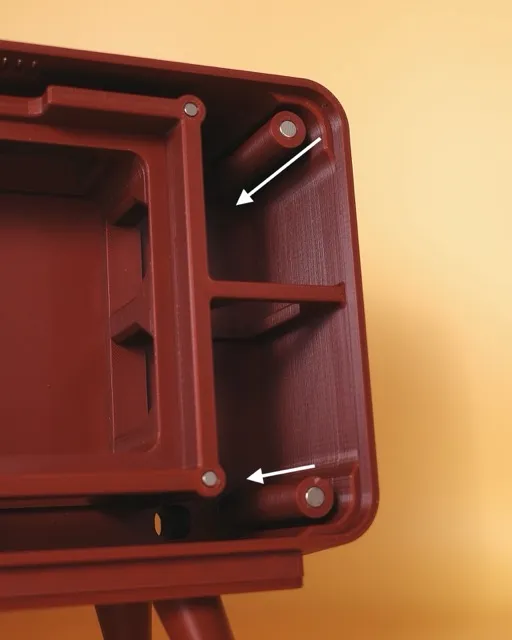

2. Secure the two right reinforcement bars to the inner screw holes using adhesive at the bottom. Secure the left reinforcement bar with adhesive in any convenient location, and install the magnets at the top.





3. Secure the magnets that attract to the reinforcement bars to their corresponding positions on the panel using adhesive.

Finally, thanks to @Josh-3D for the original design.
