Description
Content has been automatically translated.
Boost Me (for free)
Please support me! I will continue to update!

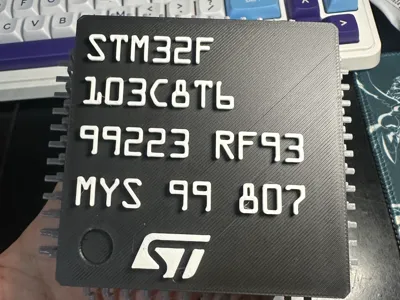

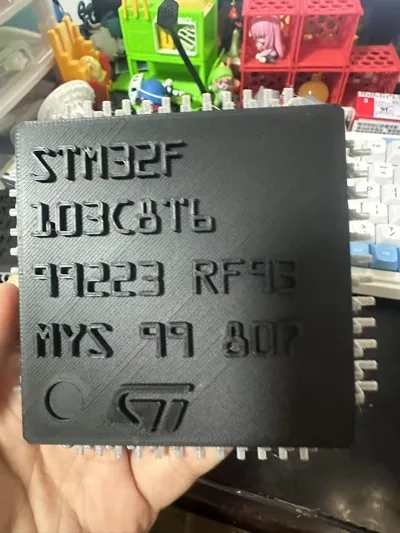

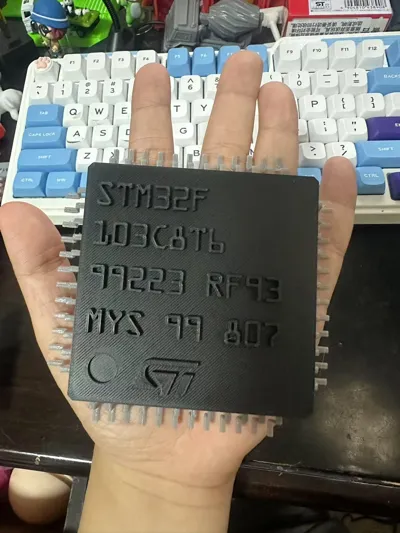

This is a 12:1 scale model of the STM32C8T6, originally a 7mm square, scaled up to 84mm wide
Print two plates directly, the main body in black, and the pins in white/silver
Notice!!!
Because I designed the pins to the original size, they are prone to breakage, so I've included five copies in the file
After printing the pins, remove the brim, even if it's cut crooked, just ensure the white edge aligns with the model's outer edge during installation
Lacking white filament, I plan to modify the text to an AMS version, update coming soon
