MagSnap Box Linea - 200x50mm

MagSnap Box Linea – 200x50mm

A sleek, 3D-printed pencil case designed for those who need a simple, elegant solution to store pens, pencils, markers, or other slender everyday essentials. The MagSnap Box Linea 200x50mm is long and wide enough to hold your stationery items while remaining compact for bags, desks, or backpacks.

This model features a magnetic snap closure for a secure hold and an effortless, glue-free assembly. Its slim profile is carefully optimized—maximizing internal space while using minimal space for the magnetic hardware.

Features:

• Size: 200x50mm
• Magnetic closure: Lid snaps securely shut
• No glue or printer pause needed
• Maximized interior space with smart magnet positioning
• Sized for Stationery: Ideal for pencils, pens, markers, and small tools

Requirements:

• 8pcs 8x2mm round magnets

Assembly Instructions

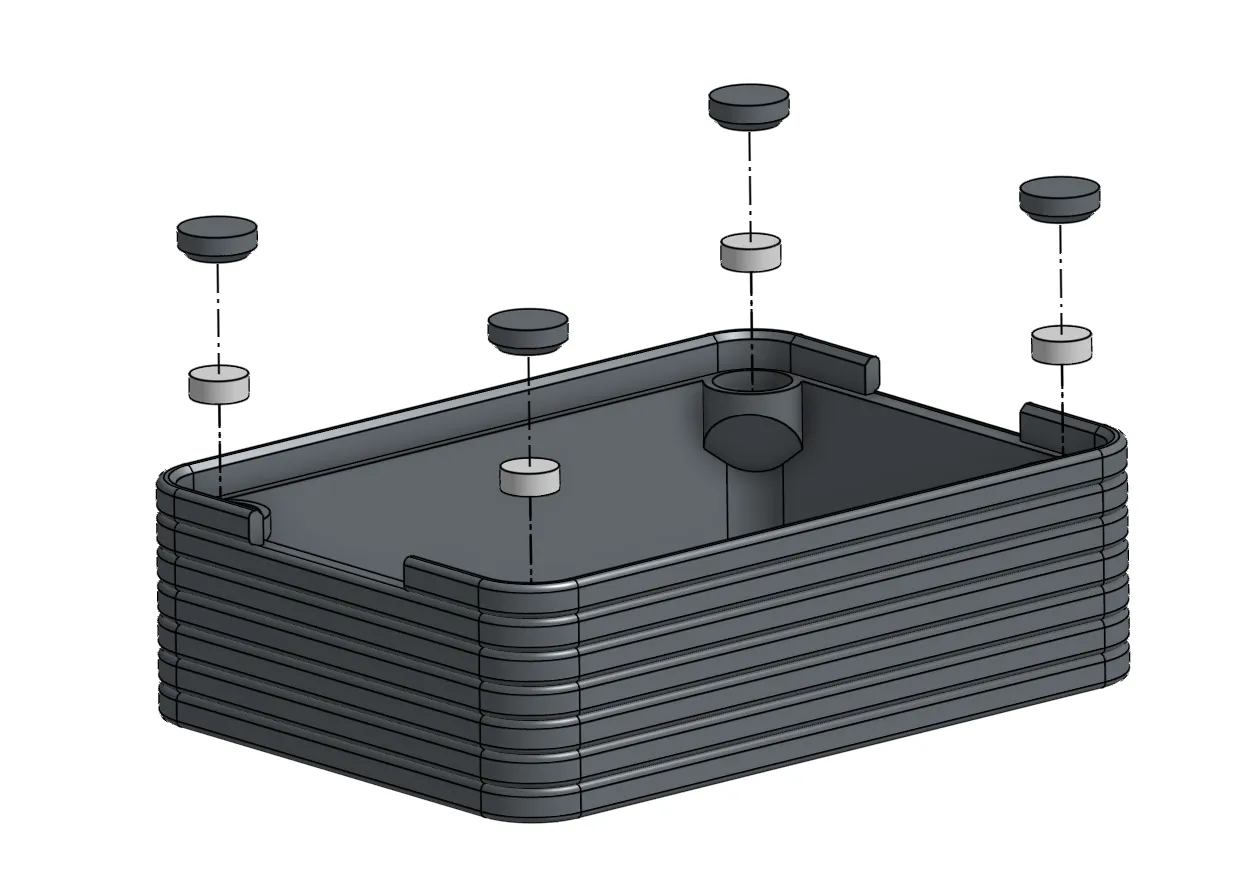

1. Base Box Magnet Installation



   1. Place 4 magnets into the 4 small rounded inserts (“buttons”). These buttons are designed for a tight, secure fit, so inserting the magnets may require a bit of extra force.
   2. Snap-fit these button inserts into the designated magnet pockets inside the base box corners.
   3. Ensure the magnets are flush and the inserts are securely seated.

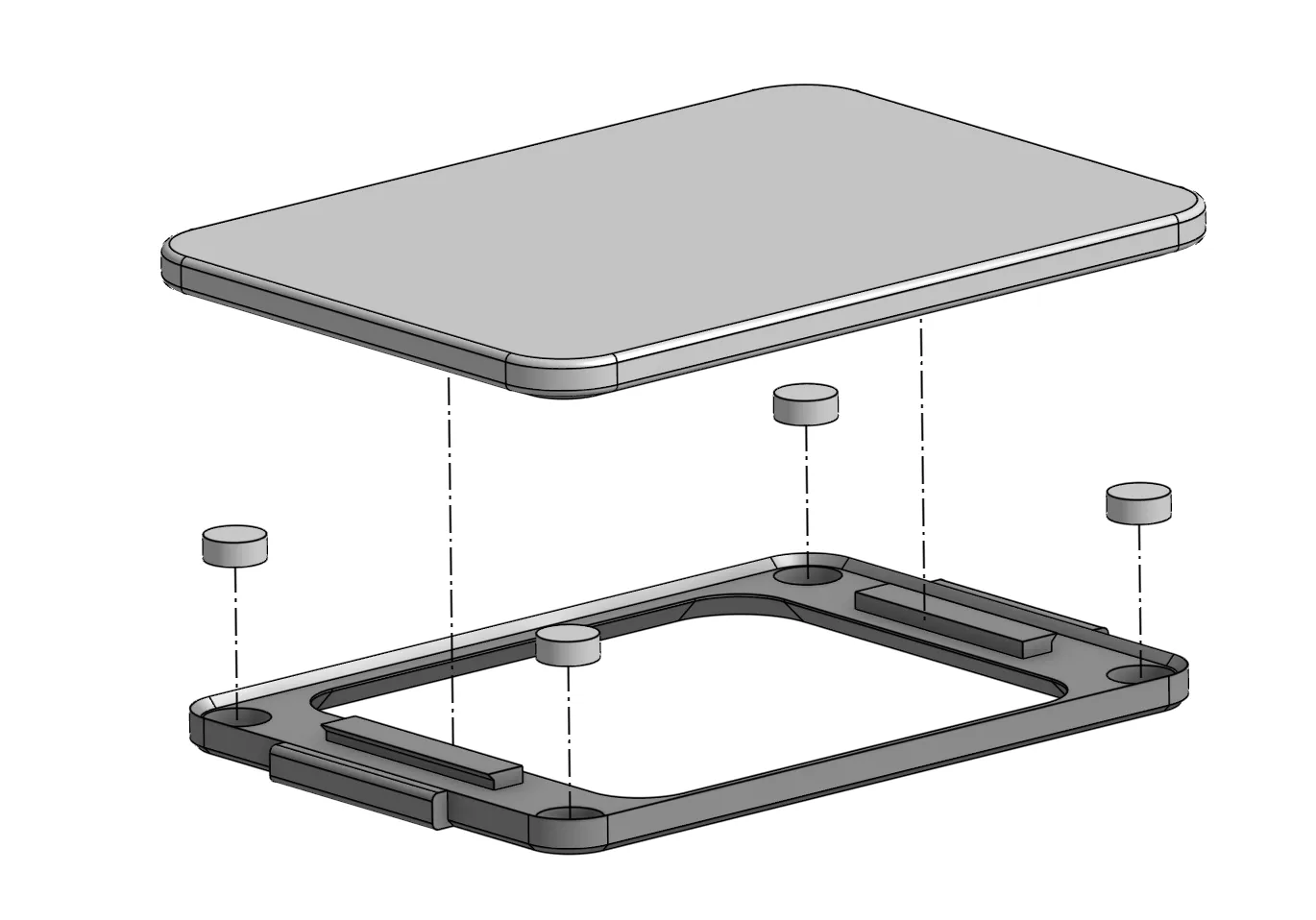

2. Lid Magnet Installation



   Place the remaining 4 magnets into the designated pockets on the bottom of the inner lid plate. Check polarity to match the magnets already placed in the box base.



3. Assemble the Lid

   Snap the outer lid onto the inner lid plate to fully trap the lid magnets.



4. Test Fit

   Place the lid on the box. It should align cleanly and snap shut with magnetic force.



5. Check magnet polarity before final fitting. All magnets must attract, not repel, for proper lid closure.
