Large Scoop

Update: I have added a print profile with a adjusted/redesigned scoop to fit a A1 mini as well.

Designed with the same intent in Freecad. The entry angle is adjusted so volume is maintained as much as possible.

Update 2: For those of you that want a even larger scoop: https://makerworld.com/en/models/1656975-the-larger-scoop

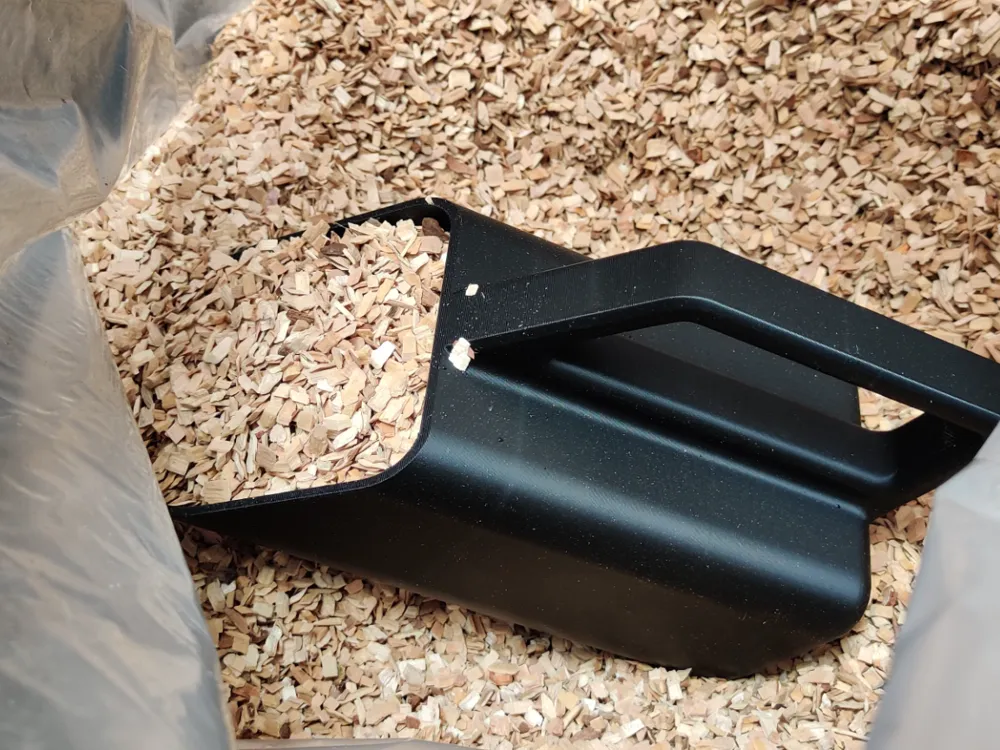

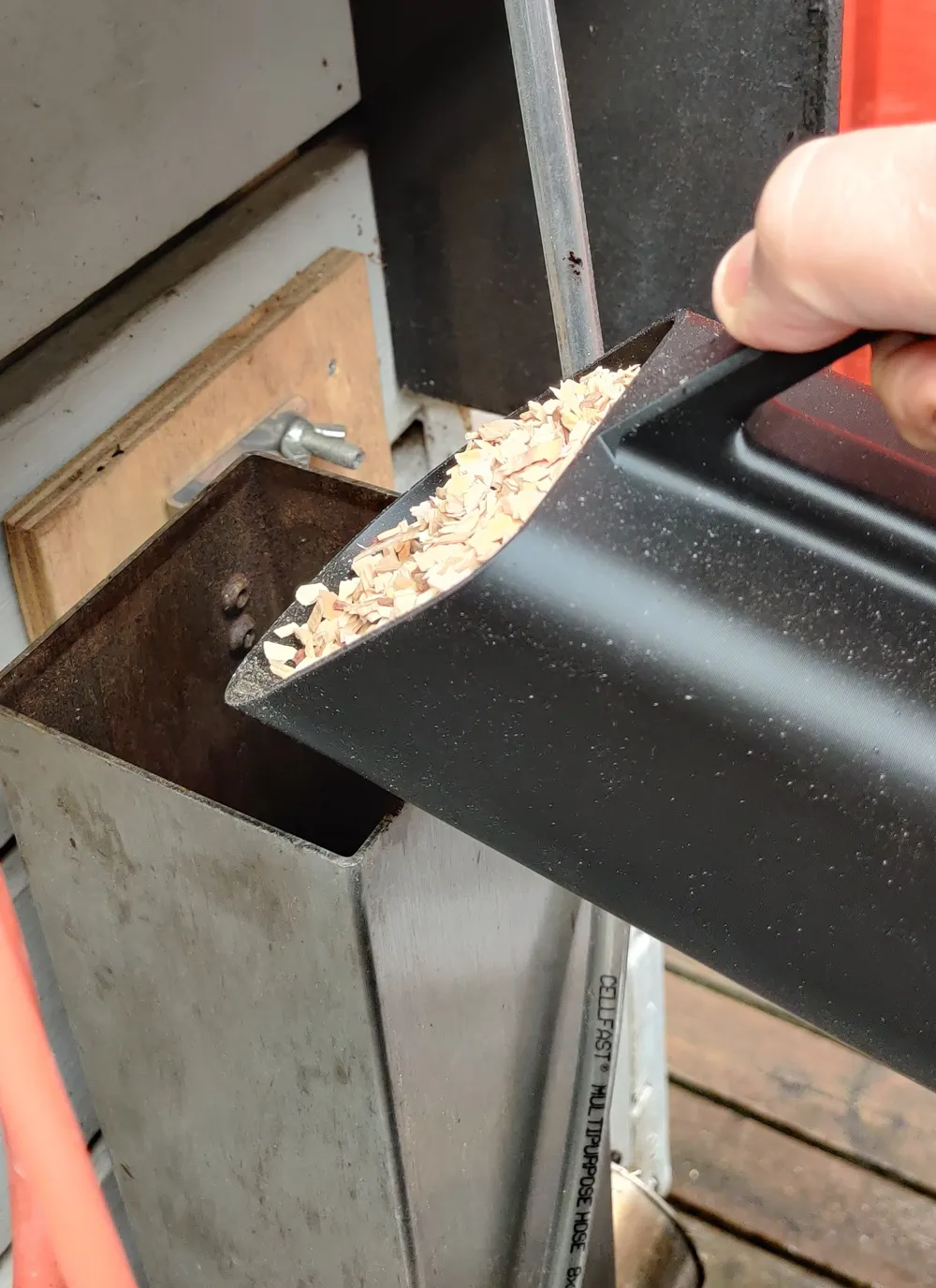

I wanted a large scoop that could fill my cold smoke generator easily with wood chips. Other I found was a bit wider, so I liked trying the challenge of designing my own in Freecad.

The design should also be suitable for other uses such as grain, rice, sand, salt or pet food.

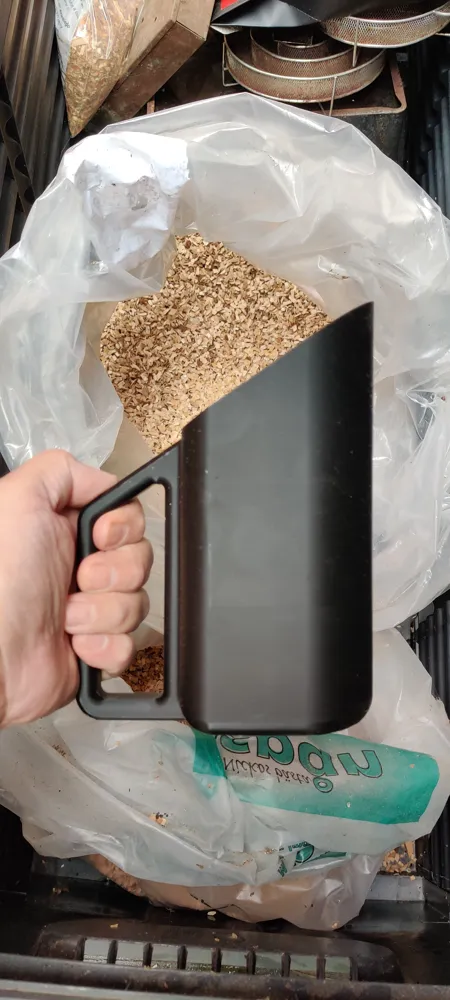

The design is 90 mm wide and 200 mm deep.

Tried optimising with redesigns of features and print direction and adaptive layer height, and the attached profile was the fastest without significant compromise to quality according to the slicer.

The print came out nice, the bottom fillet is the sensitive feature with this design and is a little bit rough.
