Wrap-Around Stand for SONOFF SNZB-02LD thermometer

The SNZB-02LD is a rather unique temperature sensor. Unlike most standard indoor temperature and humidity meters, it comes with an extended cable and a metal-shelled DS18B20 temperature probe. This design allows it to reach into spaces that ordinary sensors can't—such as sealed containers, tight enclosures, or areas with high humidity or mild corrosion.  That said, the extended cable on this device is quite long—about 1.5 meters. In most scenarios, such a length is unnecessary. Instead, it ends up becoming a source of clutter, making the SNZB-02LD difficult to use and store neatly.

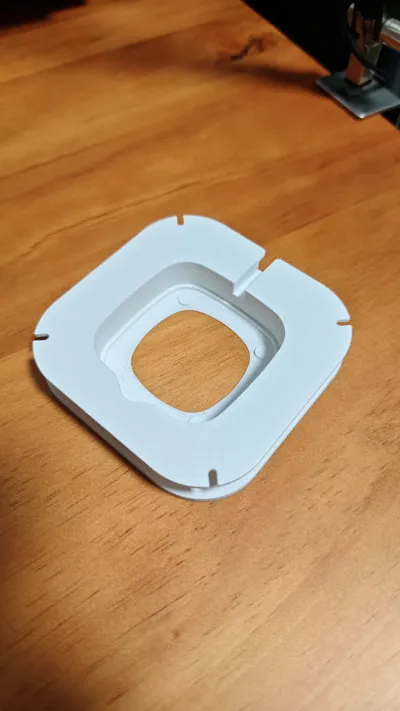

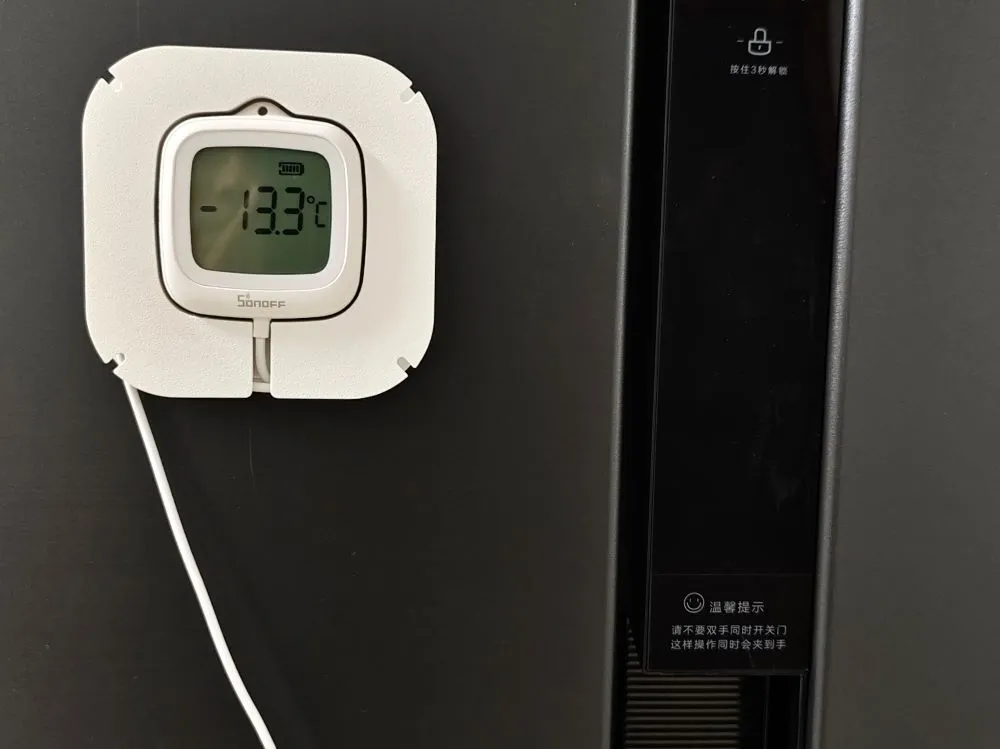

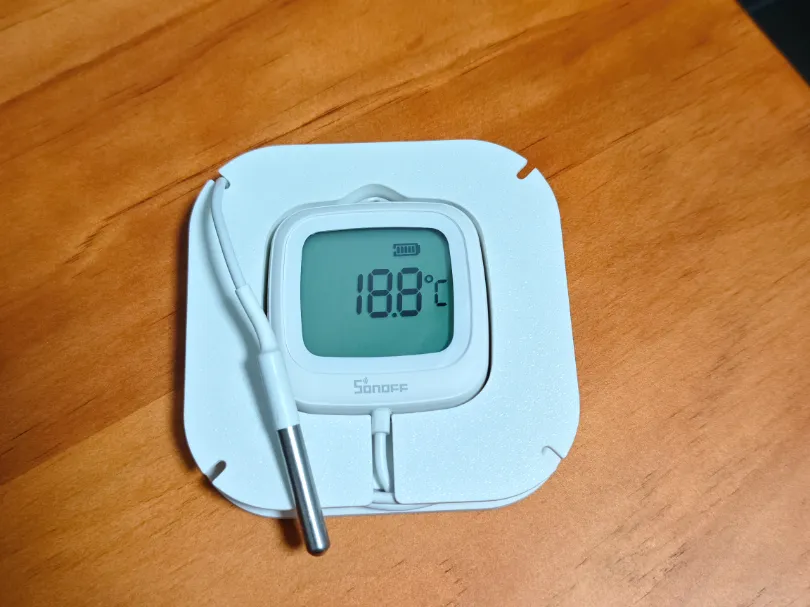

To address this, I designed a custom stand that allows the SNZB-02LD unit to be mounted securely on a surface—whether on a workbench or the outer shell of my dry box. More importantly, the stand includes a built-in channel to wrap and organize the excess probe cable, preventing tangling or dangling across other components. I hope it can help others who—like me—can’t stand visual clutter and love tidy solutions.

To make this model easier to print, I split the structure into two separate parts. This way, you can print each piece flat on the bed without needing any support structures.
