Cat Air-Conditioned Room Door Gap Gadget (Fits Doors Up to 45MM Thick ・ Three Versions)

Is it too much trouble to use air conditioning when it's hot? Open the door and the cold air escapes, close the door and the cat scratches and meows! This door gap device was specially made to create a "cat exclusive passage" in the door. It is suitable for doors up to 45MM thick and comes in three versions: one requiring hardware, a hardware-free Print in Place version, and a hardware-free Print in Place adjustable length version. Choose according to your needs for more peace of mind

I. First, Address Your Core Pain Points

  • Prevent cold air waste: No need to leave the door open, the device's reserved opening is just enough for cats to enter and exit, greatly reducing air conditioning cold air leakage;
  • Stop cat noise: Cats can freely enter and exit the bedroom, no longer scratching the door for attention, bringing peace to both humans and cats;

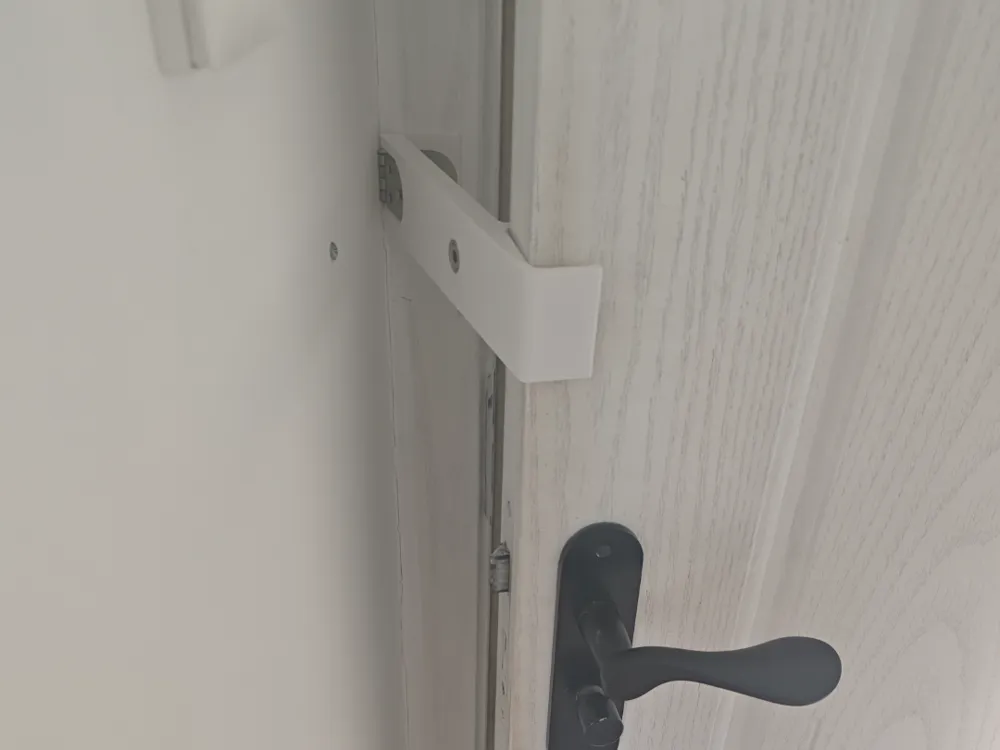

  • Adaptation details: Designed for door thickness up to 45MM, all versions fit snugly against the door body after installation, not easy to wobble.

II. Three Version Features, Choose as Needed

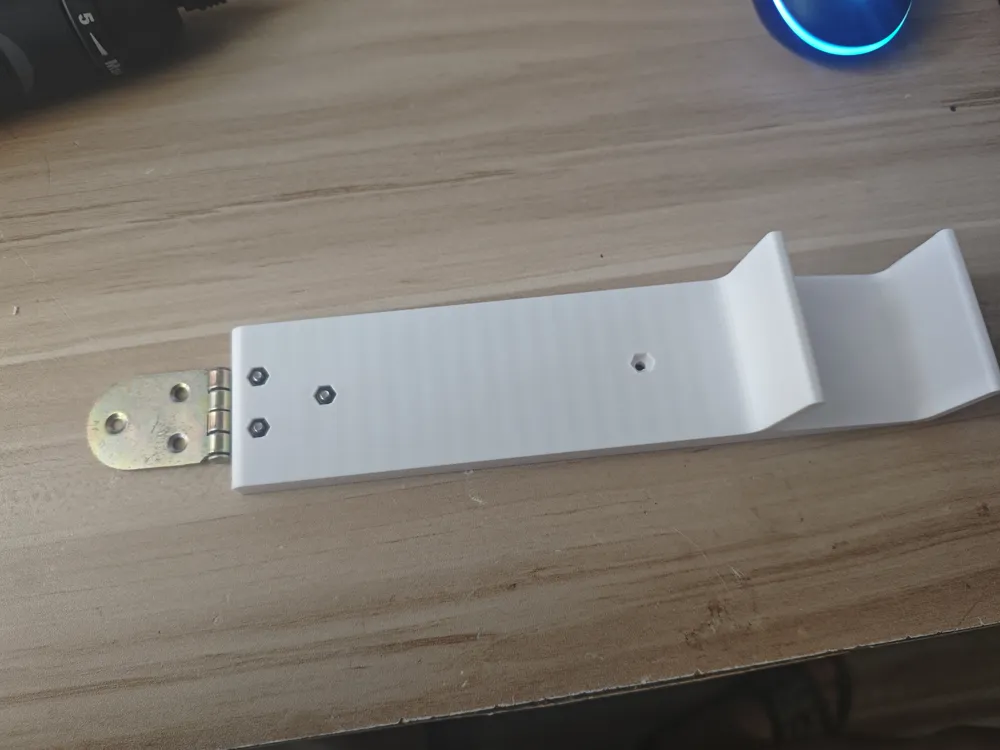

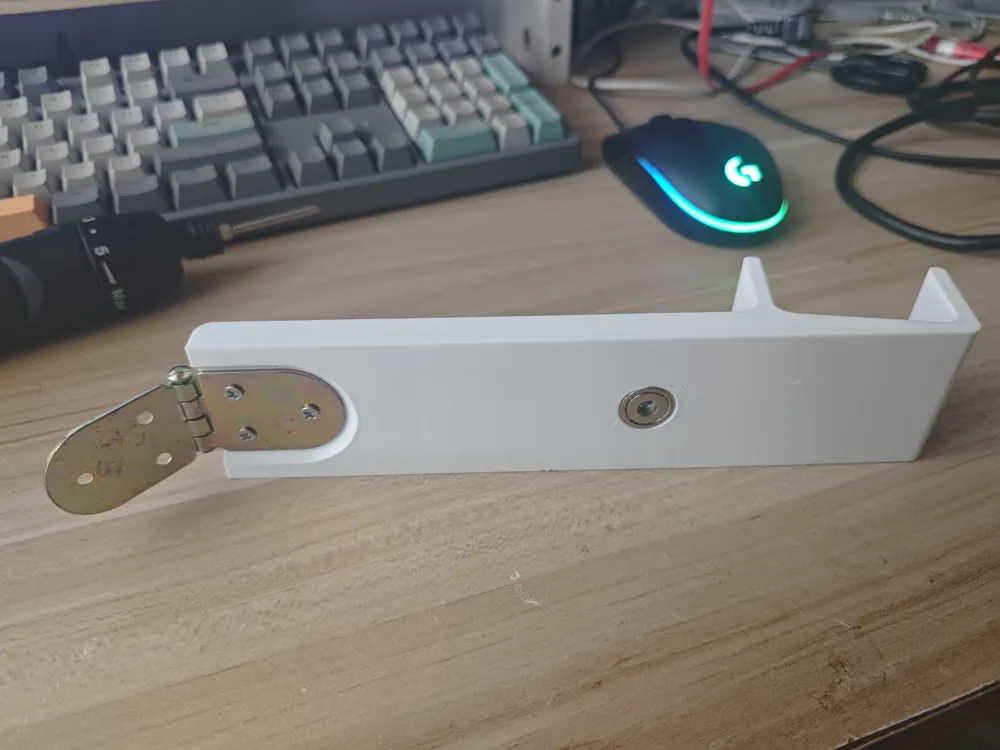

1. Version Requiring Hardware Purchase

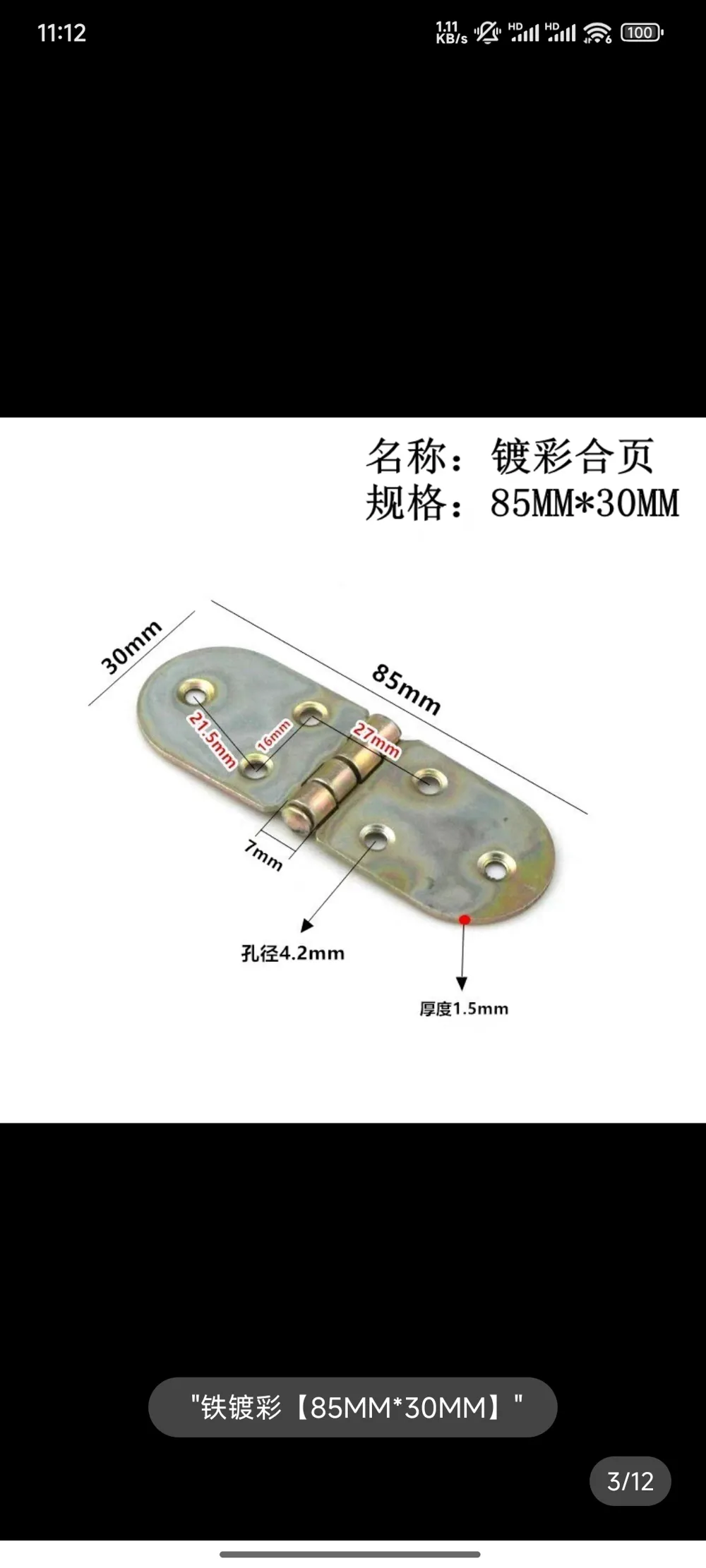

  • Core description: You need to purchase the corresponding hardware yourself (see attached diagram for specific styles), and it must be used with the hardware during assembly;
  • Advantages: Relying on the characteristics of the hardware, it has a large flip angle and high overall strength. It is suitable for heavier cats (e.g., over 5kg) with lively entry and exit movements, offering stronger durability.

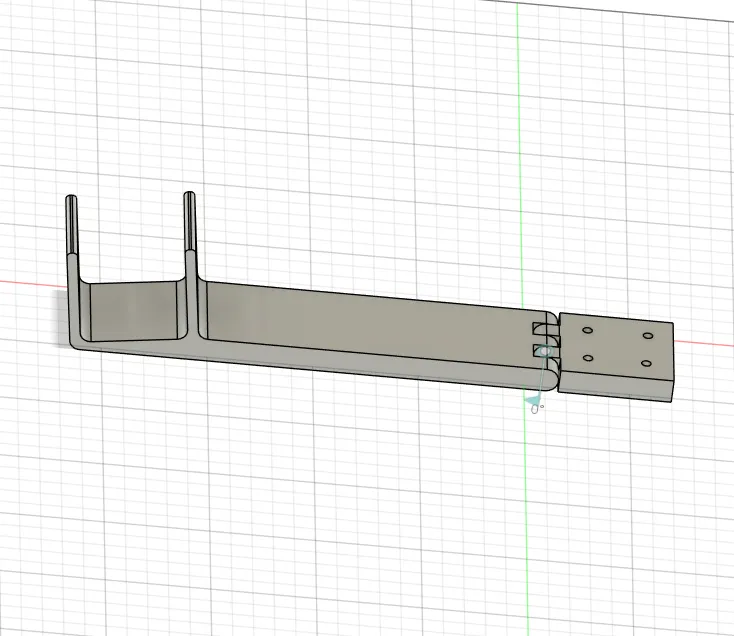

2. Hardware-Free Print in Place Basic Version

  • Core description: Entirely hardware-free, Print in Place molding, can be installed without additional accessories upon receipt, simple operation;
  • Common reminder: Limited by the Print in Place structure, the flip angle is smaller than the "version requiring hardware purchase", and the overall strength is slightly weaker, making it more suitable for lighter cats with gentle entry and exit.

3. Hardware-Free Print in Place Adjustable Length Version

  • Core description: Also hardware-free, with flexibly adjustable length — it can adapt to fatter cats and is compatible with doors of different thicknesses up to 45MM, offering full versatility;
  • Common reminder: Limited by Print in Place characteristics, the flip angle and strength are slightly inferior to the "version requiring hardware purchase"; the adjustment structure is smooth and does not get stuck, and it can be firmly fixed after adjustment, so cats will not get stuck when entering or exiting.
