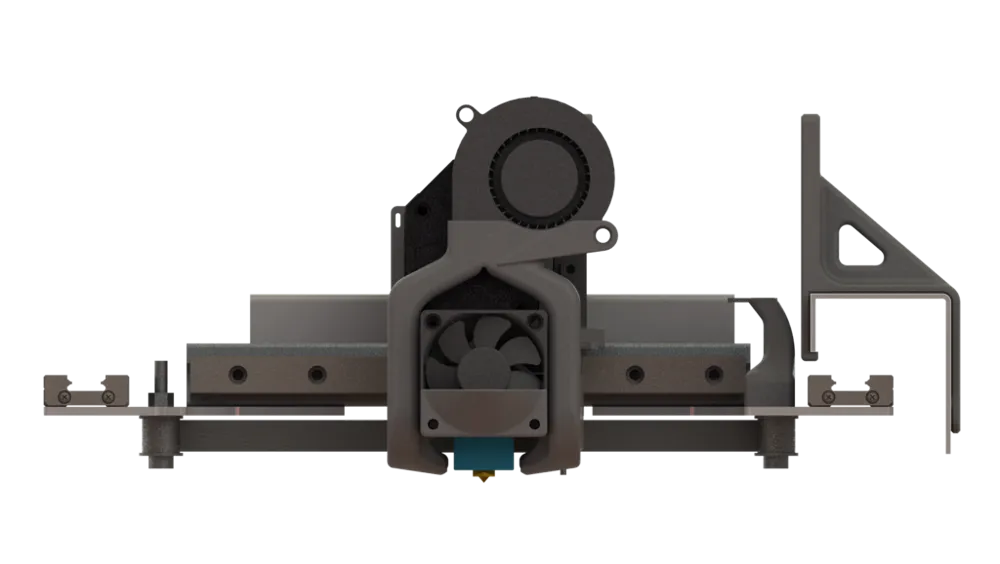

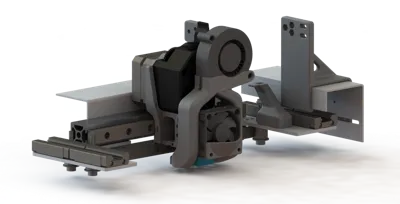

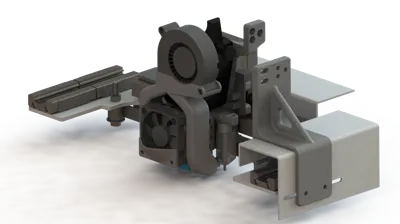

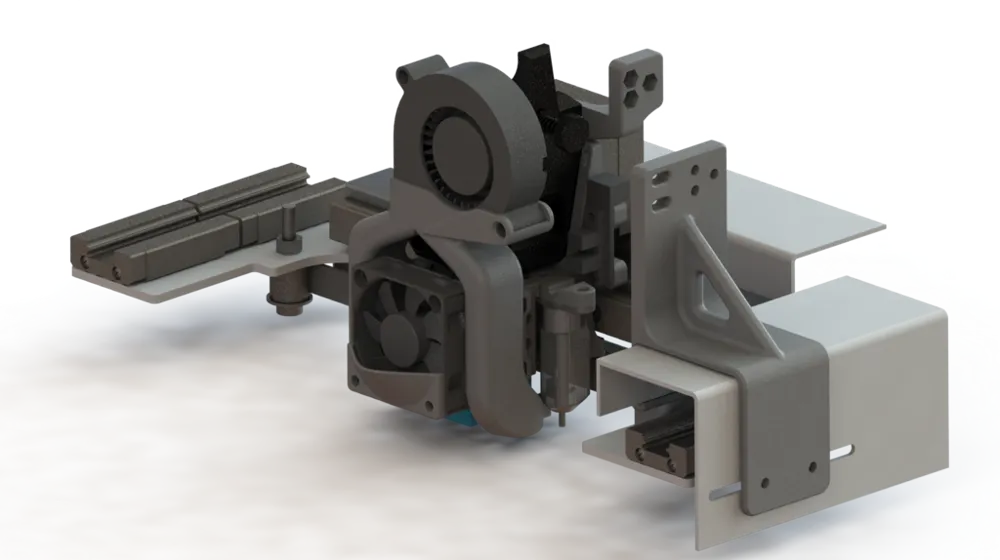

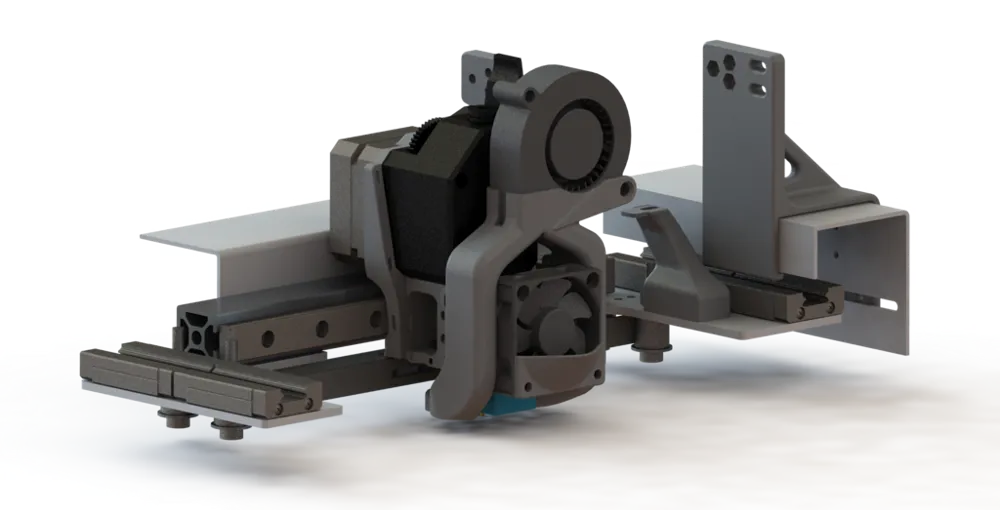

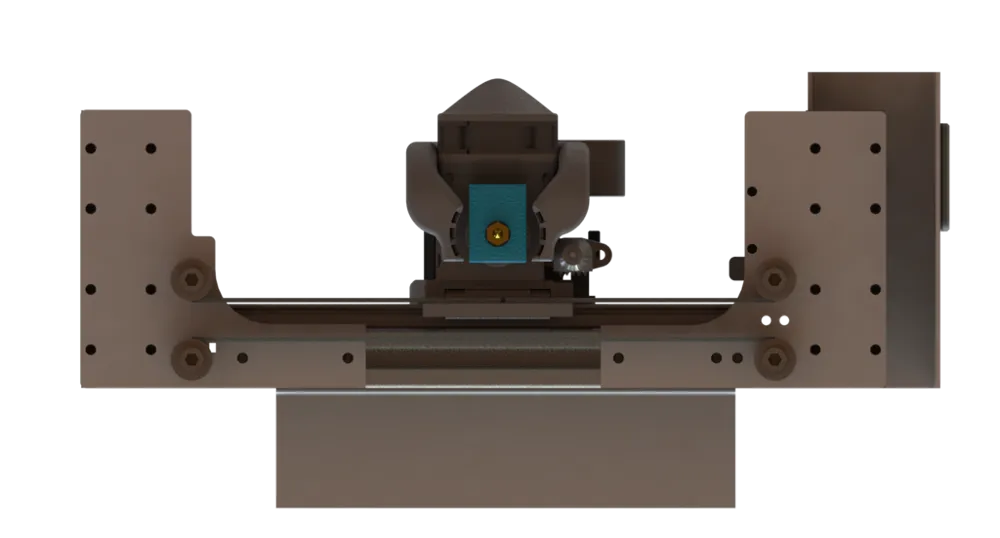

FlyingBear Tornado V6 BMG Direct
IP Report
Print Profile(0)
Add the first print profile to earn points
Boost
3
2
0
0
2
0
Released
Description

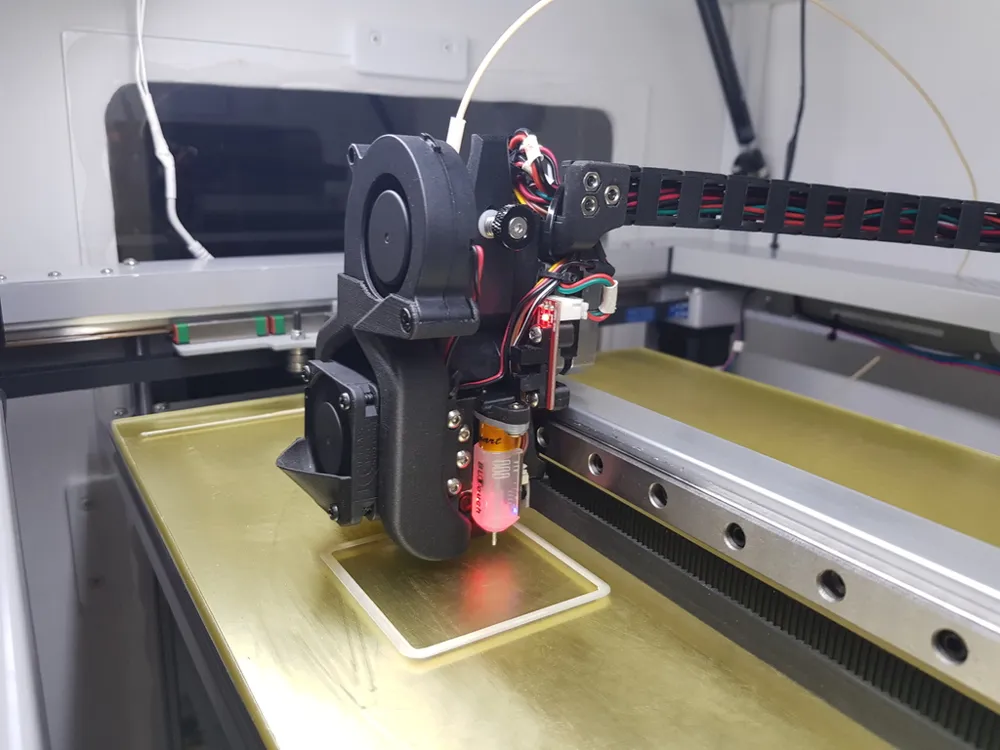

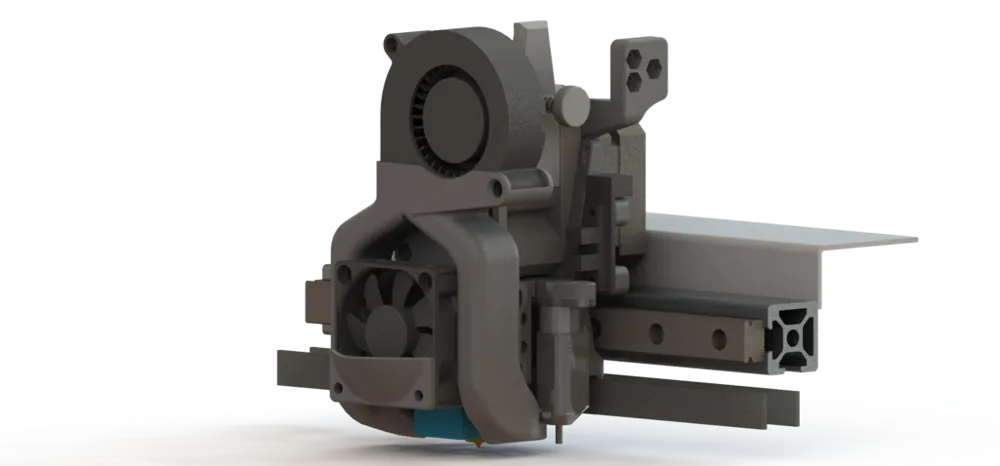

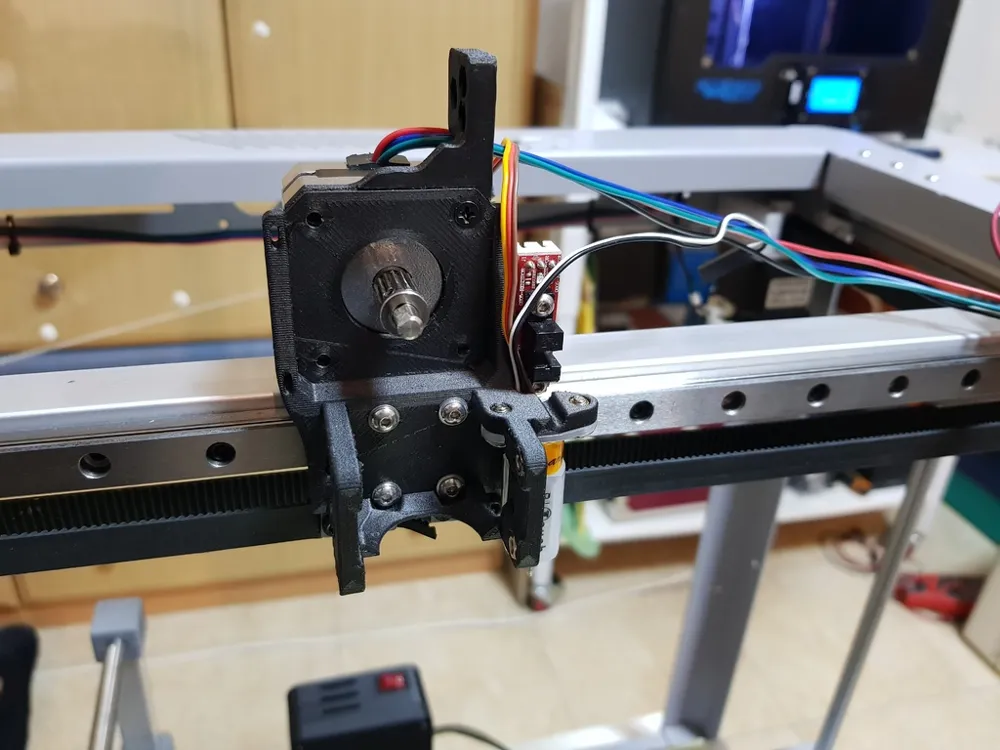

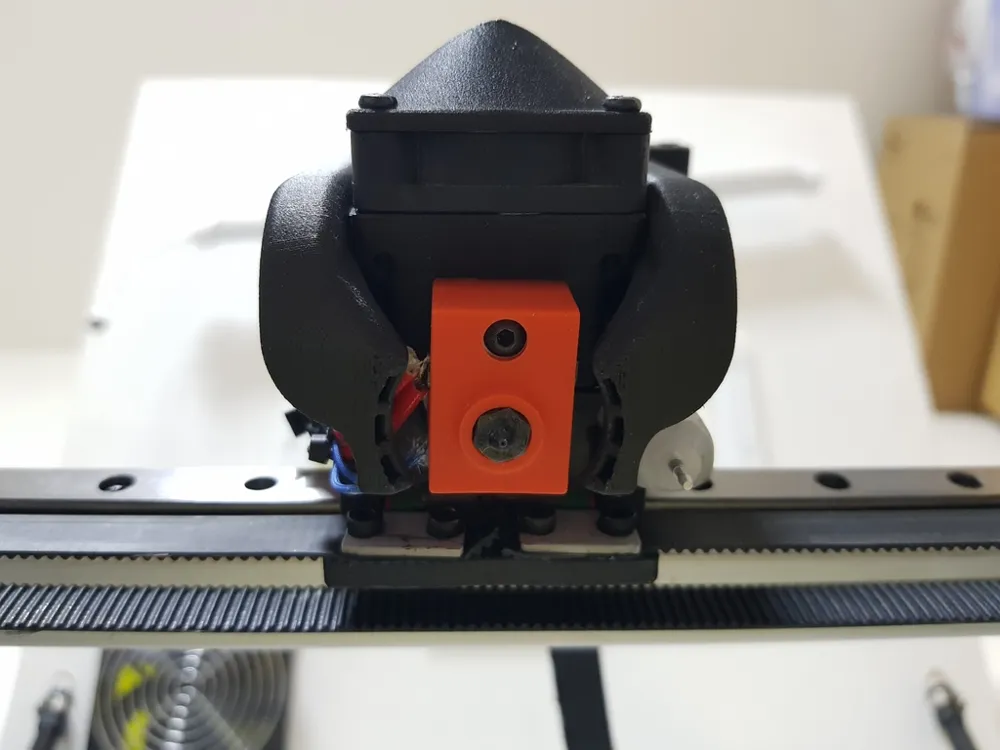

I used BMG extruder from Trianglelab, with their 22mm Nema 17.
For TMC2208 driver, I set Vref 0.65V.

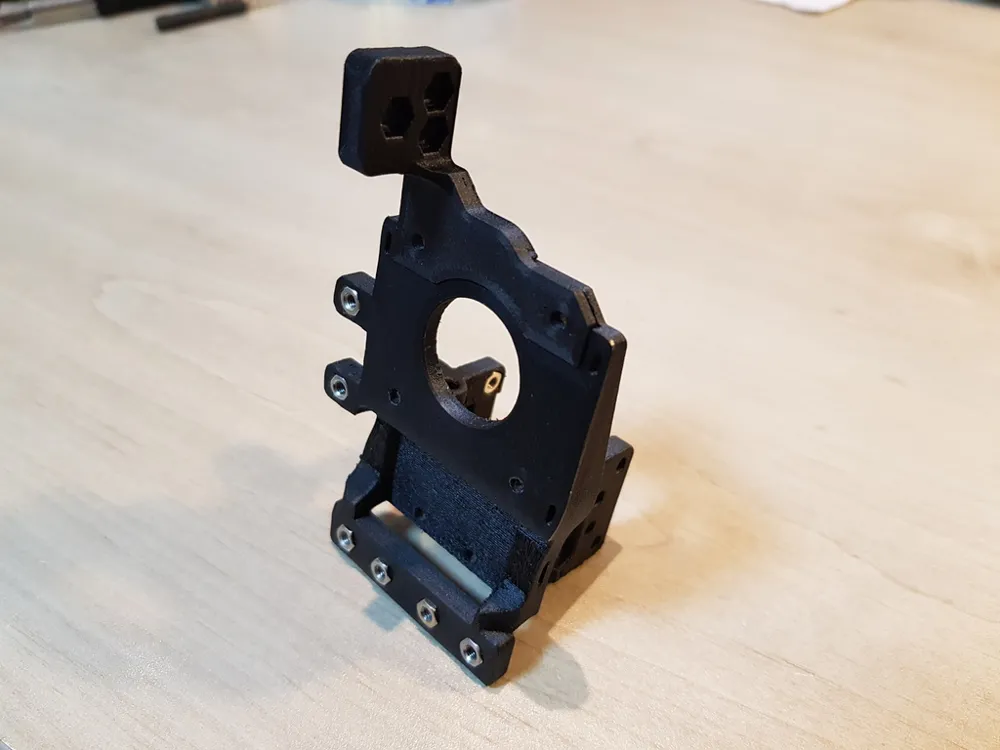

To assemble it, you will also need some M3 brass inserts.
Bltouch offsets:
define X_PROBE_OFFSET_FROM_EXTRUDER 25
define Y_PROBE_OFFSET_FROM_EXTRUDER 7
Please share your print if you print it!
Enjoy!
Trianglelab BMG extruder+Motor:
https://s.click.aliexpress.com/e/\_dTCCEHN
M3x3 Brass inserts:
https://s.click.aliexpress.com/e/\_d8VW5PV
