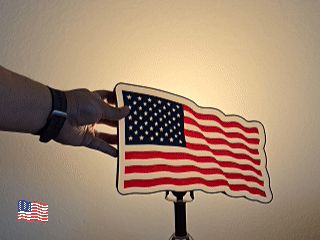

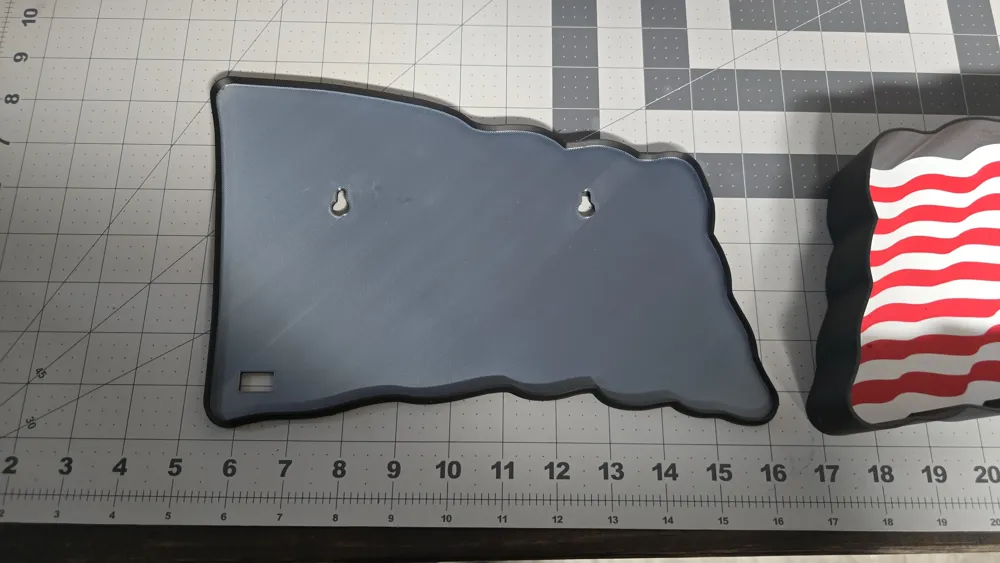

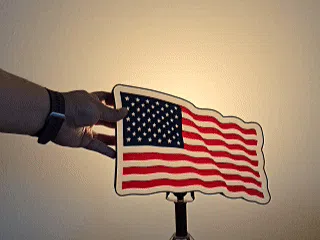

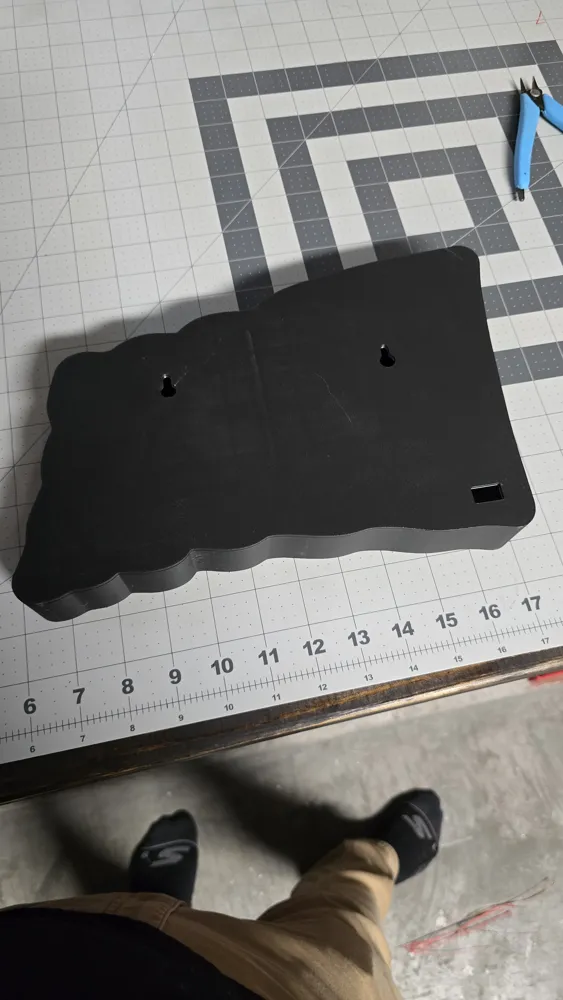

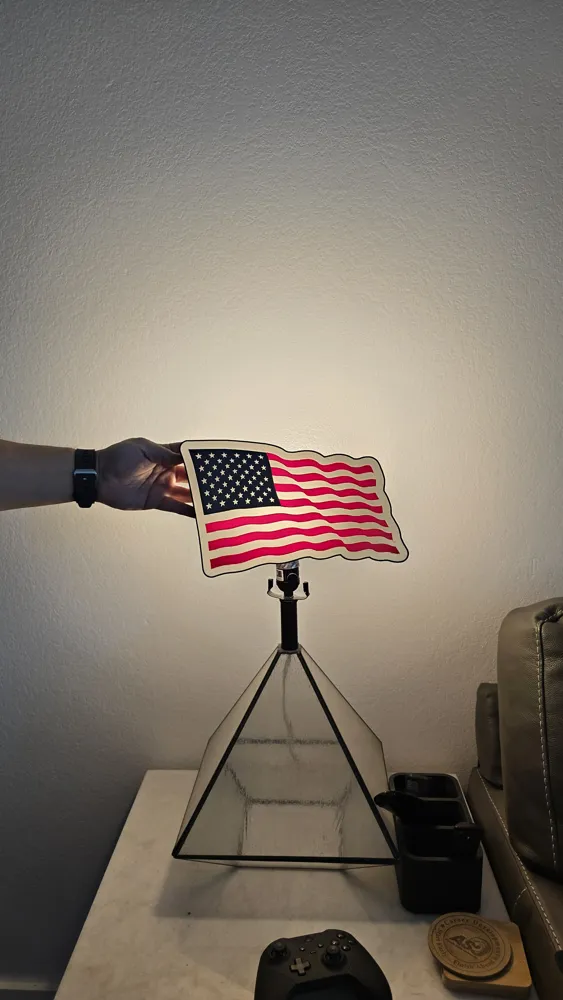

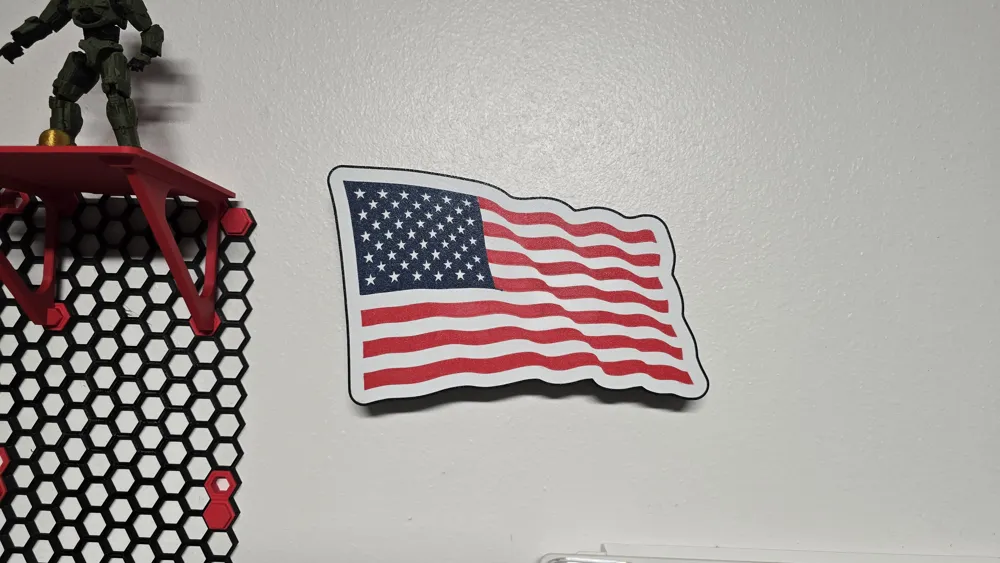

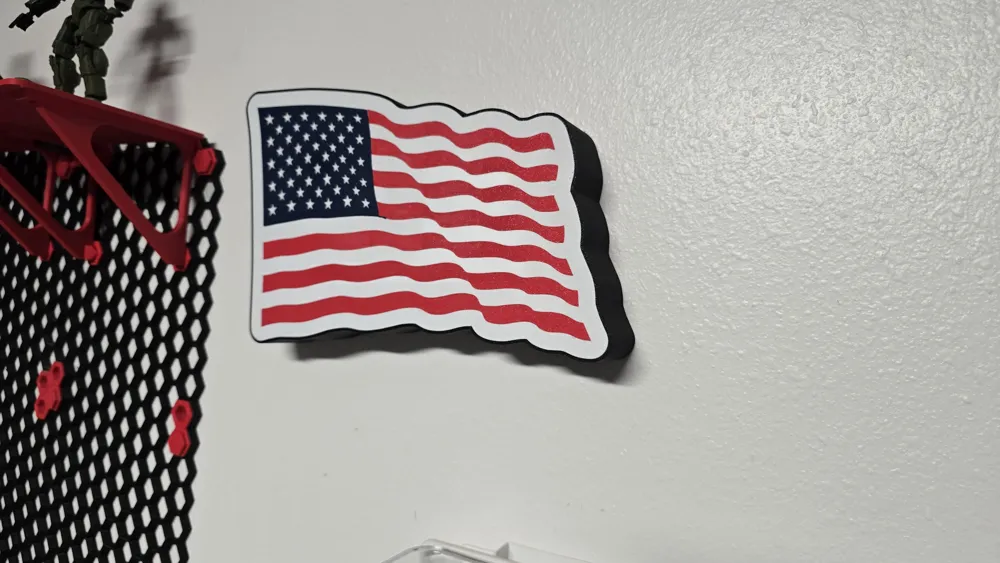

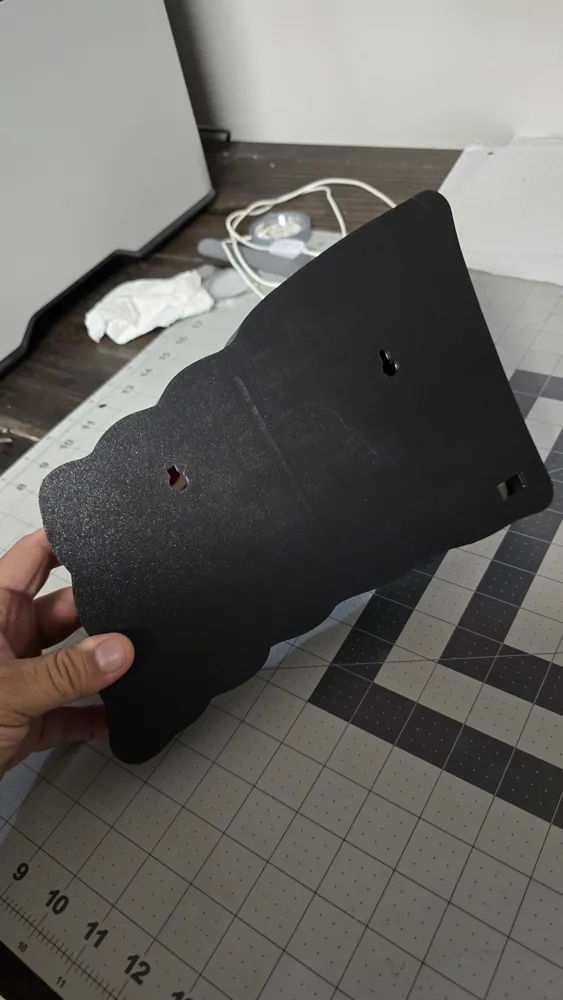

Show your patriotic spirit with this layered light-box designed to look like a gently waving Stars & Stripes. Two rear key-hole slots make wall-mounting simple, and a third opening routes a USB cable to power an LED strip (not included – mine’s still in transit, but I didn’t want to keep this file from you any longer!).
Profile for 2HD, you can resize to be able to print in X1C, P1P - P1S, Print settings remain the same.
I print the front at .2 layer height. The back at .24 layer height.
First layer I did .16 layer height for improved quality.
Recommended print settings
- Calibration first!
- Run Flow Dynamics and Flow Rate calibration for each filament so the bottom layer (which becomes the visible front) prints flawless and streak-free.
- Layer Height: 0.2 mm (0.28 mm OK for non-visible back)
- Walls: 2 (0.8 mm)
- Infill: 10 % Grid – purely structural
- Supports: None
- Seam: Rear (aligned)
- Build Plate Adhesion: Skirt or none (large, flat footprint holds fine)
Assembly & lighting

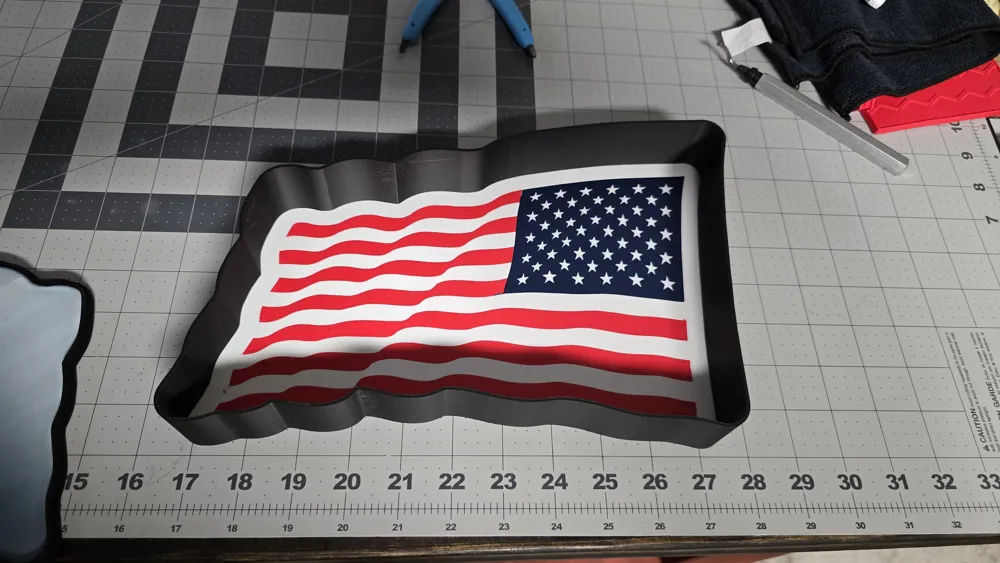

- Press-fit or glue the colored face onto the charcoal backing.
- Feed a 5 V USB LED strip through the cable slot and adhere it around the interior lip.

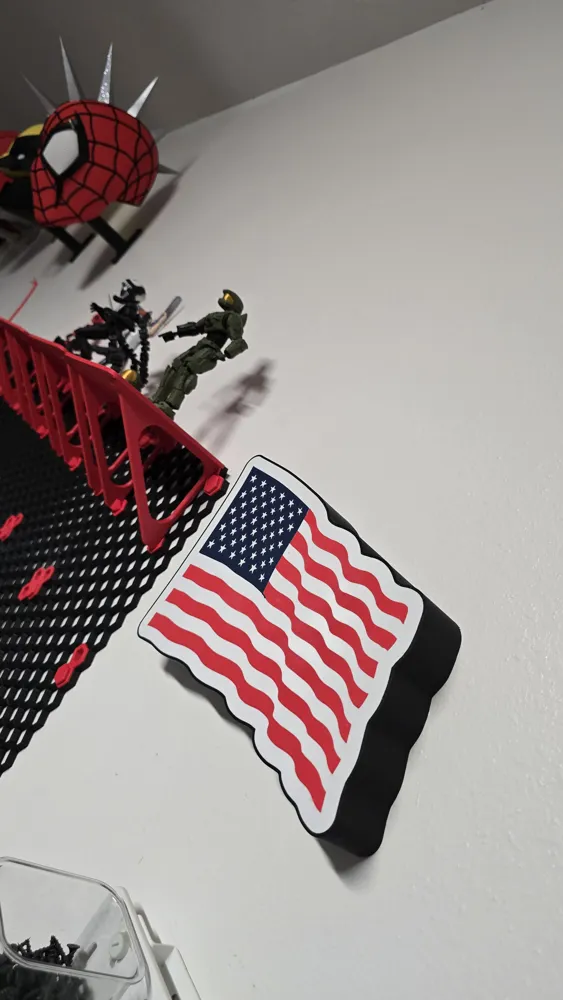

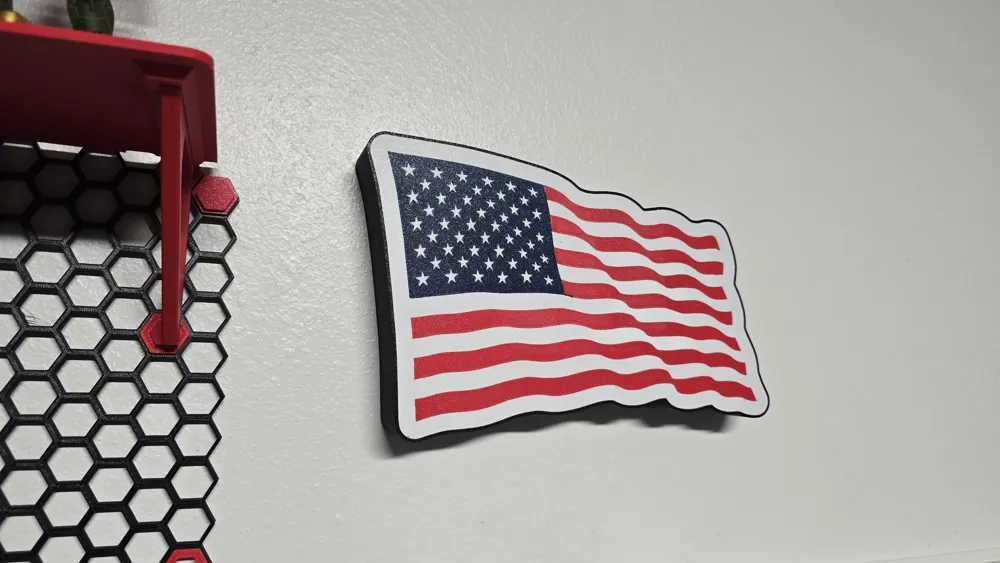

- Hang using the integrated key-holes, plug in, and bask in the glow!
Hardware & consumables I use (Or you can use Bambu Lab's shown below).
(Affiliate links – as an Amazon Associate I earn from qualifying purchases. Using them doesn’t change your price, but it helps me keep designing and sharing new models. Thanks!)
- 5V COB LED Strip Narrow 5mm → Link
- Type-C Female Chassis Waterproof 2P→ Link
- Soldering Kit → Link
- 3 M double-sided foam tape for securing LEDs → Link
- Super Glue Clear, Strong Adhesive→ Link
- Polymaker PLA PRO → Link
- Elegoo PLA → Link
- ANYCUBIC PLA Plus → Link
More light boxes on the way
I’m drafting some more light boxes, —follow the shop so you don’t miss the drops.
