Description

⚒️ No 3D printer? No time to source components?
I just opened my own e-shop where you can buy physical, ready-to-use versions of my models! Designed with passion, printed and assembled with care ⚙️.
📦 Shipping across the EU: 👉 Get it at NautilusForge.shop

Boost Me (for free)

Like this model? A free Boost is always appreciated! It supports the time that goes into designing and testing. Thank you so much! 😊🙌

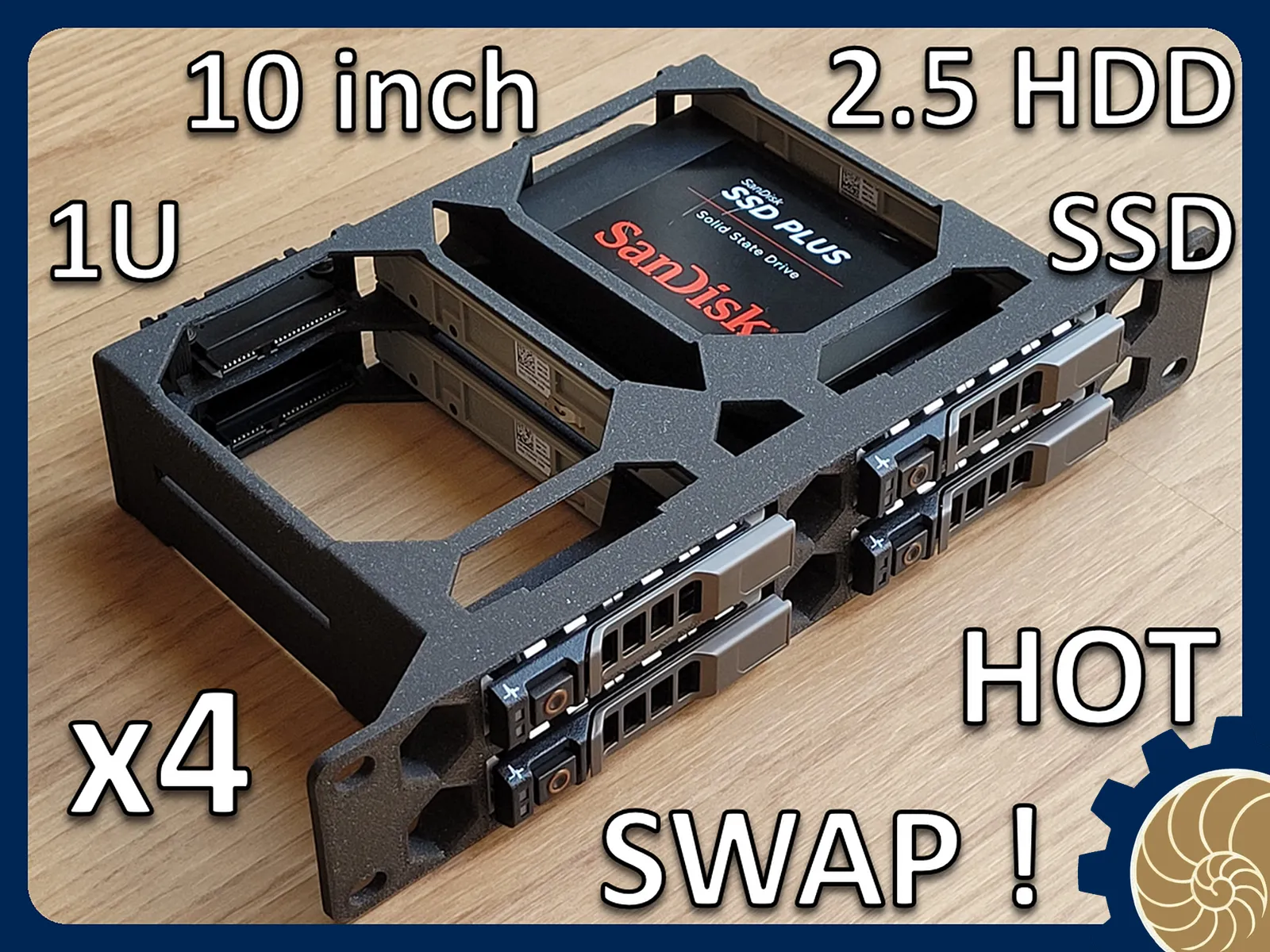

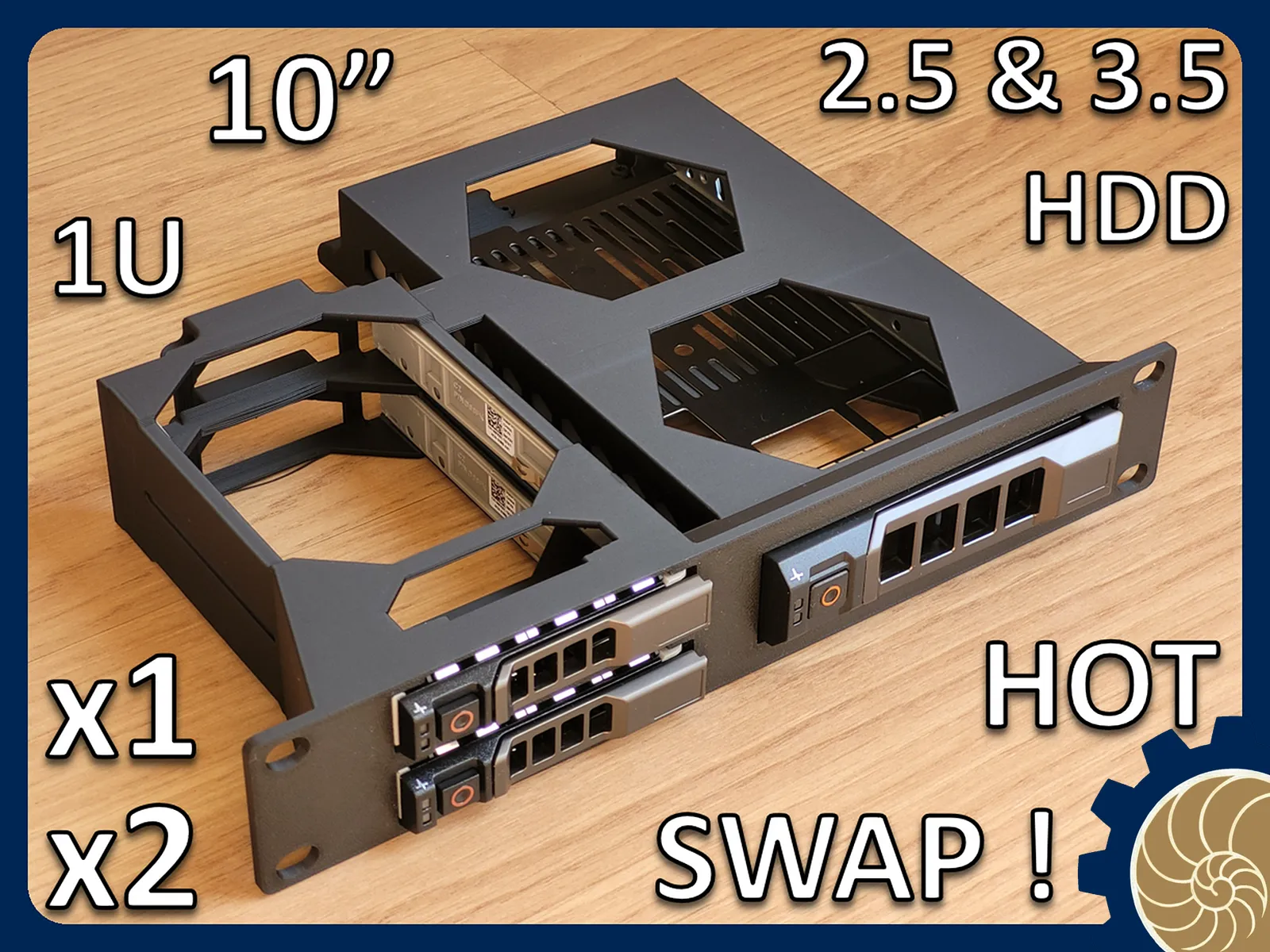

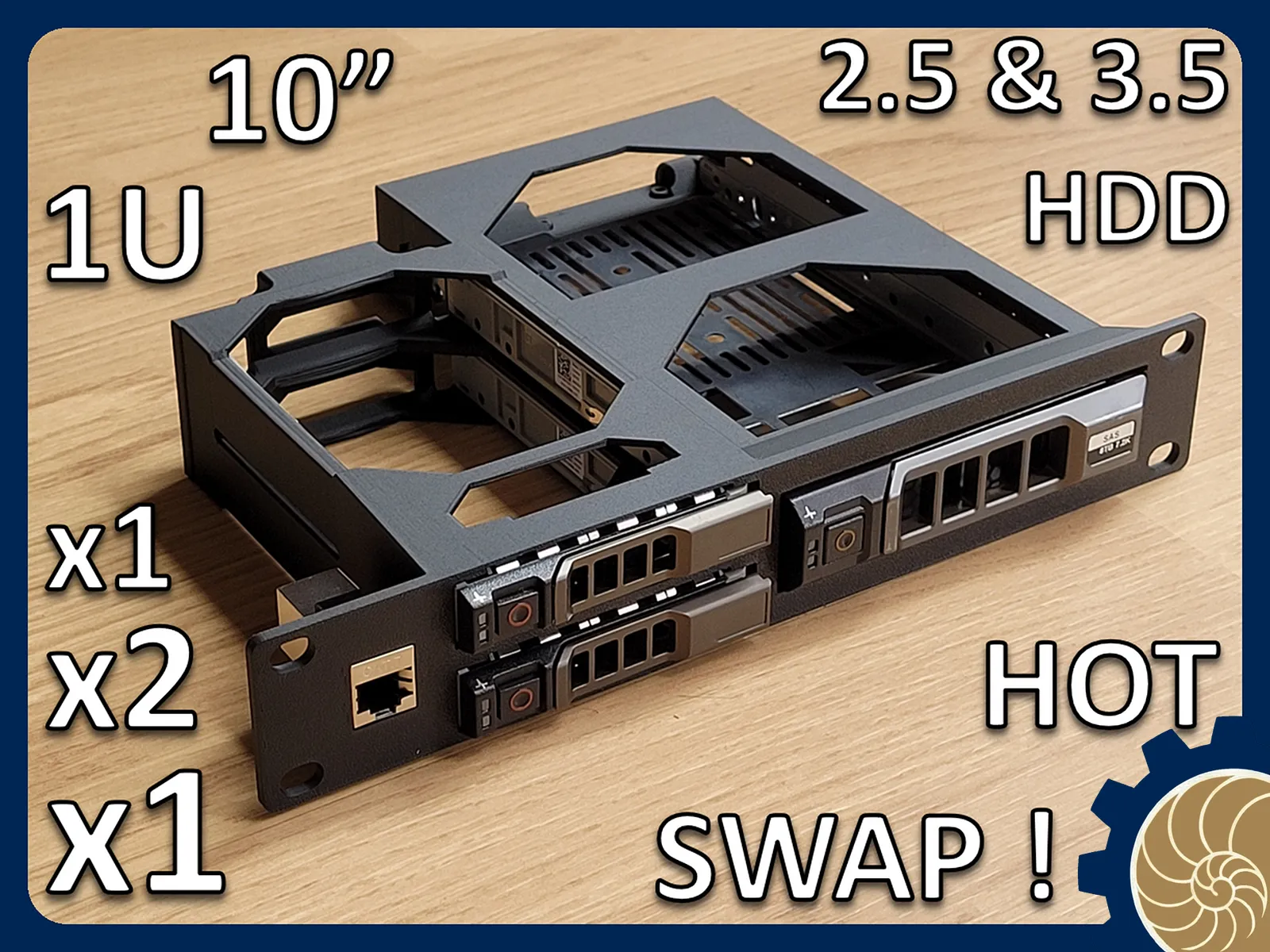

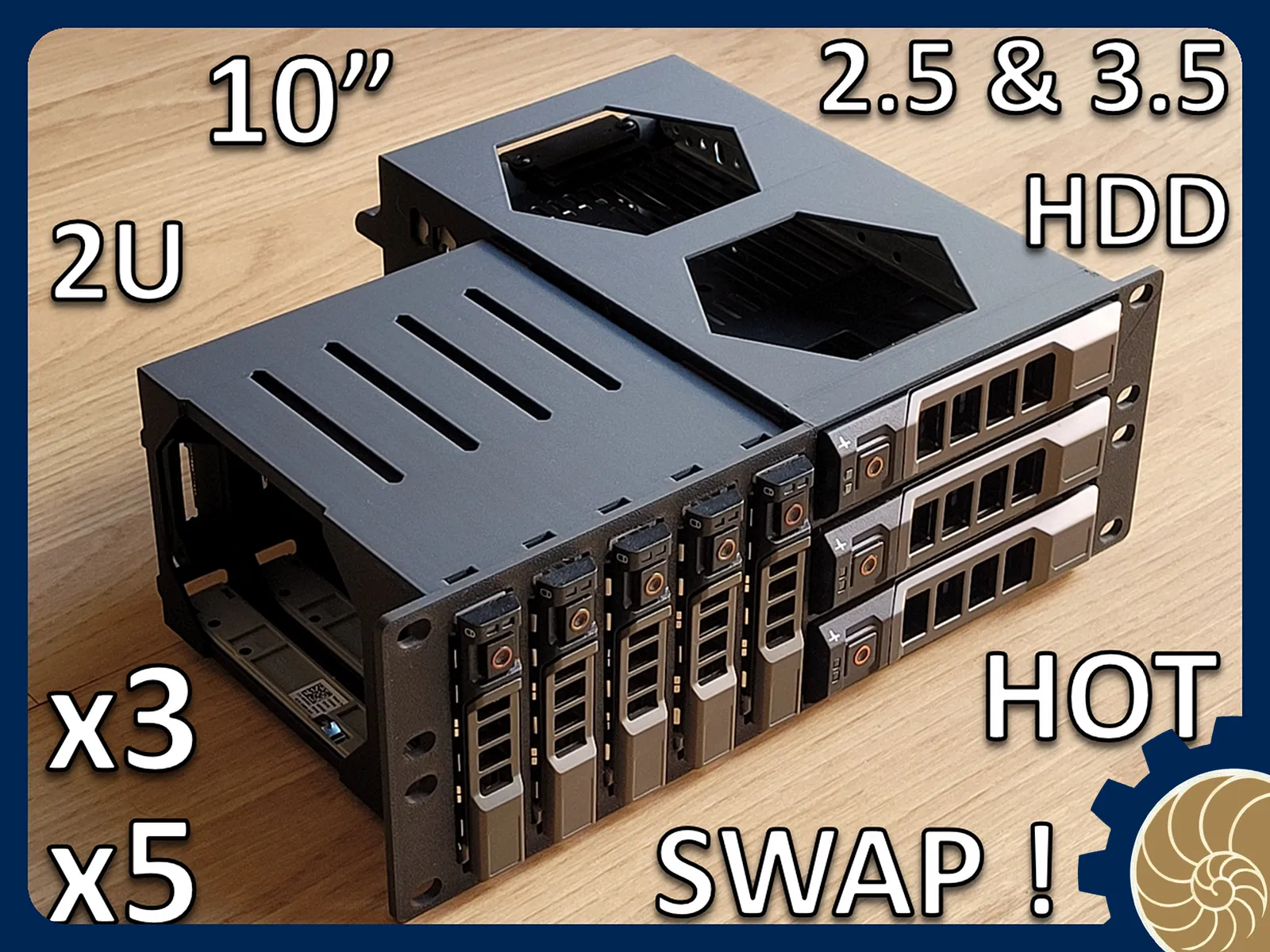

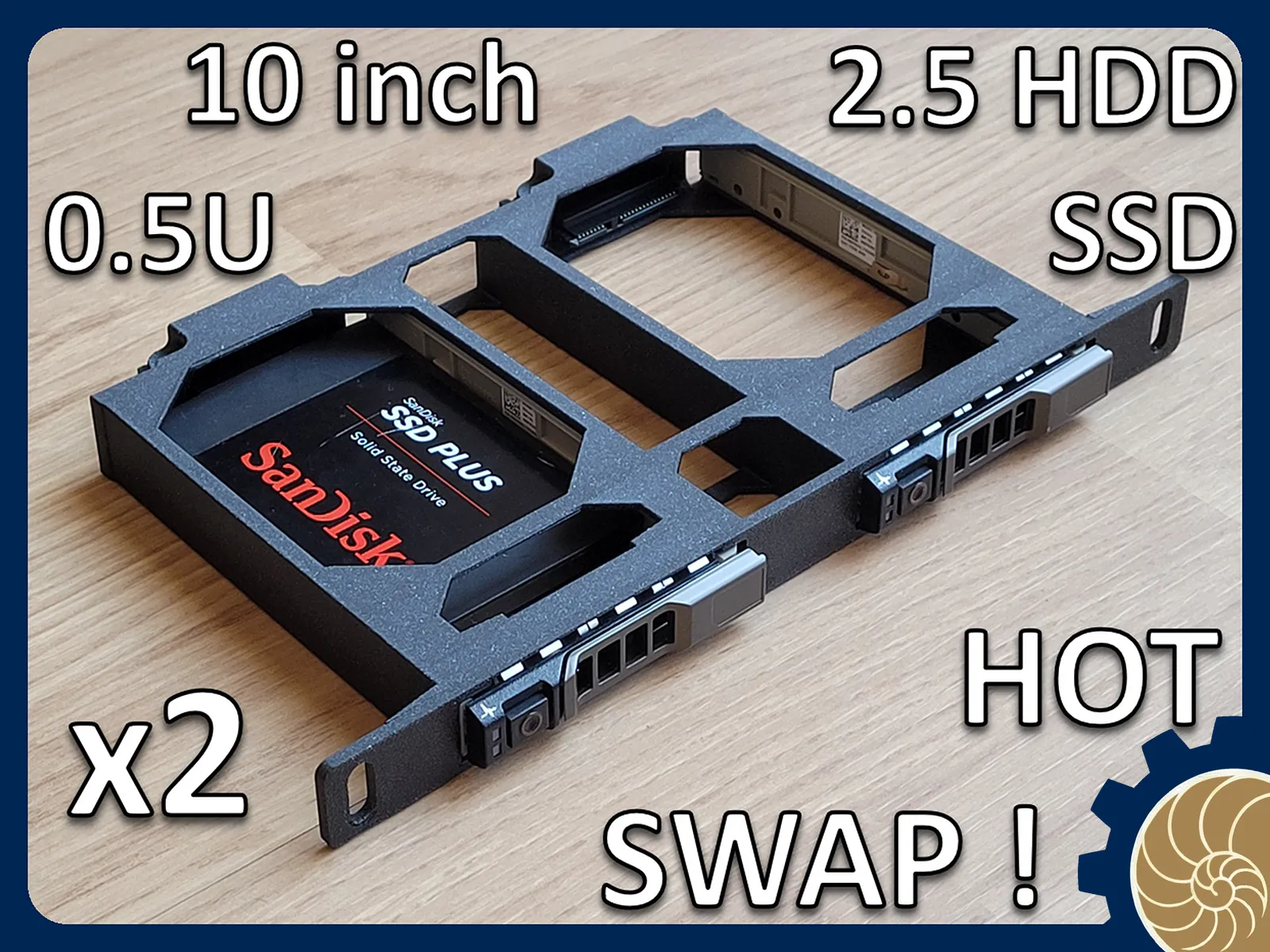

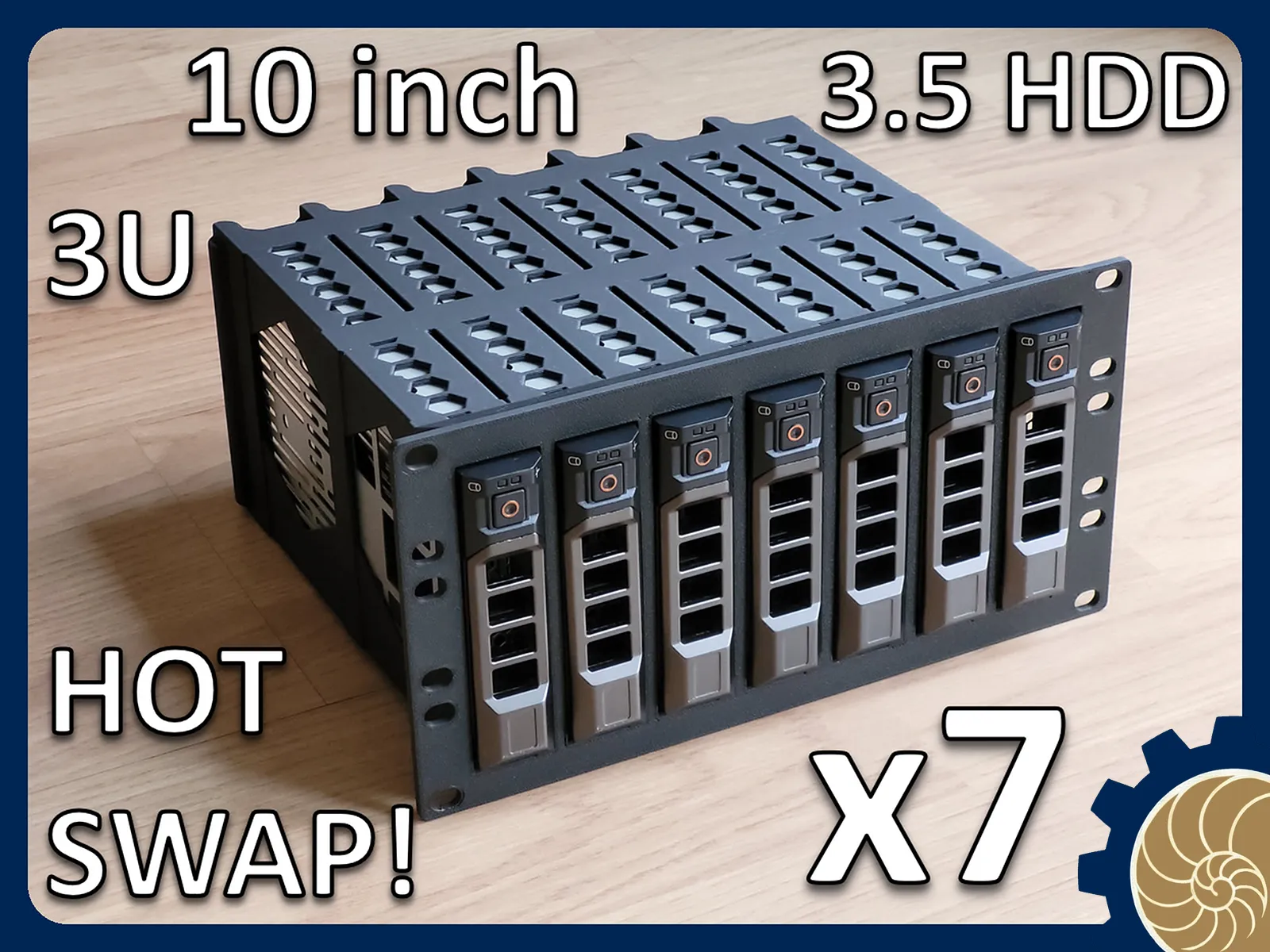

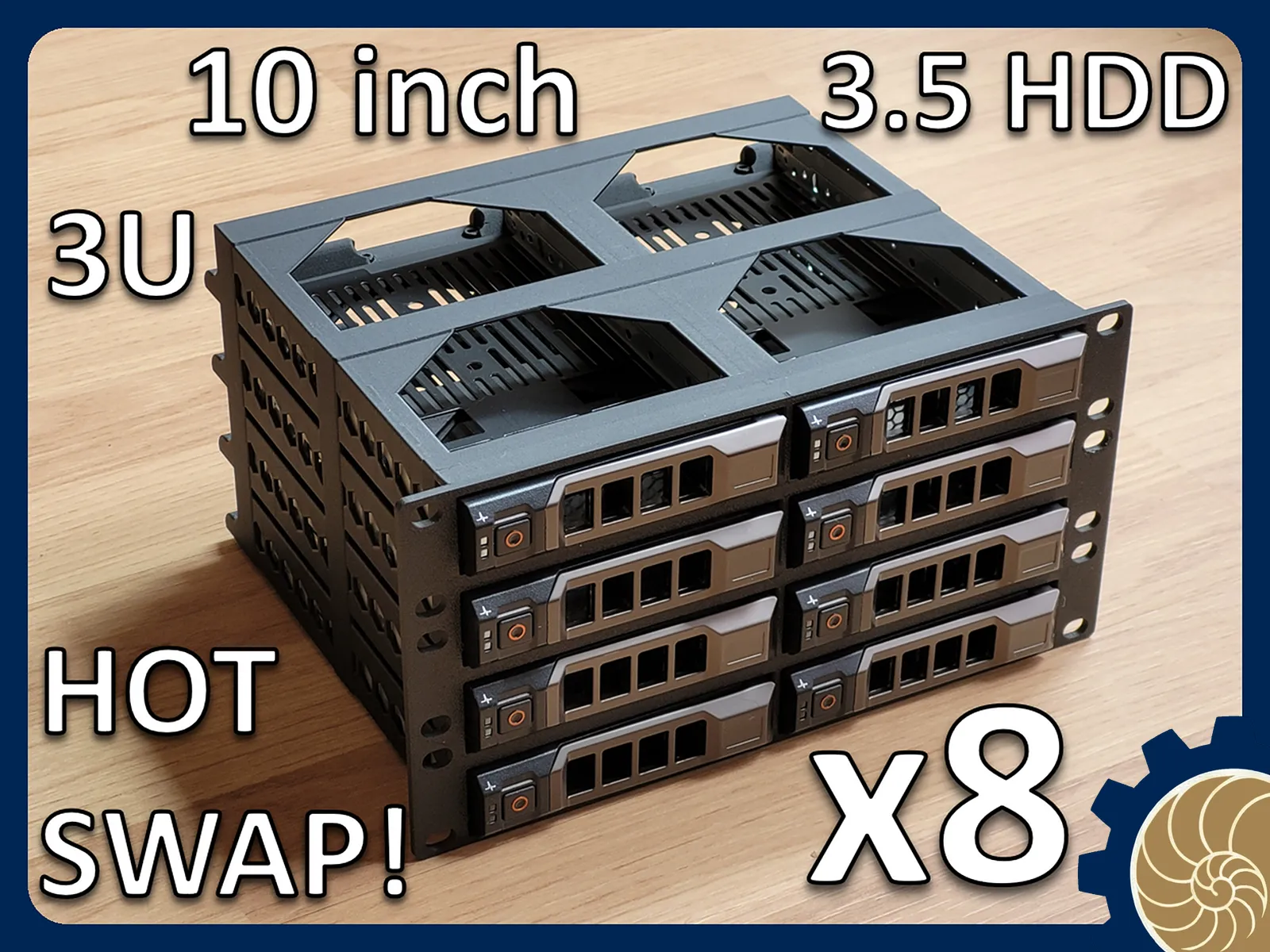

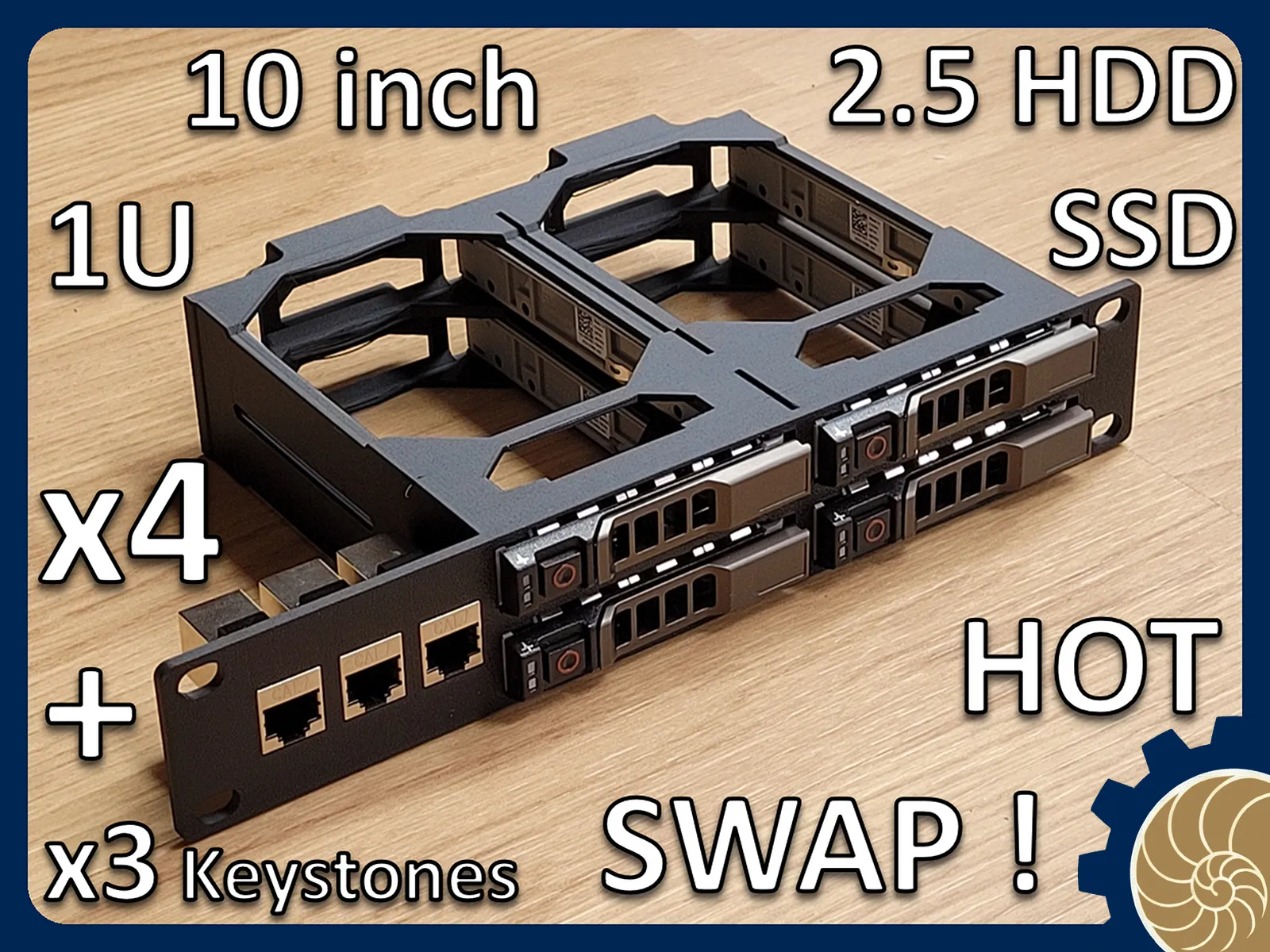

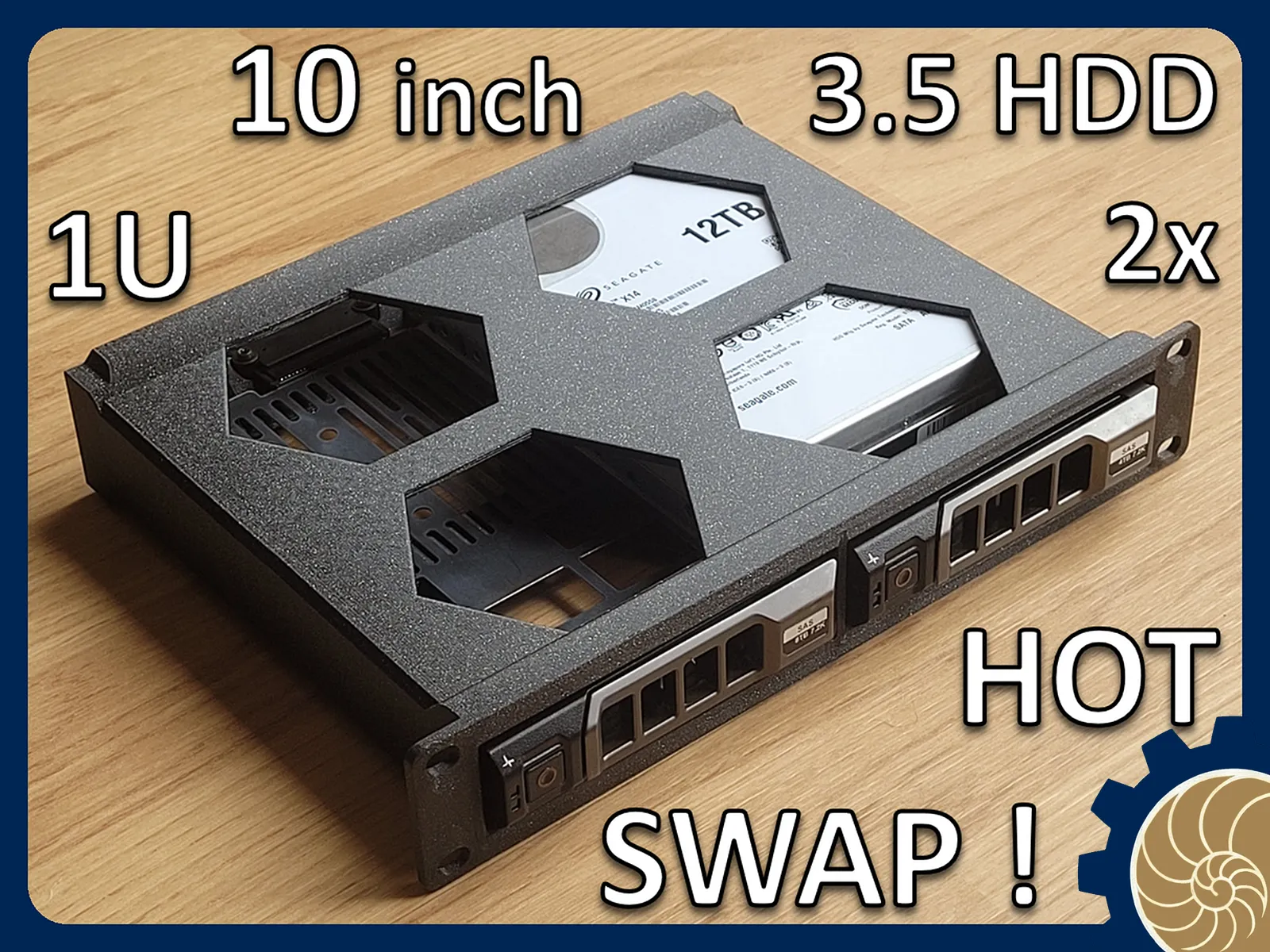

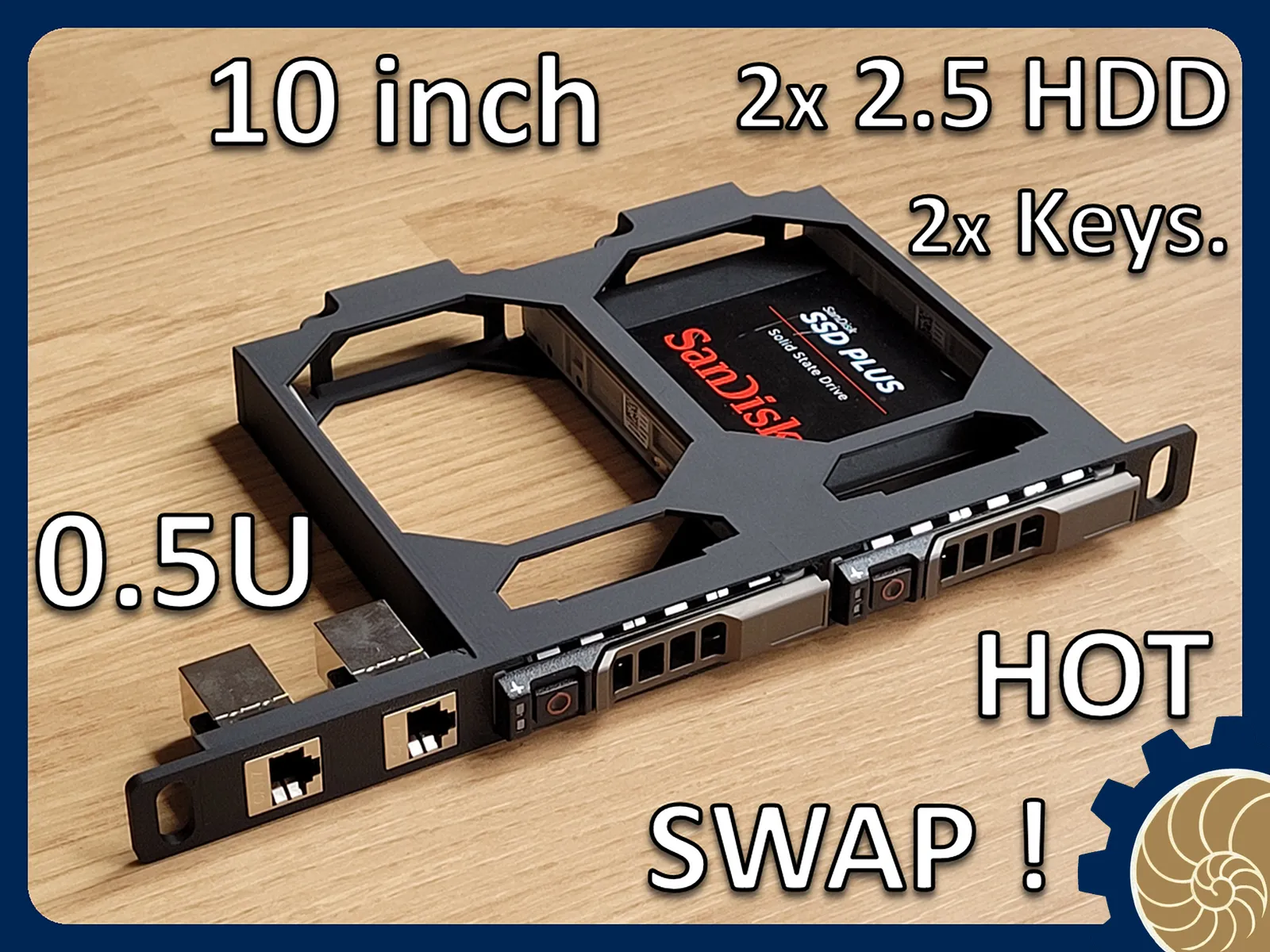

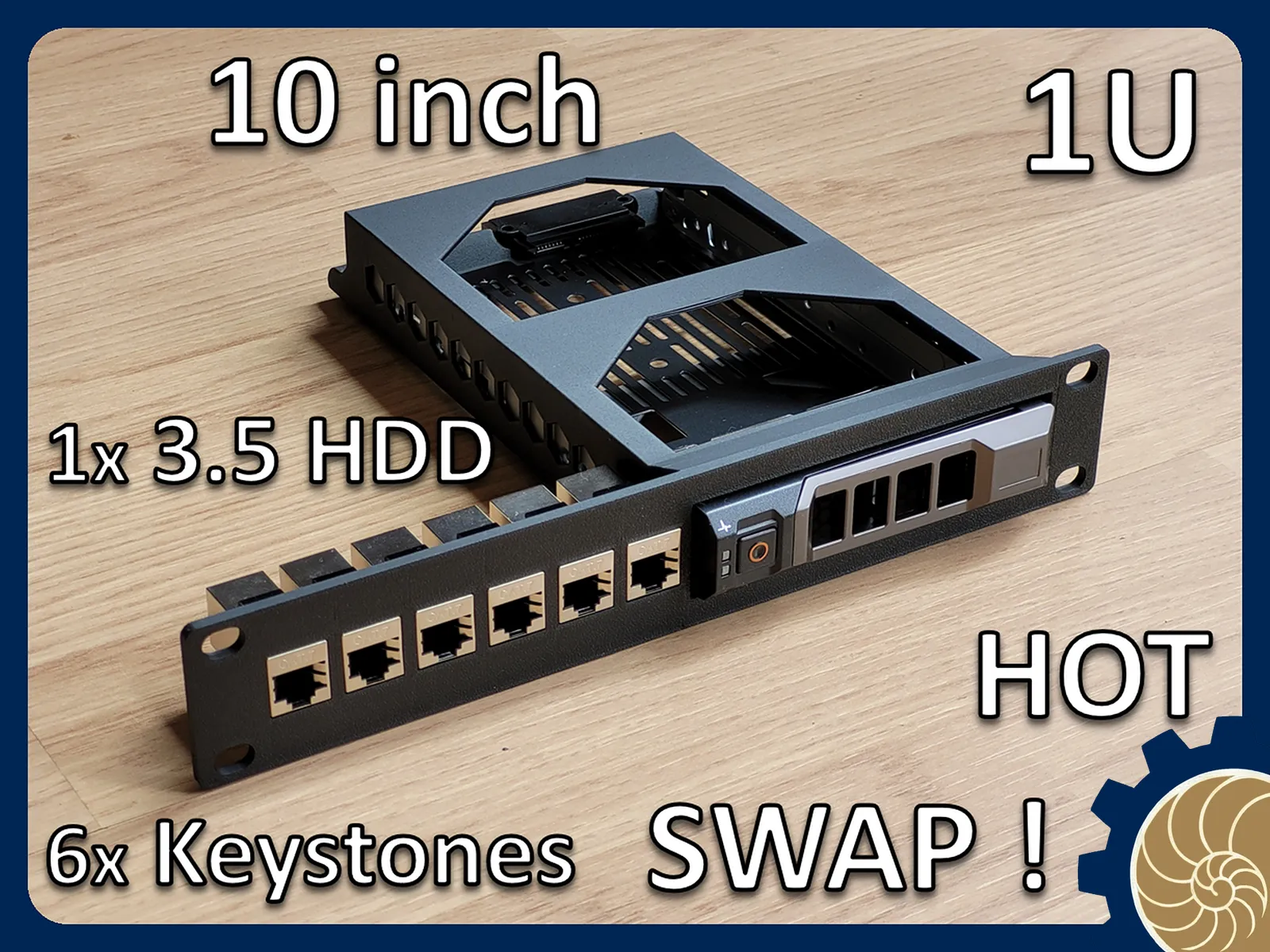

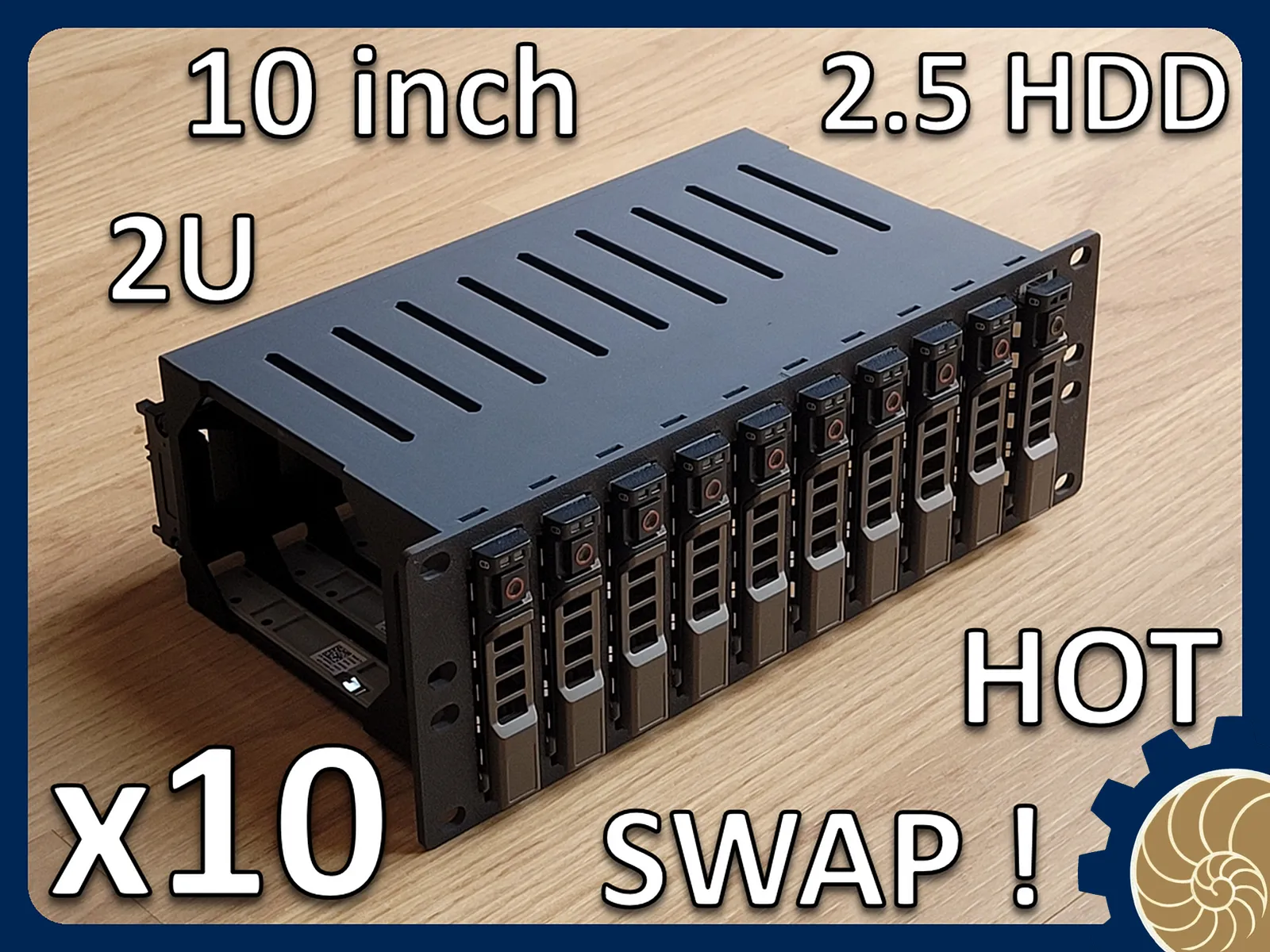

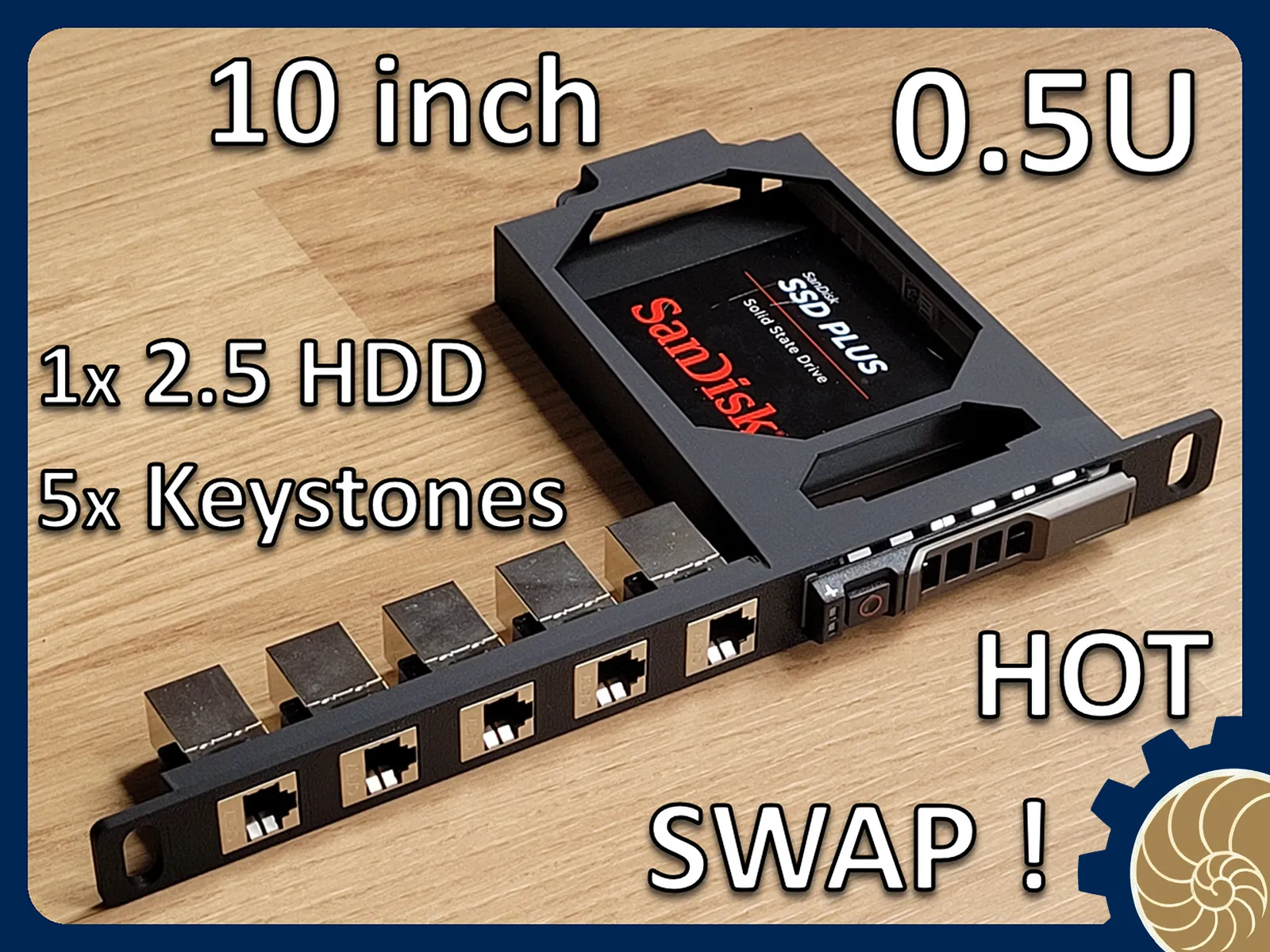

Discover all my other hot‑swap storage projects!

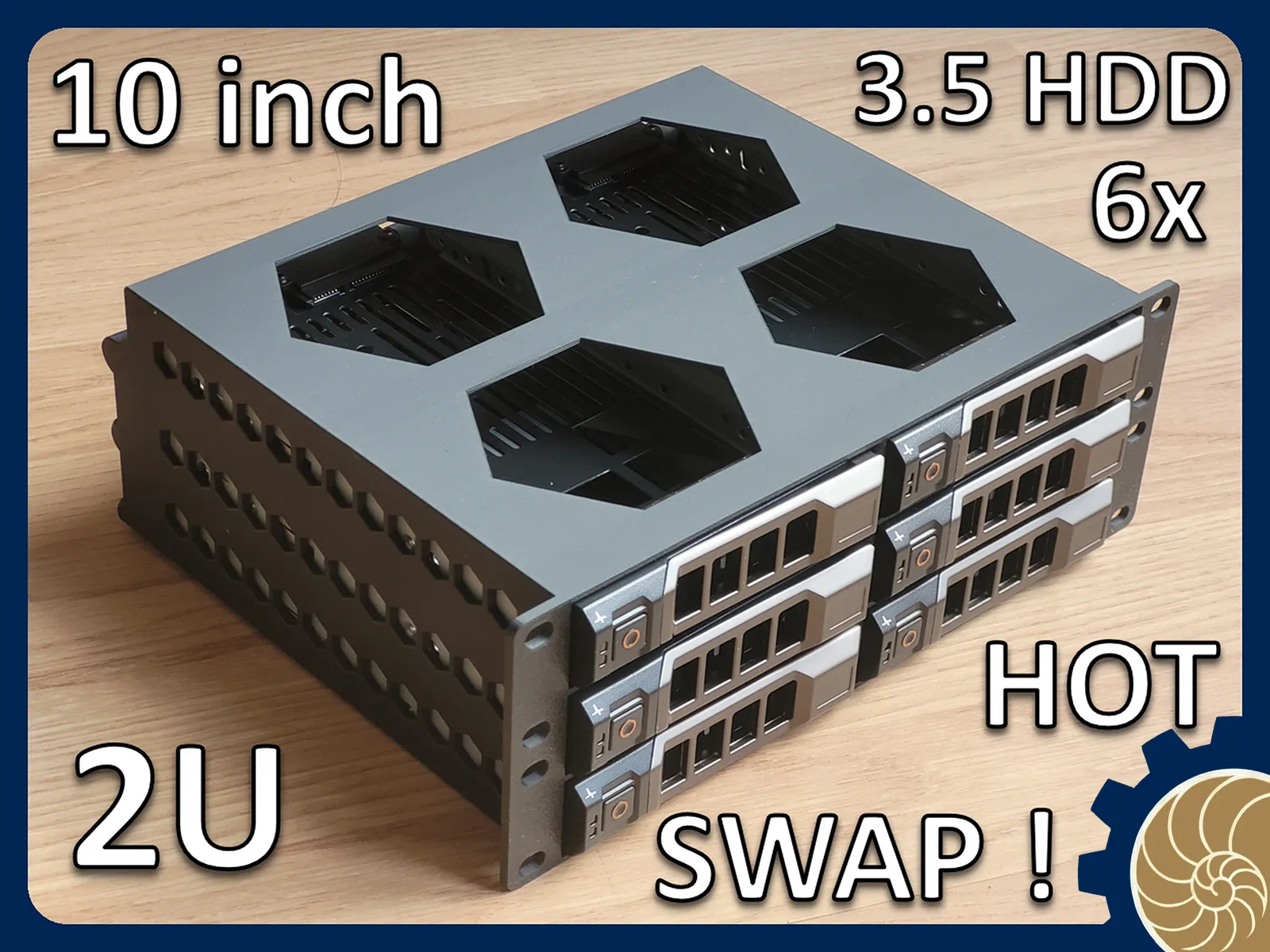

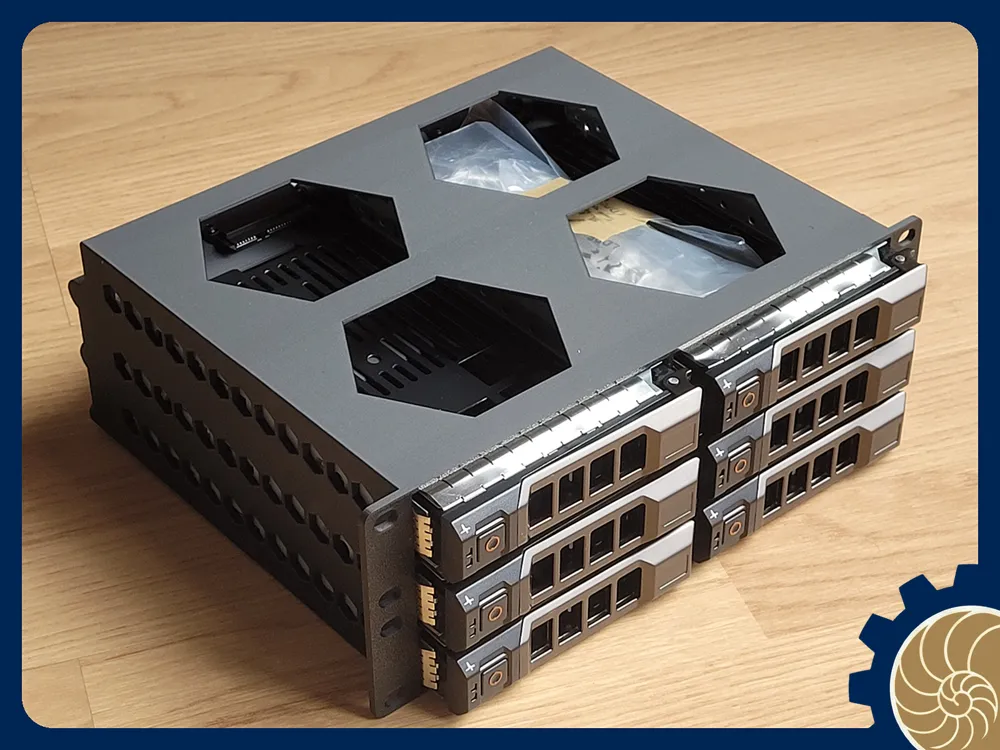

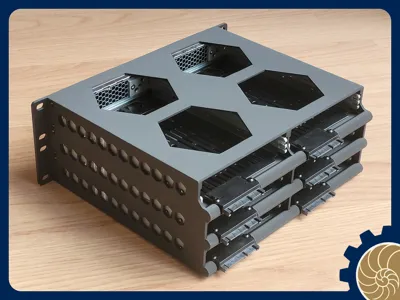

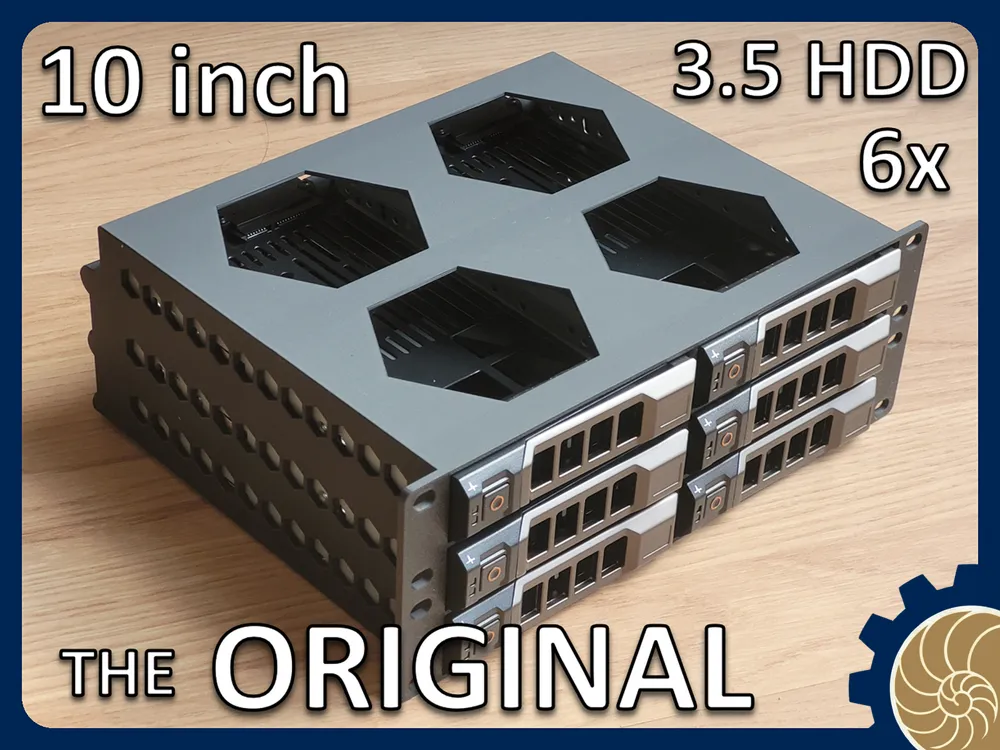

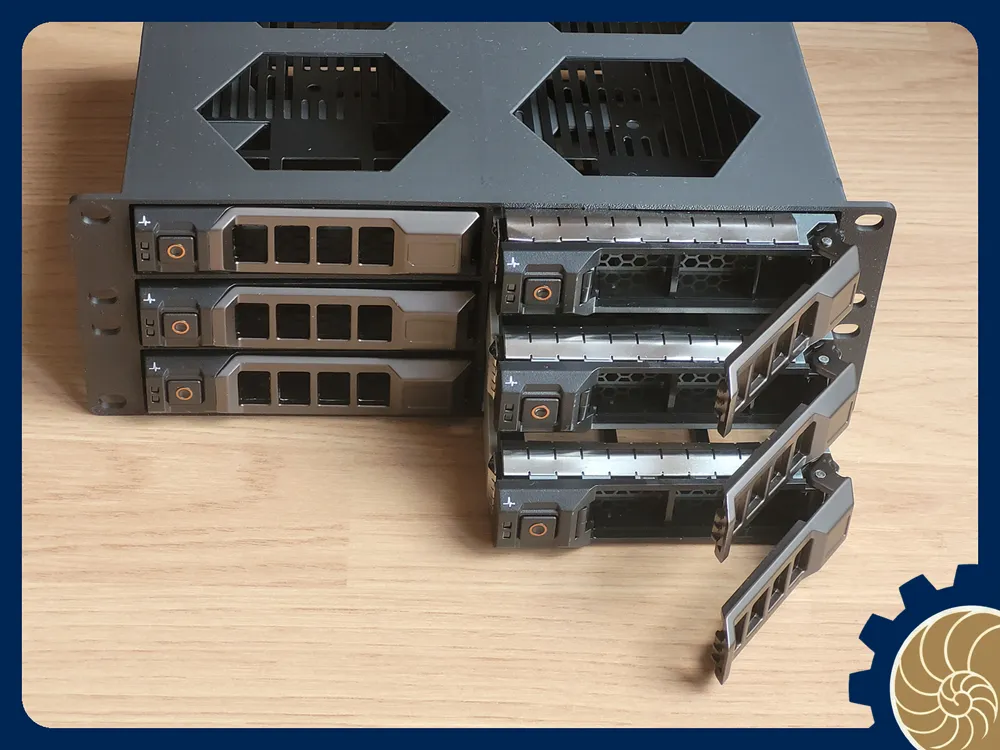

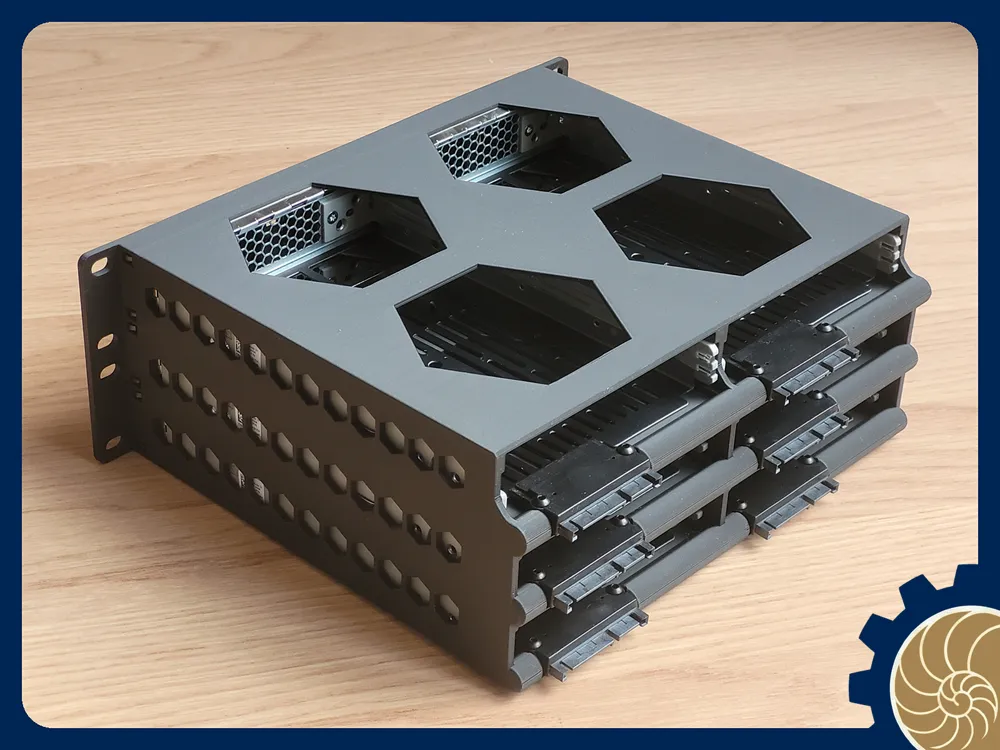

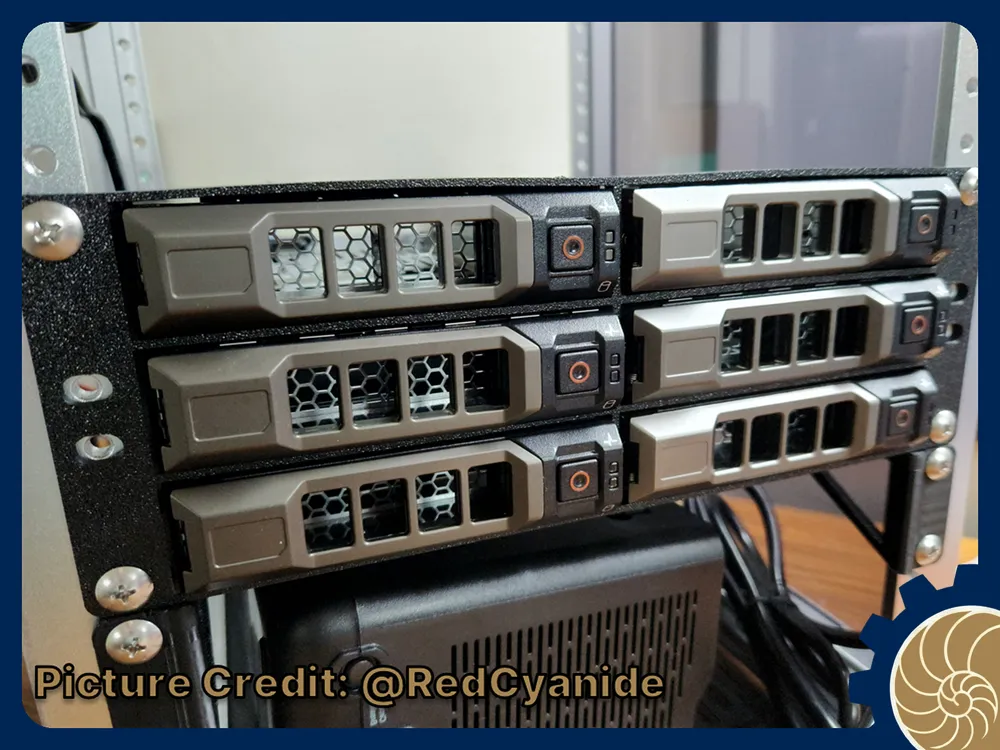

10 inch Rack 2U : 6 x 3.5 inch HDD - Hot Swap ! Compact !

EDIT

V3: Following feedbacks, I added +0.3mm tolerance on the sides and +0.15mm on the height, This definitly make it easier to insert the HDD. I can't do more becauce it would loose structural integrity imo.

Design:

All tolerance are the same as for the 2x 3.5 HDD model
HOT SWAP is possible. I really wanted that feature and couldn't find it anywhere on printable/makerworld
Satisfying Click!

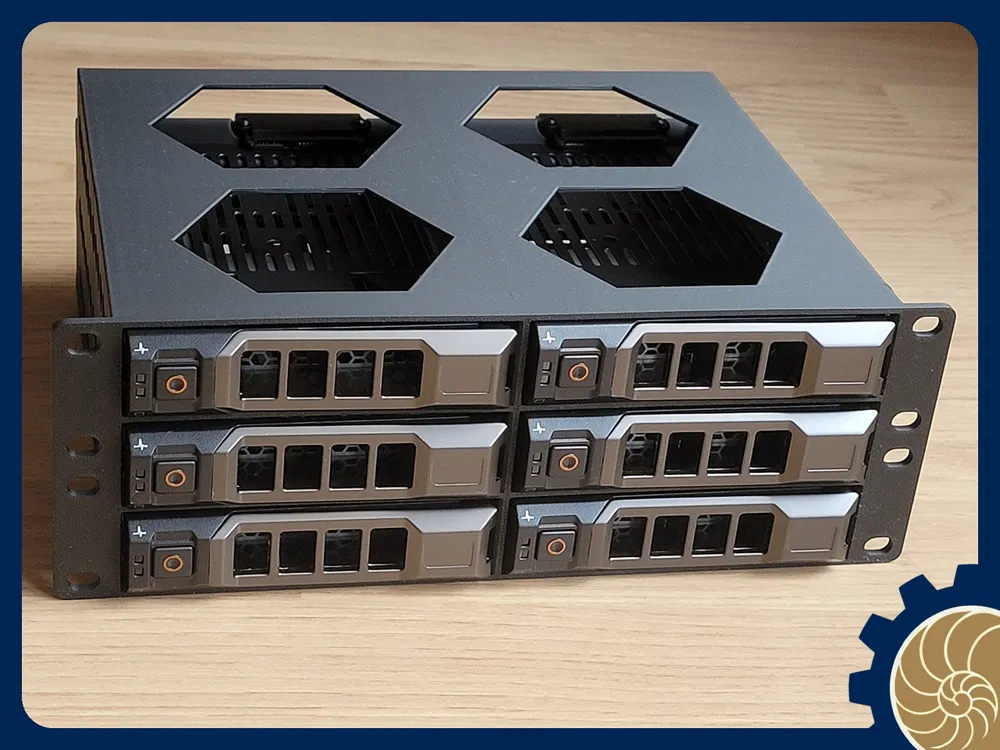

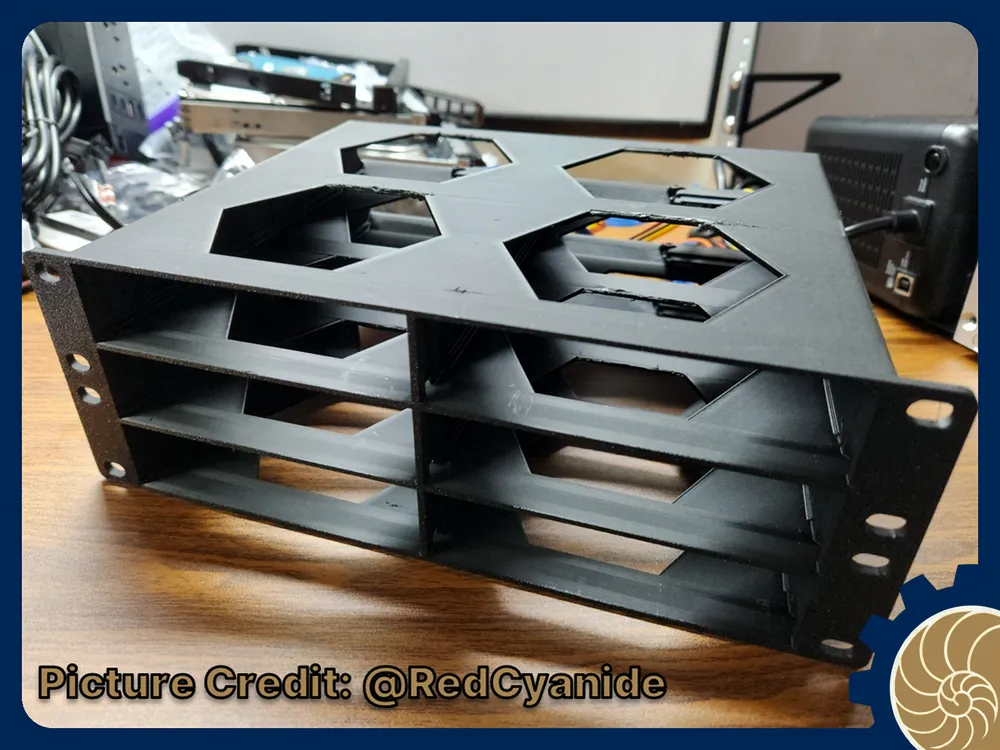

Extremely compact ! only takes 2U for 6HDD
Experimental… As the design is REALLY compact i'm not certain about heat dissipation, or rather, i'm certain that there is NONE for the center HDDs. USE AT YOUR OWN RISK…

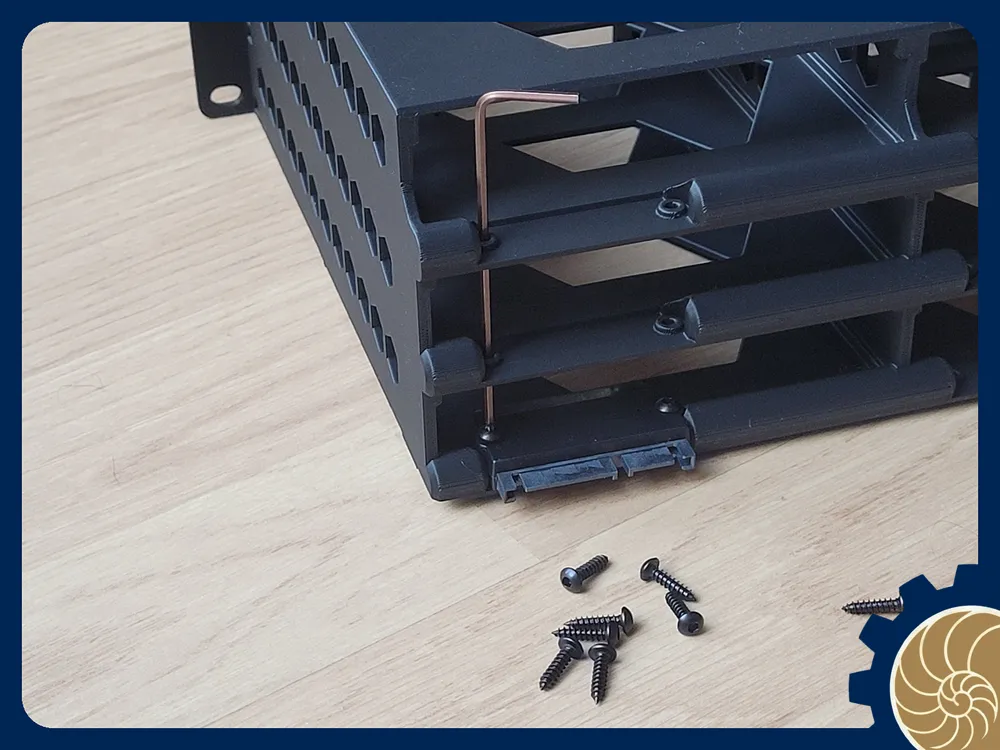

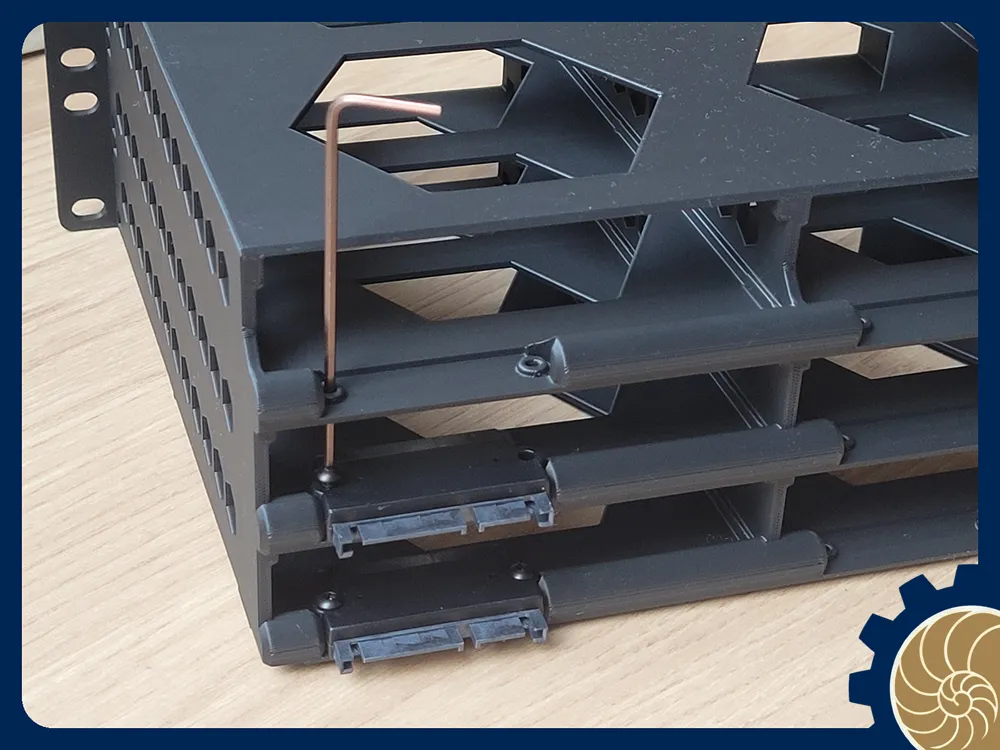

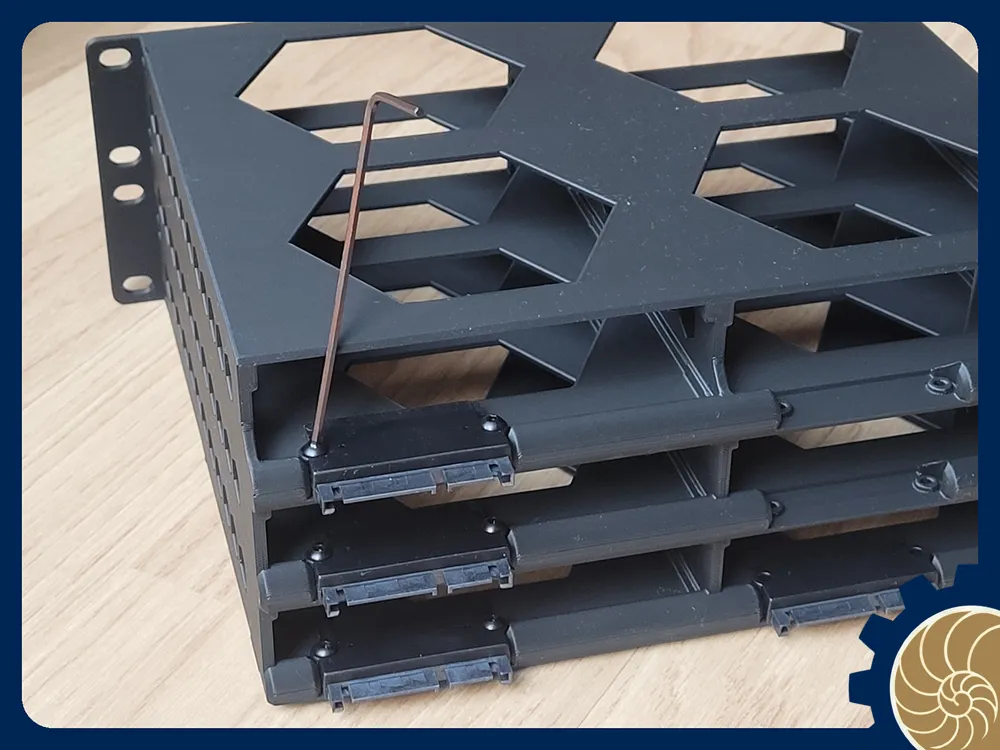

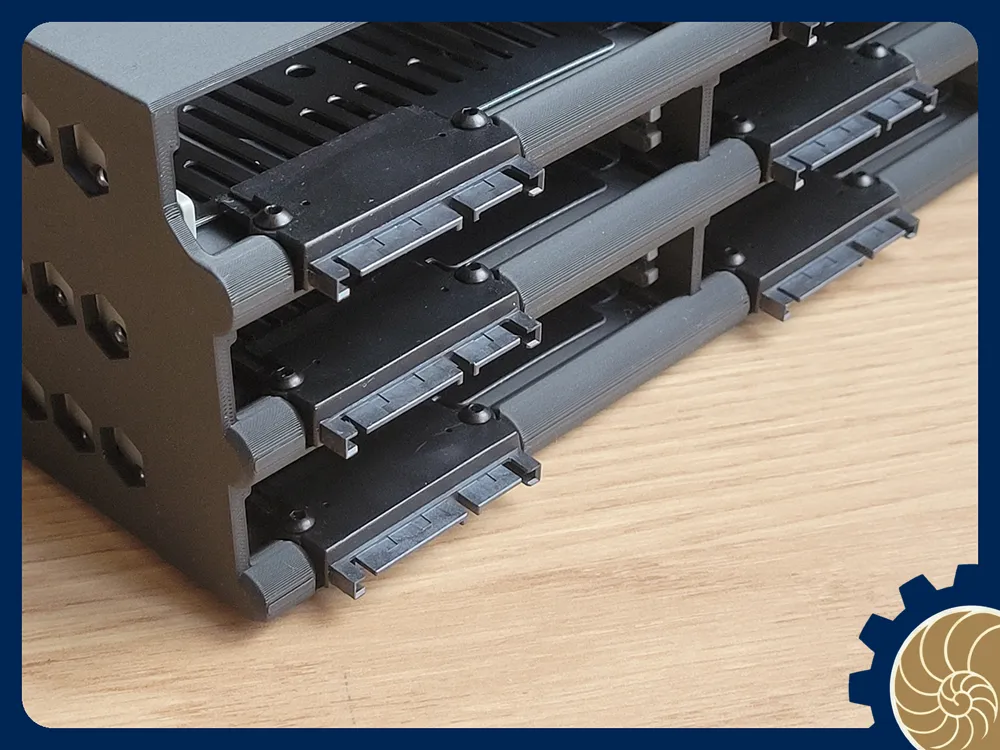

I suspect the screws for the bottom and middle connector might be hard to tighten… once again EXPERIMENTAL: compact concept is cool but is it smart ? Not sure ^^

Print:

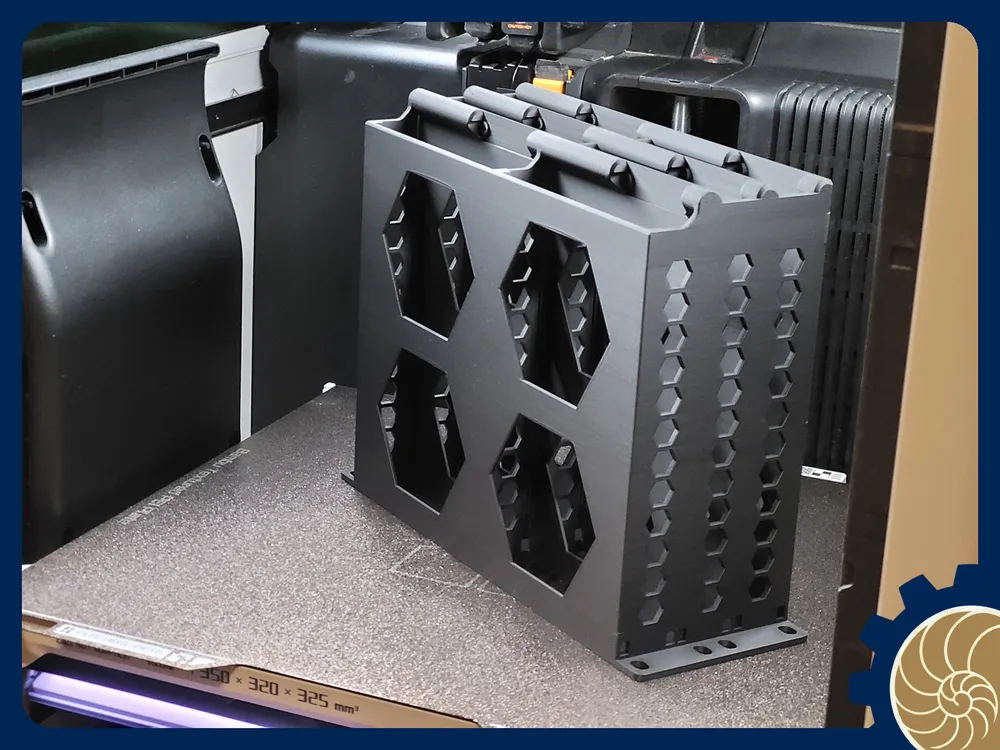

No support ! Print face down
Tolerance are quite tight, make sure to take your time to print it (I used 0.4mm nozzle, 0.2mm layers)

Other Material:

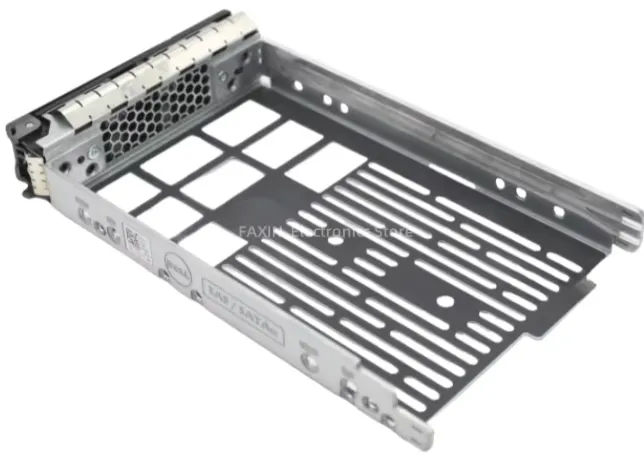

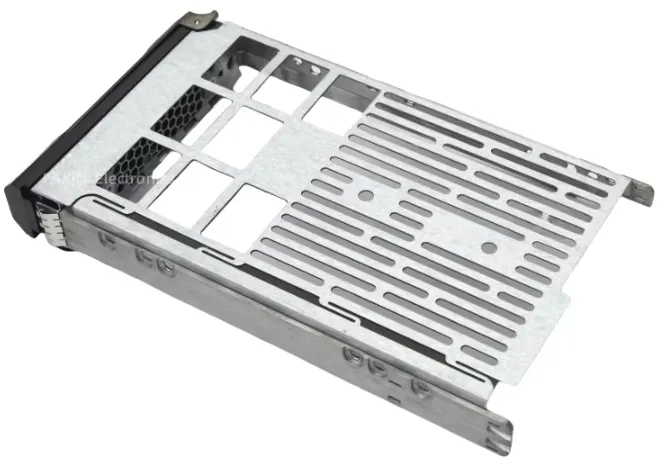

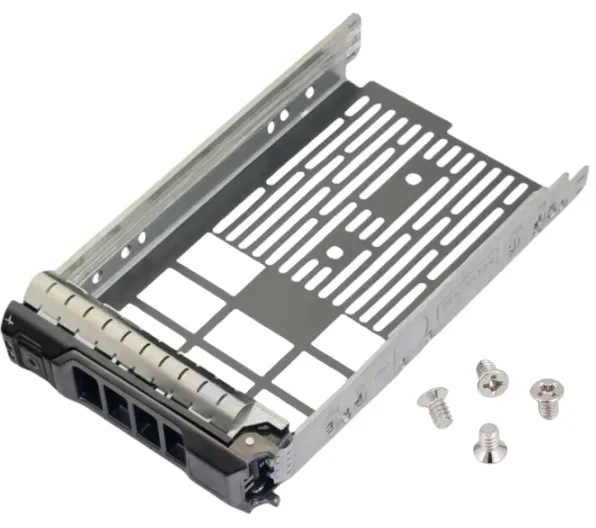

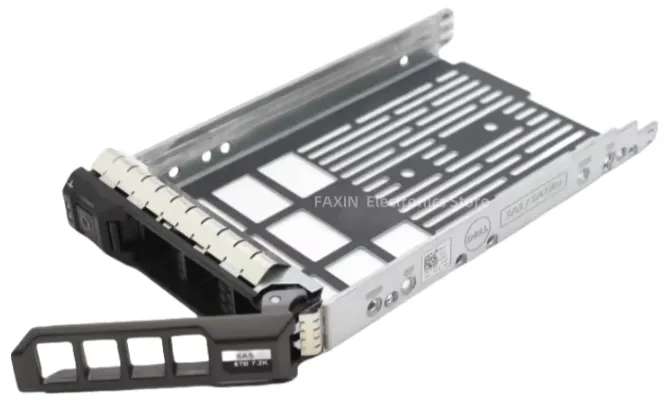

I use those refurbished caddy from Aliexpress:

keywords: " 3.5'' SAS SATA Hard Drive Tray Caddy for Dell PowerEdge R730 730xd R720 R720XD R710 R520 R410 R420 T420 T620 T630 058CWC 0KG1CH "
" For Dell PowerEdge T330 T430 T630 R230 R330 R430 R530 R630 R730 R730XD 0KG1CH 3.5" SAS SATA Hard Disk Caddy Tray KG1CH "

Each tray is about 5eur:

HERE in Aliexpress
or HERE in Aliexpress too

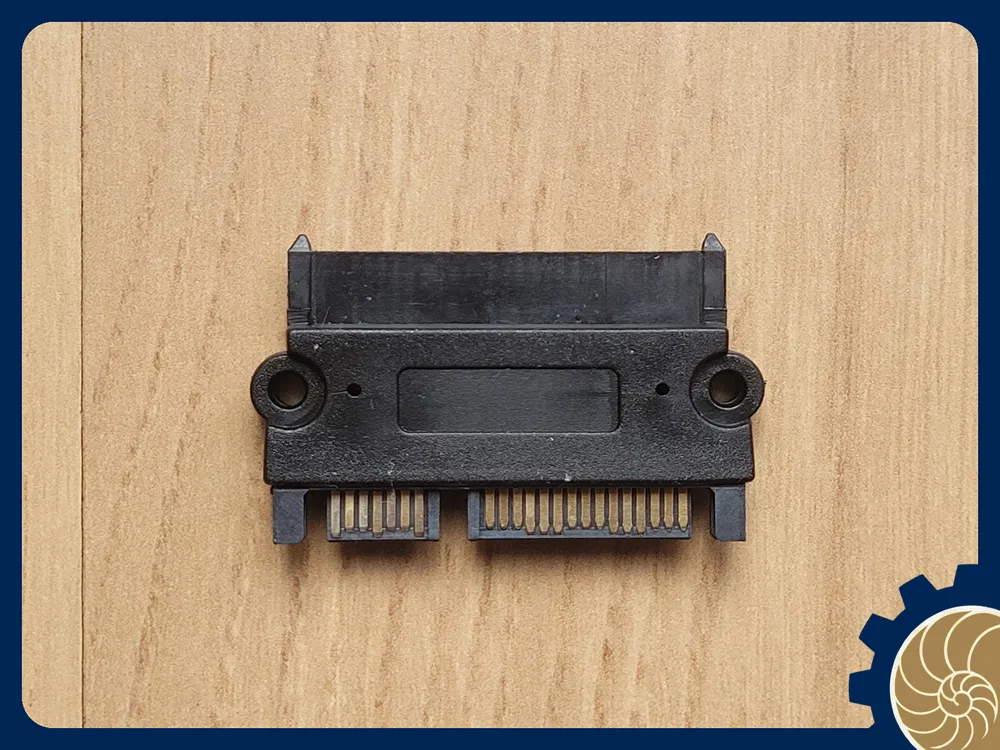

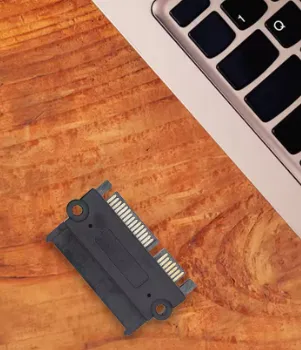

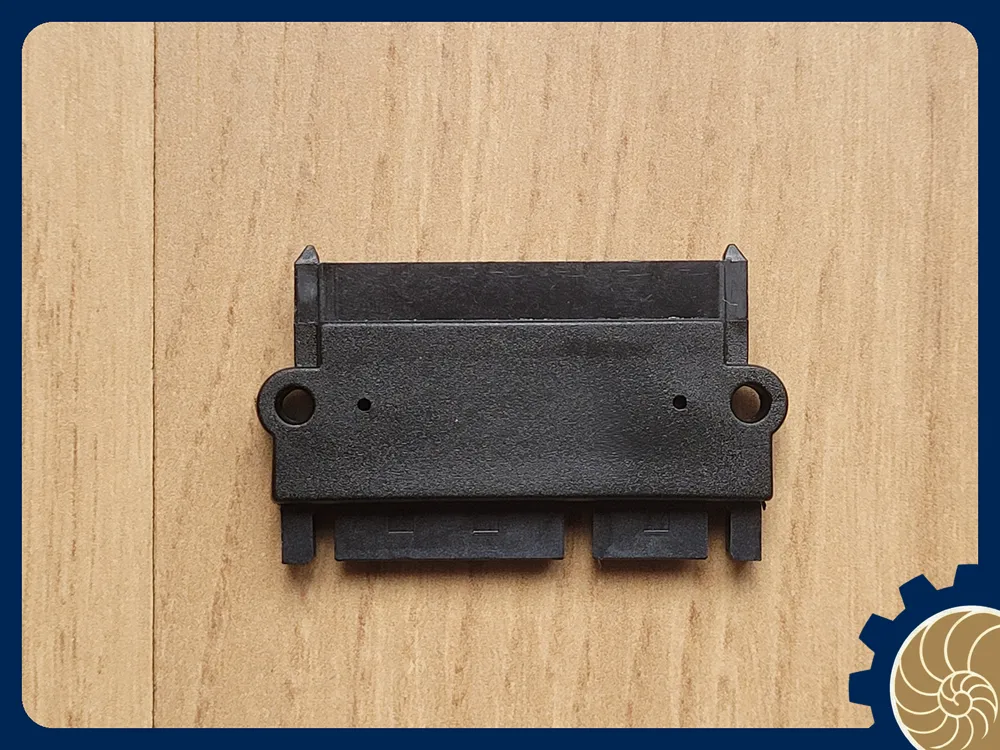

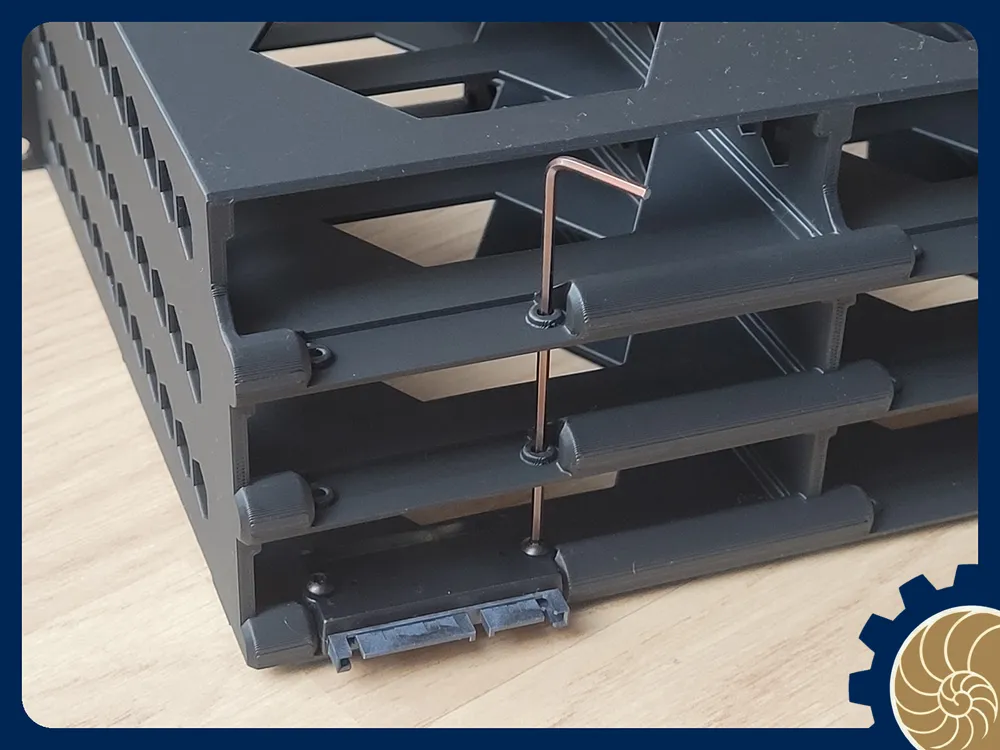

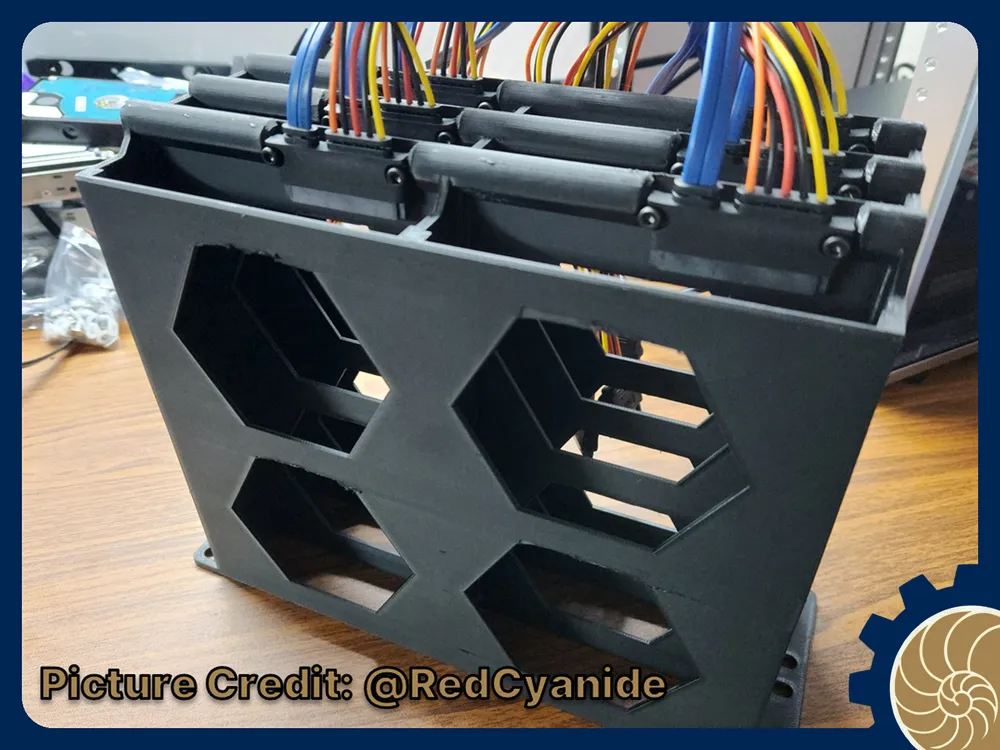

For the Hot swappable connection:

I used those:

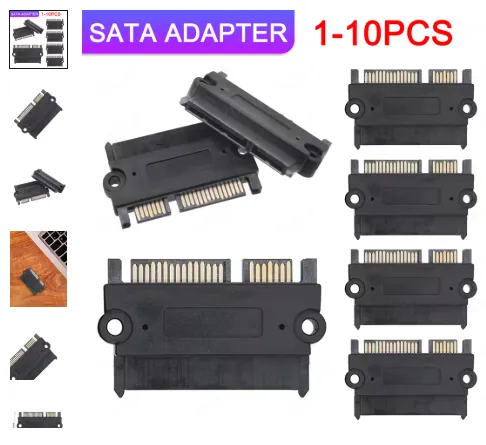

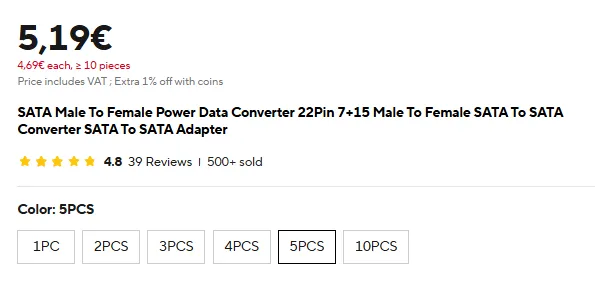

keywords: SATA Male To Female Power Data Converter 22Pin 7+15 Male To Female SATA To SATA Converter SATA To SATA Adapter

Currently 5eur for 5 !:

Here on aliexpress
