Einhell Power X-Change Device Holder
Print Profile(1)
Bill of Materials
- Zylinderkopfschraube x 3: M4 x10mm
- Mutter x 3: M4
- Mutter x 1: M8 (Nur Winkelschleifer)
Description
Boost Me (for free)
I am, of course, delighted to receive boosts and can thereby further advance this project
Einhell Power X-Change device holder set.
The attachments are identical on all holders.
The attachments are form-fitting and screwed on with three M4 x 10mm socket head cap screws against an inserted M4 nut.
The attachments have a point at the narrow ends to transfer the force to the base. First insert the point diagonally into the base, then press it into the recess and screw it on. The support in the small recess must, of course, be removed beforehand.
The holders have the holes for fastening to a wooden panel concealed beneath the device attachment.
The holders are designed for upright storage. I cannot assess whether they can withstand the load for wall mounting.

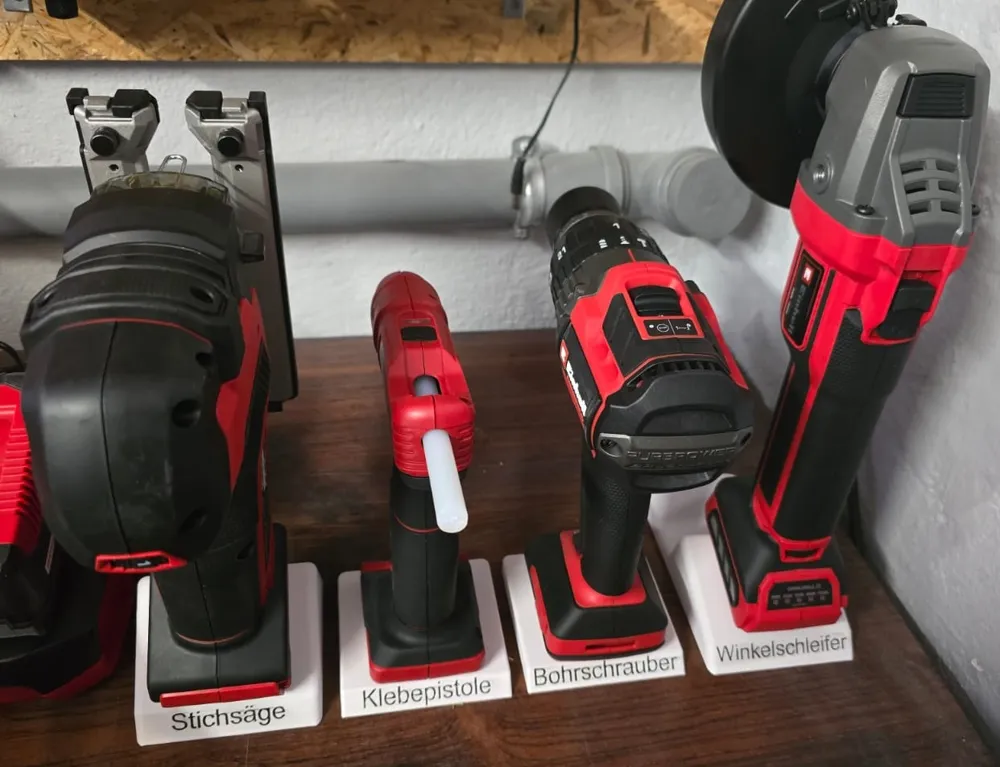

The photos refer to the holders that have already been tested. However, due to the battery arrangement, the ones not yet tested should also fit.

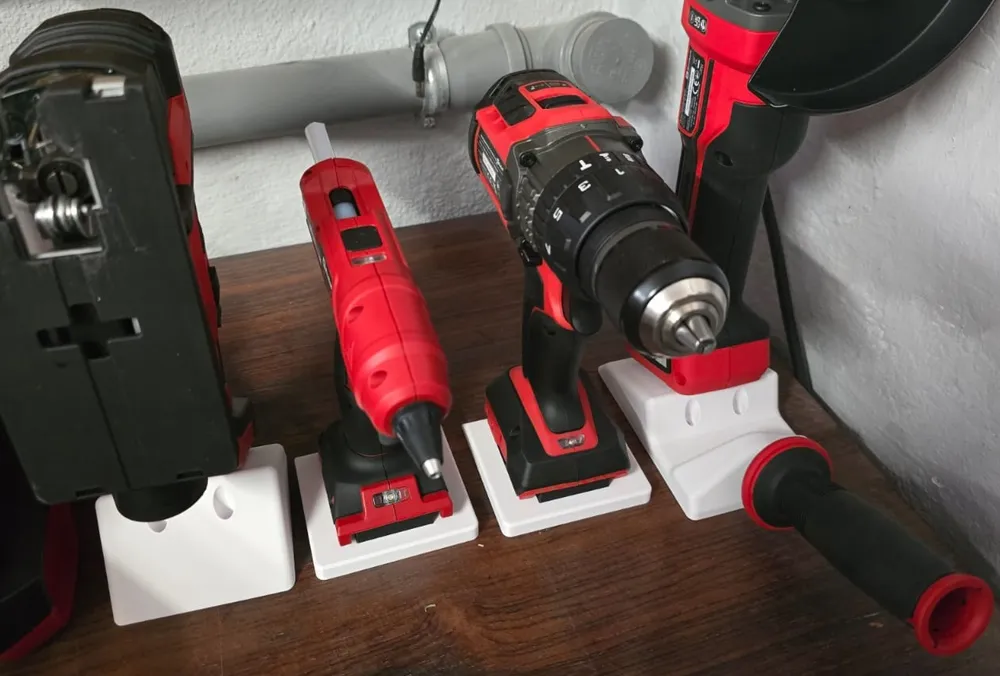

The holder for the angle grinder has a receptacle for the handle on the back. Simply slide an M8 nut into the slot provided here.
I filled and cured the lettering with black UV resin.
Three M4 x 10mm cylinder head socket screws and three M4 nuts are required per device.
The bases can be screwed on with 4mm countersunk wood screws of a suitable length.
In progress:
- Multitool
- Planer
- Eccentric sander
- Outdoor lamp
