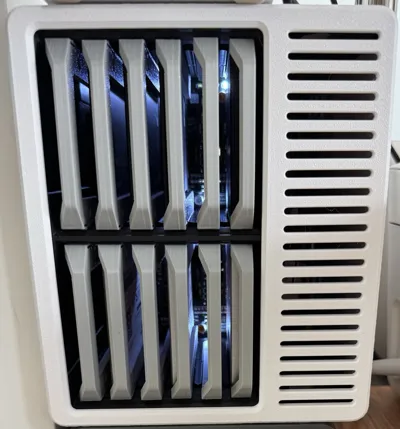

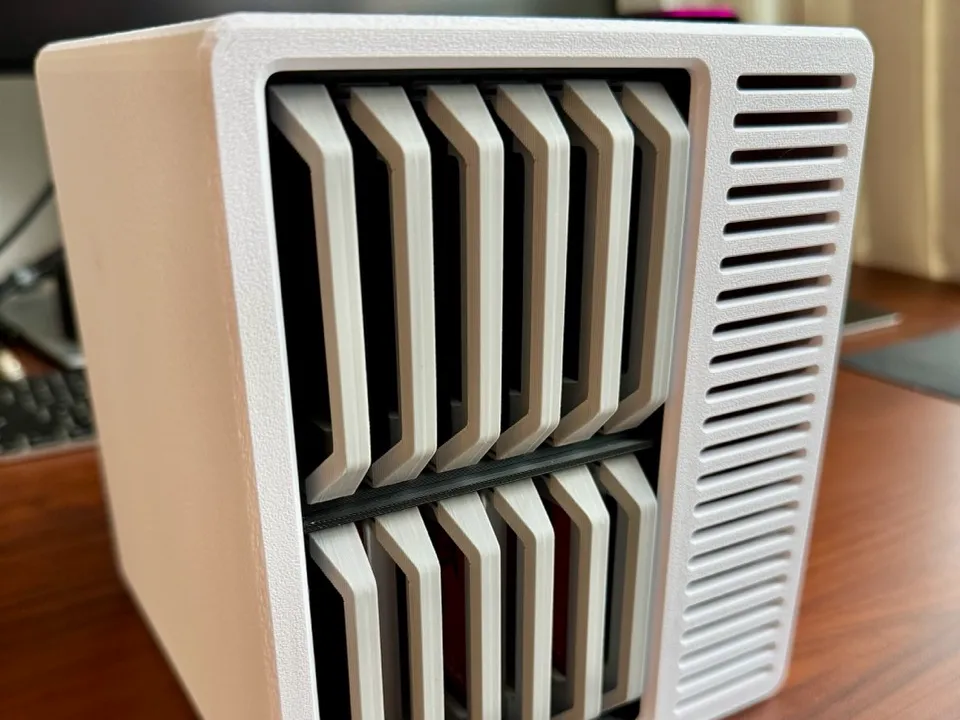

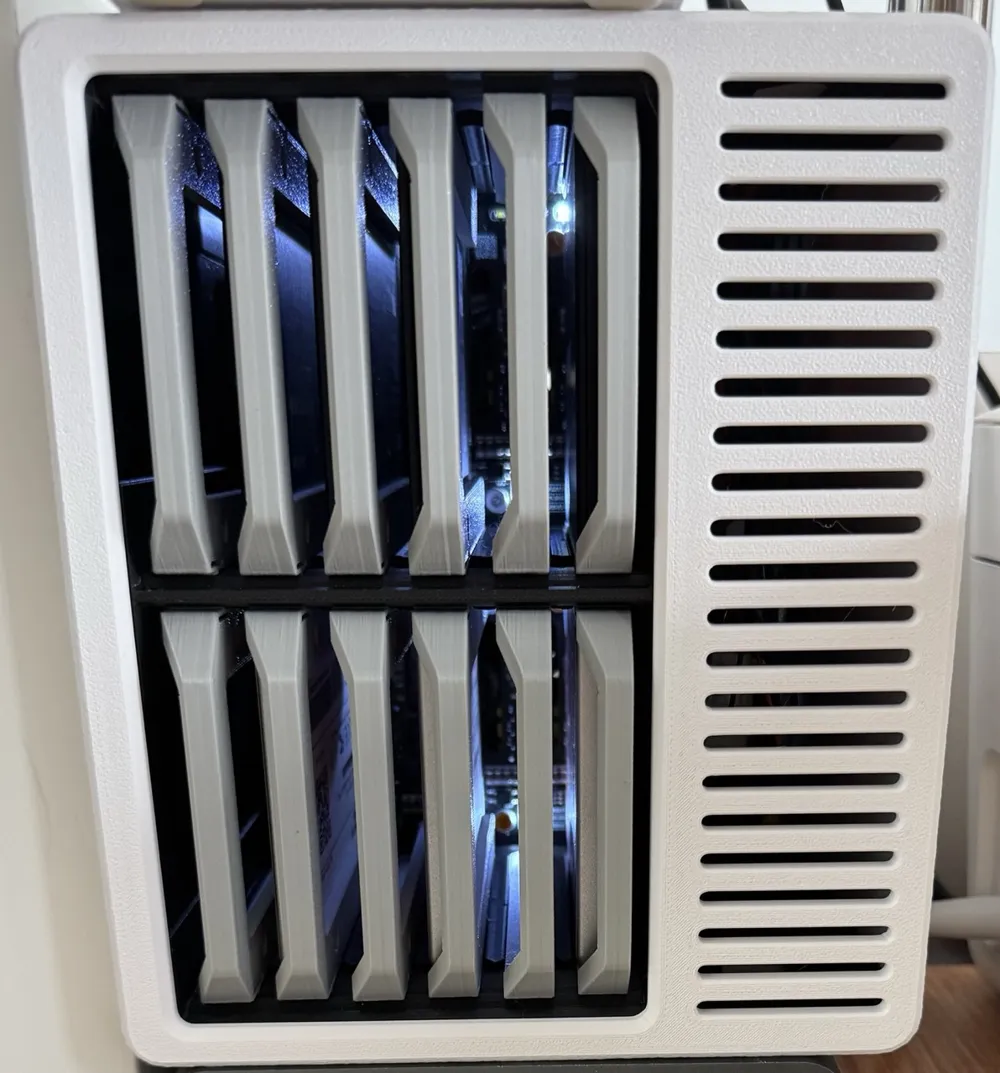

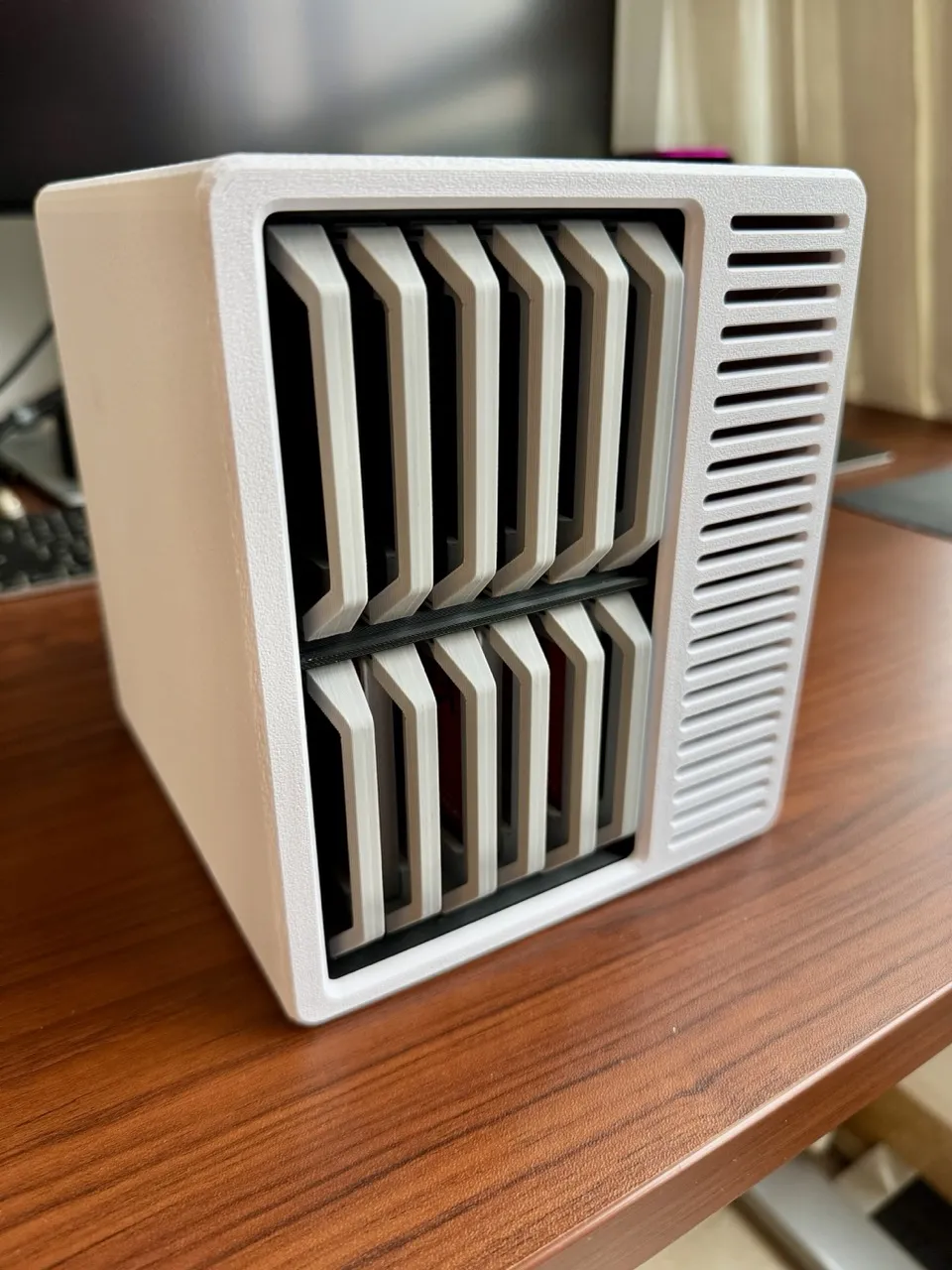

QDAS 12-bay Thunderbolt 3 2.5-inch SATA hard drive enclosure

This is a 12-bay Thunderbolt 3 hard drive enclosure, accommodating twelve SATA interface hard drives

Cooling fans are controlled by a speed regulator, adjusting both on/off and rotational speed

Fan power, SATA backplane power, and Thunderbolt connectivity are synchronized; power is not supplied via DC input alone, requiring a Thunderbolt connection to a computer for activation

Speed: Single drive full speed; multi-drive RAID 0 read/write up to 2.7GB/s

Required components:

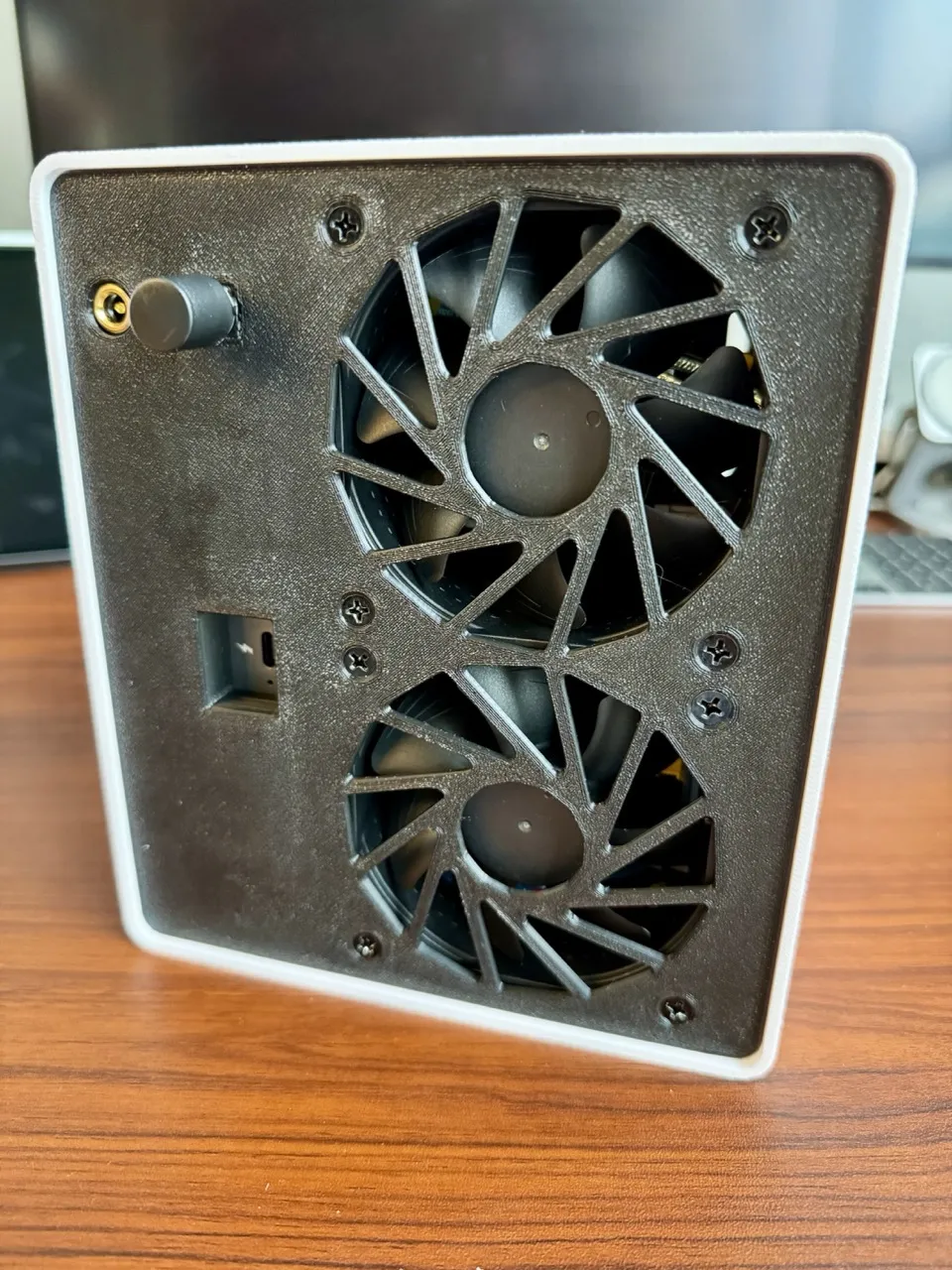

Fans: Two 8CM fans, eight fan screws, supporting 25MM thickness. Optional; SATA SSDs typically operate at safe temperatures without fans

Fan Speed Controller: A YouYi PWM speed controller, four-wire fan speed control for water cooling, high-power USB-Type-C powered C01. Housing removed; a set of M7x0.75 nuts and washers are additionally needed

Thunderbolt 3 Module: A Rihao Thunderbolt 3 dual-bay JHL7440 hard drive enclosure, top cover removed; internal fan may be removed for quieter operation. An M2.5x10 screw is needed to secure the module to the chassis

NVMe to SATA Module: Two ASM1166 six-port expansion cards

Power Supply: DC5525 connector; a PD to DC5525 adapter cable may be used; 12V 3A or 5A specification sufficient. Power consumption for twelve fully populated SSDs does not exceed 30W

Backplane: Two QNAS MINI backplanes (search Xianyu)

SATA Cables: Twelve, included in backplane package

Assorted Screws and Heat-Shrink Nuts: Included in backplane package

Various Power Cables:

Fu Tai Technology USB splitter extension cable, 10cm length, downwards facing / USB splitter extension cable

Two USB-A to PH2.0 2PIN power cables, for synchronized backplane power; note polarity; some online vendors supply reversed cables, requiring connector disassembly and reversal

PH2.0mm pitch splitter connector, PH2.0 female to dual male

Two VH3.96 male to female 20CM extension cables

Two DC5525 to VH3.96 power cables (included in backplane package)

A VH3.96 female to dual male cable is unavailable online and requires custom fabrication; splice a VH3.96 extension cable, soldering to a DC5525 terminal

Footpads: 40x20x3MM, reference QNAS-mini BOM, same type

Various cable ties

Utilizes a modified QNAS mini model from Bilibili user Wang Wang Dui Sheshou
