Description

Boost Me (for free)

Do you like my work ? Give me a boost, it's free for you and it helps me a lot!

➡️ Other printers version here : https://makerworld.com/en/collections/27417439-bambu-lab-magnetic-poop-chutes

Update 2025-12-17: Added 4in version

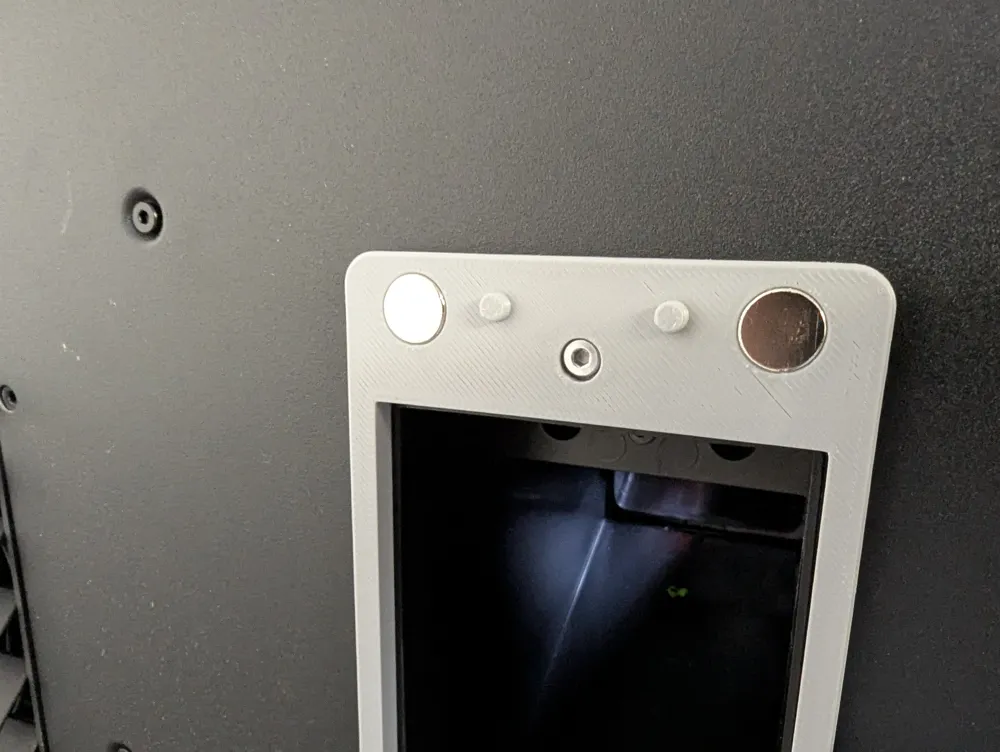

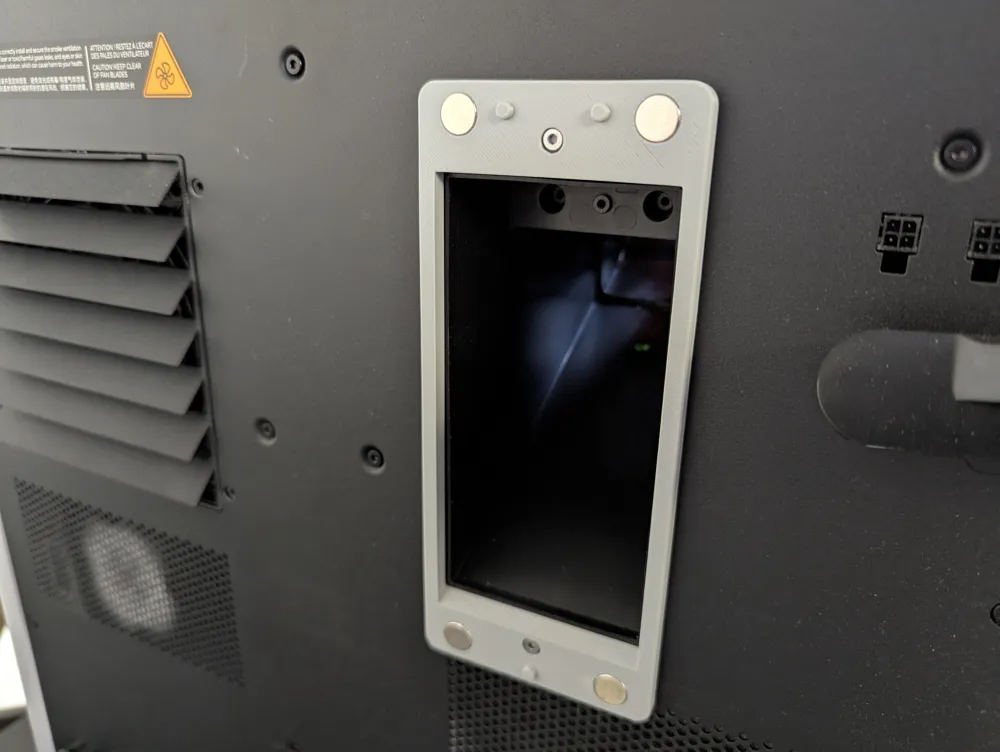

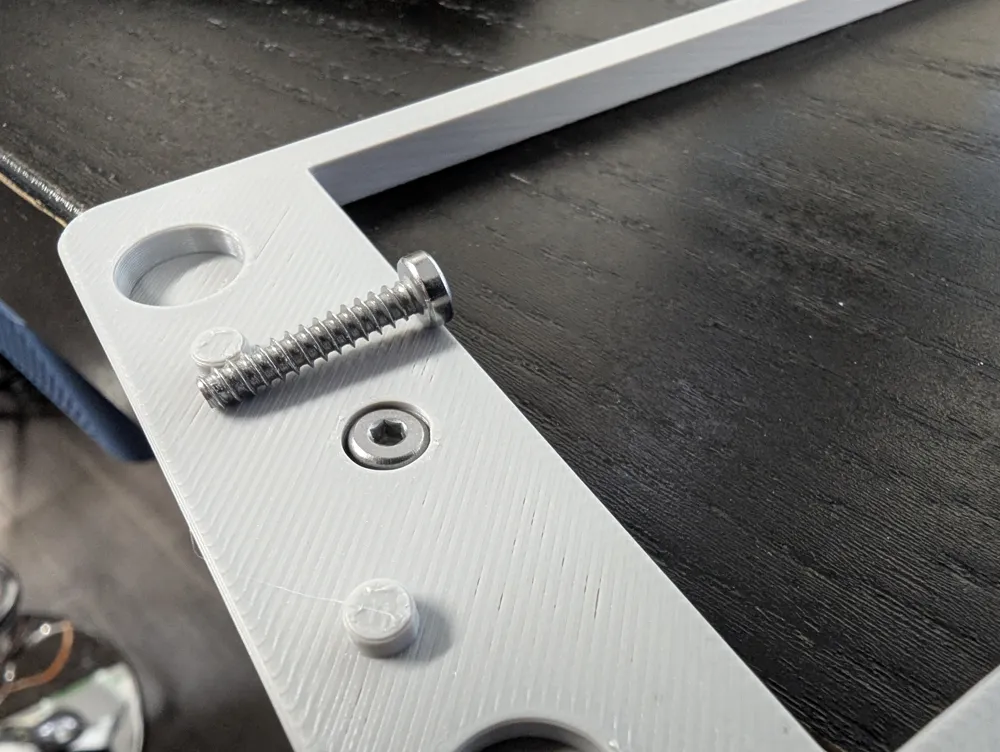

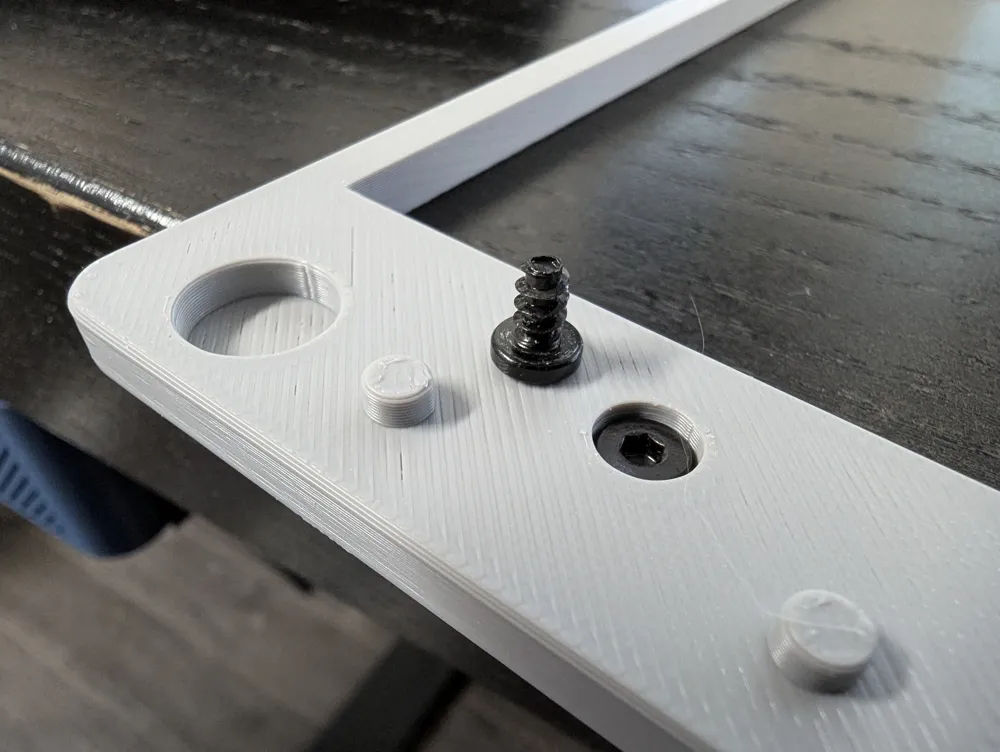

Update 2025-11-19: Added counterbore version of the mount to use socket head screws

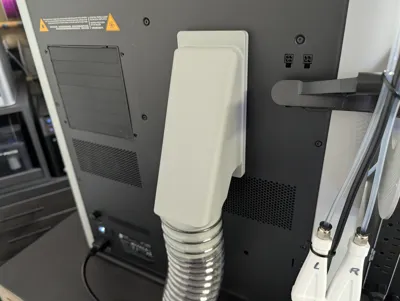

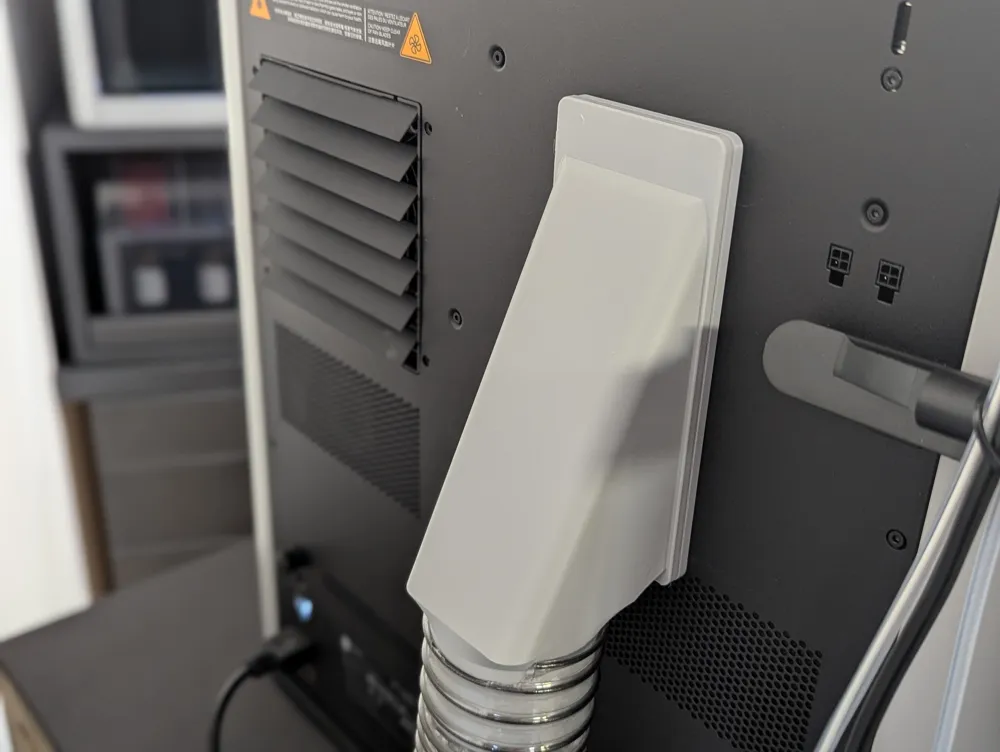

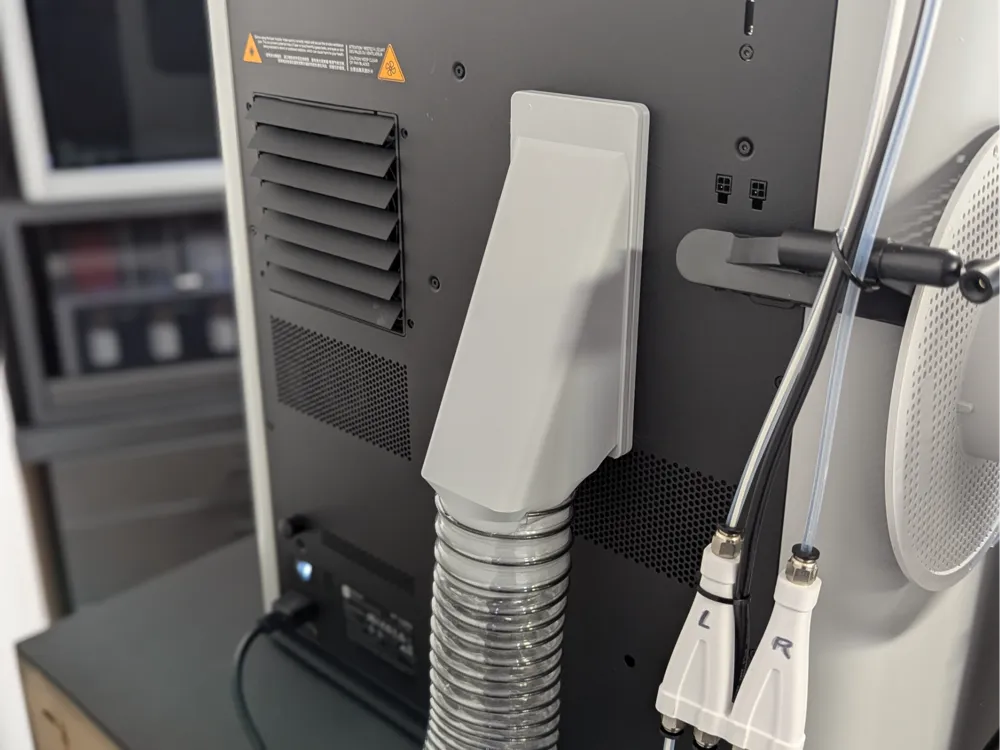

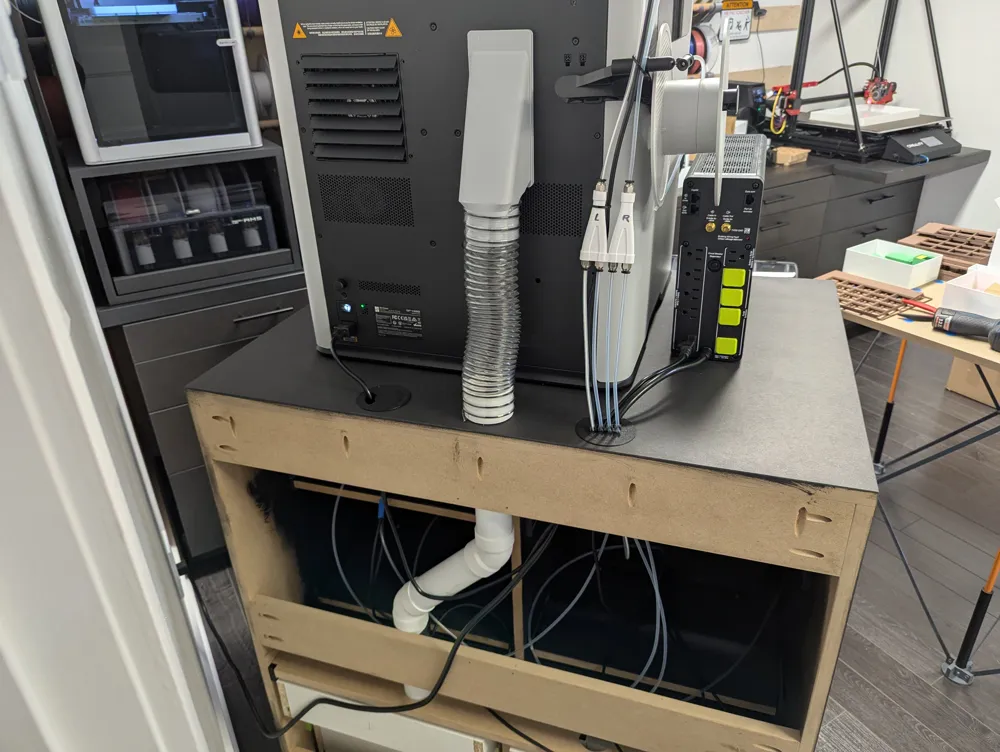

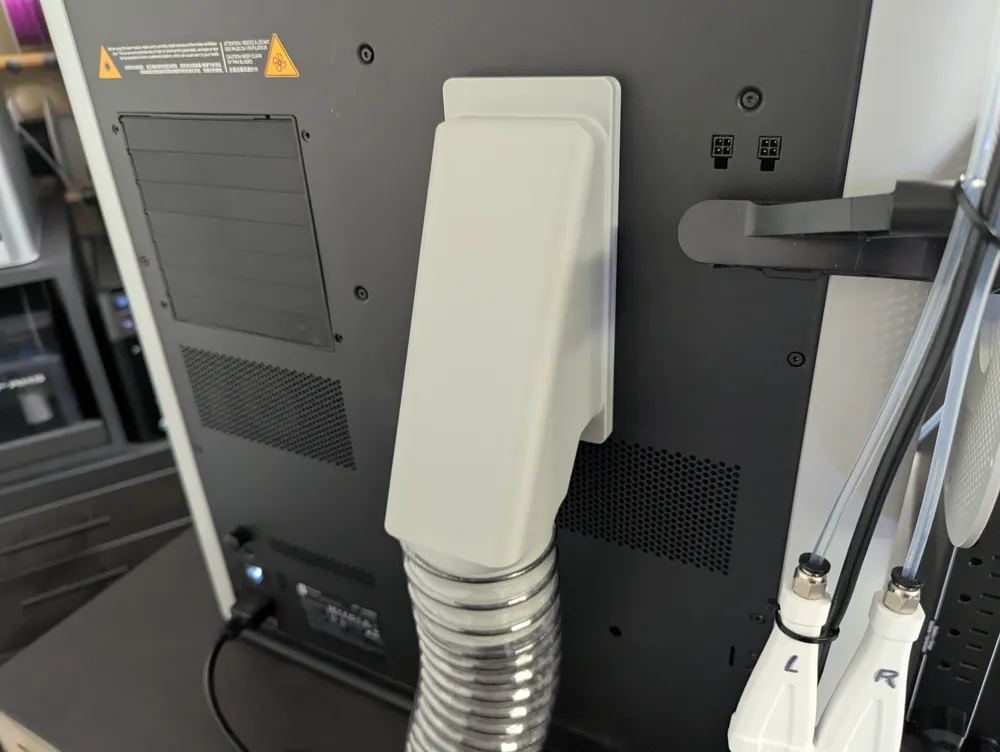

H2 series magnetic 💩 chute for flexible PVC dust collector hose like this one (standard 2 ½) https://a.co/d/inlV92M

Requirements :

2 ½ flexible hose (length depends of your needs)

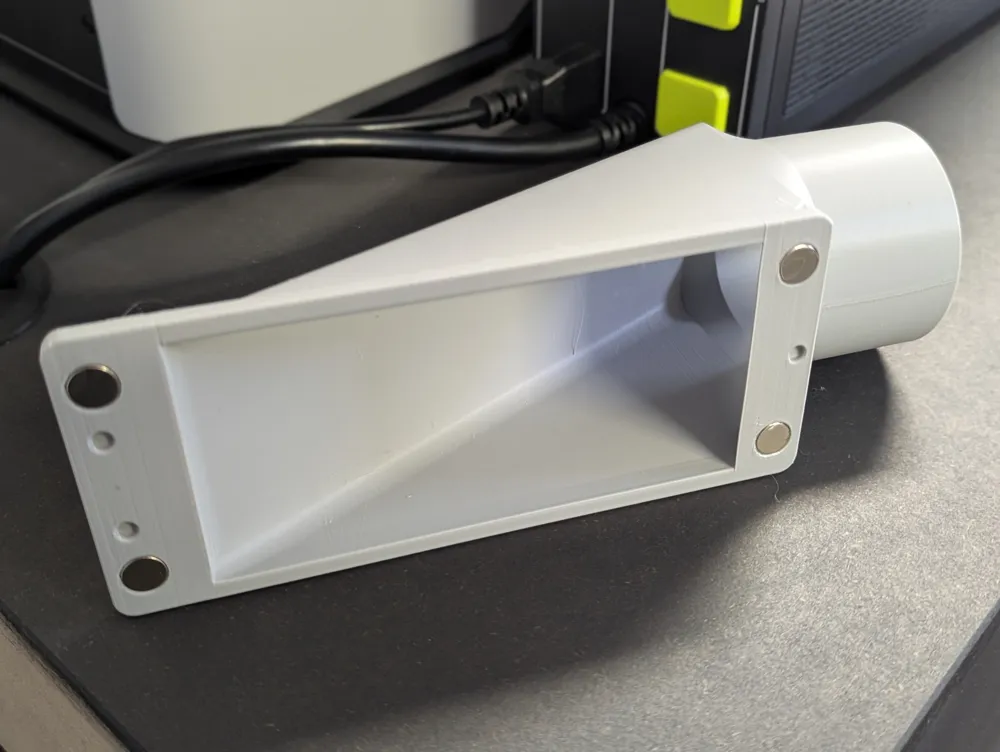

(8x) 10x3mm magnets
(2x) BT3x8 (or more) Socket Head Cap Self Tapping Screws (SHCS) or standard M3x12 (or more) Flat Head Cap Machine Screws

You can reuse shipping screws, there is some BT3x16 screws that secure the AMS into the printer

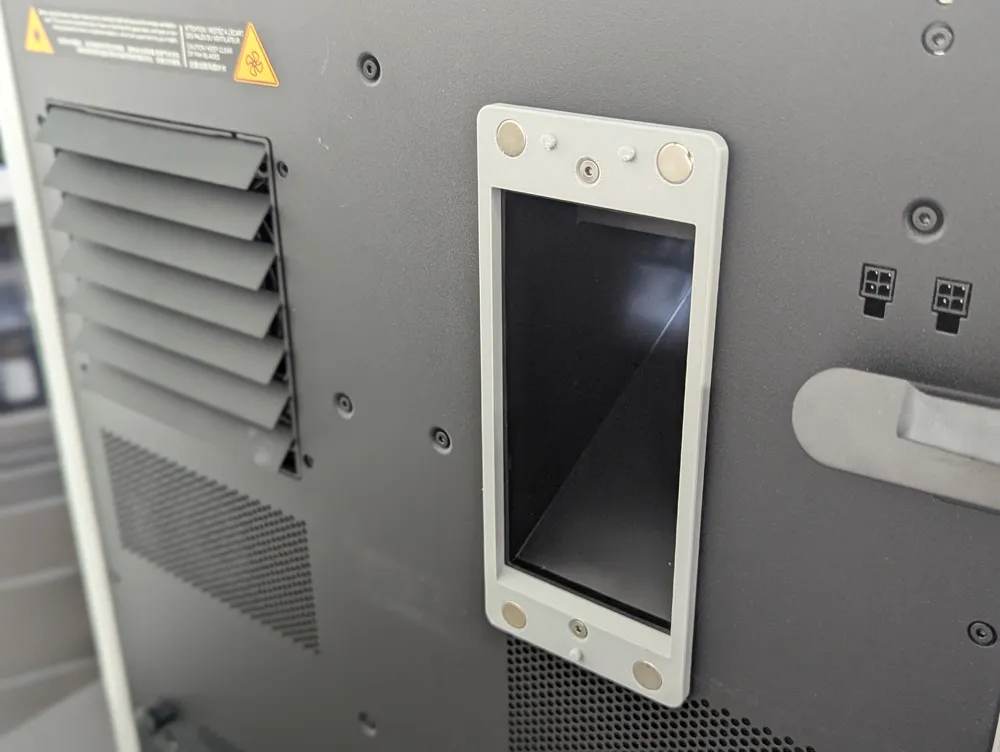

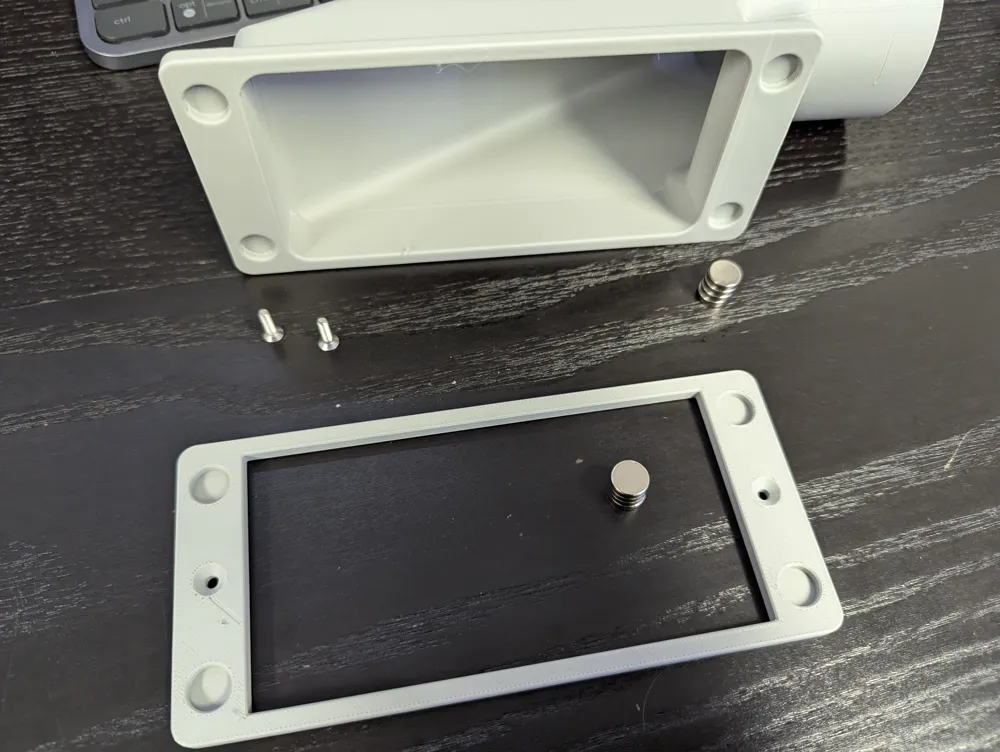

Print, insert magnets (should be press fit, but you can secure it with glue), remove 2 screws of the chute at the back of the machine, install the base with the 2 longer screws, you're done! ✅
