a cubic box with a twist.

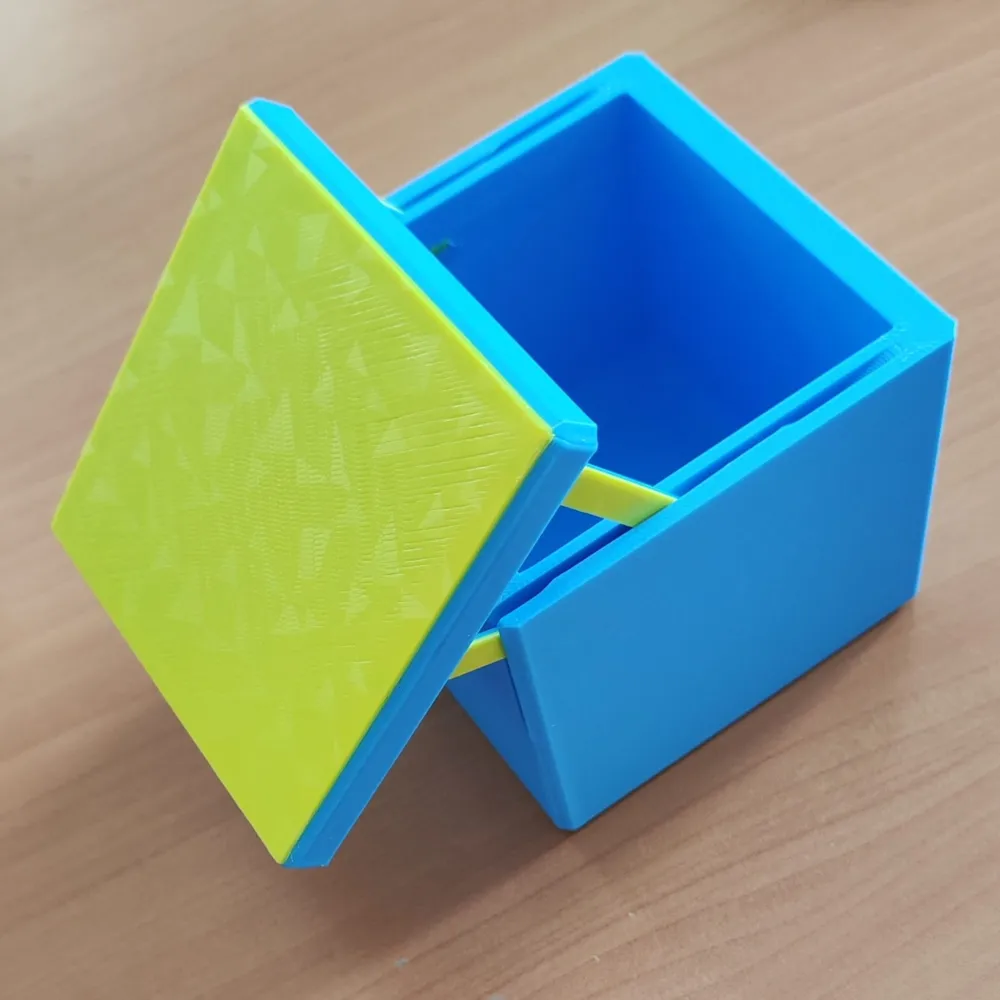

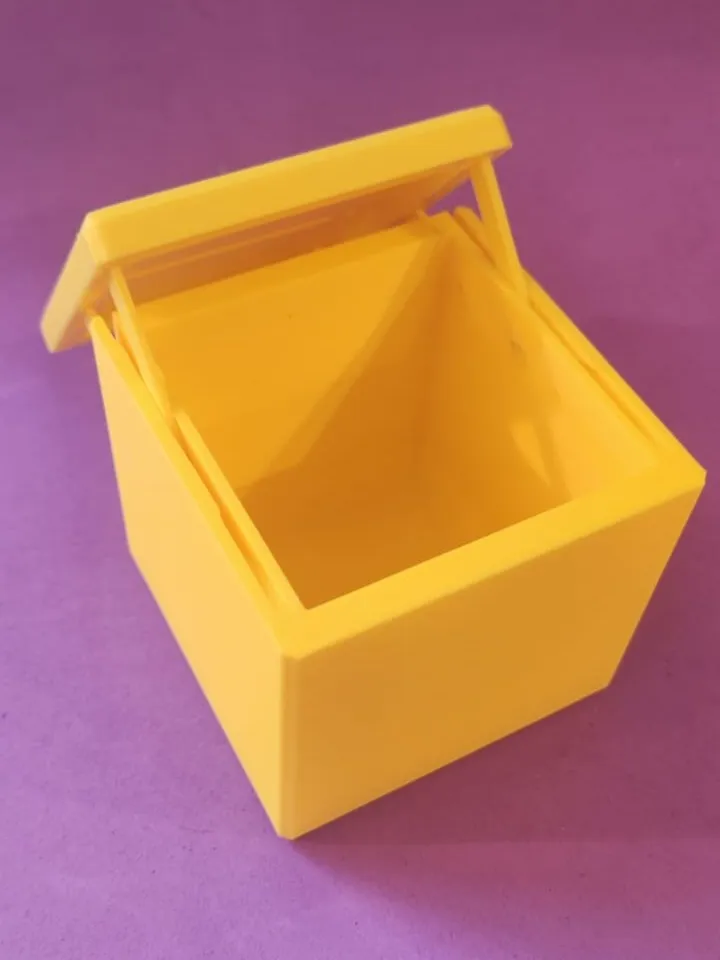

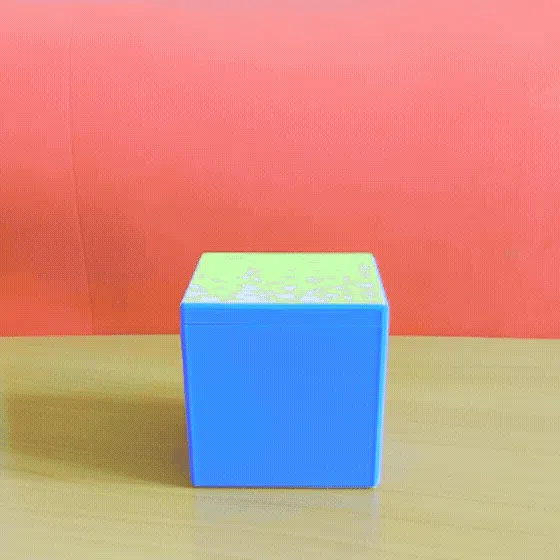

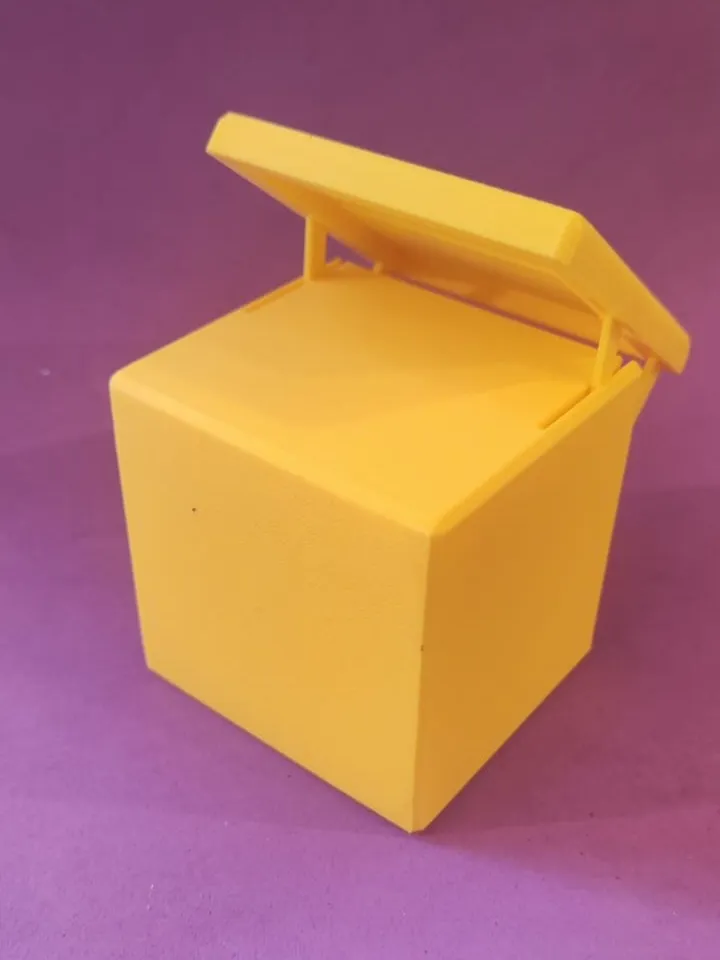

Crafted with precision and intent, this sleek, minimalist cube hides a clever secret: a pantograph-hinged lid that doesn’t just open — it transforms. As the lid lifts, it smoothly detaches from the top and folds elegantly down along a guided mechanism, coming to rest flush against the back. The result is a dramatic, space-efficient reveal that turns storage into a performance.
Whether on a workbench, shelf, or display, this box isn't just a container — it's a statement of engineering elegance.
To mount follw the images:

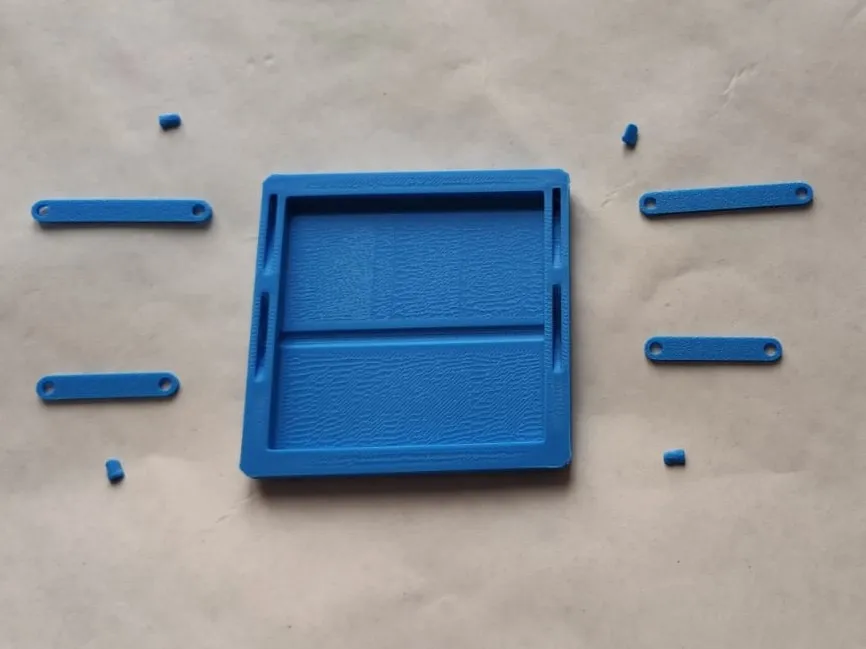

prepare the cover with 4 link and 4 pin:

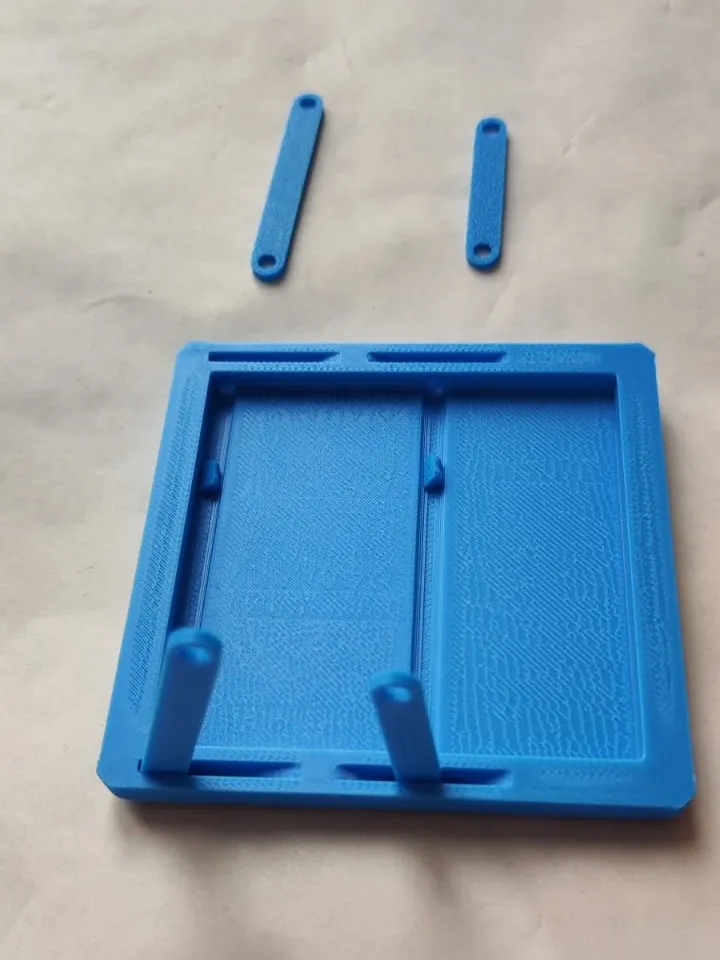

Place the short lever in the middle of the cover end the big one to the side

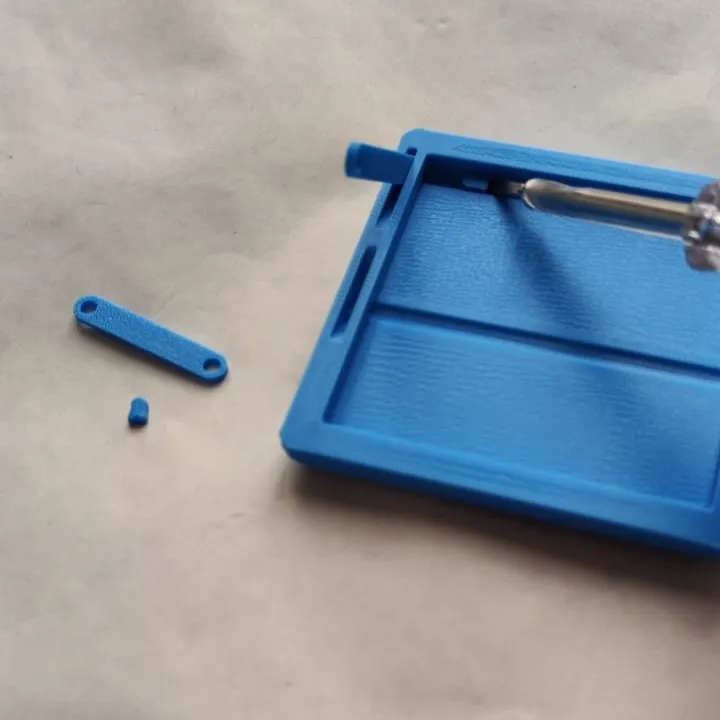

insert the 4 pins in the holes and push inside with the screwdriver

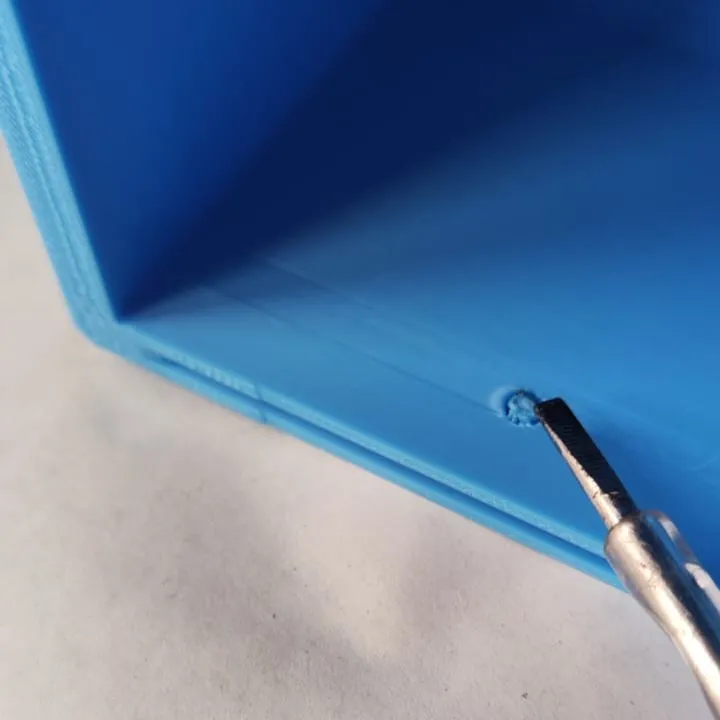

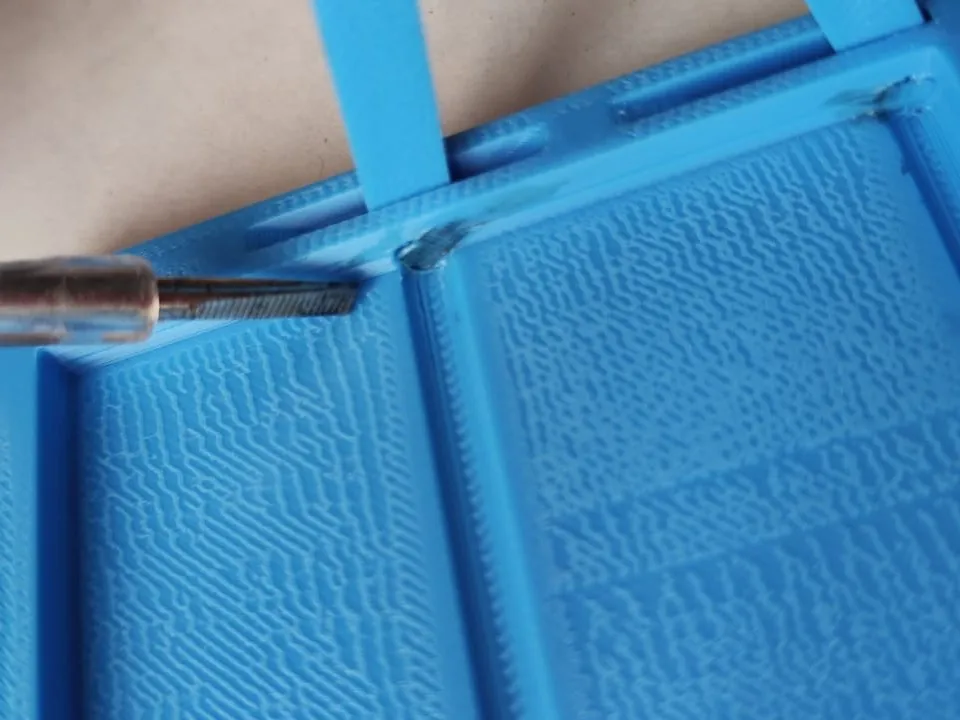

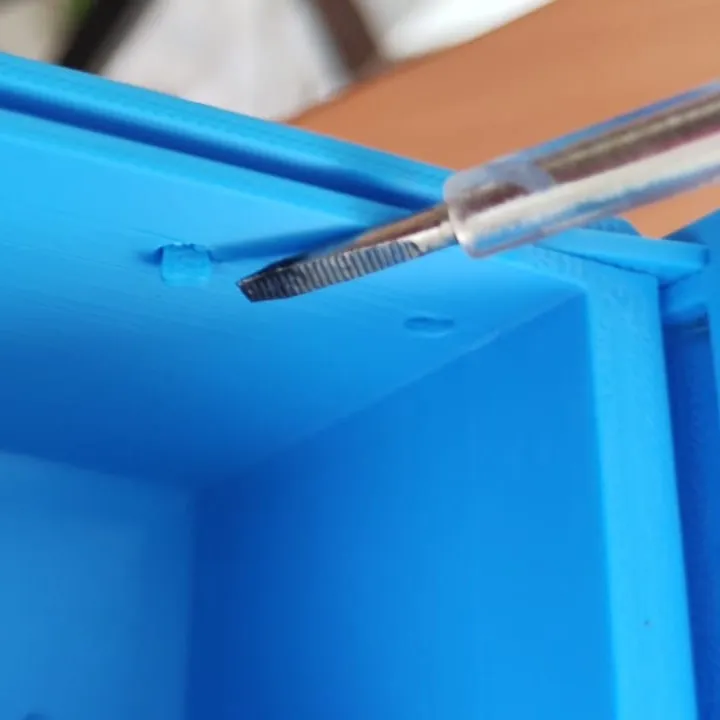

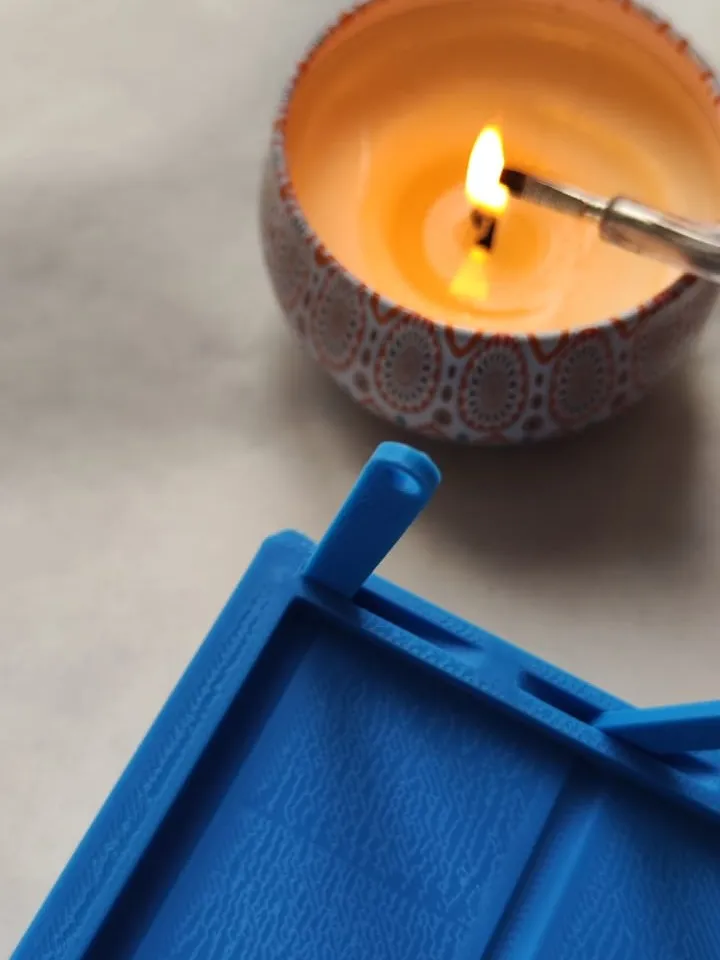

Heat the screwdriver with FIRE! and use it to fuse the PLA to glue the pin to the BOX!

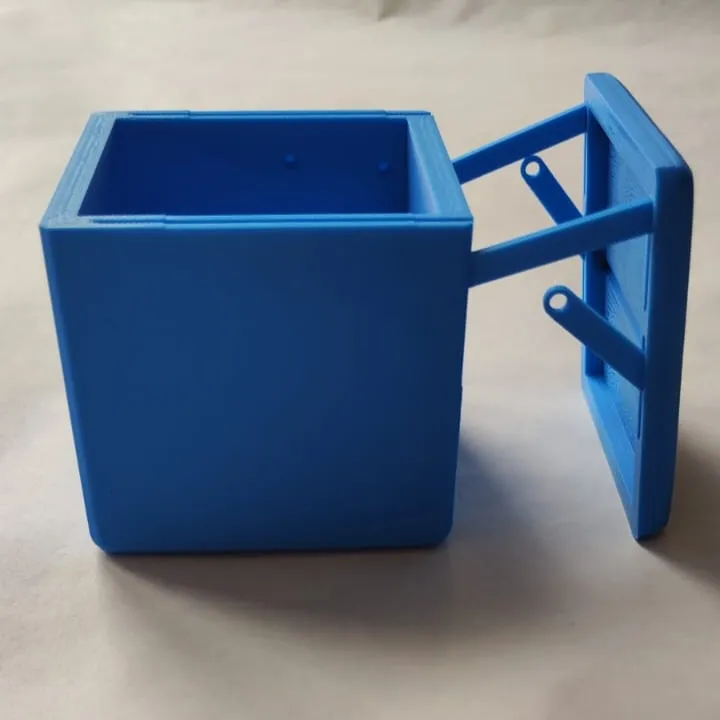

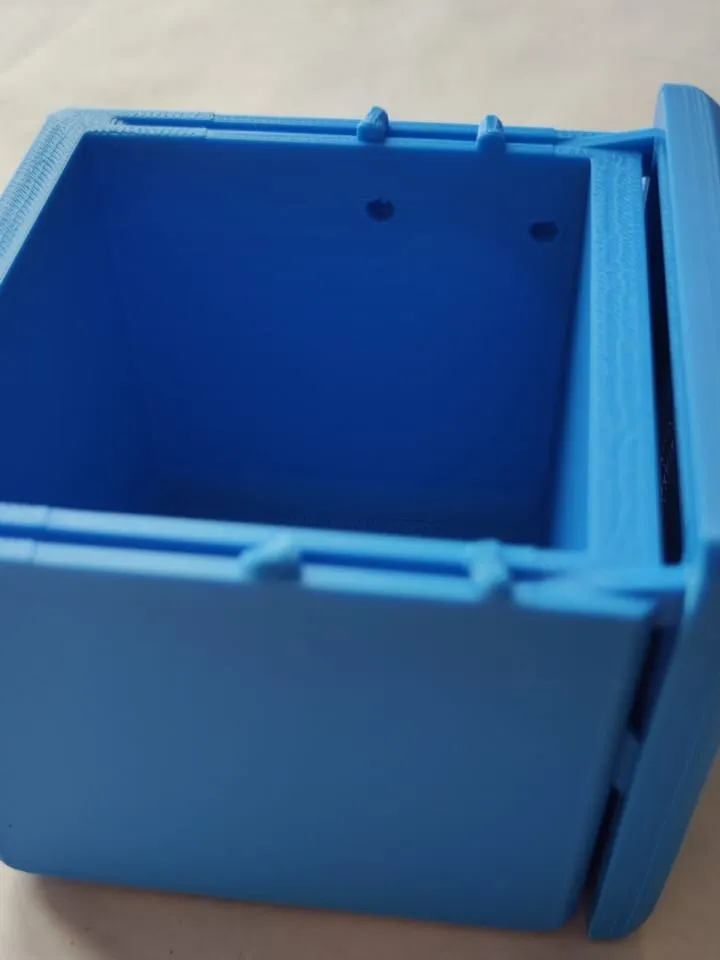

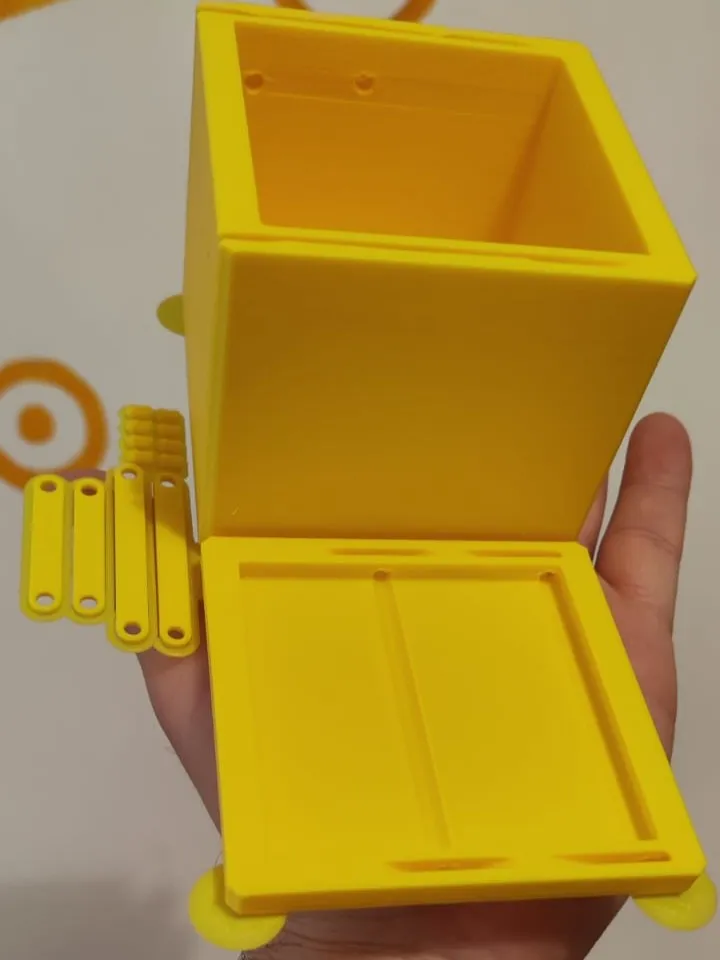

once the cover is ready insert it to the back of the box and insert pins in the holes!!
