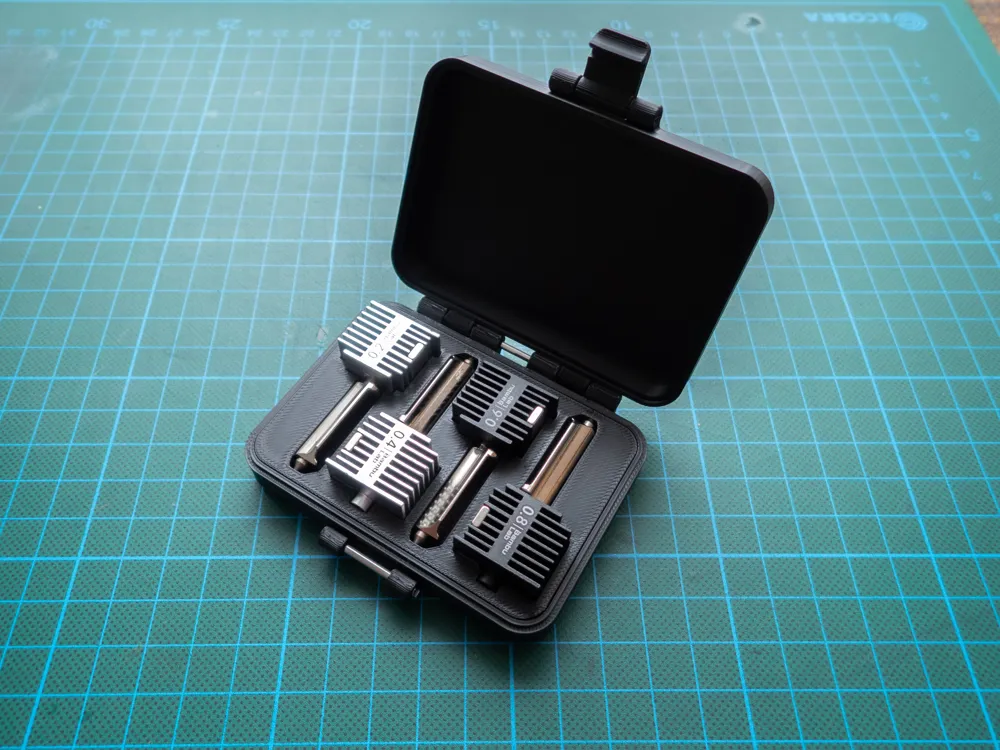

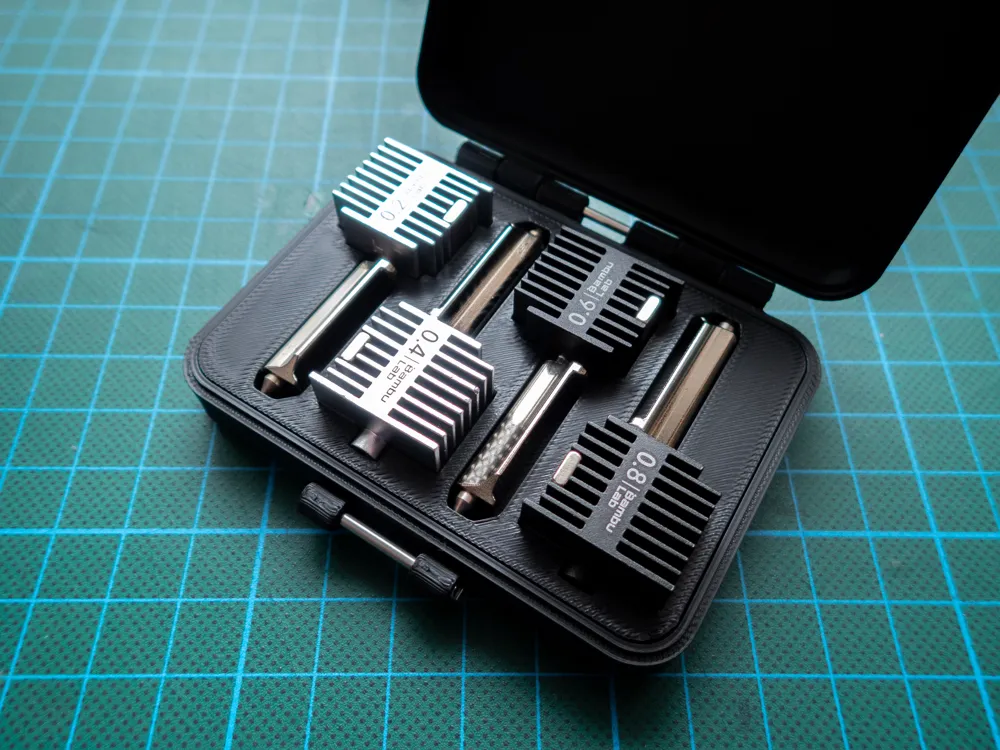

Box for Bambu Lab A1 and A1 Mini nozzles

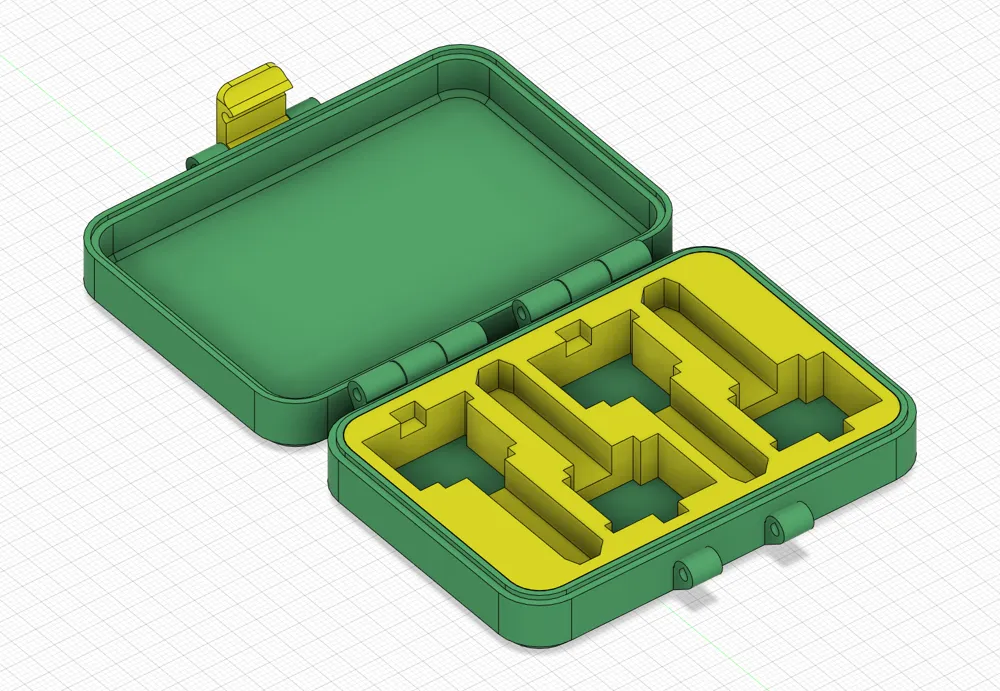

An implementation of my parametric latching box, with a custom insert that can hold four Bambu Lab A1 and A1 Mini nozzles. You can read some of the design considerations that went into this design in this blog post.

Print settings:

• Material: any. I print mine with PLA.
• Layer height: 0.2 mm.
• Orientation: lay everything flat on the bed, including the latch.
• Doesn't require support.

Note: The expected diameter of the hinge and latch pins is 2 mm. I make mine this size because I happen to own a lot of old steel bicycle spokes, and those are usually 2 mm in diameter, and perfect for this use case. If you want to use another size, you will have to download the Fusion file from the parametric model and update the hingePinDiameter and latchPinDiameter parameters respectively.

IMPORTANT: It goes without saying, but please don't put a hot nozzle back into the box before it has cooled!
