Smart Audio Mixer - Case
IP Report
Print Profile(1)
0.28mm layer, 2 walls, 30% infill
Designer
44 min
1 plate
Open in Bambu Studio
Boost
25
41
0
0
4
1
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
Bambu Filaments
Select all
List other parts
- Arduino Pro Micro x 1: You can use any Arduino or other board compatible with Arduino IDE as long as it enough Analog inputs for your use case
- Linear 10k Rotary Potentiometer x 5: You can use any Rotary Potentiometer, I recommend ones with 10k resistance and 8mm > shaft diameter
Description

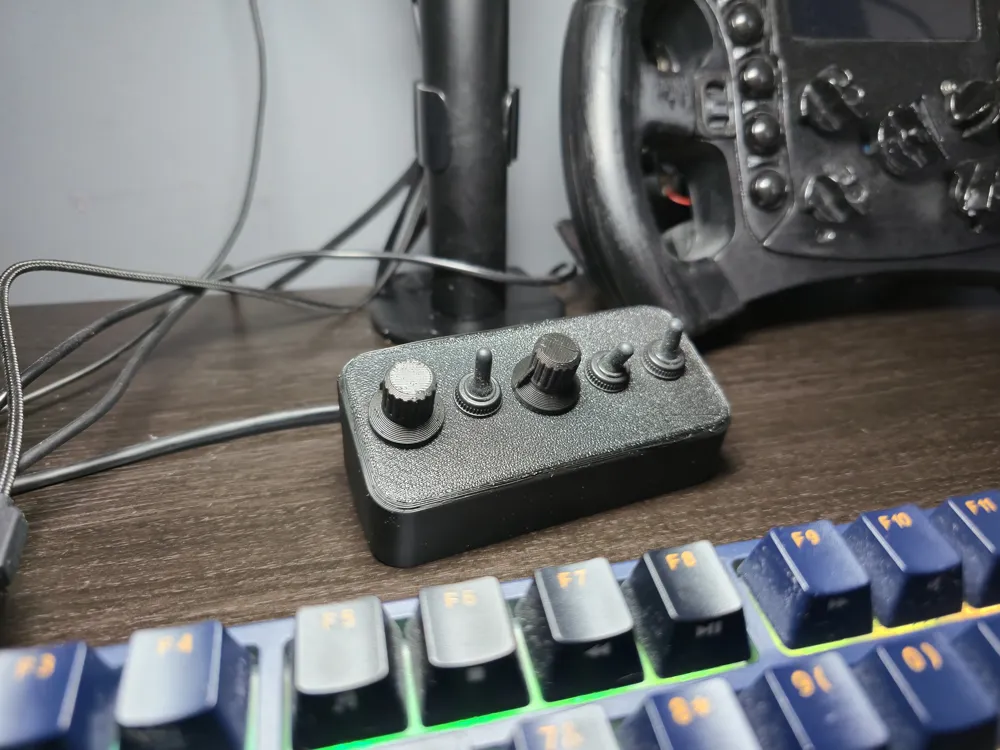

A small case that supports 5 potentiometers/switches to be used with the Smart Audio Mixer application available here: https://github.com/TeagueGillard/Smart-Audio-Mixer (FREE)
Included Files:
Case with support for 5 potentiometers/switches
Bottom cover
Knobs are NOT included
Requires:

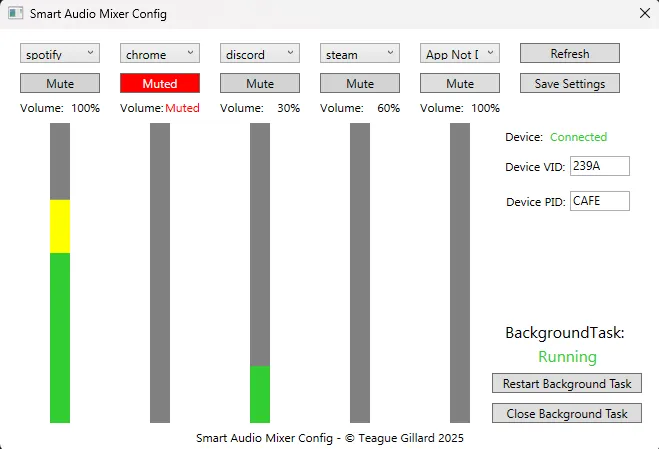

Smart Audio Mixer - Firmware and Application(FREE) ( https://github.com/TeagueGillard/Smart-Audio-Mixer )
Arduino ( Pro Micro recommended)
5 potentiometers or switches (can be fewer than 5 if you do not require 5)
4 M3 screws to bolt on the bottom cover (optional)
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
