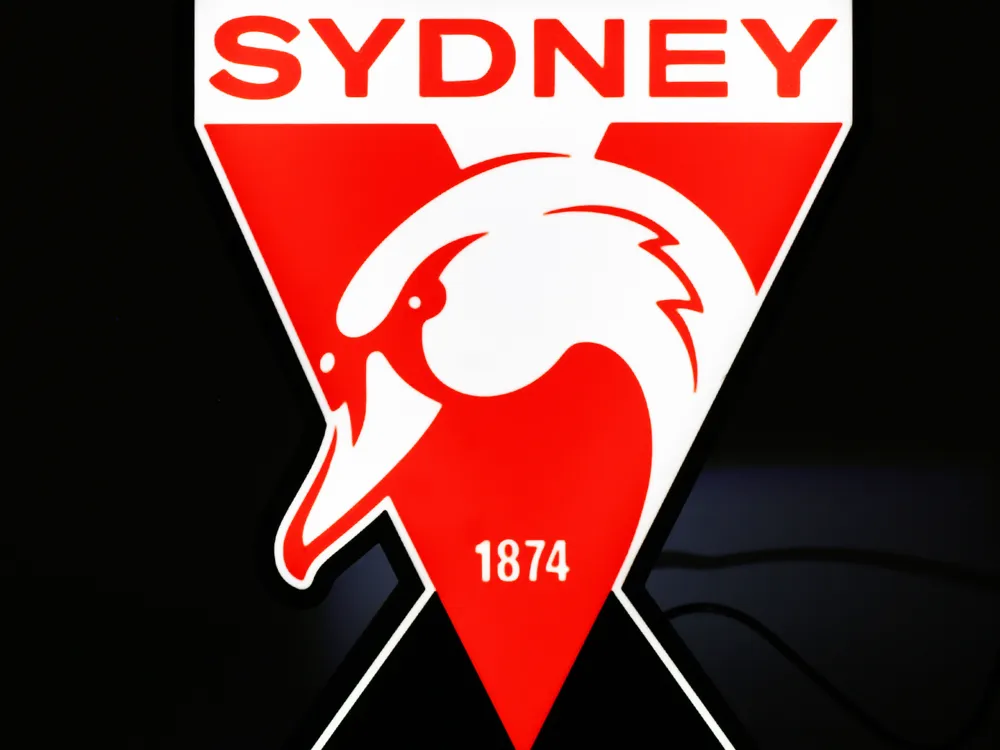

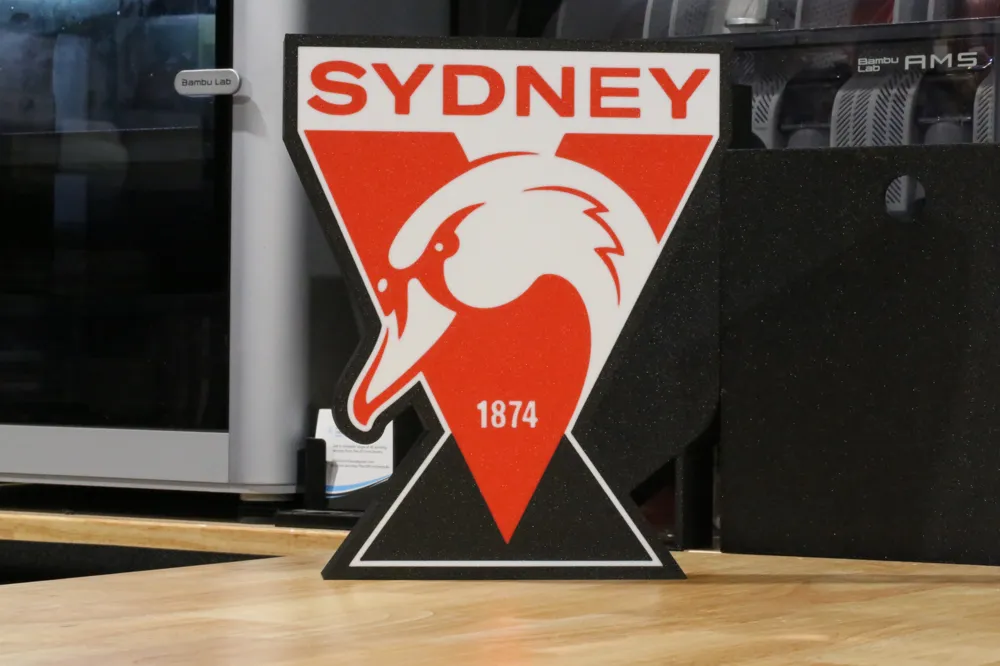

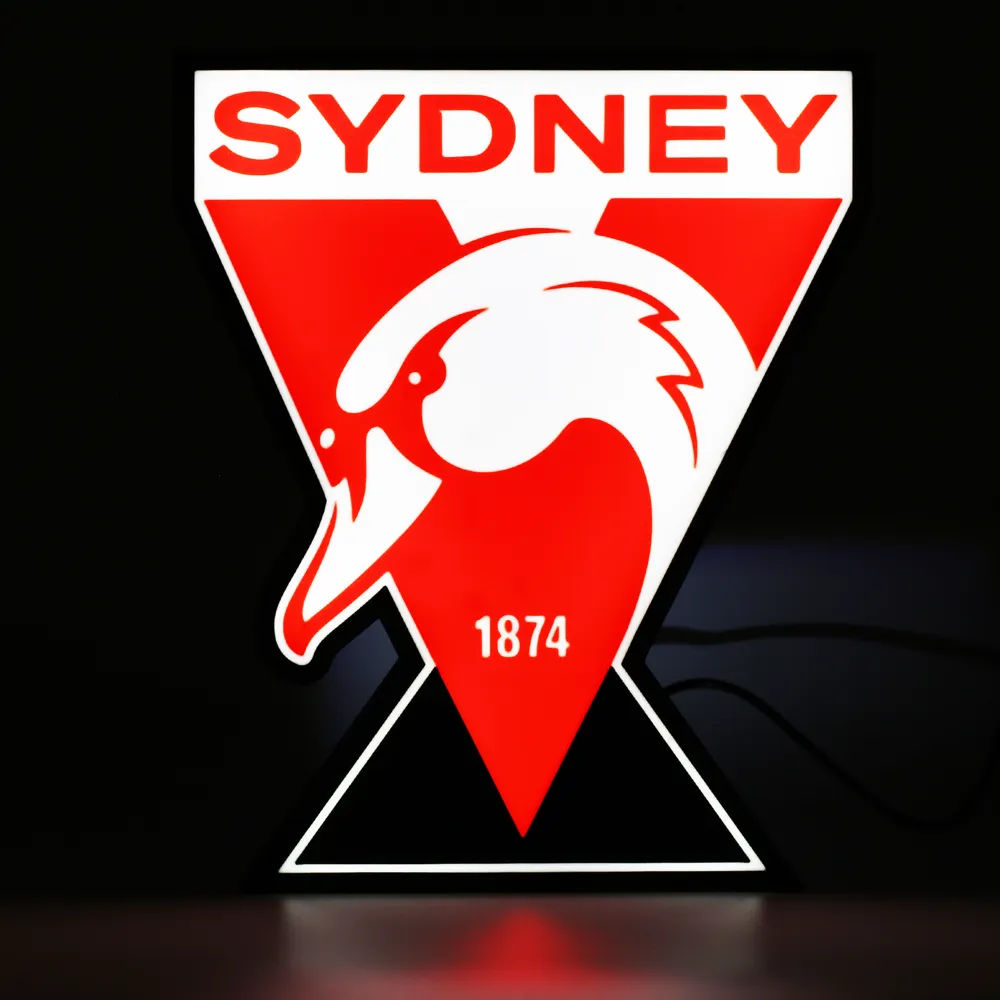

Sydney Swans LED Light Box
Modelled after the Australian Football League team Sydney Swans, this LED light box is designed for clean, backlit display.

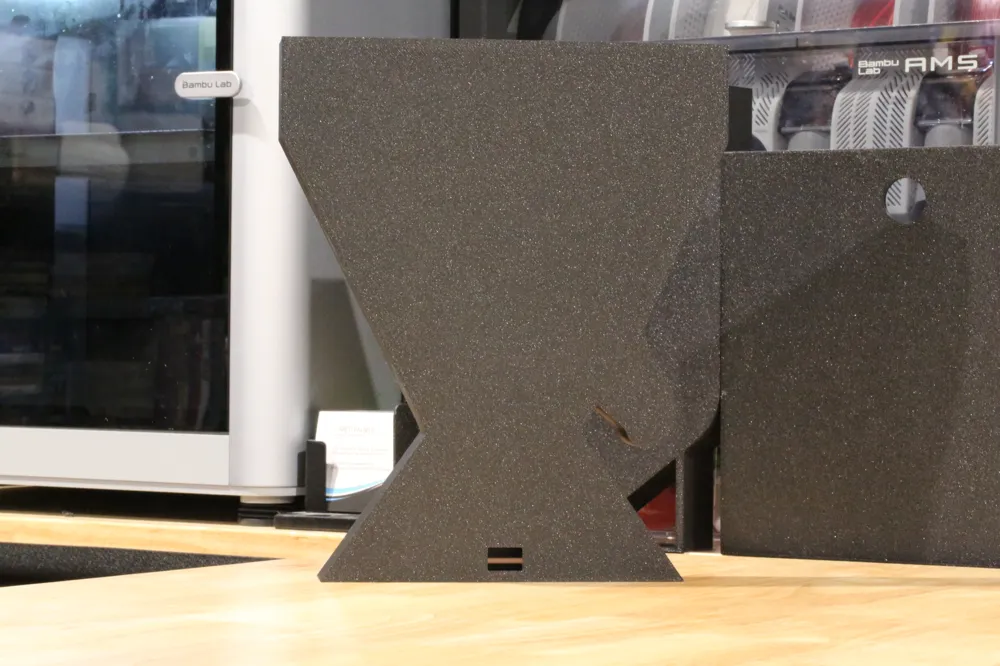

The stand is built into the backplate and prints as part of the same piece. A negative section has been included to fit a standard LED light strip.
The rear plate is 2mm thick for added durability, and the inside is white to improve light reflection and illumination. If you’d prefer not to use multi-colour printing for the backplate, highlight it in Bambu Studio, press “N” to enter painting mode, and select ‘Erase All Painting’ to revert it to a single colour.
Details:
• Modelled after the Sydney Swans AFL team
• Integrated stand built into backplate
• Negative channel for LED light strip
• Stronger 2mm rear backplate
• White internal surface for better light diffusion
• Optimised X1C profile with minimal pinholes between filament joins
Design Notes
All files are uploaded exactly as printed unless specified otherwise in project description (normally under a bold, red IMPORTANT). Some designs use different scaling (e.g. drinks lightbox series: front plate 90%, back plate 100%). If resizing, double-check your scale before printing.
All designs are created in Autodesk Fusion. Colours are separated in the Objects tab of Bambu Studio, so you can easily recolour if needed (e.g. single AMS setups).
