Twist for Treat Candy Dispenser
Print Profile(1)
Description

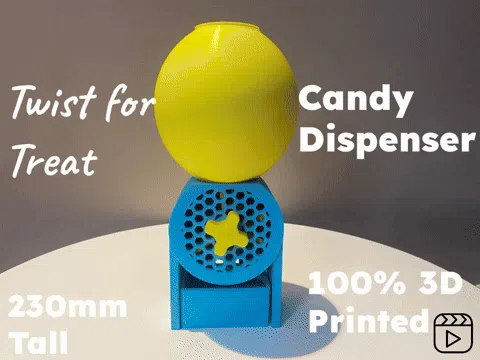

š¬Twist for Treat Candy Dispenserš¬

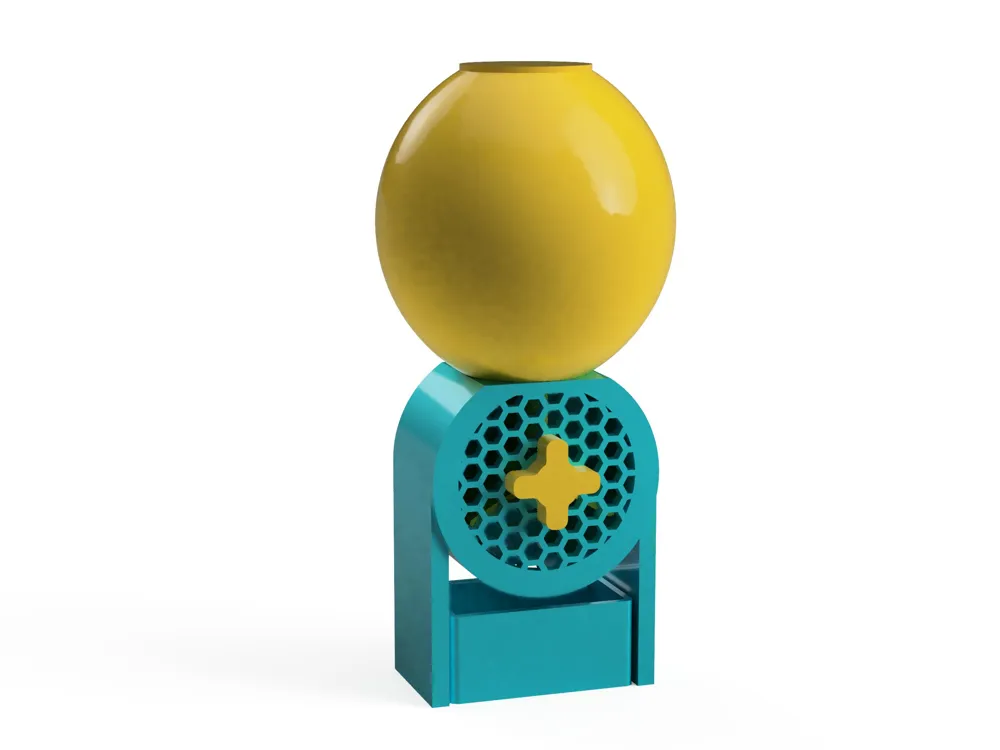

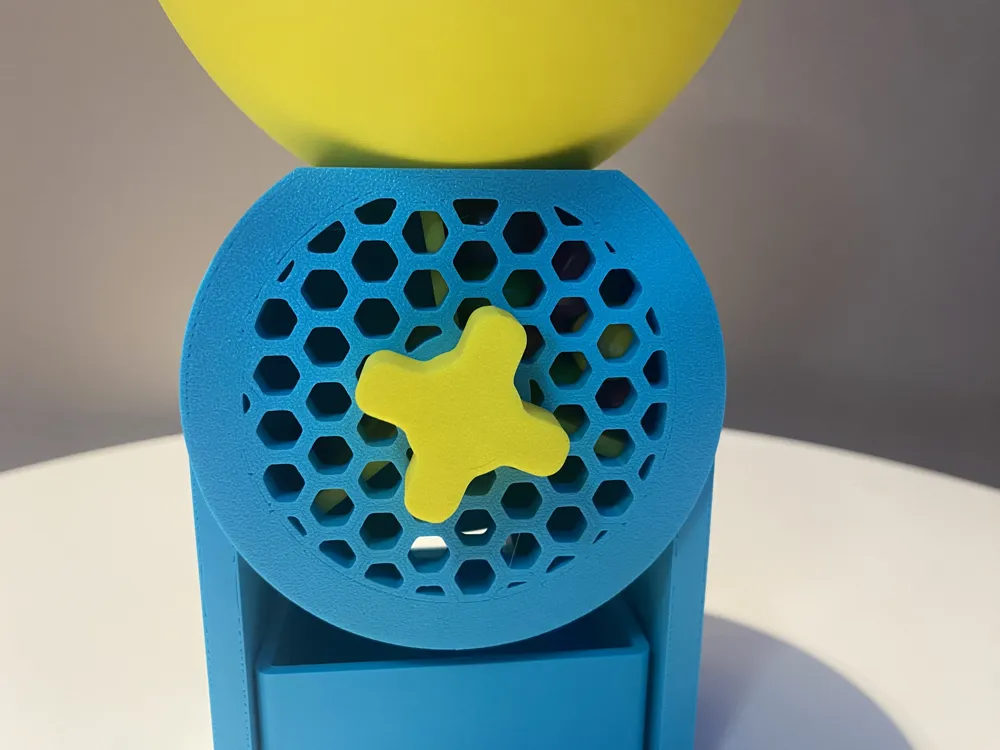

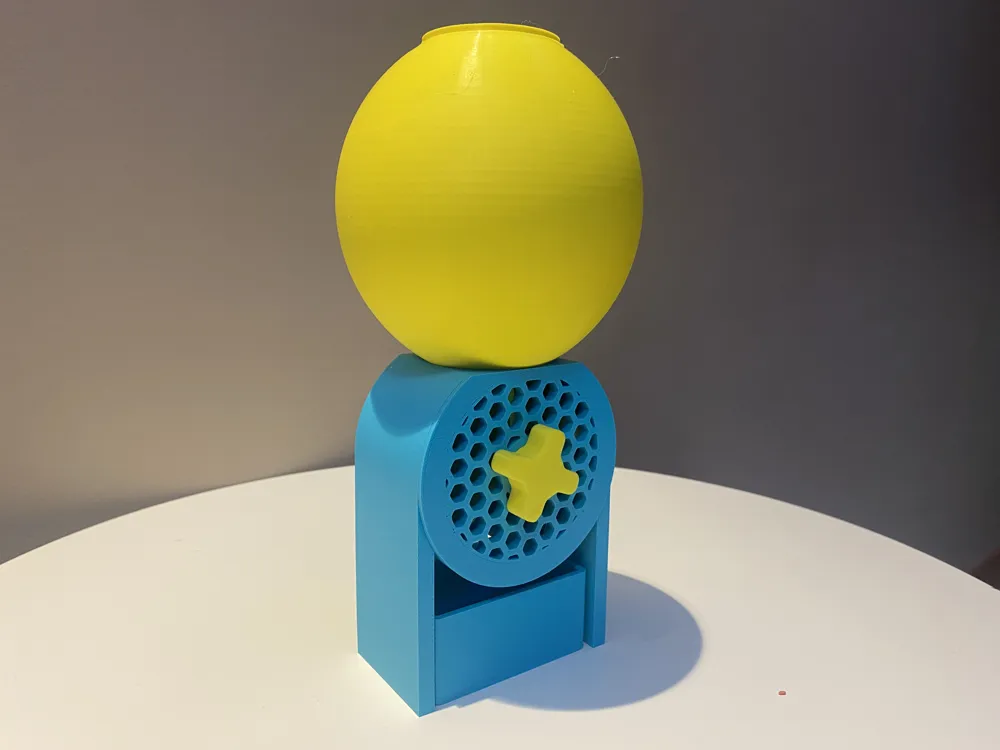

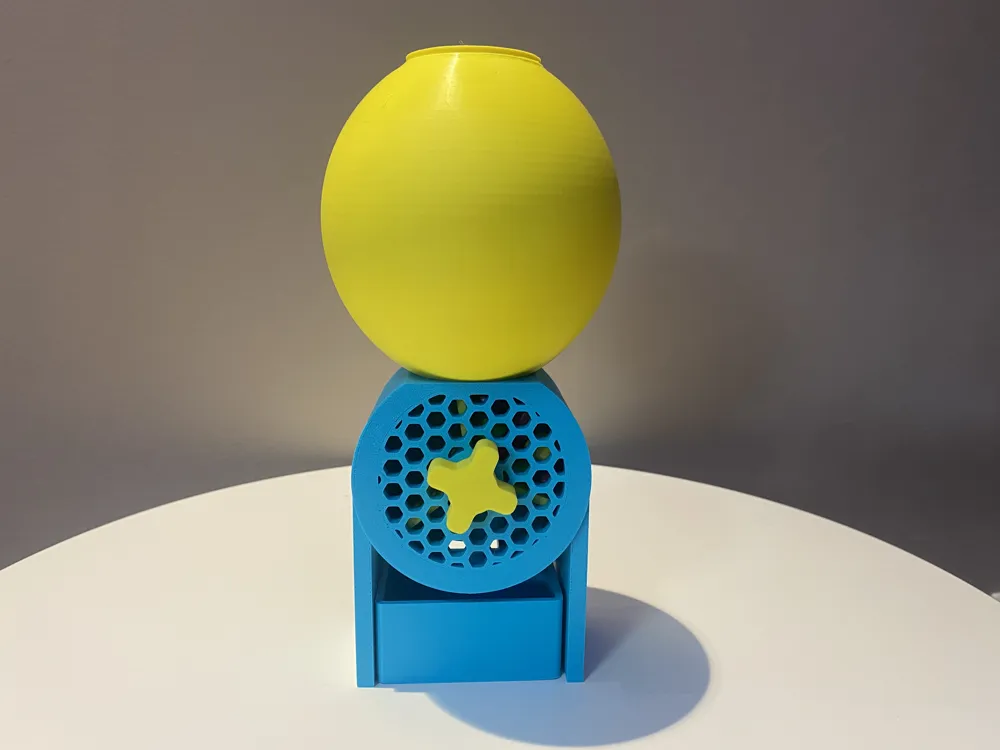

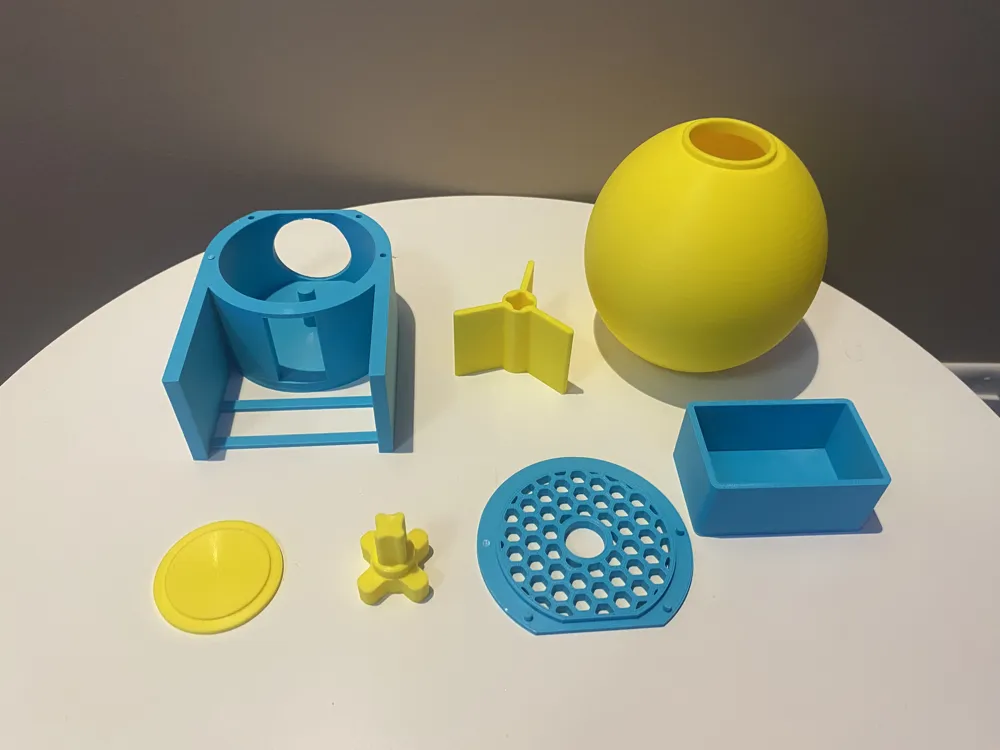

š§© Made from 7 interlocking parts, the design is fully modular and easy to assemble. The top funnel stores the candy, which feeds into a rotating drum with a star-shaped cavity. Turn the knob to dispense a handful of sweets into the tray below.
š Just like cereal dispensers, occasional jams can happen - usually when pieces bunch together - but a quick reverse and forward twist clears it up easily.
šØļø Recommended Print Settings
- Material: PLA or PETG
- Layer Height: 0.2 mm
- Infill: 8%
- Supports: Minimal Tree Support Dispenser Frame and Candy Tank
š¬ Best for round candies like Skittles, M&Ms, or jellybeans, roughly 10mm or less in size.
š§©Assemblyš§©
- Insert the Blade
Place the twist blade inside the machine body. Make sure it sits flat and spins freely. - Attach the Mesh Cover
Snap the mesh disc on top of the machine body to keep everything aligned and enclosed. - Insert the Knob
Push the knob into the star-shaped blade from the front. It should click in firmly and allow rotation. - Add the Candy Tank (Sphere)
Snap the funnel on top of the mesh to guide candy into the blade chamber. - Insert the Tray & Container
Slide the front tray insert into the base of the machine, then add the candy-catching container box. - Fill with Candy
Hold the twist knob to keep it steady, and pour in your candy! Works best with round candies like Skittles, M&Ms, or jellybeans (~10ā15mm). - Troubleshooting
If a jam occurs (like with cereal dispensers), rotate the knob slightly backward, then forward again to clear it.
Make sure to comment any questions or concerns you have about the model, I'd love to hear your thoughts.
Ā
You can find a step by step assembly guide with images below ā¤ļø
Ā
Models like this take time and effort to design. I spent over a week testing, printing and modifying it to make it enjoyable and perfect for others. If you enjoyed it, please Boost, Like, Comment, or Print to support the project ā¤ļøš§”š
